M2LV310D1 | 1800W Peak 10" Car Subwoofer | DC Audio

DC Audio Level 3 10 m2.1 D1

1800W Peak 10" Level 3 Series m2.1 Version Dual 1-Ohm Car Subwoofer - M2LV310D1

1800W Peak 10" Level 3 Series m2.1 Version Dual 1-Ohm Car Subwoofer - M2LV310D1

• Peak Power: 1800W
• RMS Power: 900W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

List price $340.00
Save: $68.00

$272.00

Special Order. Ships at Later Date with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
DC Audio (Soundlab)

Authorized dealer

General Features:

  • 10" Dual 1 ohm Level 3 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Recommended power range: 400 - 900 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature aluminum voice coil
  • Rubber mounting gasket

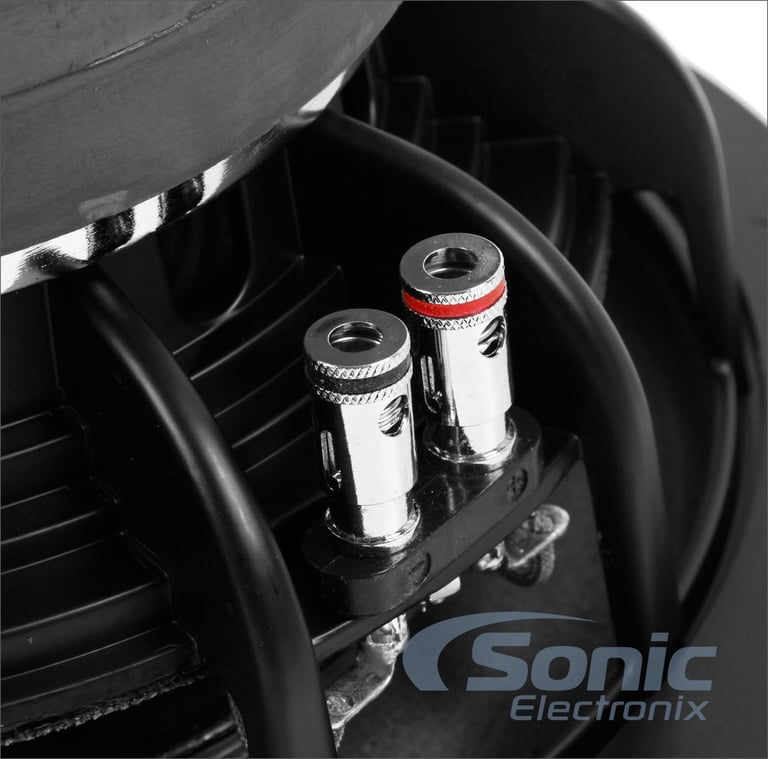

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.25"
  • Mounting Hole Diameter: 9.35"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 3 10" T/S Parameters:

  • Electrical Q Value (Qes): 0.567
  • Mechanical Q Value (Qms): 7.66
  • Total Speaker Q Value (Qts): .528
  • Free Air Resonance (Fs): 38.5 Hz
  • Equivalent Compliance (Vas): 13.16 liters
  • One-Way, Linear Excursion (Xmax): 23 mm
  • Efficiency (Ref SPL @ 1W): 83.1 dB (86.6dB @ 2.83V)
  • Effective Piston Area (Sd): 324 cm²
  • DC Resistance (Re): 3.6 ohm
  • Nominal Impedance (Znom): Dual 1 ohm
  • Force Factor (Bl): 17.2
  • Mechanical Compliance (Cms): .09 mm/N
  • Mechanical Mass (Mms): 190 g
  • Voice Coil Inductance (Le): 3.5 mH
  • Suggested Sealed Enclosure: .65 ft³
  • Suggested Ported Enclose: 1.0 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
Level 3 (DC Audio)
Subwoofer Size
10"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohms
Voice Coil Diameter
3"
Sensitivity
83.1 dB
Xmax (millimeters)
23 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.65 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Top-Mount Depth
6.25"
Cutout Diameter
9.35"
Electromechanical Parameters
Free-Air Resonance (Fs)
38.5 Hz
Equivalent Compliance (Vas)
13.16 liters
Total Speaker Q Value (Qts)
.528
Electrical Q Value (Qes)
.567
Electrical Resistance of Voice Coil (Re)
3.6 ohms
Mechanical Q Value (Qms)
7.66
What is in the box?
WITB: Subwoofers
Paperwork
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
