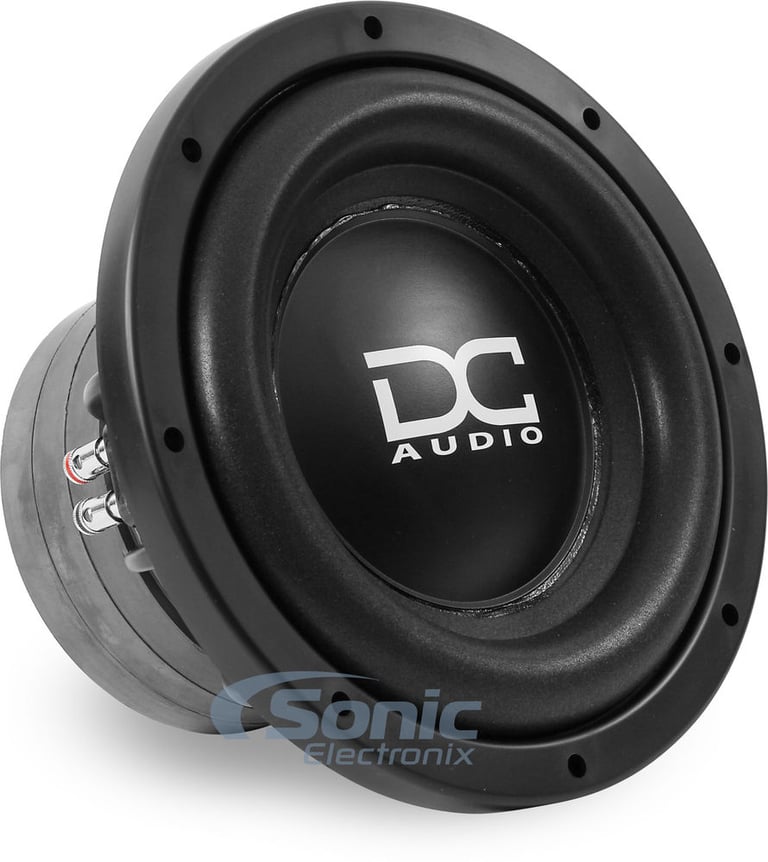

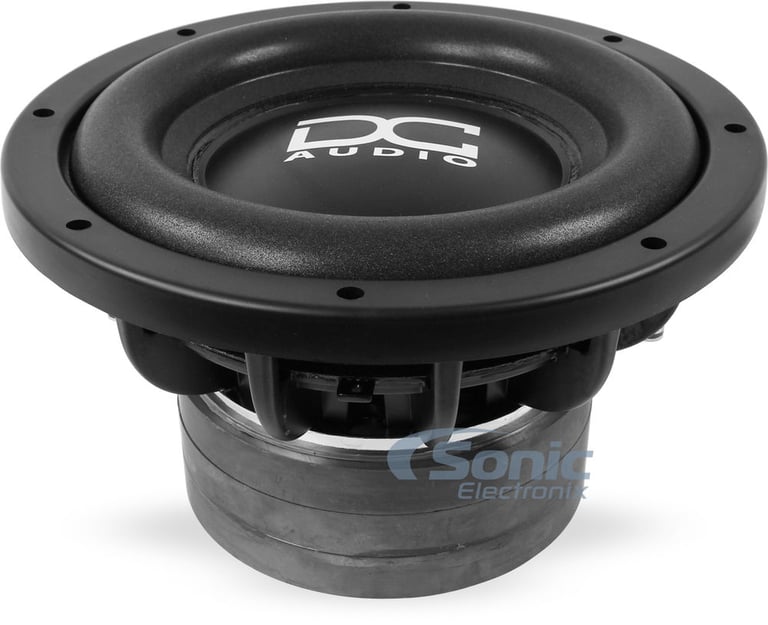

DC Audio Level 3 10 m2.1 D2

1800W Peak 10" Level 3 Series m2.1 Version Dual 2-Ohm Car Subwoofer - M2LV310D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1800W
• RMS Power: 900W
• Dual 2 ohm Voice Coil • Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv310d2

We apologize

This item has been discontinued


Loading...
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
25D120NO-4 main

DS18 25D120NO-4

240W Peak (120W RMS) 2.5" OEM Dashboard Full-Range 4-ohm Loudspeakers

-16.71%

$89.95

List price $107.99

Stage3 427F main

JBL Stage3 427F (STAGE3427FAM)

300W Peak (60W RMS) 4" Stage3 Series 2-Way Coaxial 3-ohm Car Speakers

3
-22.23%

$69.95

List price $89.95

FKB116 main

MB Quart FKB116

240W Peak (120W RMS) 6.5" Formula Series 2-Way 4-ohm Coaxial Car Speakers

12
-56.26%

$34.99

List price $79.99

XED525C main

Cerwin-Vega XED525C

500W Peak (60W RMS) 5.25” XED Series 2-Way 4-ohm Component Speaker System

8
-16.67%

$59.99

List price $71.99

Product Highlights


• Peak Power: 1800W
• RMS Power: 900W
• Dual 2 ohm Voice Coil • Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 2 ohm Level 3 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Recommended power range: 400 - 900 watts RMS

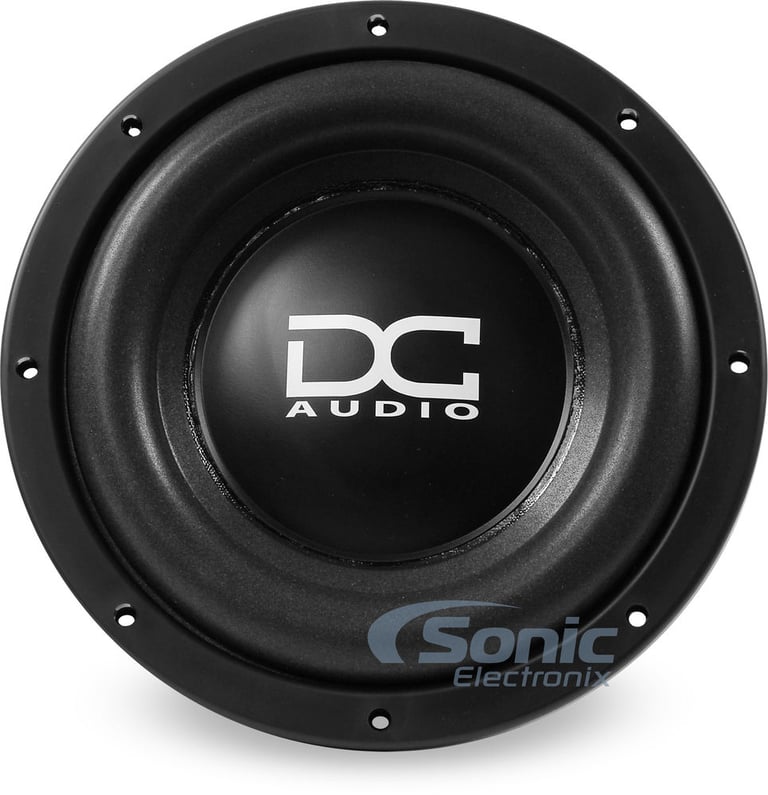

  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature aluminum voice coil
  • Rubber mounting gasket

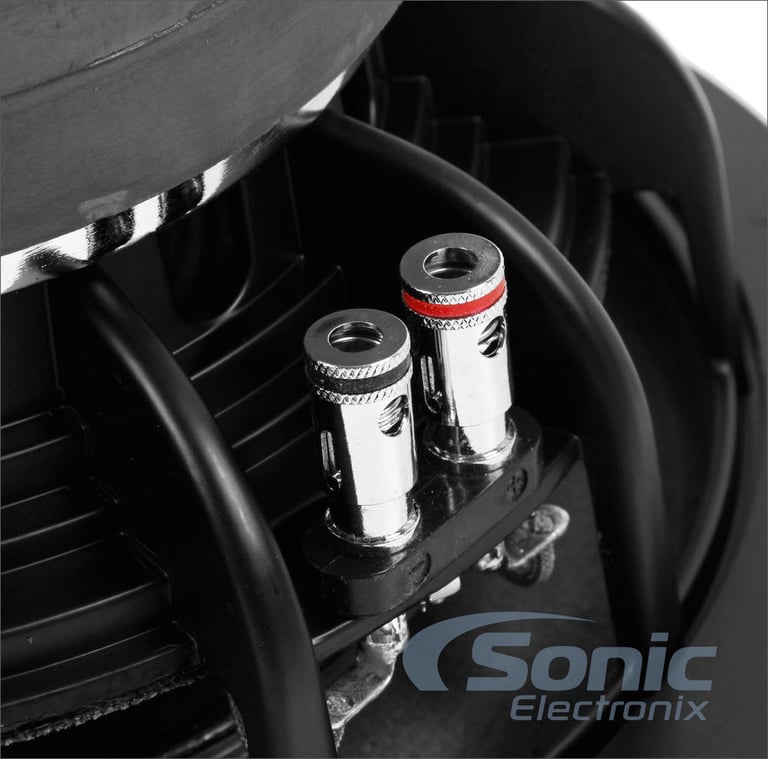

  • Chrome spring loaded push terminals

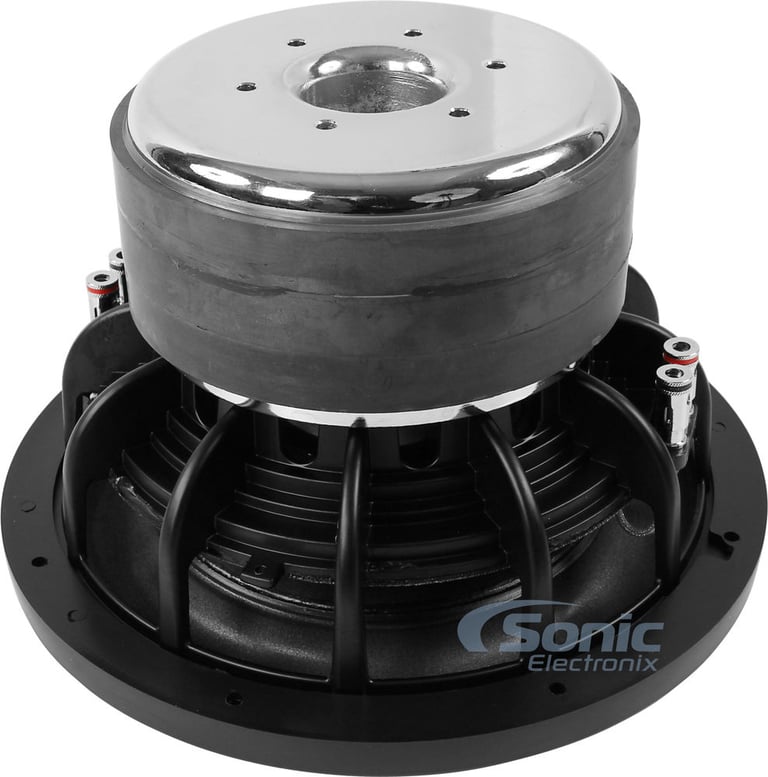

  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.25"
  • Mounting Hole Diameter: 9.35"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 3 10" T/S Parameters:

  • Electrical Q Value (Qes): 0.567
  • Mechanical Q Value (Qms): 7.66
  • Total Speaker Q Value (Qts): .528
  • Free Air Resonance (Fs): 38.5 Hz
  • Equivalent Compliance (Vas): 13.16 liters
  • One-Way, Linear Excursion (Xmax): 23 mm
  • Efficiency (Ref SPL @ 1W): 83.1 dB (86.6dB @ 2.83V)
  • Effective Piston Area (Sd): 324 cm²
  • DC Resistance (Re): 3.6 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 17.2
  • Mechanical Compliance (Cms): .09 mm/N
  • Mechanical Mass (Mms): 190 g
  • Voice Coil Inductance (Le): 3.5 mH
  • Suggested Sealed Enclosure: .65 ft³
  • Suggested Ported Enclose: 1.0 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 3 10 m2.1 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 3 10 m2.1 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 3 10 m2.1 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 3 10 m2.1 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Level 3 Series
Subwoofer Size
10"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
83.1 dB
Xmax (millimeters)
23 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.65 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
6.25"
Cutout Diameter
9.35"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
38.5 Hz
Equivalent Compliance (Vas)
13.16 liters
Total Speaker Q Value (Qts)
.528
Electrical Q Value (Qes)
.567
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
7.66
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV310D2

Weight:

26.00lbs

Internal SKU:

m2lv310d2

Internal Product ID:

88150
