See all parts that fit your 2002 Sonoma

DC Audio Level 3 12 m2.1 D2

1800W Peak 12" Level 3 Series m2.1 Version Dual 2-Ohm Car Subwoofer - M2LV312D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1800W
• RMS Power: 900W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv312d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

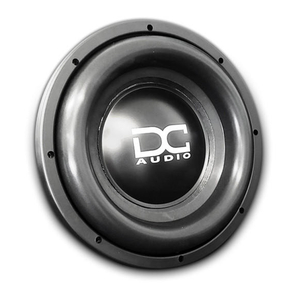

m4lv312d2 thumbnail

DC Audio Level 3 12M4D2 (M4LV311D2)

OUR PRICE: $354.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

70-1858 main

Metra 70-1858 Wiring Harness

Install a new car stereo in select 1986-2006 vehicles from Chevrolet, GMC, Pontiac

64
GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

14
-10.50%

$179.00

List price $200.00

Limited time!
46CSC464 main

Kicker CSC46 (46CSC464)

300W Peak (100W RMS) 4x6” CS Series 2 Way Coaxial 4-ohm Speakers

88
-29.45%

$59.96

List price $84.99

43DSC460 main

Kicker DSC460 (43DSC4604)

240W Peak (60W RMS) 4x6" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC4604)

49
-13.34%

$64.99

List price $74.99

Product Highlights


• Peak Power: 1800W
• RMS Power: 900W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 12" Dual 2 ohm Level 3 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Recommended power range: 400 - 900 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature aluminum voice coil
  • Rubber mounting gasket
  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.75"
  • Mounting Hole Diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 3 12" T/S Parameters:

  • Electrical Q Value (Qes): 0.617
  • Mechanical Q Value (Qms): 8.33
  • Total Speaker Q Value (Qts): .574
  • Free Air Resonance (Fs): 35.4 Hz
  • Equivalent Compliance (Vas): 28.99 liters
  • One-Way, Linear Excursion (Xmax): 23 mm
  • Efficiency (Ref SPL @ 1W): 85 dB (88.5dB @ 2.83V)
  • Effective Piston Area (Sd): 481 cm²
  • DC Resistance (Re): 3.6 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 17.2
  • Mechanical Compliance (Cms): .09 mm/N
  • Mechanical Mass (Mms): 225 g
  • Voice Coil Inductance (Le): 3.5 mH
  • Suggested Sealed Enclosure: 1.00 ft³
  • Suggested Ported Enclose: 1.25 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M4lv312d2 thumbnail
(newest, current model)
DC Audio M3LV312D2 thumbnail
(previous model, replaced by DC Audio Level 3 12M4D2 (M4LV311D2))
DC Audio M2LV312D2 thumbnail
(previous model, replaced by DC Audio (Soundlab) M3LV312D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 3 12 m2.1 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 3 12 m2.1 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 3 12 m2.1 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 3 12 m2.1 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Level 3 Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
85 dB
Xmax (millimeters)
23 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.00 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6.75"
Cutout Diameter
11.00"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35.4 Hz
Equivalent Compliance (Vas)
28.99 liters
Total Speaker Q Value (Qts)
.574
Electrical Q Value (Qes)
.617
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.33
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Mounting screw cover (attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV312D2

Weight:

27.00lbs

Internal SKU:

m2lv312d2

Internal Product ID:

88153

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 3 12 m2.1 D2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.8
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Exceeded my Expectations

I would recommend this sub to anyone who is looking for a serious subwoofer without sacrificing sound quality. I installed one of these in a 1.8 cu foot ported box and this sub hits all the lows! I have this put in the helm of my boat and it has the smoothest yet solid bass response of any sub I have owned. So don't think twice this puts my old Kicker L7's to shame

By Matt on April 23, 2018

28 found this helpful


JUST BUY IT

Ok I have owned all kinds of subs over the years and well this thing is the meanest thing I have ever owned. I have one at 1 ohm on a mb quart amp running 1000Watts rms. I run a dual battery set up in my jeep and I have it in a prefab Belva Sub Box 1SV12G they say it's 1.8 cubes after sub and what not thing its about 1.5 cubes woofer say it needs 1.25 in a vented box. but it sounds great during my break in period at half power I was at a buddies house 6 to 10 feet away from his garage door and we could see the door shaking. Now at full power and this thing is just crazy I know they say 900 watts rms but its taking my 1000watts rms like nothing I have ever seen. I have had other subs on this amp that clamed 1000 and they just couldn't hold it that's why I paid more for this one. I was told that dc underrates there products and I must say they are right, I feel as if this thing could hold maybe at most 1500watts rms, but at the end you get what you pay for. So just buy it and you will see for yourself this is just a great woofer and yes I would recommend this to anyone and will say i'm looking to the future already and wanting to get a level 4 or 5 from dc I am now a big fan.

By Raymond on July 23, 2015 Checkmark Icon Verified purchase

29 found this helpful


Dc audio 12" level 3 sub

Dc audio has been the best street pounding sub I have ever owned.The level 3 series can handle some serious power.i currently have a Rockford t1500-1bd pushing just one sub in a Jeep Wrangler and it rattles everything around it.i am not even pushing this bad boy to its limits.i would highly recommend this sub I even picked it over a sub custom built from Psi.Sonic electronics had this thing shipped and to my door in 2days and it weighed a ton.customer service was great helping me pair it to the right ohm load as wel.Dont waste your time buying Jl audio when you can have some of the best subs for the same cost that can handle more power and sound lot better in my opinion for half the cost.these subs are competition grade.just view them on you tube to see for your self.

By Boss man on January 22, 2015

31 found this helpful


DC audio

I have one of these wired 1 ohm on a BE1700.1d hifonics built a box 1.25cuft after displacements tuned at 33hz in a 4th gen explorer and it puts out nice clean lows decent impact not painful to listen too and does not shake everything apart.... I bought the lvl3 with AR Cone upgrade...if I could do it again I would consider the lvl4 because my amp has about 500 more watts than this sub can actually handle .. yes its under rated

By MotorCityFats on April 19, 2015

28 found this helpful


DC Audio Level 3 12 m2.1 D2

Owned dozens of subs and brands since 1990. For the money and needed wattage this thing is a beast! 850 clamped watts at 1ohm in a custom 2ft. after displacement and bracing. Only running 1 and I don't think my car can handle another. Every competition I've been in, half the field is running dc audio. Worth the price, always happy to do business with sonic too.

By Anonymous on July 21, 2018 Checkmark Icon Verified purchase

24 found this helpful


Nice sounding subwoofer

I replace my M3-8 with this level 3 12" subwoofer and iam glad I did. This sub sounds amazing. I have it running off a IA audio 10.1 @ 1 ohm and it hits the lows real nice. I built a custom box myself that is 1.5 qft tuned to 34 hz. I have it in a little Toyota Tacoma extra cab and it slams hard.

By Kevin on May 12, 2017 Checkmark Icon Verified purchase

23 found this helpful


Very Satisfied

I'm always sceptical of products i've never worked with before but let me tell you im happy I took the chance. Before DC I was running 2 JL W3 8ohm 12's off of 2 Mclass Memphis 1.1100s. There's a long list of decent 2ohm subs but ive heard great reviews for DC. First of all you have to let these bad boys break in once they do its a difference of night and day. Strong bass. Rated at 900RMS Im running 1100 each gains set at 30%. Ported box no idea of tune. If you have the talent or money to put in correct box well worth the time and money

By Dizzy on September 4, 2017

22 found this helpful


Best sub I've owned

I have 2 of these powered by 2 ockford Fosgate 1200d and they sound far better, deeper and louder that my Kicker l7's and Alpine type R's. They are just on a completely different level.

By Renn on June 30, 2016 Checkmark Icon Verified purchase

22 found this helpful




BVNV9384RC small

Boss BVNV9384RC with Backup Camera

6.2" Double-DIN Touchscreen DVD Multimedia Receiver with Bluetooth and Built-in Navigation

(2)

$249.99

List price $399.99

MDAB small

Scosche MDAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

(21)

$6.99

List price $8.95

M2LV312D1 small

DC Audio Level 3 12 m2.1 D1

1800W Peak 12" Level 3 Series m2.1 Version Dual 1-Ohm Car Subwoofer - M2LV312D1

$296.00

List price $350.00

CBHVA small

Scosche voCALL CBHVA

Handsfree Bluetooth Speakerphone with Voice Announce Caller ID

$69.99

List price $79.99

SXV300V1,VRN-65HXB small

Soundstream VRN-65HXB + SiriusXM Tuner

Double DIN SiriusXM Ready Bluetooth In-Dash DVD/CD/AM/FM Car Stereo Receiver w/ 6.2" LCD Screen

(157)

$339.98

List price $359.98

CP8CK small

Rockford Fosgate CP8CK

8 Gauge Amp Install Kit

$34.99

List price $49.99

DOT0103 PINK small

Kogeto Dot Pink (LB4201)

360 Degree Panoramic Camera Lens for iPhone 4 & 4S

$17.99

List price $99.00

VX7022 small

Jensen VX7022 (Remanufactured)

Double DIN Multimedia Navigation Car Stereo w/ 6.2" TFT Touchscreen, SirusXM Radio Ready and Pandora Control

(11)

$229.95

List price $449.99

DQ-61 BLACK small

AudioControl DQ-61 (Espresso Black)

6 Channel Line Out Converter with Signal Delay, AccuBass, and EQ, with 5-year warranty*!

(2)

$299.99

List price $479.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 GMC Sonoma

2000 Jaguar S-Type

2002 Lexus IS300

2017 Ford C-Max

2000 Saturn SL

2011 Mazda CX-7

2006 Ford E Series

1998 GMC Jimmy

1996 Mazda B2300

1992 GMC Sonoma

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
