DC Audio Level 4 10 m2.1 D2

2800W Peak 10" Level 4 Series m2.1 Version Dual 2-Ohm Car Subwoofer - M2LV410D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 2800W
• RMS Power: 1400W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv410d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m3lv410d2 thumbnail

DC Audio (Soundlab) M3LV410D2

OUR PRICE: $414.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

Product Highlights


• Peak Power: 2800W
• RMS Power: 1400W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 2 ohm Level 4 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 2800 watts
    • RMS: 1400 watts
  • Recommended power range: 1000 - 1400 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Triple 8" OD flat linear roll spider
  • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature Edge wound aluminum voice coil
  • Rubber mounting gasket

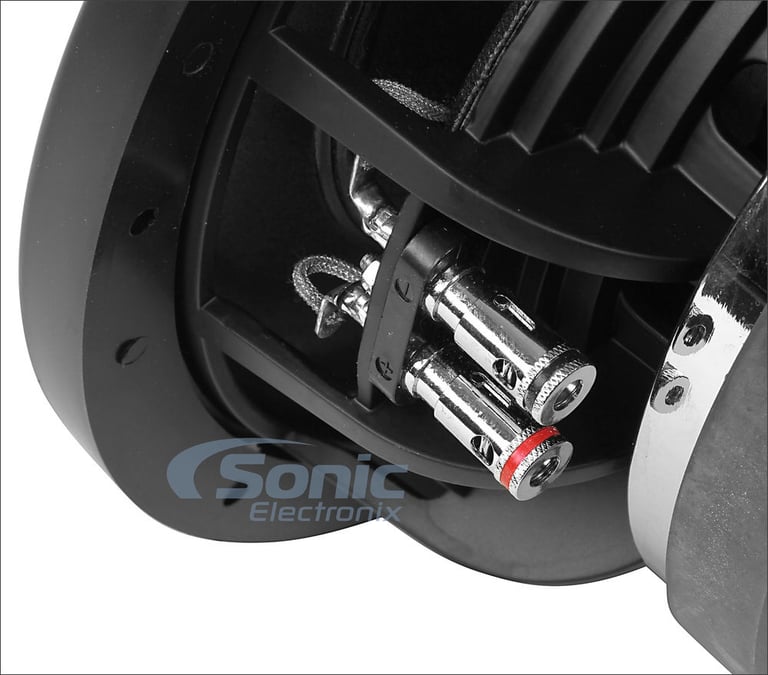

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.25"
  • Mounting Hole Diameter: 9.25"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 4 10" T/S Parameters:

  • Electrical Q Value (Qes): 0.49
  • Mechanical Q Value (Qms): 7.77
  • Total Speaker Q Value (Qts): .461
  • Free Air Resonance (Fs): 40.2 Hz
  • Equivalent Compliance (Vas): 12.42 liters
  • One-Way, Linear Excursion (Xmax): 23.5 mm
  • Efficiency (Ref SPL @ 1W): 84dB
  • Effective Piston Area (Sd): 324 cm²
  • DC Resistance (Re): 3.82 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 19.18
  • Mechanical Compliance (Cms): .085 mm/N
  • Mechanical Mass (Mms): 184.5 g
  • Voice Coil Inductance (Le): 3.78 mH
  • Suggested Sealed Enclosure: 0.75 ft³
  • Suggested Ported Enclose: 1.00 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M3LV410D2 thumbnail
(newest, current model)
DC Audio M2LV410D2 thumbnail
(previous model, replaced by DC Audio (Soundlab) M3LV410D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 4 10 m2.1 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 4 10 m2.1 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 4 10 m2.1 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 4 10 m2.1 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

Specifications & Details


Subwoofer Specifications
Series
Level 4 Series
Subwoofer Size
10"
Peak Power Handling
2800 watts
RMS Power Handling
1400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
84 dB
Xmax (millimeters)
23.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
6.25"
Cutout Diameter
9.25"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
40.2 Hz
Equivalent Compliance (Vas)
12.42 liters
Total Speaker Q Value (Qts)
.461
Electrical Q Value (Qes)
.49
Electrical Resistance of Voice Coil (Re)
3.82 ohm
Mechanical Q Value (Qms)
7.77
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV410D2

Weight:

33.60lbs
