See all parts that fit your 2003 Ram 1500 Van

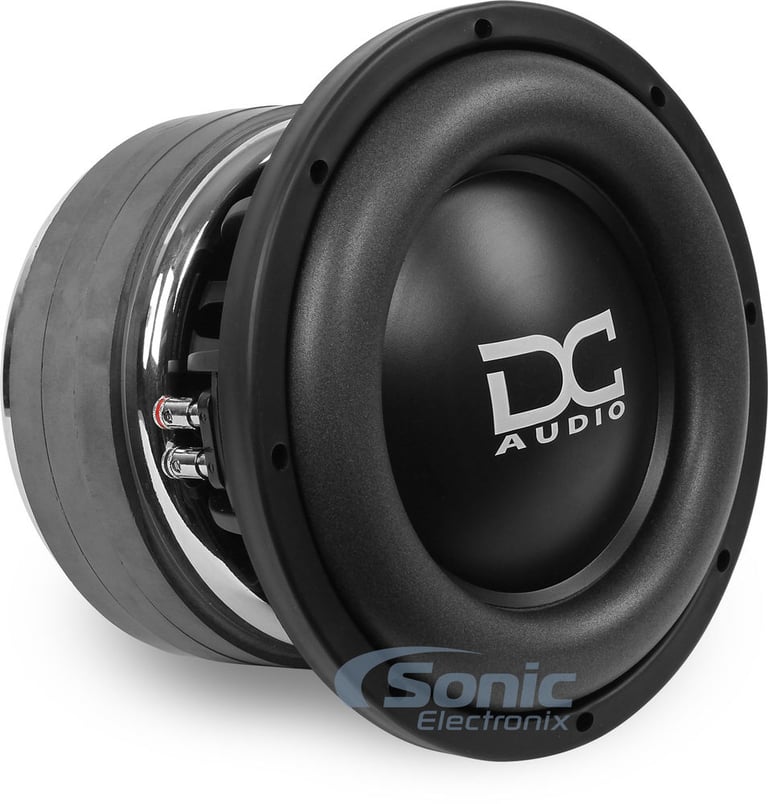

DC Audio XL10 m2.1 D2

4400W Peak 10" XL Series m2.1 Version Dual 2-Ohm High SPL Car Subwoofer with 3.0" Voice Coils - M2XL10D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 4400W
• RMS Power: 2200W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2xl10d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m4xl10d2 thumbnail

DC Audio XL10 M4 D2 (M4XL10D2)

OUR PRICE: $560.00

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...

Cerwin-Vega CV7BM

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

12

$109.00

List price $109.99

Product Highlights


• Peak Power: 4400W
• RMS Power: 2200W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 2 ohm XL Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 4400 watts
    • RMS: 2200 watts
  • Recommended power range: 1600 - 2200 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround

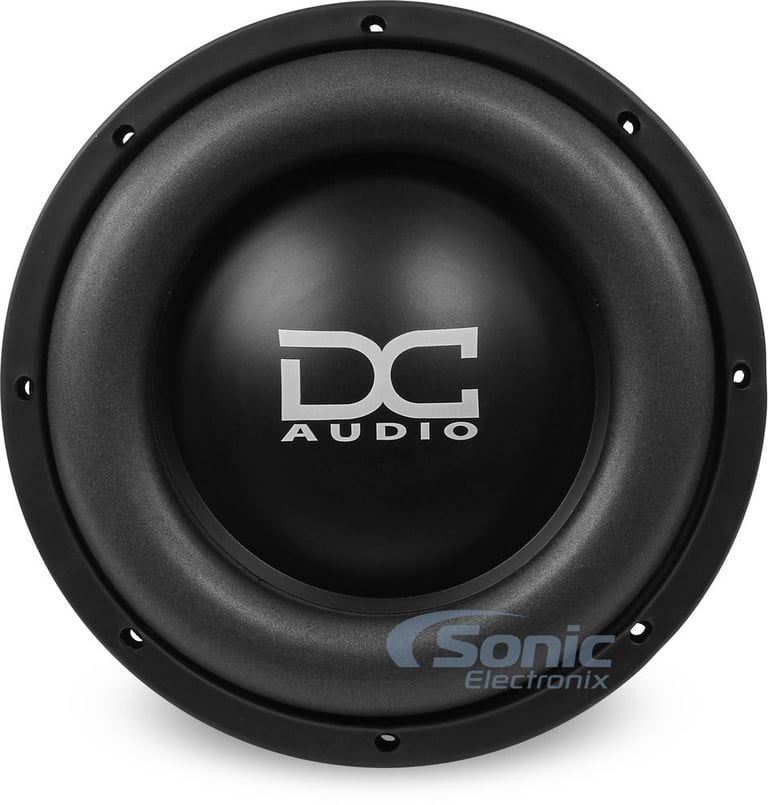

  • Polypropylene dust cover with embossed DC logo

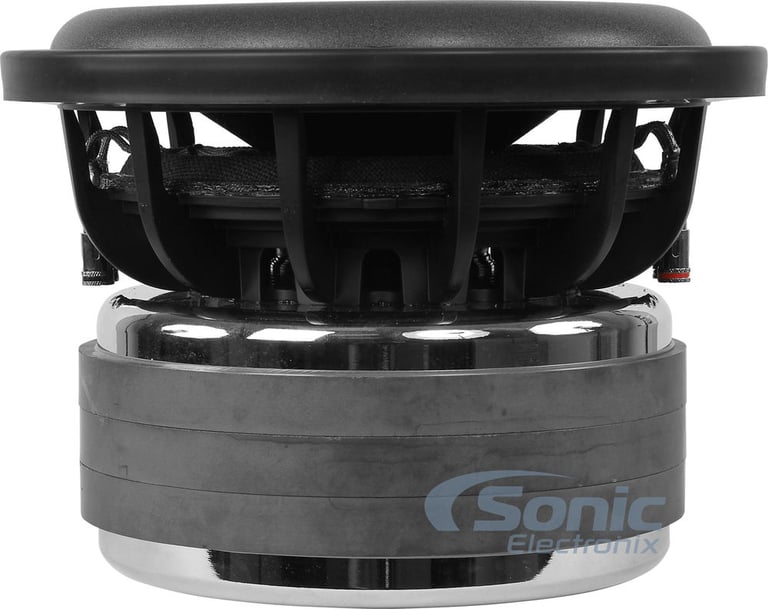

  • Quad 8" OD semi cup progressive roll spiders
  • Dual extra heavy duty interweaved tinsel lead wire
  • Rubber mounting gasket

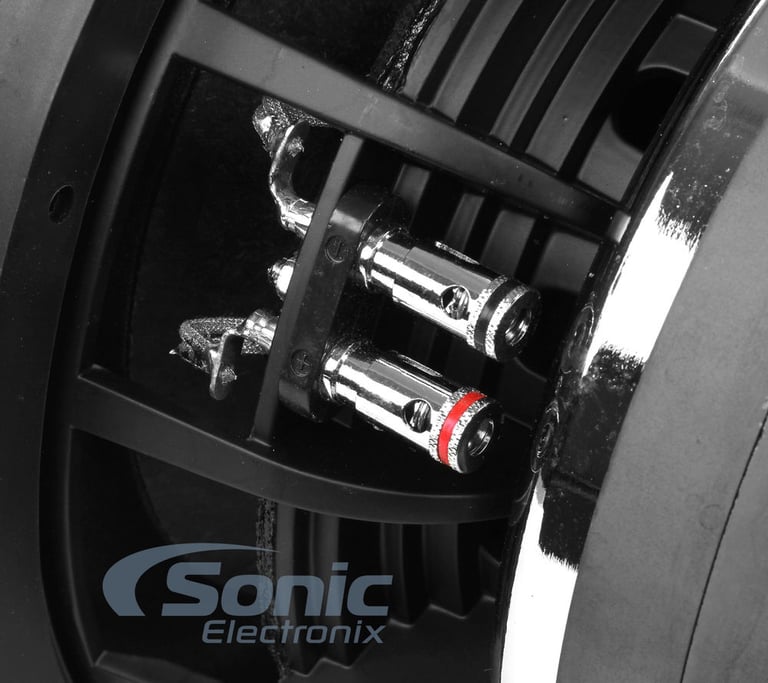

  • Chrome spring loaded push terminals

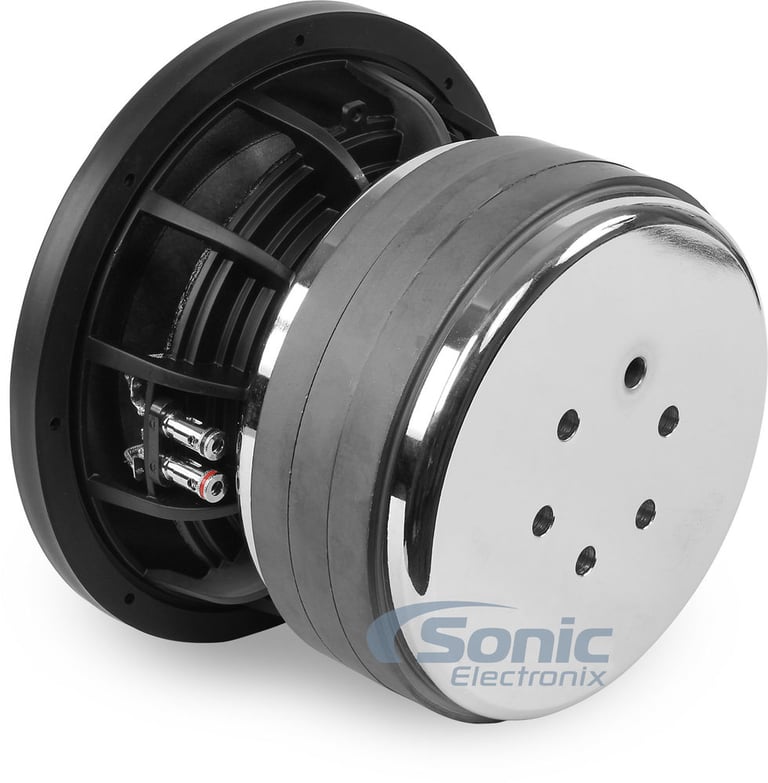

  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.5"
  • Sensitivity: 85.9dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 XL 10" T/S Parameters:

  • Electrical Q Value (Qes): .35
  • Mechanical Q Value (Qms): 11.24
  • Total Speaker Q Value (Qts): .34
  • Free Air Resonance (Fs): 41.7
  • Equivalent Compliance (Vas): 12.42 liters
  • One-Way, Linear Excursion (Xmax): 26mm
  • Efficiency (Ref SPL @ 1W): 85.9dB
  • Effective Piston Area (Sd): 314 cm²
  • DC Resistance (Re): 3.98
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 22.73
  • Mechanical Compliance (Cms): .085 mm/N
  • Mechanical Mass (Mms): 171.77g
  • Voice Coil Inductance (Le): 5.2 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: 1.00 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M4XL10D2 thumbnail
(newest, current model)
DC Audio M2XL10D2 thumbnail
(previous model, replaced by DC Audio XL10 M4 D2 (M4XL10D2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio XL10 m2.1 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio XL10 m2.1 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio XL10 m2.1 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio XL10 m2.1 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
XL Series
Subwoofer Size
10"
Peak Power Handling
4400 watts
RMS Power Handling
2200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
85.9 dB
Xmax (millimeters)
26 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
6.50"
Cutout Diameter
9.25"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
41.7 Hz
Equivalent Compliance (Vas)
12.42 liters
Total Speaker Q Value (Qts)
.34
Electrical Q Value (Qes)
.35
Electrical Resistance of Voice Coil (Re)
3.98 ohm
Mechanical Q Value (Qms)
11.24
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2XL10D2

Weight:

51.80lbs

Internal SKU:

m2xl10d2

Internal Product ID:

88170

Product and How-to Videos


Customer Ratings & Reviews


DC Audio XL10 m2.1 D2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Absolute Beast!!

This thing is a beast, 50 pounds of pure heart pounding bass. This thing takes the power of my Rockford T-2500bdcp like a champ, this is a definate recommend for anyone that doesn't have much room for bass. Also, 2200w rms is a definate understatement!!! It'll handle much more!!

By Teddy P on February 19, 2015

28 found this helpful


Amazing subwoofer

Have this in a ported box I built and it sounds amazing. I need a new amp just to power this Thing all the way.
Only bad thing is that it's a bit expensive for having to wait a whole month for it. Other than that, amazing sub and shipping thanks to sonic.

By Derrick on January 29, 2017 Checkmark Icon Verified purchase

13 found this helpful


Great

Subwoofers are great and sound really good the only problem I have is I had to get both dust caps put back on the same week I got them D.C. Sound really consider using something strong to hold the dust caps on

By melvise on October 12, 2017

12 found this helpful




HP-1-SHARP-WHITE small

i.Fuzen HP-1 # - Sharp - White

iPhone 4/4S Case with Built-in Headphone Amplifier, Splitter and Extended, Rechargeable Battery

(1)

$39.99

List price $129.99

S-NEOPROV484 small

Sundown Audio NeoPro-8 v.4 (Sold Individually)

320W RMS 8" NEO Series Pro Audio Midrange 4-ohm Speaker (S-NEOPROV484)

$199.99

List price $275.99

SHD21 small

Stinger SHD21

HPM Series Power or Ground Distribution Block with Satin Chrome Finish

(41)

$23.99

List price $49.00

71-5525 small

Metra 71-5525

Factory Replacement Wiring Harnesses for select 2017-2022 vehicles from Ford

$20.99

List price $38.99

L7R102 small

Kicker L7R102 (45L7R102)

1000W Peak (500W RMS) 10" Solo-Baric L7R Series Dual 2-ohm Subwoofer

(1)

$191.96

List price $259.99

GM1CVT2 small

GROM Audio GM1CVT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2008-2015 CTS

$559.95

List price $559.95

89-93-FORD-RANGER-FD-INF small

Infinity Reference Series Front Door Speaker Replacement Package

270W Peak (90W RMS) 5.25" Reference Series 2-way 3-ohm Speakers

(1)

$117.94

List price $152.94

GPA1500.4 small

Crunch GPA1500.4

1500W 4-Channel Ground Pounder Series Class A/B Car Amplifier

(9)

$99.99

List price $189.99

BC-AMP04 small

Metra BC-AMP04

Amplifier Mounting Bracket for

(1)

$67.99

List price $75.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Dodge Ram 1500 Van

2012 BMW 528i

2004 Ford Thunderbird

2004 BMW X5

1997 Ford Windstar

2014 Nissan Leaf

2011 Lexus LS460

1985 Buick Skylark

2001 Toyota Camry

2000 Kia Spectra

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
