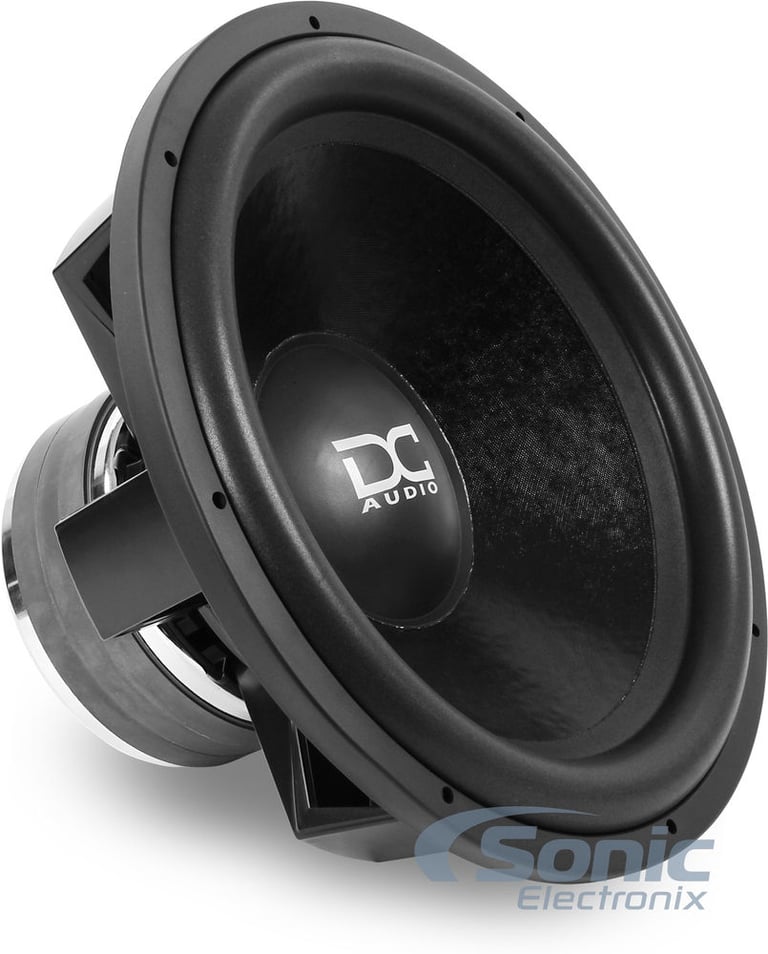

DC Audio XL18 m2 D2

4400W Peak 18" XL Series m2 Version Dual 2-Ohm High SPL Car Subwoofer with 3.0" Voice Coils - M2XL18D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 4400W
• RMS Power: 2200W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2xl18d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m4xl18d2 thumbnail

DC Audio XL18 M4 D2 (M4XL18D2)

OUR PRICE: $775.00

View item

Loading...
KMM-BT732HD main

Kenwood KMM-BT732HD

Single DIN Digital Media Bluetooth Receiver with HD Radio

3
-14.09%

$189.00

List price $220.00

Product Highlights


• Peak Power: 4400W
• RMS Power: 2200W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 18" Dual 2 ohm XL Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 4400 watts
    • RMS: 2200 watts
  • Recommended power range: 1600 - 2200 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround

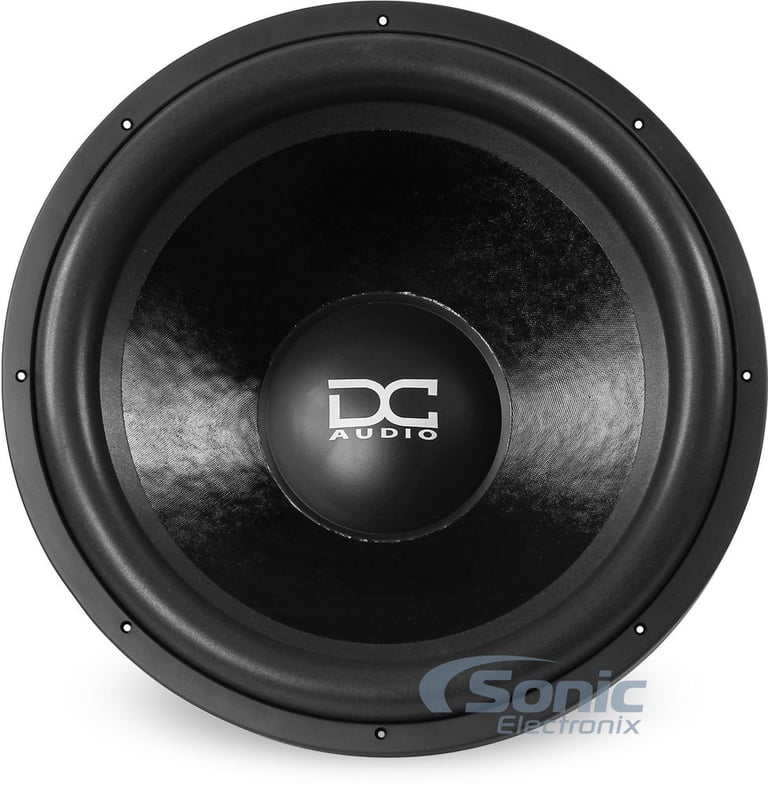

  • Polypropylene dust cover with embossed DC logo
  • Quad 8" OD semi cup progressive roll spiders
  • Dual extra heavy duty interweaved tinsel lead wire
  • Rubber mounting gasket

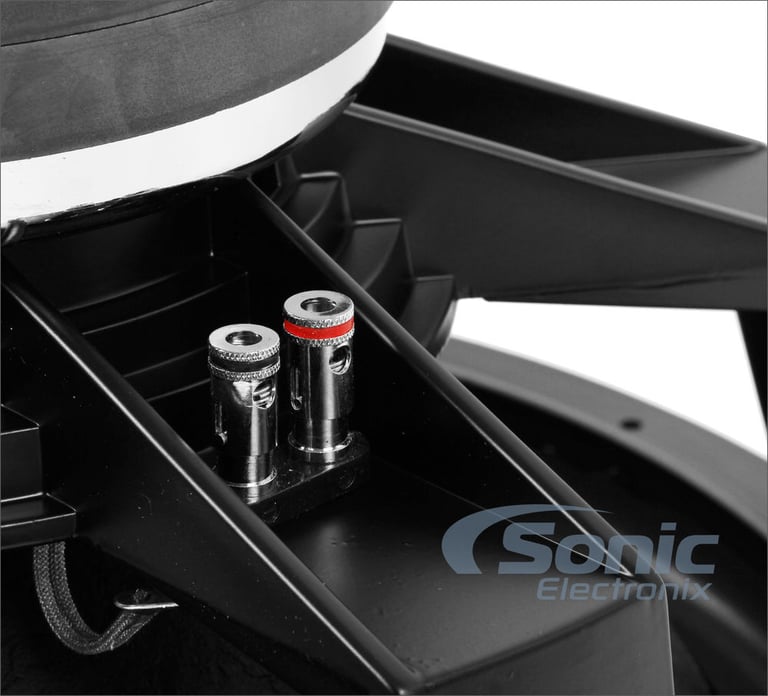

  • Chrome spring loaded push terminals

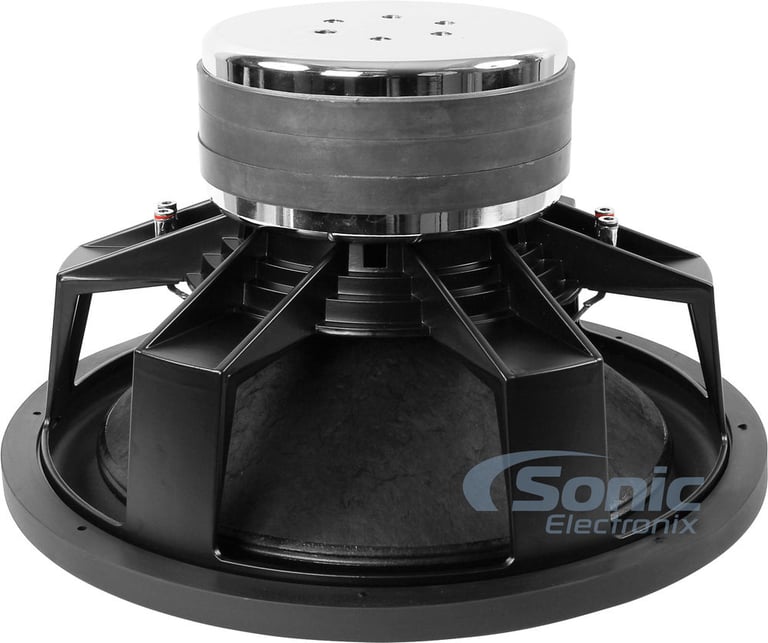

  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 10.25"
  • Sensitivity: 91.3dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 XL 18" T/S Parameters:

  • Electrical Q Value (Qes): .548
  • Mechanical Q Value (Qms): 17.6
  • Total Speaker Q Value (Qts): .532
  • Free Air Resonance (Fs): 32.3
  • Equivalent Compliance (Vas): 144.36 liters
  • One-Way, Linear Excursion (Xmax): 26mm
  • Efficiency (Ref SPL @ 1W): 91.3dB
  • Effective Piston Area (Sd): 1159 cm²
  • DC Resistance (Re): 3.98
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 22.73
  • Mechanical Compliance (Cms): .07 mm/N
  • Mechanical Mass (Mms): 346.7g
  • Voice Coil Inductance (Le): 5.2 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: 5.5 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M4XL18D2 thumbnail
(newest, current model)
DC Audio M2XL18D2 thumbnail
(previous model, replaced by DC Audio XL18 M4 D2 (M4XL18D2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio XL18 m2 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio XL18 m2 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio XL18 m2 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio XL18 m2 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T2S2-13 small

Rockford Fosgate Power T2 T2S2-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 87 dB

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Series
XL Series
Subwoofer Size
18"
Peak Power Handling
4400 watts
RMS Power Handling
2200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
91.3 dB
Xmax (millimeters)
26 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
5.50 cubic feet
Top-Mount Depth (Mounting Depth)
10.25"
Cutout Diameter
16.75"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.3 Hz
Equivalent Compliance (Vas)
144.36 liters
Total Speaker Q Value (Qts)
.532
Electrical Q Value (Qes)
.548
Electrical Resistance of Voice Coil (Re)
3.98 ohm
Mechanical Q Value (Qms)
17.6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2XL18D2

Weight:

57.00lbs

Internal SKU:

m2xl18d2

Internal Product ID:

88176

Product and How-to Videos


Customer Ratings & Reviews


DC Audio XL18 m2 D2 thumbnail image

5 star
50%
4 star
0%
3 star
0%
2 star
50%
1 star
0%



Durability
3
Value
3
Features
4
Design
3.5
Usability
3.5

Customer Reviews

Sort by:

Loading...

extremely happy

i bought these to replace some Digital Designs 3518s i had in a blow through box i built in a truck. I feed them with a dc 5k amp running 4 xspower d3400 batteries and a dc 370a alternator. if you have the proper electrical these will swallow up to 3000k rms each easily. Dont believe the negative comments these are great for the price.
Plus who powers their 500 dollar sub with a 200 dollar mb quart amp lol

By exocontralto on October 26, 2015

23 found this helpful


Proceed at your own risk

First off Sonicelectronix has the BEST customer service. They have replaced two of these junk a$$ woofers for me so far for burned coils. DC says they handle 2200RMS, but there is NO WAY in Hades! I have put them in several different enclosures and they do not handle the power. I bought 4 of them to go in my van. Have 3 in my van in a ported enclosure tuned to 35Hz with 1400 watts RMS/each-CLAMPED on my Term Lab Magnum-unclipped. Tuned amp with oscilloscope function on Term Lab. They will play for about 30 seconds to a minute before I start smelling the voice coils overheating. I put the 4th 18 in my little car in a 6th order on an MB Quart ONX1.2000D at 1-ohm. Again plays for around a minutes before voice coils start to overheat. Been into car audio heavily for 25 years, so I am not a "newbie". The woofers sound very good. They are loud. However, if you are looking for a woofer that will take some power, look elsewhere. A lot of money wasted on my end, but that is my fault for buying 4 of these right off the jump. Thanks for taking care of me Sonic! Will be buying from you again soon, but definitely NOT DC Audio.

By jeremy on October 17, 2015 Checkmark Icon Verified purchase

21 found this helpful




04S10X2SP small

Kicker 04S10X2SP SPAIR2

$129.99

List price $249.99

AVH-P7600DVD small

Pioneer AVH-P7600DVD

In-Dash 7" Touchscreen DVD Multimedia

(3)

$1399.99

List price $2199.99

T115D4 small

Rockford Fosgate Power T115D4

15" Power Stage 1 Dual 4 ohm Subwoofer

(7)

$269.99

List price $499.99

A5100T small

Audiobahn A5100T

3180W Max, 5.1 Surround Sound 6-Channel Amplifier

$429.99

List price $1199.99

No picture

Phoenix Gold R8.0:4 R/B

(Factory Refurbished) Octane-R 8.0:4 4-Channel Amplifier

(1)

$89.99

List price $329.99

BX1205D small

Hifonics BX1205D

1200W RMS, Super Class D MonoBlock Amplifier

(8)

$189.99

List price $499.99

05G15 small

Kicker 05G15 (G15)

15" Subwoofer Grille for Round Kicker Subwoofer

$10.99

List price $39.99

No picture

MTX Thunder4250D

$239.99

List price $399.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 BMW 530i

2000 Saturn SC2

1998 Ford Expedition

1990 Dodge Shadow

1992 Geo Storm

2001 Mitsubishi Eclipse Spyder

1997 BMW 328is

2005 Buick Rainier

2011 Audi A6

2009 Dodge Caliber

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
