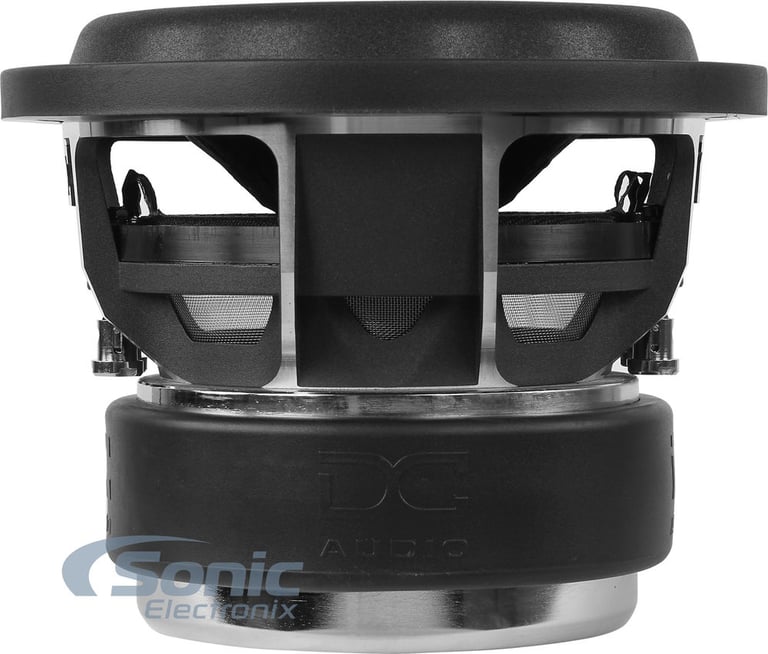

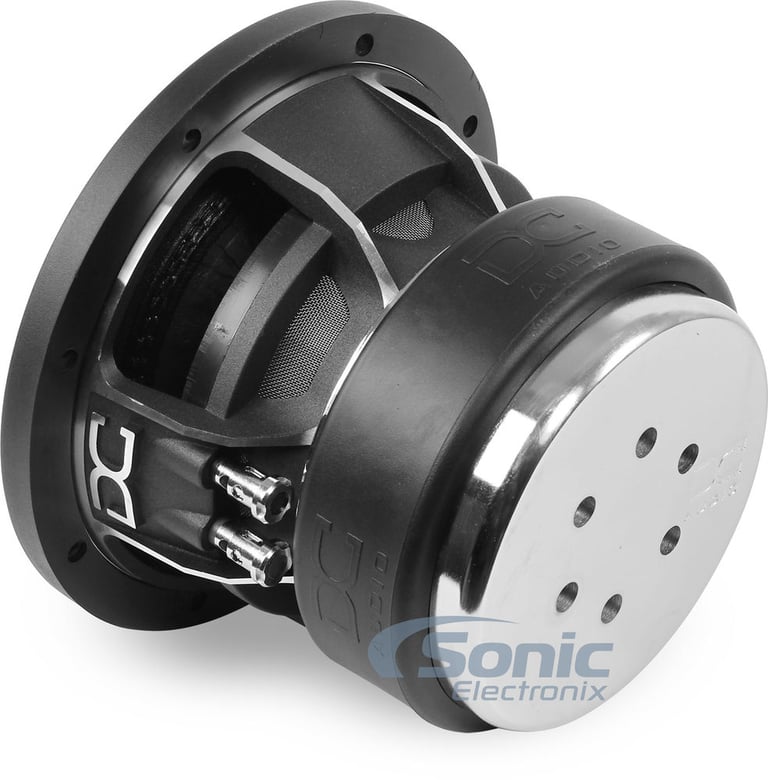

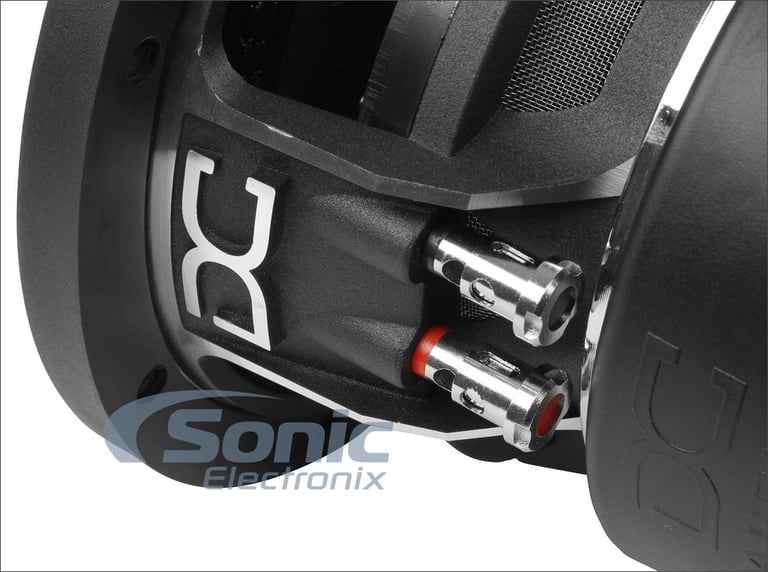

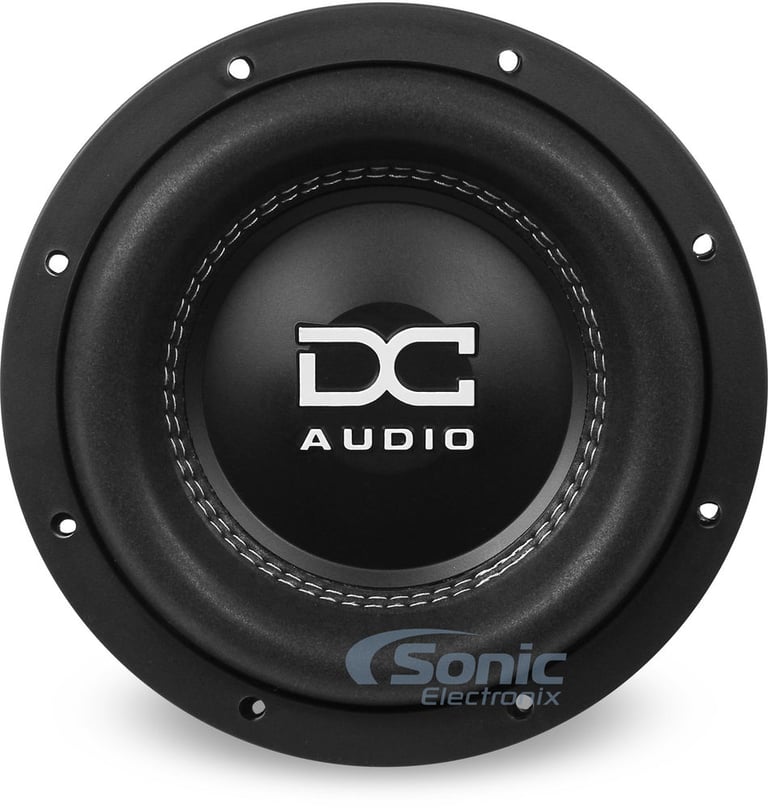

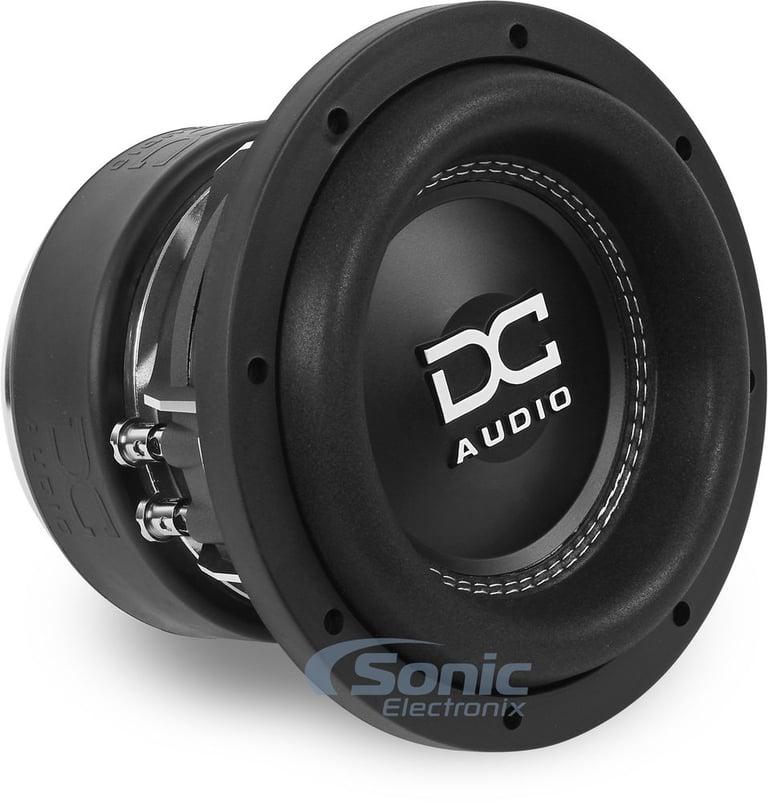

DC Audio M3 8 D2

1200W Peak 8" m3 8-Series Dual 2-Ohm Car Subwoofer - 8m3 D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 600W
• Dual 2 ohm Voice Coil
• Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m3-8d2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
FD1327B main

Scosche FD1327B / FD1327 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mazda, Mercury trucks (Black)

154

$12.99

List price $13.25

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

R168X2 main

Rockford Fosgate Prime R168X2

220W Peak (110W RMS) 6x8" Prime Series 2 Way Coaxial 4-ohm Speakers

47
Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

Product Highlights


• Peak Power: 1200W
• RMS Power: 600W
• Dual 2 ohm Voice Coil
• Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 8" Dual 2 ohm m3 8 Series Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended powr range: 400 - 600 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Bolted down and spaced linear roll spiders
  • Sewn flat heavy duty tinsel lead wire
  • DVC 2" copper voice coil
  • Rubber mounting gasket
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 5.75"
  • Sensitivity: 78.7dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m3-8 8" T/S Parameters:

  • Electrical Q Value (Qes): .66
  • Mechanical Q Value (Qms): 6.68
  • Total Speaker Q Value (Qts): .601
  • Free Air Resonance (Fs): 35.3
  • Equivalent Compliance (Vas): 7.3 liters
  • One-Way, Linear Excursion (Xmax): 18mm
  • Efficiency (Ref SPL @ 1W): 78.7dB
  • Effective Piston Area (Sd): 201.93 cm²
  • DC Resistance (Re): 6.28
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 17.9
  • Mechanical Compliance (Cms): .135 mm/N
  • Mechanical Mass (Mms): 150.66g
  • Voice Coil Inductance (Le): 5 mH
  • Suggested Sealed Enclosure: .4 ft³
  • Suggested Ported Enclose: .75 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio M3 8 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio M3 8 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio M3 8 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio M3 8 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

Specifications & Details


Subwoofer Specifications
Series
M3 8 Series
Subwoofer Size
8"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2"
Sensitivity
78.7 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Type
Ferrite
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
.75 cubic feet
Top-Mount Depth (Mounting Depth)
5.75"
Cutout Diameter
7.25"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35.3 Hz
Equivalent Compliance (Vas)
7.3 liters
Total Speaker Q Value (Qts)
.601
Electrical Q Value (Qes)
.66
Electrical Resistance of Voice Coil (Re)
6.28 ohm
Mechanical Q Value (Qms)
6.68
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M3-8D2-2

Weight:

20.00lbs

Internal SKU:

m3-8d2

Internal Product ID:

88185

Product and How-to Videos


Customer Ratings & Reviews


DC Audio M3 8 D2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
5
Design
5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great value!

I recently ordered a pair of these for my ext cab sierra. I made a custom ported box for under the back seat of .69 cu/ft per chamber tuned to 32hz. They are powered by an Alpine PDX 1.1000. All I can say is WOW!!! Greatly exceeded my expectations! They sound great to all types of music. Before these I had 2 alpine type r 10's in a sealed box under the seat, and the DC's blow the alpines out of the water! And they are 8's compared to 10's. The DC's are way better built too. You can see, feel, and hear the quality. I haven't heard the jl audio w7 8's... But I can't imagine you would get much more sound, and especially considering they are over double the price. I am now a HUGE DC AUDIO fan! They are the real deal!!!!

By DCForver!!! on January 5, 2015

51 found this helpful


Dc Audio M3-8D2

The quality and craftsmanship is amazing, I hated to put them in a box. The sound quality is better than my old Alpine type R 15" and they don't take up 6 cubic feet of space.

By Eli on April 27, 2015

45 found this helpful


Amazing Product!

I have had 2 different sets of 8s now, I had old rockford p2 punches, now this DC audio 8s. They sound amazing with deep bass but not as great on the higher bass. Don't get me wrong they sound amazing, I've had them for maybe a month now and they already make my windows, windshield, and roof flex on my 2014 Frontier. They hit and sound better than most 12s 10s and even 15s that I've heard. I highly recommend this for anyone that wants something that sounds great for deep bass. Once they're fully broken in they'll sound amazing with the higher bass too!

By Brian on May 16, 2016

33 found this helpful


Mind blowing

I had a a punch BD 1000.1. Which is my favorite amp. I bought a single cab ford ranger and wanted to keep the 1000 well sonic electronics help me to pick a speaker that would fit both the amp and the vehicle I had never heard of a DC audio but I know I want an 8 inch. Woofer. So I purchased one brand-new and on that BD it handles all of it and it's every tone everyone note as a 10 or a 12 hour by them until I stop having music this

By Brandon on June 15, 2015

35 found this helpful


SUPER BAD SUBWOOFER

Great subwoofer, had a 12" 1000 watts VCW subwoofer and this mini woofers plays almost as loud. Have it in a 1.1 CF box tune to 36hz. I have only had it for about 2months so far very good! :)

By Michael on May 8, 2016 Checkmark Icon Verified purchase

31 found this helpful


Great price when bought.

This sub does the job in the trunk of a mini Cooper. Sound quality is great and if I want harder lows, it can handle it. But, no need to turn heads as it's just for my enjoyment.

By Gary on March 23, 2017 Checkmark Icon Verified purchase

30 found this helpful


DC Audio M3 8 D2

Bad ass 8 I put it in a custom box tuned to 32hz and it bangs lows on old school rf 250a gonna be running w a bd1500.1 will update soon

By Anonymous on June 26, 2018

29 found this helpful


Lil guys slam!

I bought 4 of these, bout to buy 2 more, I have them on a Brutus 2100 at 14.5 volts, built my own box. These bad boys are clean and mash on some lows, definitely recommend.

By Tim on March 22, 2018

29 found this helpful


THIS THANG'S A BEAST!

I never knew that 8's could handle this much power. It's great if you want power, but want to conserve trunk space.

Pros: lots of hard hitting bass. handles lows really good for such a small speaker. with so many watts, u can feel the bass even if the volume is not turned all the way up.

Cons: the frequency range (which for some reason is not stated) is limited. i can understand because of the small size, but when higher bass frequencies start to play, it's not as powerful then.

I'm powering this sub with a Kicker amp pushing 600 watts RMS at 4 ohms so it's getting the right amount of power. I would recommend this speaker, but if you want a wider frequency range, then 12's are always great. This speaker works for me since I'm conserving trunk space, and I really like lows.

By Anonymous on December 22, 2018 Checkmark Icon Verified purchase

28 found this helpful


Best sounding 8

I didn't purchase my sub from sonic but I have ordered a ton of stuff from them. Sonic is the best.
Anyway I own the M3-8 and in my opinion its the best sounding sub I have owned. Its only an 8 but sounds like a 12 in the ported box I built for it. I have it running off a Rockford Fosgate P1000X5 which is putting out 600W @ 1 ohm on the sub channel. I wish I could throw more power at it as I know it could take it. If I ever replace this sub it will definitely be a DC subwoofer.

By Kevin on January 3, 2017

28 found this helpful




49L7X82RK small

Kicker 49L7X82RK

8" SoloX Series Dual 2-ohm Recone Kit for 49L7X82 Subwoofer

$129.99

List price $149.99

GTX154 small

Massive Audio GTX154

1400W Max (700W RMS) 15" Dual 4 ohm Car Audio Subwoofer

(6)

$174.99

List price $219.99

GTX64 small

Massive Audio GTX64

500W Peak (250W RMS) 6" GT Series Dual 4-ohm Car Subwoofer

(1)

$79.99

List price $99.99

95-8732B small

Metra 95-8732B Dash Kit

Install a New Double DIN Car Stereo in select 2003-2011 E-Class and CLS-Class

(1)

$19.99

List price $36.99

SX112D2 small

Phoenix Gold SX112D2

SX1 Series 12" Dual 2 Ohm Subwoofer

$219.00

List price $259.00

S270.1 small

Precision Power PPI S270.1

270W Max, Sedona Series 1-Channel Monoblock Class AB Amplifier

(4)

$61.95

List price $189.95

No picture

Audiopipe PKIP-700

Complete 10 Gauge Salt Water Series 2-Channel Amplifier Installation Kit for Systems up to 700 Watts

$19.99

List price $49.99

TX1505D small

Hifonics TX1505D

Class D MonoBlock Amplifier

(5)

$184.99

List price $499.99

D2400 small

DEI - Directed Audio D2400

2400W Max, Class D Monoblock Amplifier

(5)

$249.99

List price $699.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1998 Mazda B2500

2014 Audi S8

1995 Kia Sephia

1989 Dodge Shadow

1998 Dodge B3500

2023 Ram 2500

2014 MINI Countryman

2013 Ram 5500

2019 Ford Flex

1971 Chevrolet Nova

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
