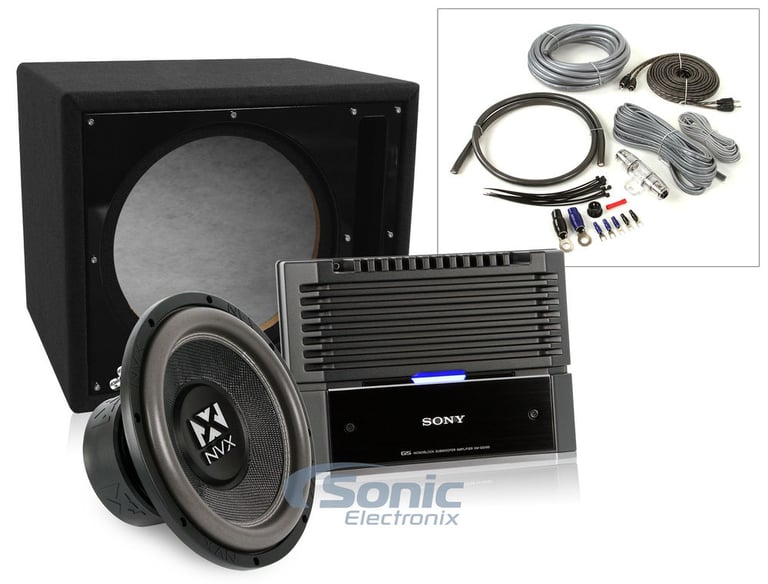

Sony + NVX Complete 12" 600W RMS Amplified Bass Sub System

Product Details:

• GS Series Class D 2 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 330 watts x 1 channel
• 2 ohm: 600 watts x 1 channel
• Total RMS power output: 600 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs
• 1 pair of pre-amp outputs
• Signal sensing remote turn-on
• Thermal and speaker short protection
• Dynamic Distortion Suppressor for clear sound
• Designed to be used with subwoofers only
• Protection circuit and indicator provided
• Two speakers terminals for parallel subwoofer connections
• Input sensitivity:
• Low level: 0.3 - 6 volts
• High level: 6.5 - 16 volts
• Frequency Response: 10 - 300 Hz
• Total Harmonic Distortion (THD): 0.1%
• Signal to Noise Ratio: 65 dB
• Variable low-pass filter: 50 - 300 Hz
• Subsonic filter: 6 - 70 Hz
• Variable Bass Boost: 0 - 10 dB
• Fuse Rating: 60A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 10-3/4" L x 8" W x 2-1/8" H
• Authorized Internet Dealer
• 3 Year Manufacturer's Warranty
• MFR #: XM-GS100

General Features:

• 12" Dual 4-ohm VS-Series Car Subwoofer
• Power Range:
• RMS: 400-600 watts
• Impedance: Dual 4 ohm
• Non-pressed paper cone with woven carbon fiber top
• High excursion 3-layer foam surround
• Heavy duty custom textured steel basket for maximum rigidity
• Dual Nomex Spiders
• 2.5" High temperature aluminum voice coil
• Double stacked Ferite magnet motor structure with protective rubber boot
• Frequency response: 30-500 Hz
• Resonance Frequency (Fs): 33.6
• Top-mount depth: 5-15/16"
• Sensitivity: 86.3dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Additional Information:

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

General Features:

• 12" Single Ported Subwoofer Enclosure
• Black high gloss front face board
• Covered in black carpet
• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Subwoofer mounting depth: 14.5"
• Subwoofer cutout diameter: 11"
• Total box volume: 1.842 cubic feet
• Dimensions: 16"D x 16"W x 18.75"H
• Also available in Blue and Red
• Authorized Internet Dealer
• 30-Day Return Policy

Port Specifications:

• Rectangular Slot Port
• Number of ports: 1
• Estimated port tuned frequency (fb): 42 Hz
• Port dimensions: 1.5"Width

Product Details:

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Gray 4 gauge power wire
2. 3 ft. Black 4 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire
4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties
