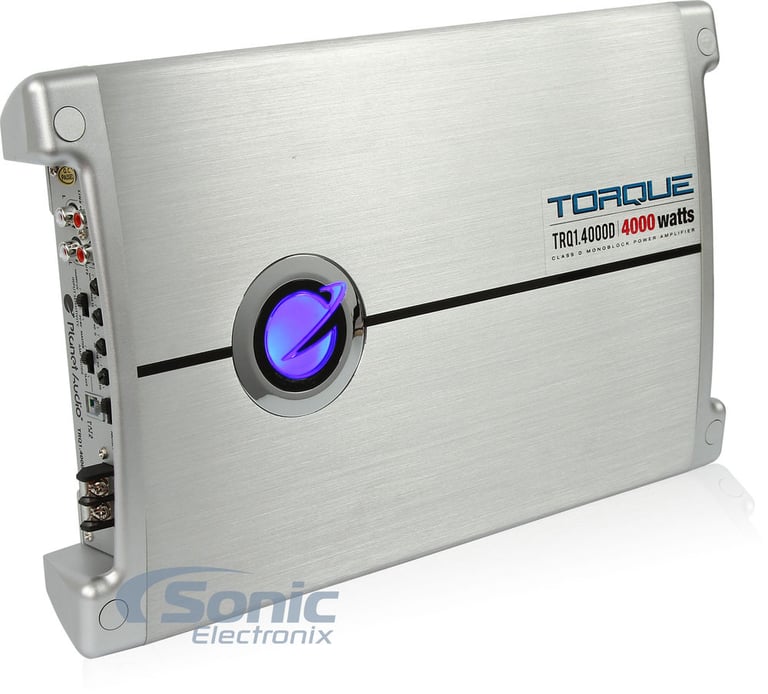

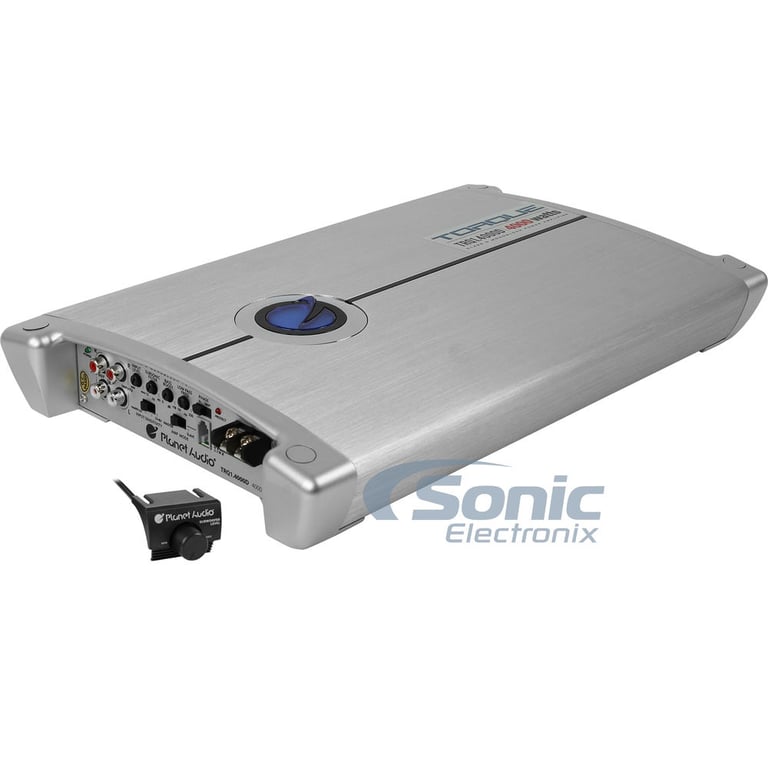

Planet Audio TRQ1.4000D

4000W Monoblock Torque Series Class D Amplifier

Product videos
highlight-star-icon

• RMS Power: 1500W x 1 @ 4 ohm, 2000W x 1 @ 2 ohm, 2800W x 1 @ 1 ohm
• Total Peak Power: 4000W

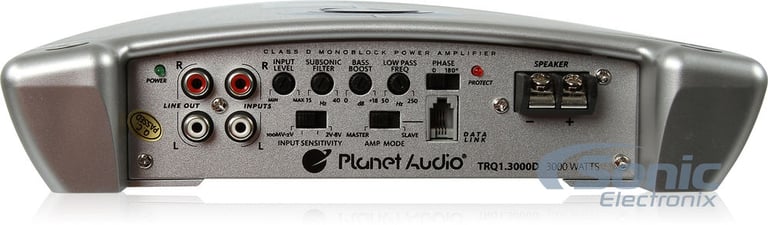

• Variable Low Pass Filter
• Dimensions: 9.5" W x 15" L x 2.125" H

Learn more about the trq14000d

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 1500W x 1 @ 4 ohm, 2000W x 1 @ 2 ohm, 2800W x 1 @ 1 ohm
• Total Peak Power: 4000W
• Variable Low Pass Filter
• Dimensions: 9.5" W x 15" L x 2.125" H

Description


Planet Audio brand icon

Authorized dealer

Planet Audio Authorized Dealer

General Features:

  • Torque Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1500 watts x 1 chan.
    • 2 ohm: 2000 watts x 1 chan.
    • 1 ohm: 2800 watts x 1 chan.
    • Bridged, 2 ohm: 8000 watts
  • Total peak power: 4000W

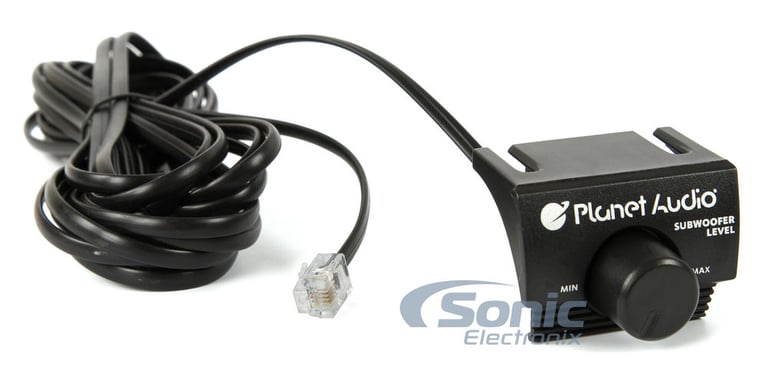

  • Wired remote bass level control included
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Phase Control: 0-180°
  • Mono channel operation
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15 Hz)
  • Input sensitivity switch

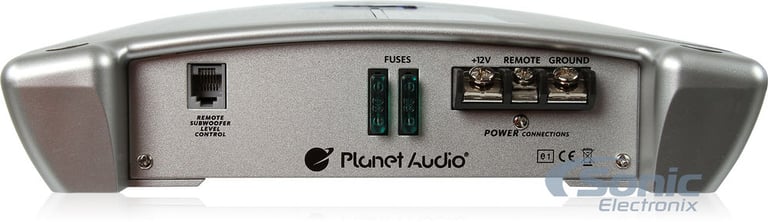

  • 0/1 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 9.5"W x 15"L x 2.125"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1500 watts x 1 channel
RMS Power @ 2 ohms
2000 watts x 1 channel
RMS Power @ 1 ohm
2800 watts x 1 channel
Amplifier Specifications
Series
Torque Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
2800 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRQ1.4000D

Weight:

12.75lbs

Internal SKU:

trq14000d

Internal Product ID:

89182
