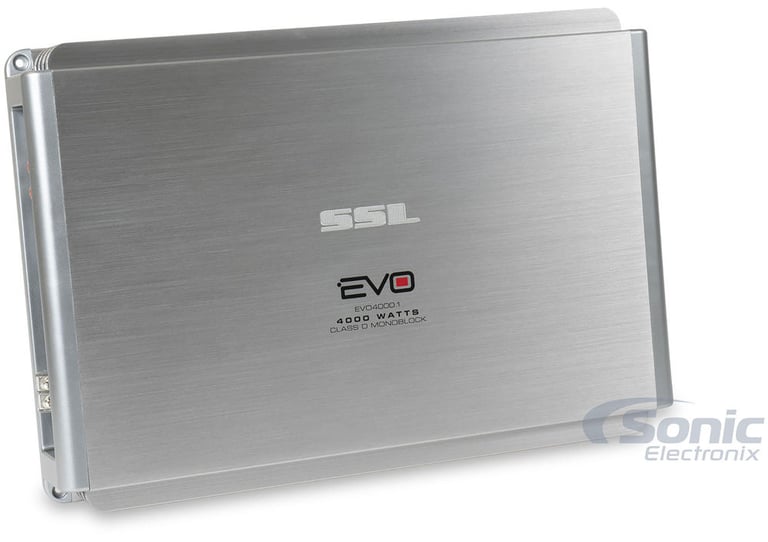

Sound Storm Labs (SSL) EVO4000.1

4000W Max (3000W RMS) EVO Series Class-D Monoblock 1 ohm Stable Amplifier with Bass Knob Included

Sound Storm Labs (SSL)
Product videos
highlight-star-icon

• 750W RMS x 1 @ 4 ohms
• 1500W RMS x 1 @ 2 ohms
• 3000W RMS x 1 @ 1 ohm
• Total Peak Power: 4000 Watts
• Built-In Low Pass and Subsonic Filters
• 0-18 dB Bass Boost
• Aluminum Heatsink
• Dimensions: 10" W x 14.69" L x 2.3" H

Learn more about the evo40001

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• 750W RMS x 1 @ 4 ohms
• 1500W RMS x 1 @ 2 ohms
• 3000W RMS x 1 @ 1 ohm
• Total Peak Power: 4000 Watts
• Built-In Low Pass and Subsonic Filters
• 0-18 dB Bass Boost
• Aluminum Heatsink
• Dimensions: 10" W x 14.69" L x 2.3" H

Description

Sound Storm Labs (SSL)

Authorized dealer

General Features:

  • SoundStorm Labs EVO Series EVO4000.1
  • Class-D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 750 watts x 1 chan.
    • 2 ohms: 1500 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
    • Strapped, 2 ohms: 6000 watts x 1 chan.
  • Total power output: 4000 watts
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-18
  • Frequency Response: 15 - 500 Hz
  • Total Harmonic Distortion (THD): .01%
  • Signal to Noise Ratio: 100 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: 15- 50 Hz
  • Variable Bass Boost: 0 to +18 dB
  • Fuse Rating: 35 A x 3
  • 1/0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 10"W x 14.69"L x 2.3"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Sound Storm Labs (SSL) EVO4000.1 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels
Bridged RMS Power
6000 watts x 1 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
RMS Power @ .5 ohm
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Evolution Series
Marine Certified
No
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
2 ohms
Frequency Response
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
35A x 3
Total Fuse Rating
105
Strappable
Yes
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
User manual
Brand sticker/decal
WITB: Amplifiers
Amplifier

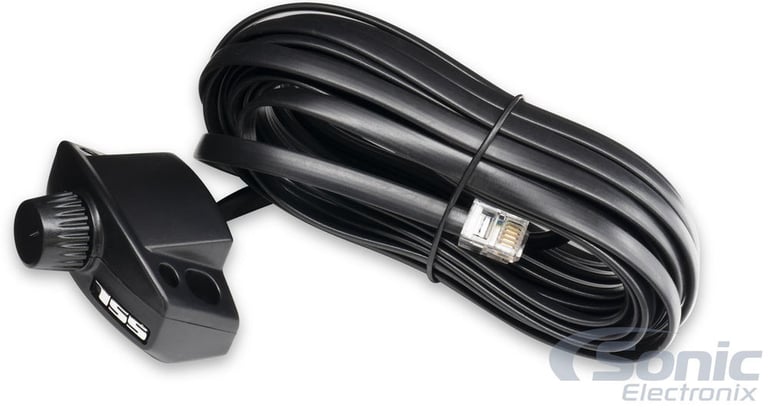

Wired gain knob (wire attached)

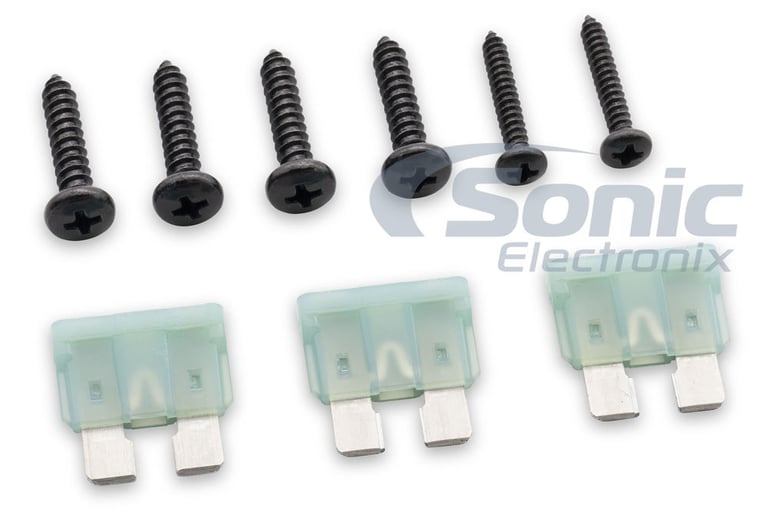

Mounting screws (6)
Three spare fuses
Other Accessory #1

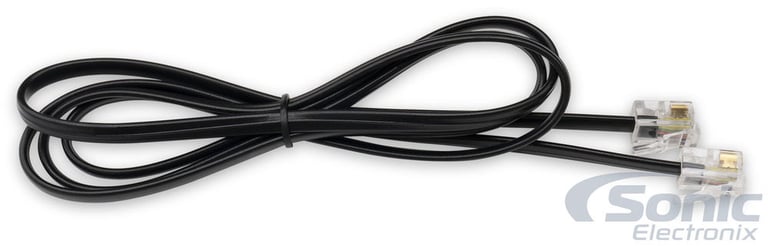

Data Link Cable
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Sound Storm Labs (SSL)

Model Number:

EVO4000.1

Weight:

11.94lbs

Internal SKU:

evo40001

Internal Product ID:

89535
