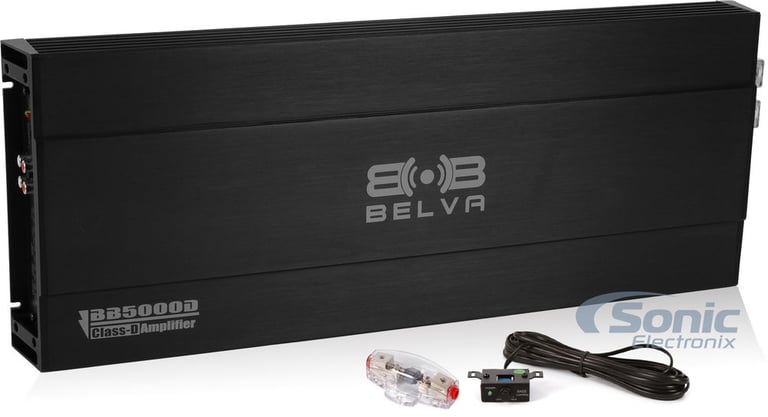

Belva BB5000D-open box complete Image 1 — Belva BB5000D-open box complete

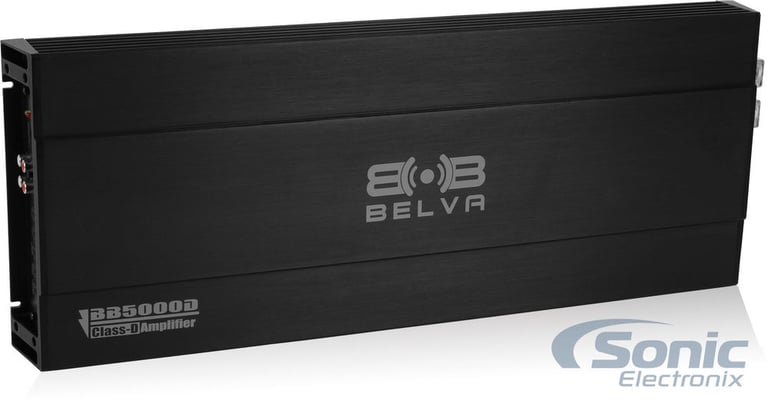

Belva BB5000D-open box complete Image 2 — Belva BB5000D-open box complete

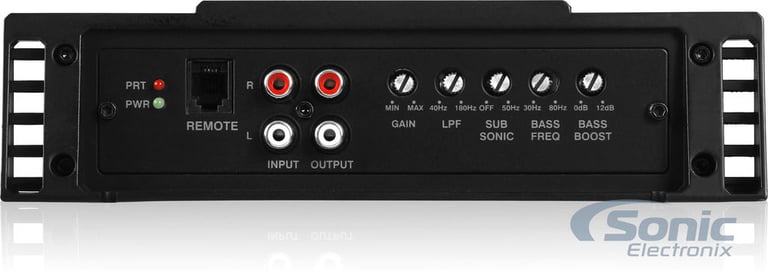

Belva BB5000D-open box complete Image 3 — Belva BB5000D-open box complete

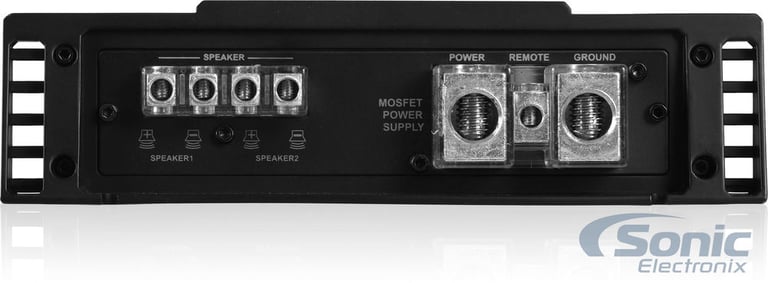

Belva BB5000D-open box complete Image 4 — Belva BB5000D-open box complete

Belva BB5000D-open box complete Image 5 — Belva BB5000D-open box complete

Belva BB5000D-open box complete Image 6 — Belva BB5000D-open box complete

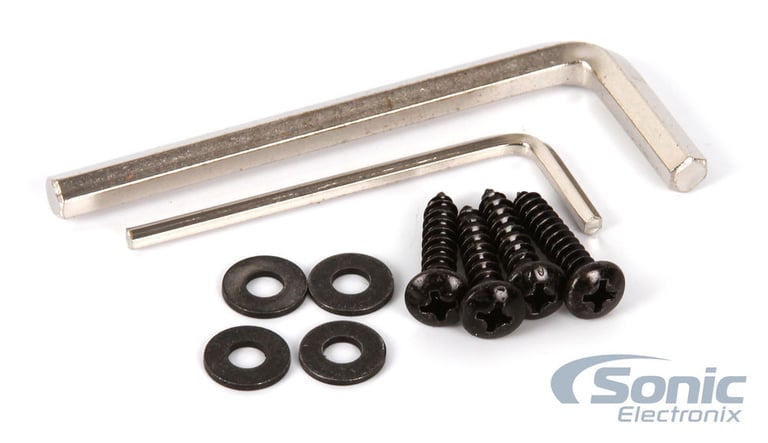

Belva BB5000D-open box complete Image 7 — Belva BB5000D-open box complete

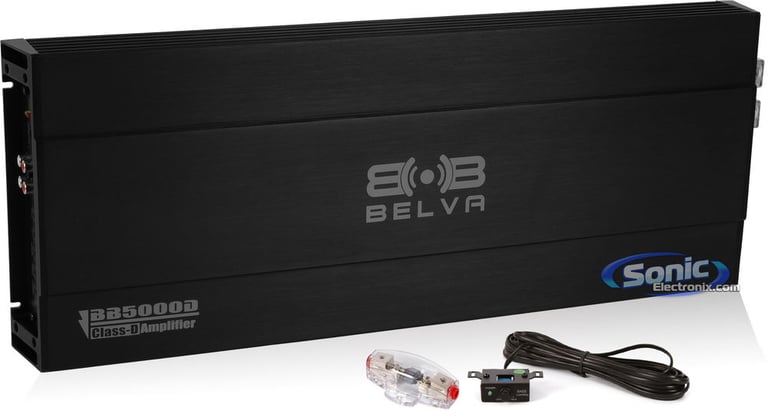

Belva BB5000D-open box complete Image 8 — Belva BB5000D-open box complete

Belva BB5000D-open box complete Image 9 — Belva BB5000D-open box complete

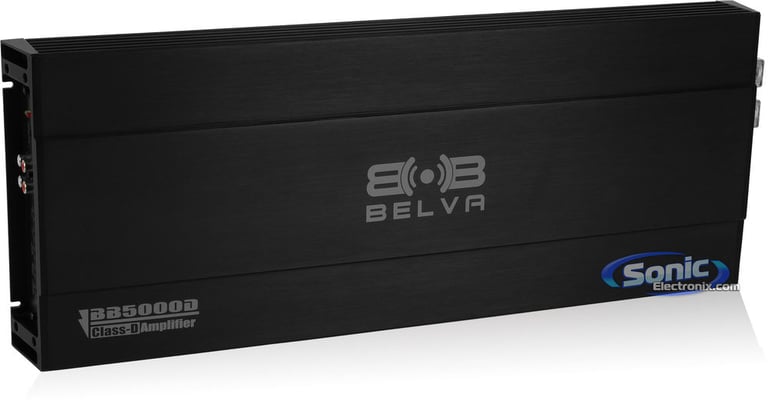

Belva BB5000D-open box complete Image 10 — Belva BB5000D-open box complete

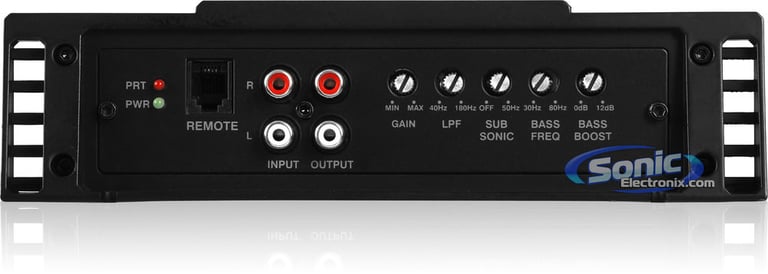

Belva BB5000D-open box complete Image 11 — Belva BB5000D-open box complete

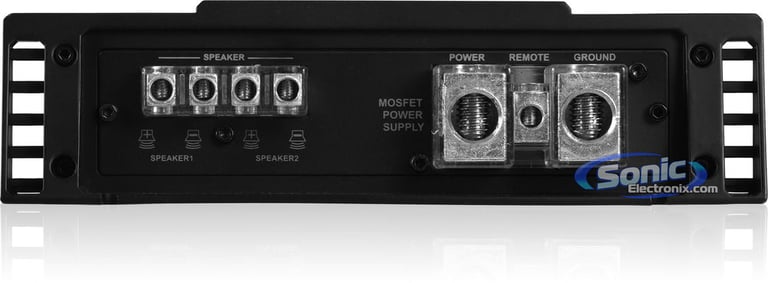

Belva BB5000D-open box complete Image 12 — Belva BB5000D-open box complete

Belva BB5000D-open box complete Image 13 — Belva BB5000D-open box complete

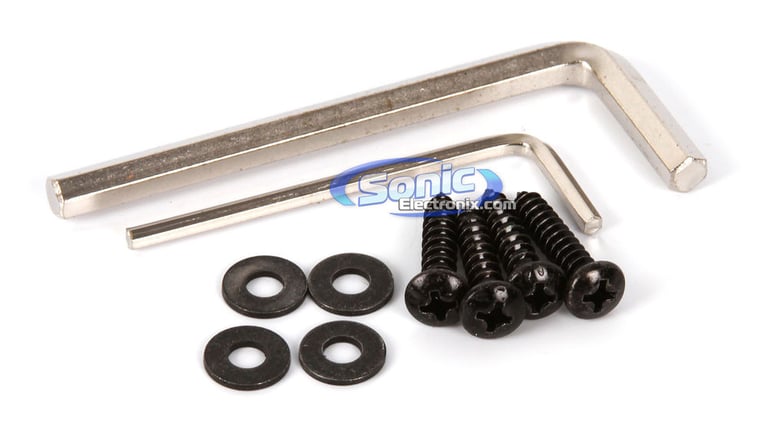

Belva BB5000D-open box complete Image 14 — Belva BB5000D-open box complete

Belva BB5000D-open box complete Image 15 — Belva BB5000D-open box complete

Product videos

Product highlights

• RMS: 1200W x 1 @ 4 ohm, 1800W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Total Peak Power: 5000W
• 1 Pair of Preamp Outputs
• Bass Boost 0-12 dB from 30-80 Hz
• Subsonic Filter from 20-50 Hz
• Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H

Learn more about the LS-bb5000d-OBCra216692

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

BB Series

The BB Series by Belva are designed to get loud! These monoblock beasts are exceptional performance amps engineered to output maximum power. If you need an amplifier that can output heavy power levels without a problem, the Belva BB Series monoblock amplifiers are right for you!

These amplifiers are built with a high quality, organized circuit board. Every amplifier in the BB Series has high power output. The BB5000D is capable of outputting 3000 watts of RMS power. This amount of power is sure to be able to adequately supply most subwoofer systems with the proper amount of wattage. Belva amplifiers will keep your woofers pumping out deep bass with honest sound reproduction and reduced distortion.

General Features:

BB Series Monoblock Class D Car Amplifier
RMS Power Rating:

4 ohm: 1200 watts x 1 chan.
2 ohm: 1800 watts x 1 chan.
1 ohm: 3000 watts x 1 chan.

Max power output: 5000 watts x 1 chan.
Pulse Width Modulated MOSFET power supply

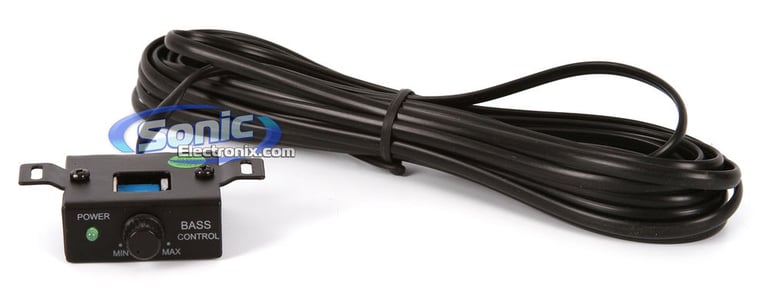

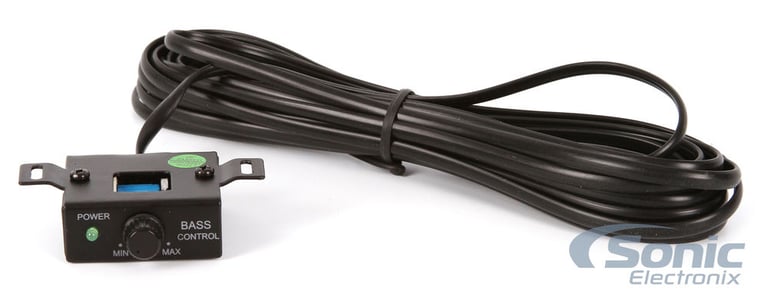

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Low level: 100mV-6mV

Variable low-pass filter (40-180 Hz, 12 dB/octave)
Subsonic filter (12 dB variable from 20Hz - 50 Hz)
Frequency response: 20-30,000 Hz

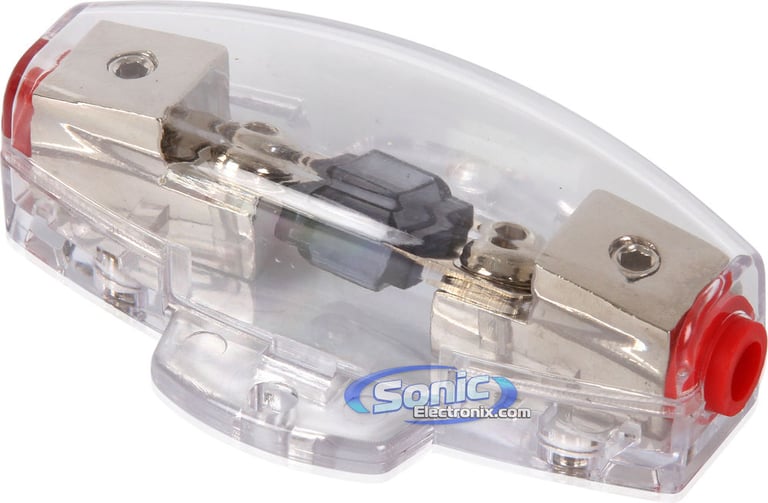

200-240 Amp in-line fuse required, see our selection of recommended fuse holders
Depending on operating impedance, 1/0 or 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Note: Internal fuses are not included, so an external 200-240 Amp ANL Fuse is required to safely operate this amplifier.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1200 watts x 1 channel

RMS Power @ 2 ohms

1800 watts x 1 channel

RMS Power @ 1 ohm

3000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

5000 watts

Total RMS Power Output

3000 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 180 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
