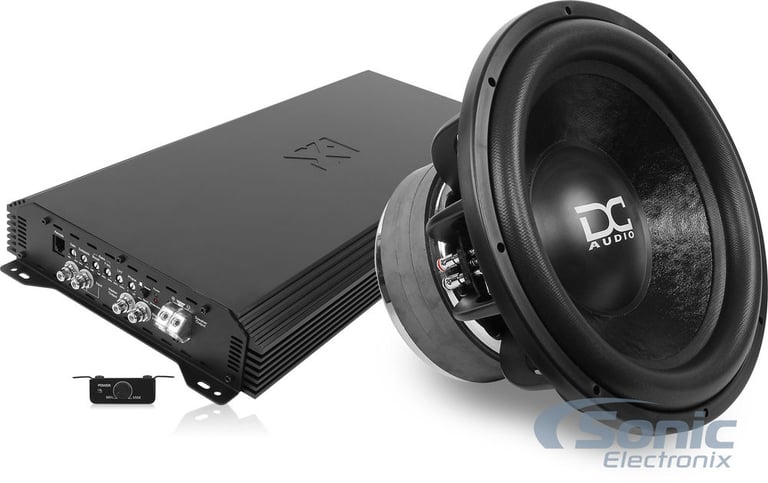

3000W DC Audio and NVX Bass Package

Single 15" XL Series Dual 2 ohm Subwoofer w/ True 3000W RMS Class-D Monoblock Amplifier

DC Audio
Shop all DC Audio
highlight-star-icon

• DC Audio XL 15D2 15" Subwoofer
• Peak Power: 4400W, RMS Power: 2200W
• NVX XPLD3K True 3000W Monoblock Amplifier
• RMS: 1020W x 1 @ 4 ohm, 1900W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Ultra Efficient Class D Technology

Learn more about the m2xl15d2_xpld3k

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

Limited time!
CAR714MW main

Jensen CAR714MW

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

1
-15.63%

$269.99

List price $319.99

Description


DC Audio brand icon

Authorized dealer

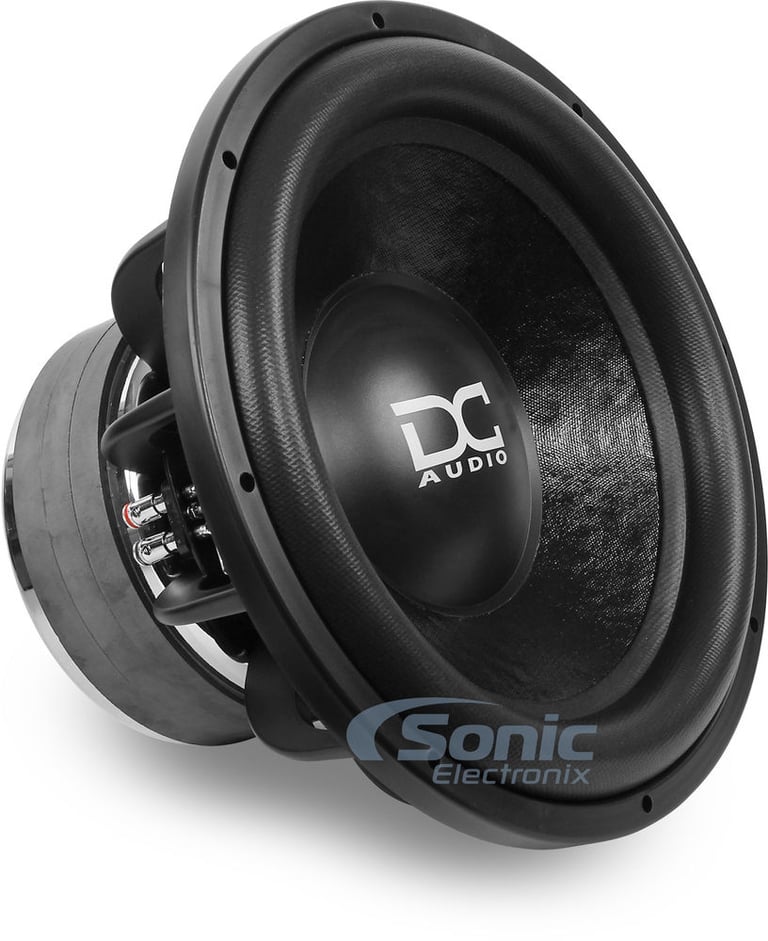

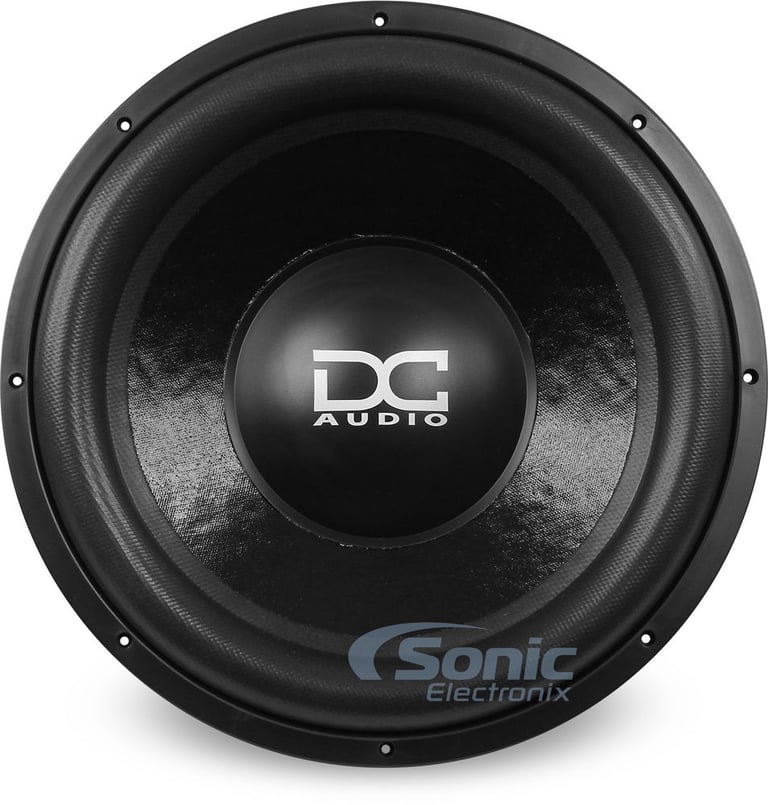

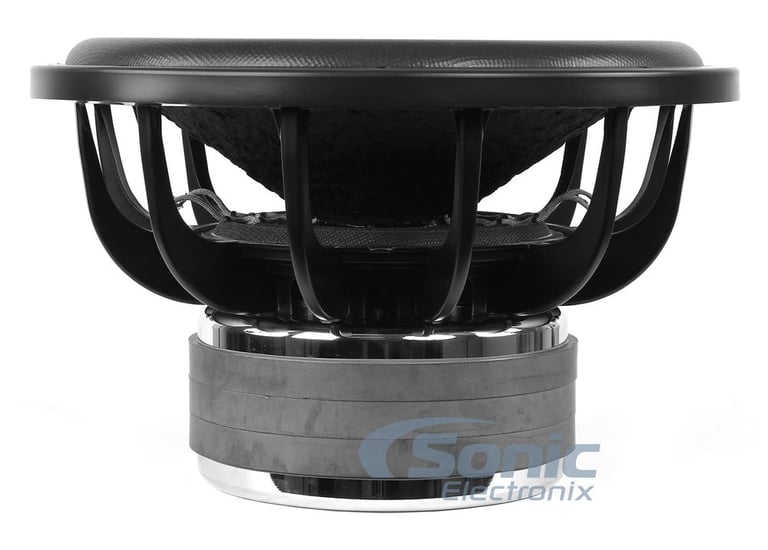

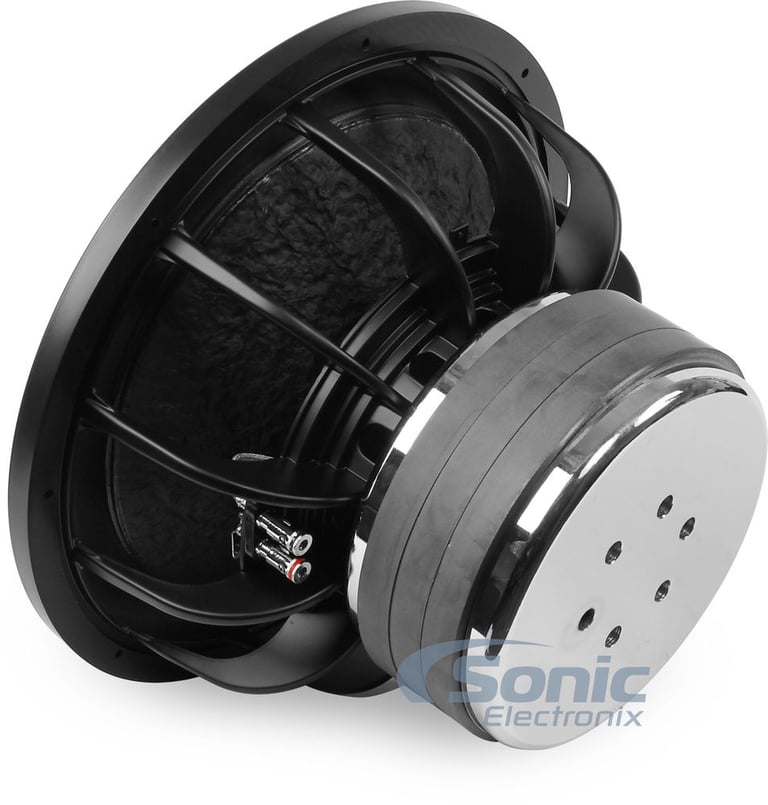

DC Audio XL 15D2 (M2XL15D2)

2200W RMS 15" XL Series Dual 2 ohm Car Subwoofer
Quantity: 1

General Features:

  • 15" Dual 2 ohm XL Series Subwoofer
  • Power Handling:
    • Peak: 4400 watts
    • RMS: 2200 watts
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Quad 8" OD semi cup progressive roll spiders
  • Dual extra heavy duty interweaved tinsel lead wire
  • Rubber mounting gasket

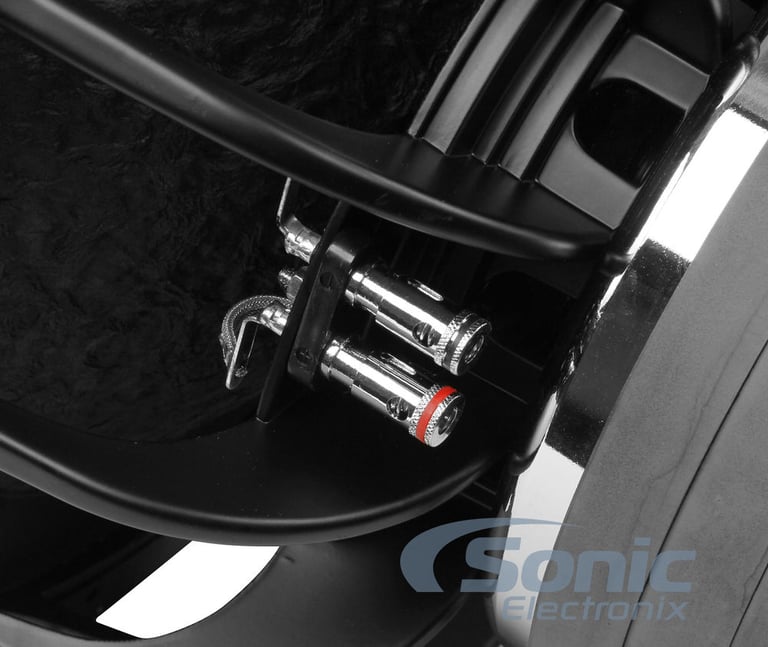

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 8.25"
  • Sensitivity: 89dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 XL 15" T/S Parameters:

  • Electrical Q Value (Qes): .516
  • Mechanical Q Value (Qms): 16.55
  • Total Speaker Q Value (Qts): .5
  • Free Air Resonance (Fs): 34.3
  • Equivalent Compliance (Vas): 66.02 liters
  • One-Way, Linear Excursion (Xmax): 26mm
  • Efficiency (Ref SPL @ 1W): 89dB
  • Effective Piston Area (Sd): 791 cm²
  • DC Resistance (Re): 3.98
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 22.73
  • Mechanical Compliance (Cms): .07 mm/N
  • Mechanical Mass (Mms): 306.7g
  • Voice Coil Inductance (Le): 5.2 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: 3.0 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

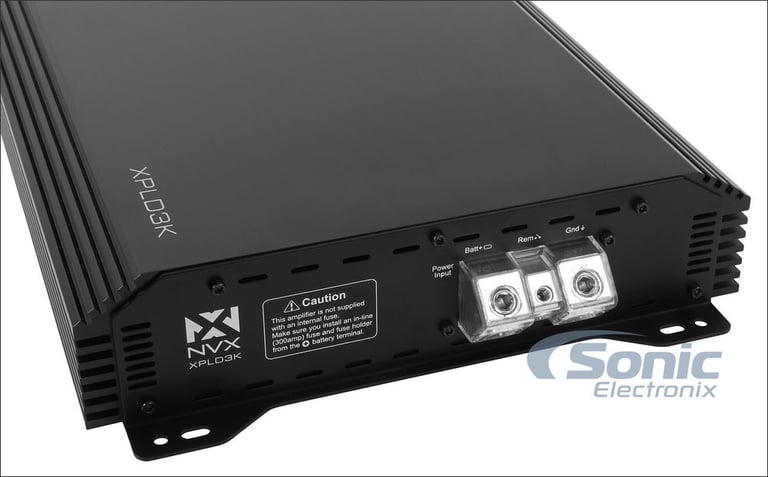

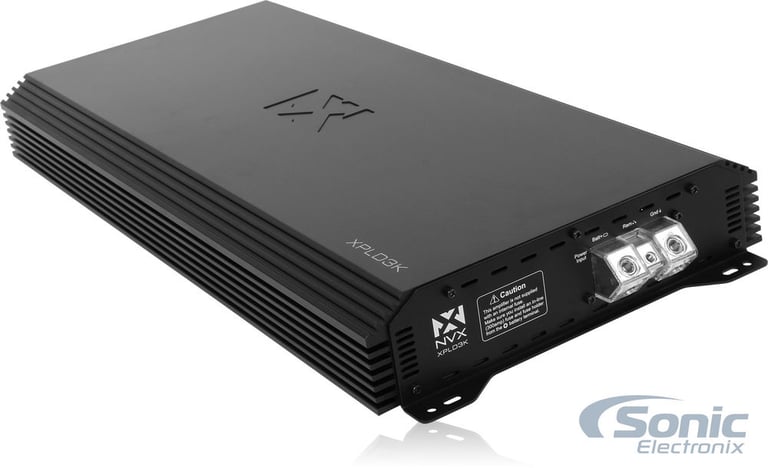

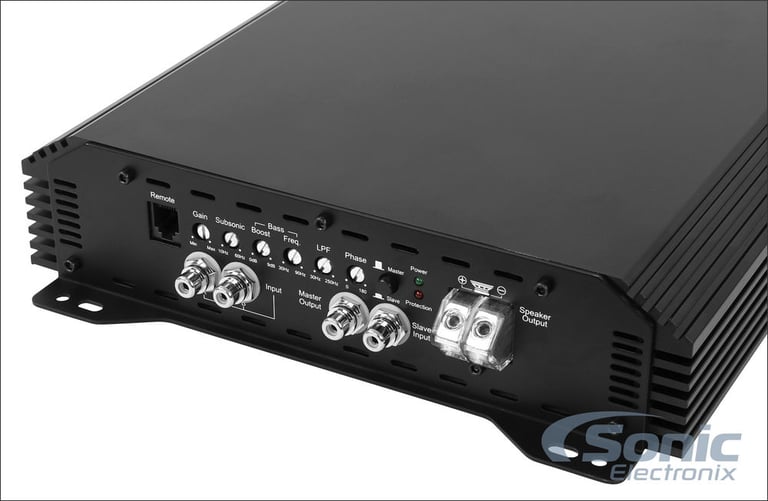

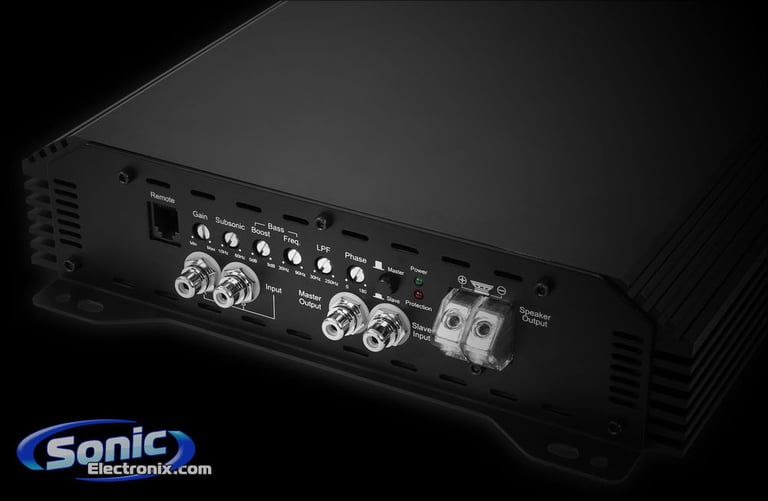

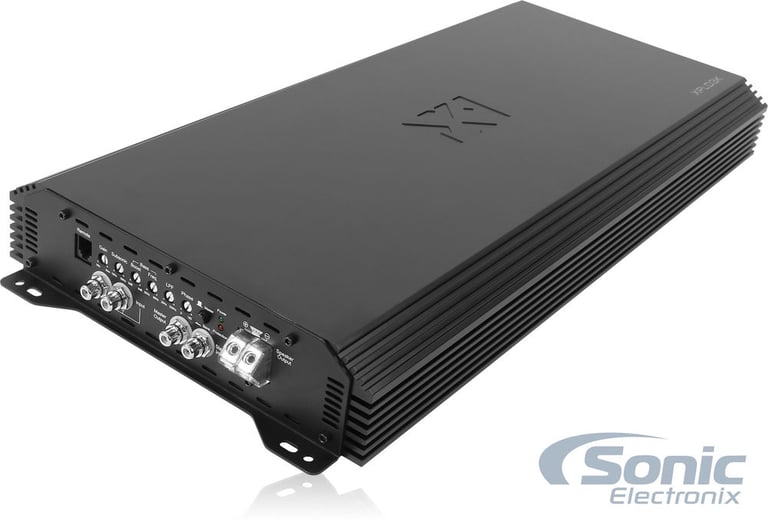

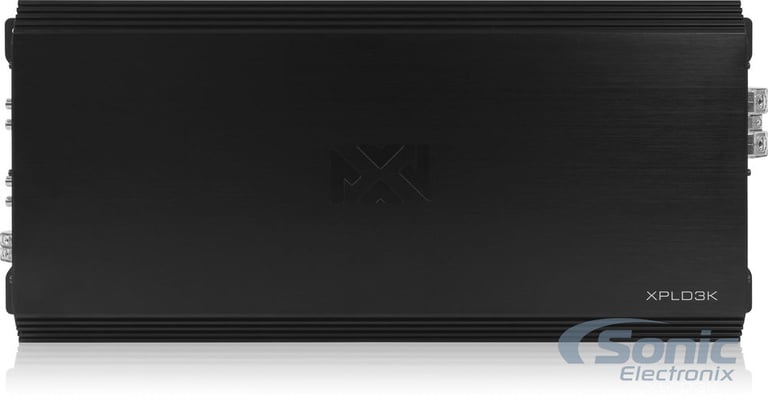

NVX XPLD3K

True 3000W RMS, Class-D Monoblock Amplifier with Bass Remote
Quantity: 1

General Features:

  • Class D Monoblock Amplifier with Bass Remote
  • RMS Power Rating:
    • 4 ohm: 1020 watts x 1 chan.
    • 2 ohm: 1900 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Dual Pulse Width Modulated (PWM) MOSFET power supply

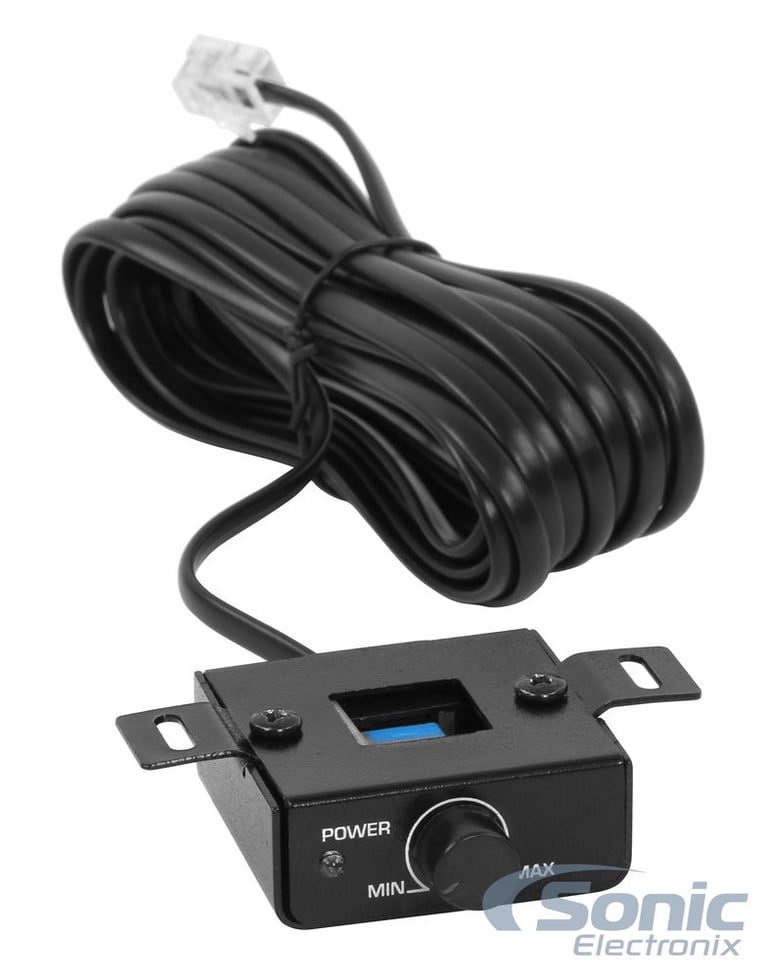

  • Wired remote bass level control included
  • Mono channel operation
  • Master and slave input to combine multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Variable subsonic filter (10-30 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Input Sensitivity: 200mV-6V
  • Frequency response: 10-350 Hz
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • LED power (green) and protect (red) indicators
  • Heavy duty copper layer double sided epoxy PCB
  • 0/1 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 10"W x 20.5"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK0, NVX XAPK1D, or NVX XKIT02


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

P300-10 small

Rockford Fosgate Punch P3 P300-10

• 10" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(58)

$339.99

List price $339.99

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1020 watts x 1 channel
RMS Power @ 2 ohms
1900 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
>1%
Speaker Level Inputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
10 - 30 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
300A External Fuse Required
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
XL Series
Subwoofer Size
15"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
2200 watts
Peak Power Handling
4400 watts
Woofer Surround
Poly-Foam
Woofer Composition
Non-Pressed Paper
Sensitivity
89 dB
Xmax (millimeters)
26 mm
Top-Mount Depth (Mounting Depth)
8.25"
Cutout Diameter
14.00"
Recommended Enclosure Type
Ported / Vented
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2XL15D2 + XPLD3K

Weight:

77.10lbs

Internal SKU:

m2xl15d2_xpld3k

Internal Product ID:

90418

Customer Ratings & Reviews


3000W DC Audio and NVX Bass Package thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.7
Features
4.6
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great amp!

The following review is for XPLD3K, which is a part of the bundle you are viewing.

I have this amplifier powering two NVX VCW 124's in a custom ported box. It makes big power, so be sure you have the big 3, 10 farad cap or H/O alternator to get the best benefits. It produces great sound quality at decent volume levels and has yet to get hot. It's relatively small footprint is impressive for the power it makes. PROS: Great quality build, great quality sound, decent price. I like the simple, sleek look of the amp. NVX doesn't use flashy lights and gimmicks, just a grown up, clean, professional look and performance. CONS: Bassknob. The bass adjustment knob on this seems to be quality... at least on the outside. The casing is solid metal and the knob has a good resistance as you turn it. However, the LED on it was WAY too bright... when it was working. About 5 minutes after hooking it up, the LED stopped working. (Which was fine with me because it was INTENSELY bright. And that was in daylight!) From 0-35%, the knob adjusts the bass level a bit too aggressively. From 35% on up, it seems to do little to no adjustment. I still make use of the bass knob as I listen to a huge variety of music. I would certainly like to see an improvement in this area.
However, this does not take away from the fact that this amp beats smooth and steady. I would absolutely recommend it to anyone serious about their bass.

By Gage on April 29, 2014

41 found this helpful


Better then hifonics

The following review is for XPLD3K, which is a part of the bundle you are viewing.

I bought from sonic electronix because I'm buying from canada and there's very few sites that offer warranty over the border.
I DID previously purchase a Hifonics amp from a different website that ended up catching fire and almost burning my Infiniti to the ground, just to find out that they wouldn't cover the warranty because I'm in canada.
I can tell you sonic DOES offer warranty to canada, and because of this, I've been buying (and will continue to buy) my car audio from sonic electronix. I was after a powerful amp, and this amp came recommended from Wes (at sonic) and he gave me an amazing deal on that and on the shipping. I am completely satisfied, I'm only running the amp at 4 ohms at the moment and it's a crazy amount of power, I can imagine when I get it to 1 ohm! Thank you sonic electronix!

By Alex on August 31, 2014

36 found this helpful


Exelent amplifier

The following review is for XPLD3K, which is a part of the bundle you are viewing.

One of the best amplifier i ever bought.
Awesome look on it very easy to adjust and understand
Just love it

By Kim André on April 29, 2014

35 found this helpful


Awesome!!

The following review is for XPLD3K, which is a part of the bundle you are viewing.

There are no other words besides awesome! I've had this for over a month powering my Orion HCCA Competition Sub and it keep feeding it all the power the sub can take.The Amp case is solidly build which helps with durability toughness. The Angle terminal end give it a professional look but can be a pain at times with 1/0 gauge wiring running to it.
The only problem I have is the remote LED is too bright. It's blinding trying to drive at night and even during the day at times.
This amp is by far one of the best amps I have ever purchased.

By Raymond on January 15, 2015

31 found this helpful


Powerful and Clean sound ! Quailty korean built amp

The following review is for XPLD3K, which is a part of the bundle you are viewing.

ive got the XPLD3k running 6 600RMS 12'' subwoofers and it pushes them to the very max ! it is very efficient compared to the other 3k's i have owned in the past , i do suggest running a ohio generator alternator and a couple of good agm batteries . the amp stays very cool due to its very big heavy heat sink ,no fans but they are not needed and there is some small vents in the side plates and no other vent holes which is nice so your amp does not get much dust or anything inside it . the angled inputs are kind of a pain but do really make the install look nice and clean with minimum wires showing , overall its a great amp and the cost on it is amazing ! id highly recommend it to anyone , also i dont use the bass knob at all ''never took it out of the box'' i instead use the NVX XBRC which adjusts your rca's going into the amp rather than adding bass boost and distortion

By Brad on July 11, 2014

29 found this helpful


DC Audio XL 15D2

The following review is for M2XL15D2, which is a part of the bundle you are viewing.

Just recently got this sub and build quality is very good. I had an RE MX15 that for some reason one of the coils blew and I wasn't even putting max power from the Hifonics BRX 1100.1D. I replaced it with this and the box is 4.0 Cu Ft and it hit the lows really well. Will be turning it up soon. I plan on getting another one of these but finding a box that fits in a 13 civic is hard, so may have to go the custom route. Currently have 0 guage stinger wire and an XS Power battery in the back.. Only thing that made me mad was originally it said I would get it Friday, but it ended up coming on a Monday so I didn't get the weekend to play with it and really tune it. Overall I love the pounding this sub is taking

By Justin on December 9, 2014

21 found this helpful


NVX 3K

The following review is for XPLD3K, which is a part of the bundle you are viewing.

great product would totally recomend. good upgrade over my hifonics 2.2k. a little expensive would rather buy 2 hifonics x14s strapped would be cheaper with more watts

By jcl on December 1, 2014

25 found this helpful


Beast Mode

The following review is for XPLD3K, which is a part of the bundle you are viewing.

I haven't played with it too much or had it tuned, but.......beast mode....beast mode....A+++++

By Papa Smurf on June 8, 2015

16 found this helpful


great deal and product

The following review is for M2XL15D2, which is a part of the bundle you are viewing.

Communication was great and the product is awesome. would definitely do business here again

By Rickey on March 29, 2015

15 found this helpful


Great subwoofer

The following review is for M2XL15D2, which is a part of the bundle you are viewing.

I would recommend this woofer. Worth the money. I have it wired to 1 ohm on a Rockford t2500. This thing gets low n loud.

By Cadillac on September 15, 2015

12 found this helpful




KAC-8105D_SWR-1242D small

1000W Complete Kenwood + Alpine Bass Package

Kenwood Performance Series KAC-8105D Amplifier + Alpine SWR1242D Type R 12" Sub + 4GA Kit +Sealed Box

$338.99

List price $569.96

NSH-5500 small

NVX NSH-5500

Install New Speakers in select 1979-1997 vehicles from Ford, Mercury

$7.99

List price $12.99

LA490 small

Legacy LA490 American Legacy II Series

$84.99

List price $149.99

3.5k_SonicElectronix-75-Gift-Card small

DC Audio 3.5k + Free $75 Sonic Electronix Gift Card

3500W Competition Series Monoblock Class D Amplifier + Free $75 Sonic Electronix Gift Card

(8)

$1099.99

List price $1461.00

HD9813RG-STAGE1 small

Rockford Fosgate HD9813RG-STAGE1

Source unit & two speakers kit for select 1998-2013 Road Glide motorcycles

(6)

$1099.98

List price $1099.98

CNP2000UCA+CNPJEN1 small

Jensen XM Satellite Radio Solution Package

Audiovox CNPJEN1 Jensen Specific XM Adapter + Audiovox CNP2000UCA XM Direct 2 Universal Tuner

(16)

$140.66

List price $154.98

GM1VL2 small

GROM Audio GM1VL2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2010-2019 vehicles from Chevrolet, Buick, GMC

$679.95

List price $679.95

560XV-2 small

Viper 560XV (P/N 563V)

Security System / Remote Start System

(1)

$109.99

List price $199.99

XD-PCS4-2B small

JL Audio XD-PCS4-2B 4 Gauge Dual Amplifier Kit

4 AWG Premium Series Dual Amplifier Power Installation Kit

(2)

$299.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Lincoln LS

2003 Buick Rendezvous

2003 Mazda B3000

2015 Ford Expedition

2007 Dodge Sprinter 2500

1997 Mazda 626

1997 Ford Windstar

2011 Volkswagen Eos

1983 Saab 900

2002 Saturn L100

Vehicle
Store
Delete

1990 BMW K1

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
