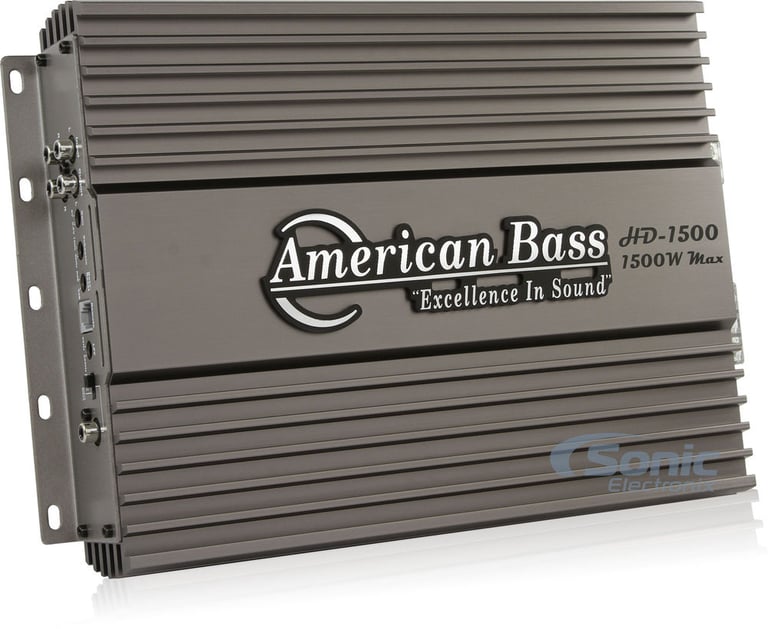

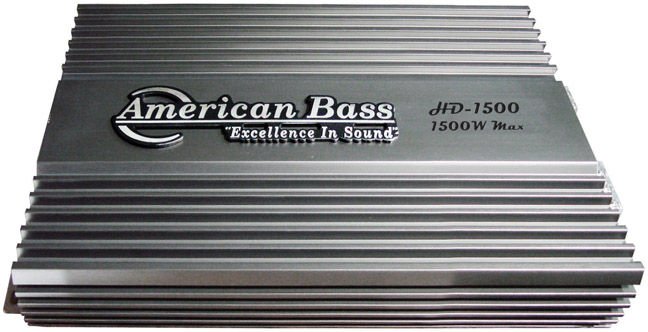

American Bass HD1500

1500W RMS Class D Monoblock HD Series Car Amplifier

Product videos
highlight-star-icon

• RMS: 800W
• Total Peak Power: 1500W
• Low Level Input and Output
• Variable Low Pass Filter
• S/N Ratio: >85
• Remote Gain Controller

Learn more about the hd1500

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5604 main

Metra 82-5604

Speaker Plates for select 2014-2024 Transit Connect and Ranger and Maverick

-40.01%

$17.99

List price $29.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

JBL Stage3 607CF (STAGE3607CFAM)

500W Peak (100W RMS) 6.5" Stage3 Series 2-way Component 3-ohm Speakers

3
-31.26%

$109.95

List price $159.95

Limited time!

JBL STAGE1 62

800W Peak (100W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

1
-44.47%

$49.95

List price $89.95

Product Highlights


• RMS: 800W
• Total Peak Power: 1500W
• Low Level Input and Output
• Variable Low Pass Filter
• S/N Ratio: >85
• Remote Gain Controller

Description


American Bass brand icon

Authorized dealer

General Features:

  • American Bass HD Series HD1500
  • RMS Power Rating:
    • 1 ohm: 800 watts x 1 chan.
  • Max Power Rating: 1500 watts x 1 Chan
  • 1 Ohm Stable Class D Mono Block Amplifier

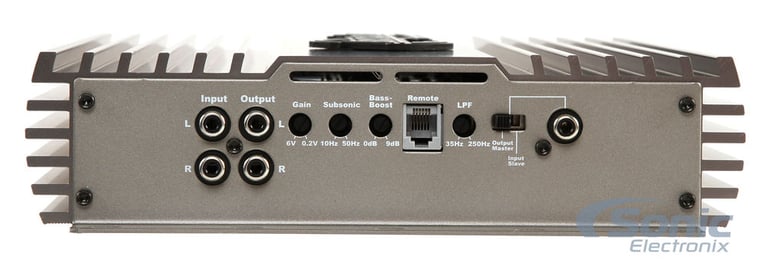

  • Low Level Input and Output
  • Frequency Response: 15Hz ~ 270Hz
  • Input Level: 6V~0.2V
  • Variable Subsonic: 10Hz ~ 50Hz
  • Variable Low Pass Filter: 35Hz ~ 250Hz
  • Variable Bass Boost: 0db ~ 9db
  • S/N Ratio: >85
  • THD: 0.1%

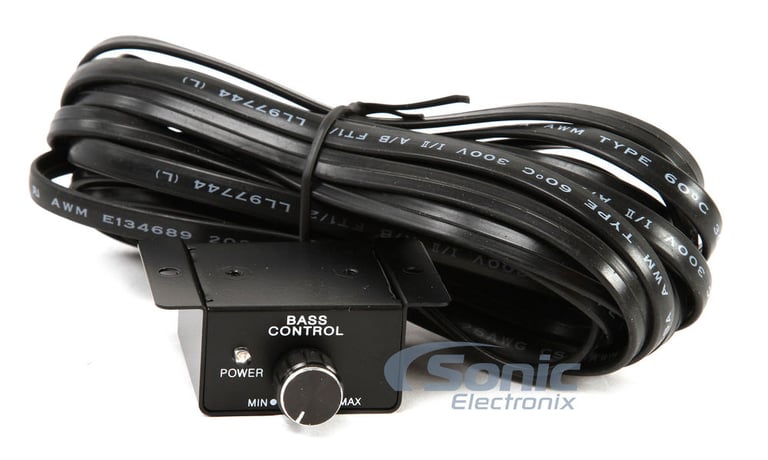

  • Remote Gain Controller
  • Two Amplifiers Linkable Connector and Selector

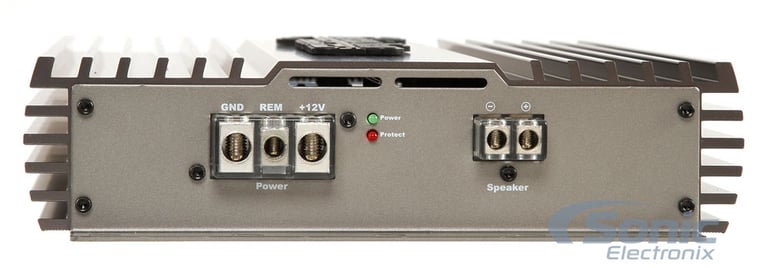

  • Fuse Rating: 60Amps, Linked Fuse Rating: 120 Amps
  • Dimensions (Inches)
  • Height: 2.18
  • Width: 9.13
  • Length: 11.81

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
Not Specified by Manufacturer
RMS Power @ 2 ohms
Not Specified by Manufacturer
RMS Power @ 1 ohm
800 watts x 1 channel
Amplifier Specifications
Series
HD Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Signal-to-Noise Ratio
>85 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HD1500

Weight:

10.10lbs

Internal SKU:

hd1500

Internal Product ID:

90780

Product and How-to Videos


Customer Ratings & Reviews


American Bass HD1500 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great amp

I use this amp to run 2 American bass tnt 12's in a custom built box. The amp dishes out some serious power. It never cuts out, and gives me no issues. It's proven to be better than my friends hifoniz Zeus 1800watt. I would highly recommend this amp if you need something good that doesn't break the bank to bad.

By Tahoe_og_696 on July 3, 2015

14 found this helpful
