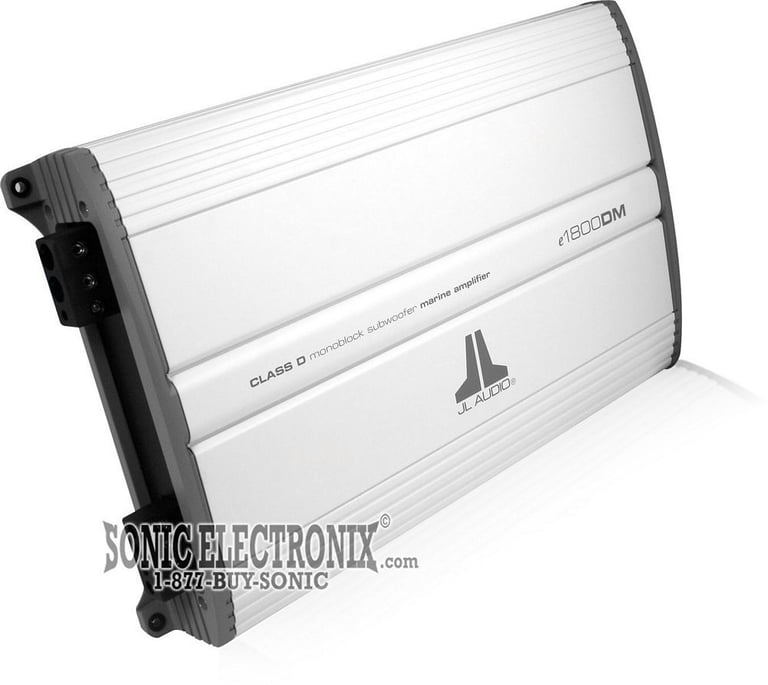

JL Audio e1800DM (Marine Series e1800M) R/B

Class D Monoblock Amplifier -- Marine Version of e1800D

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

1000W RMS Class D Monoblock Amplifier • High-Damping Class D Circuit • Built-in Crossover: LPF 20 - 400Hz • 1000W x 1 @ 2 Ohm RMS (14.4V) • 640W x 1 @ 4 Ohm RMS (14.4V) • Pass-through RCA Outputs • High-level Inputs • CEA-2006 Compliant

Learn more about the LS-e1800dm-RB

We apologize

This item has been discontinued

Product Highlights


1000W RMS Class D Monoblock Amplifier • High-Damping Class D Circuit • Built-in Crossover: LPF 20 - 400Hz • 1000W x 1 @ 2 Ohm RMS (14.4V) • 640W x 1 @ 4 Ohm RMS (14.4V) • Pass-through RCA Outputs • High-level Inputs • CEA-2006 Compliant

Description


JL Audio brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • Marine version of JL Audio e1800D
  • Same amplifier interally with special marine application coating
  • Class D Monoblock Subwoofer Amplifier
  • High-Damping Class D Circuit with discrete control circuitry
  • Pass-through RCA outputs
  • On-board crossover: Variable Low-Pass Filter: 20 -200Hz, Selectable Slope
  • High level inputs
  • CEA-2006 Compliant
  • RMS Power Rating (14.4V):
    • 4 ohm: 640 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
  • RMS Power Rating (12.5V):
    • 4 ohm: 480 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
  • Frequency Response: 10 - 250Hz
  • Damping Factor: >500 @ 4 Ohm / 50Hz, <250 at 2 Ohm/50Hz
  • Input Range: 200mV - 8V RMS
  • Bass EQ: +6dB Fixed Frequency, Fixed 'Q' with port for optional remote bass control
  • Dimensions: 15.75" L x 9.25" W x 2.36" H
  • 90 days Repair Only Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
640 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
20 - 400 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
80A x 1

Item Details


Manufacturer:

Model Number:

e1800DM-RB

Weight:

16.00lbs

Internal SKU:

LS-e1800dm-RB

Internal Product ID:

14220
