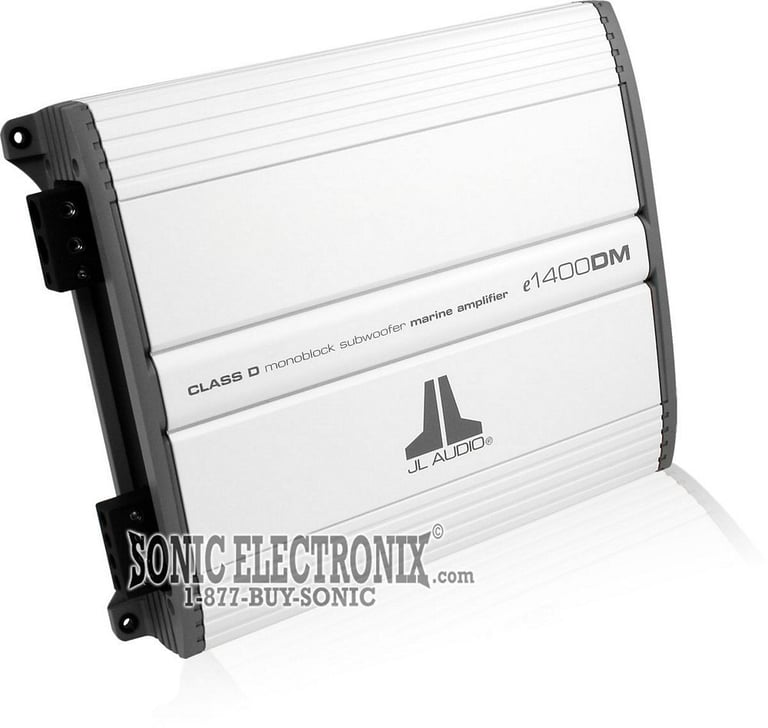

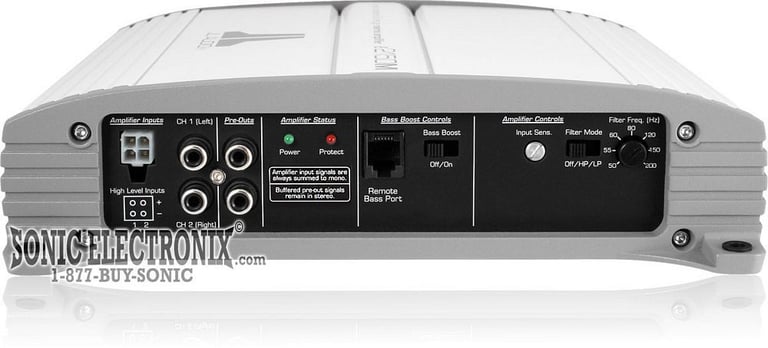

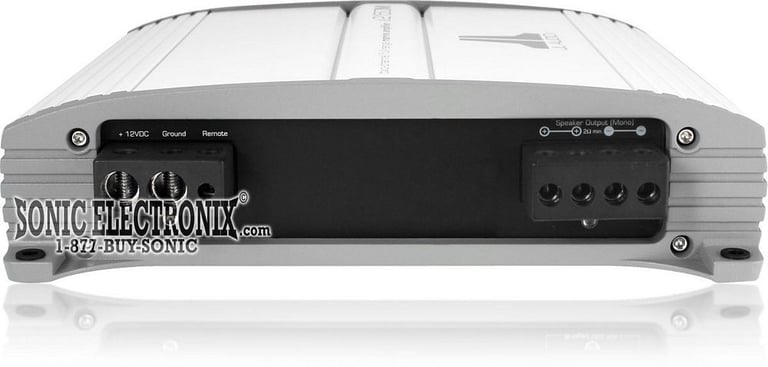

JL Audio e1400M (Marine Series e1400M)

500 watts, Class D Monoblock Amplifier -- Marine Version of e1400D

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

500W RMS Class D Monoblock Amplifier • High-Damping Class D Circuit • Built-in Crossover: LPF 20 - 400Hz • 500W x 1 @ 2 Ohm RMS (14.4V) • 320 W x 1 @ 4 Ohm RMS (14.4V) • Pass-through RCA Outputs • High-level Inputs • CEA-2006 Compliant

Learn more about the e1400dm

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m6001 thumbnail

JL Audio M600/1

OUR PRICE: $649.99

View item

Loading...
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Product Highlights


500W RMS Class D Monoblock Amplifier • High-Damping Class D Circuit • Built-in Crossover: LPF 20 - 400Hz • 500W x 1 @ 2 Ohm RMS (14.4V) • 320 W x 1 @ 4 Ohm RMS (14.4V) • Pass-through RCA Outputs • High-level Inputs • CEA-2006 Compliant

Description


JL Audio brand icon

Authorized dealer

  • Marine version of JL Audio e1400D
  • Same amplifier interally with special marine application coating
  • Class D Monoblock Full Range Amplifier
  • High-Damping Class D Circuit with discrete contorl circuitry
  • Pass-through RCA outputs
  • On-board crossover: Variable Low-Pass Filter: 20 -200Hz, Selectable Slope
  • High level inputs
  • CEA-2006 Compliant
  • RMS Power Rating (14.4V):
    • 4 ohm: 320 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • RMS Power Rating (12.5V):
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
  • Frequency Response: 10 - 250Hz
  • Damping Factor: >500 @ 4 Ohm / 50Hz, <250 at 2 Ohm/50Hz
  • Input Range: 200mV - 8V RMS
  • Bass EQ: +6dB Fixed Frequency, Fixed 'Q' with port for optional remote bass control
  • Dimensions: 11.81" L x 9.25" W x 2.36" H
  • 1-year SonicElectronix.com warranty
