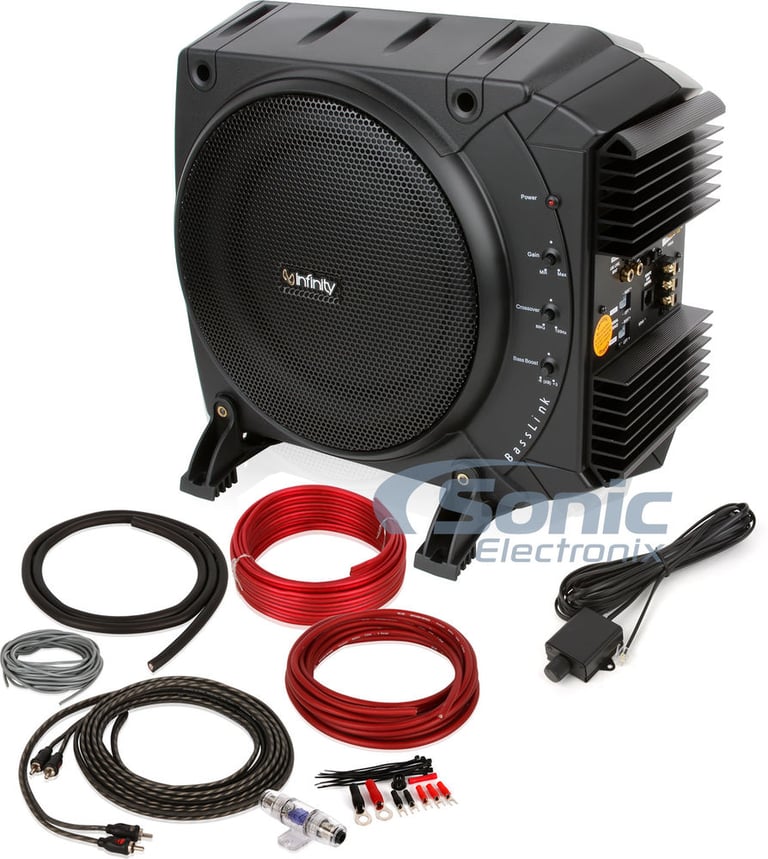

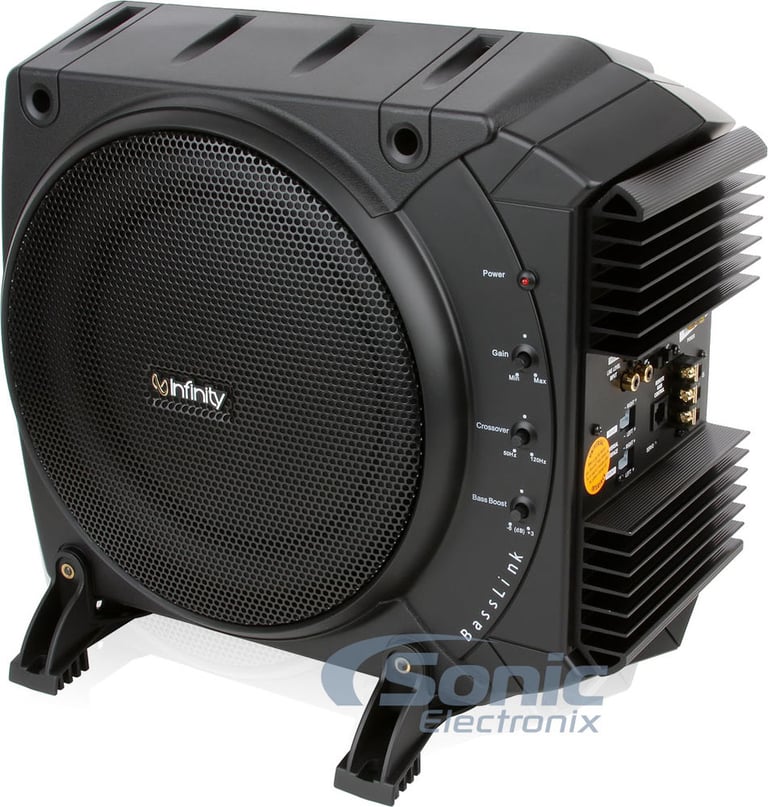

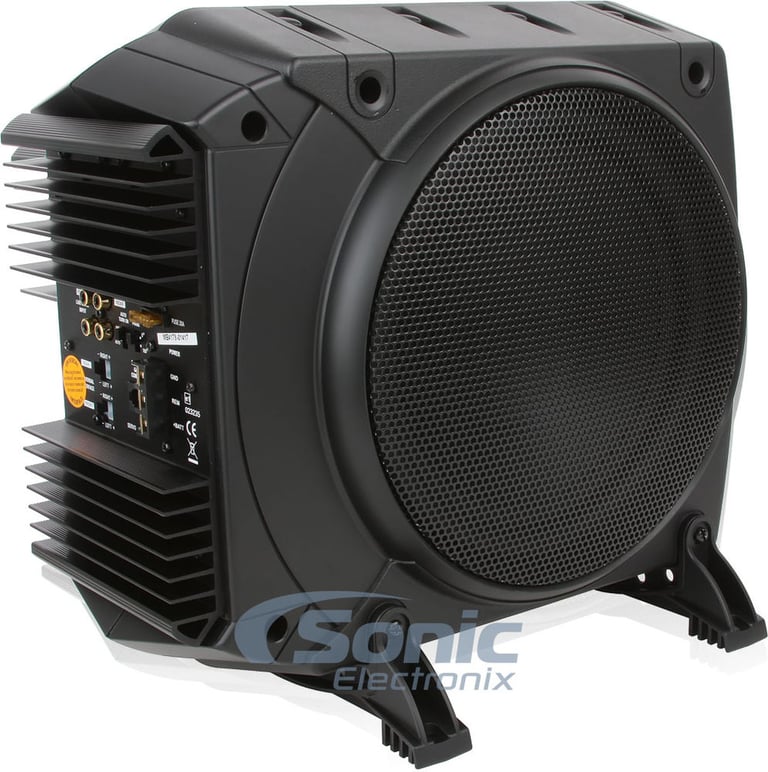

Infinity BassLink
200W 10" Class D Powered Subwoofer System
Quantity: 1
General Features

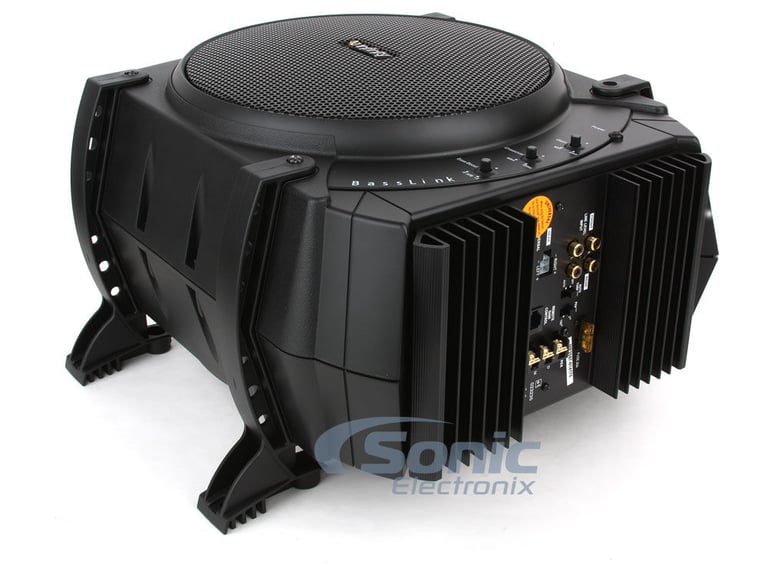

- Powered 10" Subwoofer with 10" Passive Radiator
- Built-in class D 200-watt amplifier
- RMS: 200 watts

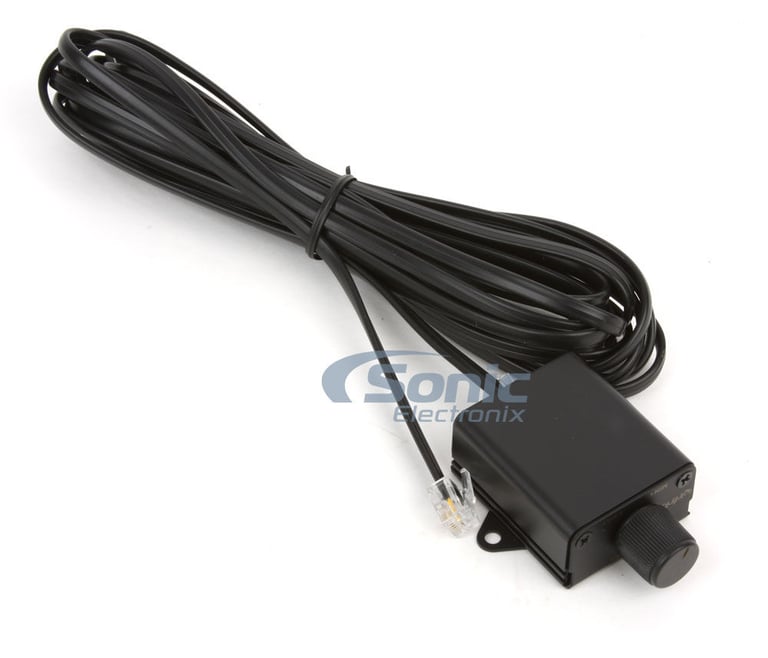

- Wired remote bass level control included
- LED power indicator
- Soft start turn-on

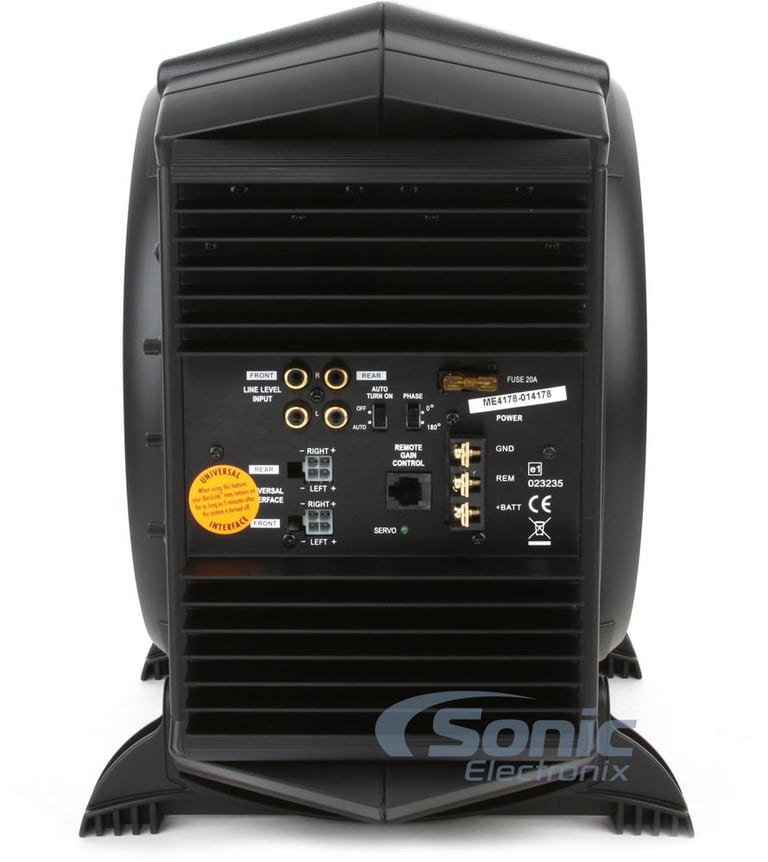

- Speaker and line-level inputs

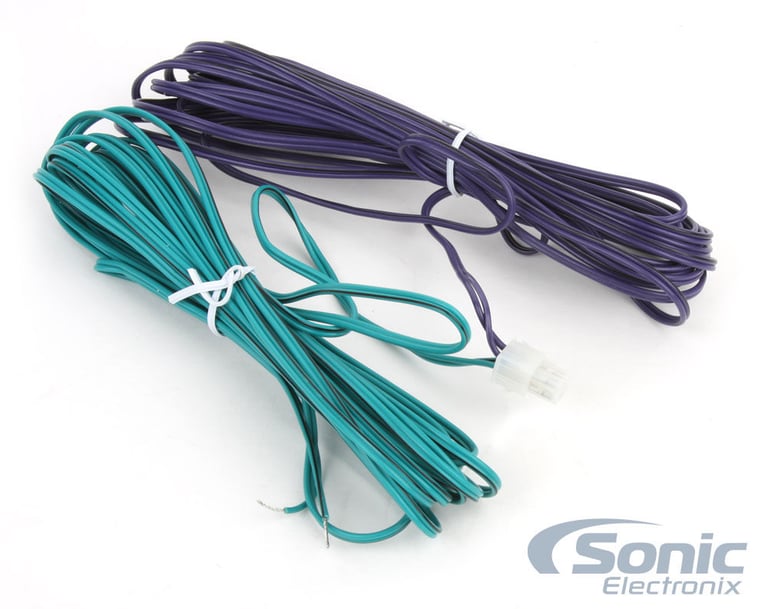

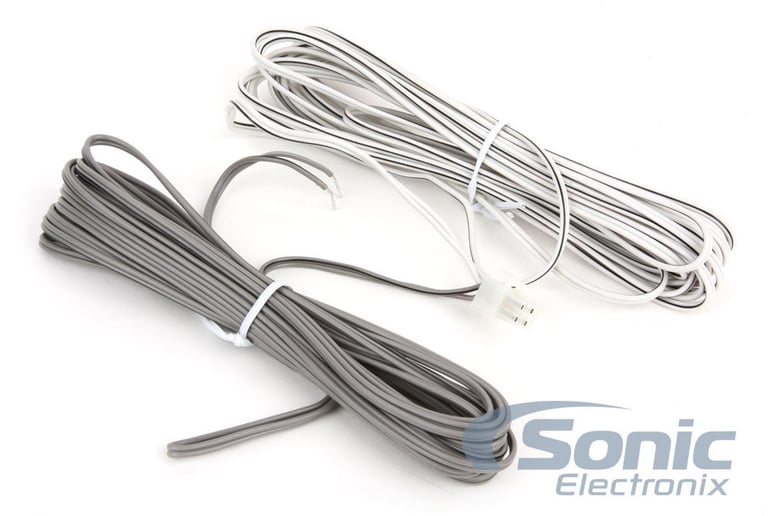

- 19' speaker-level input wires with plug-in harness included
- Auto turn-on with speaker-level inputs
- Remote turn-on lead (12V) required for use with RCA inputs
- Input sensitivity:
- Low level: 50mV - 4V
- High level: 1V - 16V
- Frequency Response: 20 - 120 Hz
- Variable low-pass filter: 50 - 120 Hz, 12 dB/octave
- Variable Bass Boost: -6 to +3 dB bass boost at 40 Hz
- Selectable Phase: 0°/180°
- Fuse Rating: 20A x 1
- Maximum Current Draw: 12A
- 8 gauge power and ground wiring is recommended for installation.

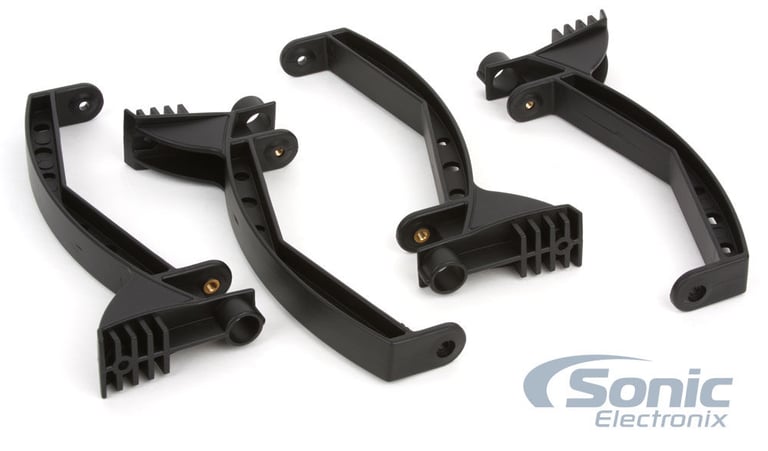

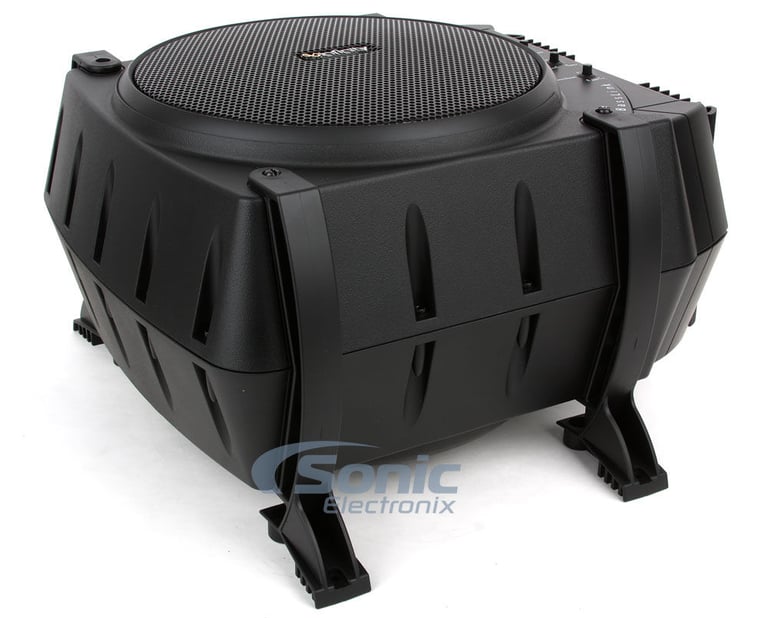

- 14-1/2"W x 13-3/8"H x 9-7/8"D (vertical mount); 14-1/2"W x 9-1/2"H x 15-3/16"D (horizontal mount)
- Also referred to as the Infinity Bass Link Sub System
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

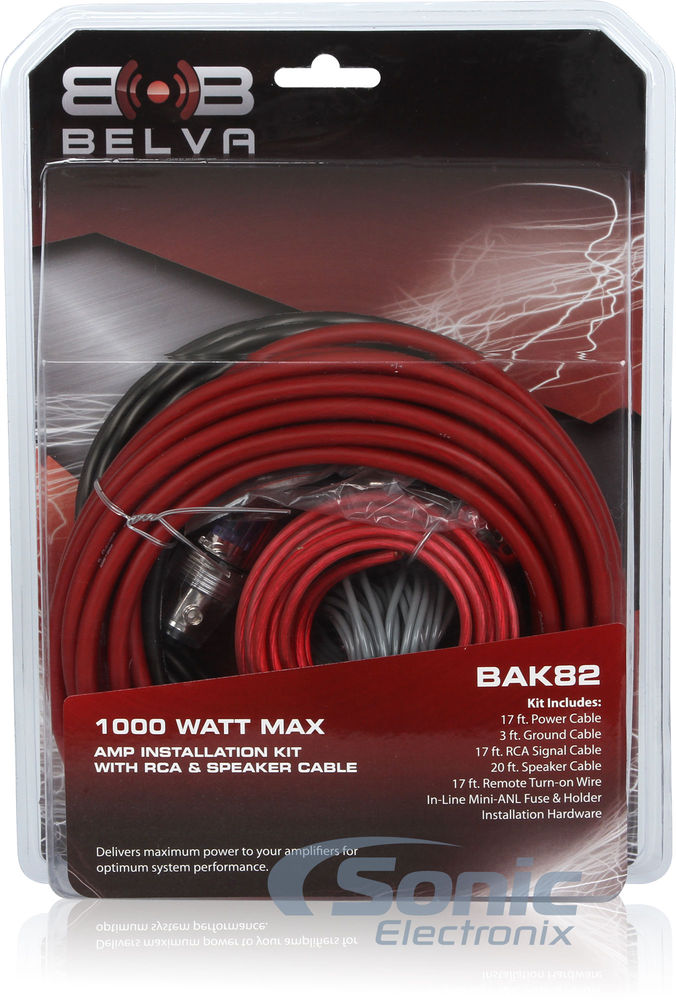

Belva BAK82
Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)
Quantity: 1
General Features:
- Complete 8 Gauge 2-Channel Amplifier Installation Kit
- Designed specifically for car audio systems up to 500 watts RMS
- Premium Powerflex power and ground wire provides optimal power transfer
- Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
- Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
- Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
- Mini-ANL Fuse holder with a 60 amp Mini-ANL fuse offers ideal protection
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

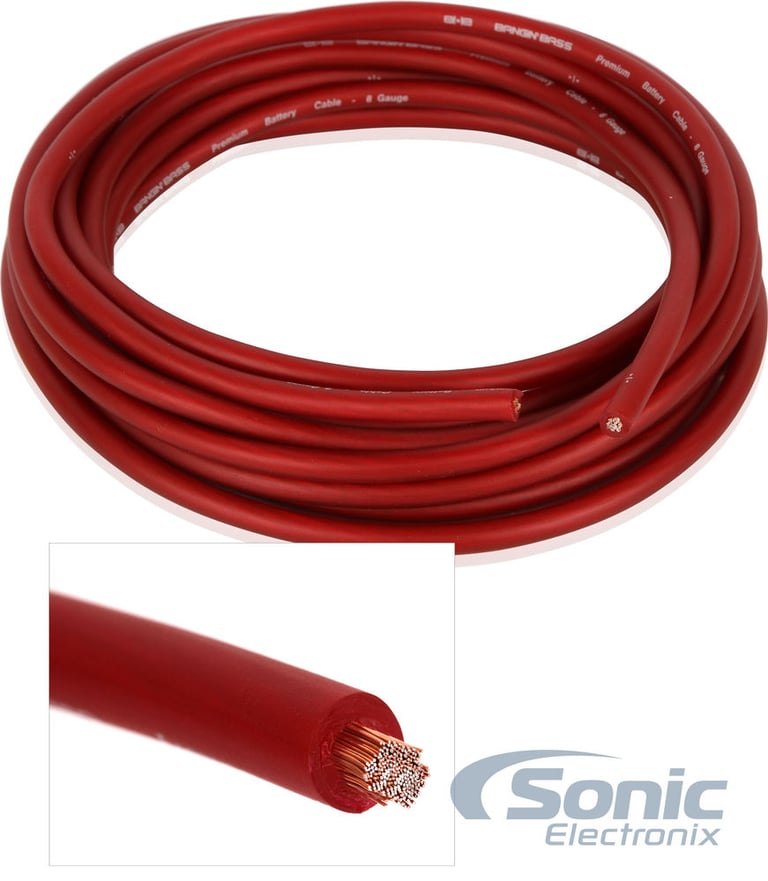

- 17 ft. (5.2 meters) Red 8 gauge power wire

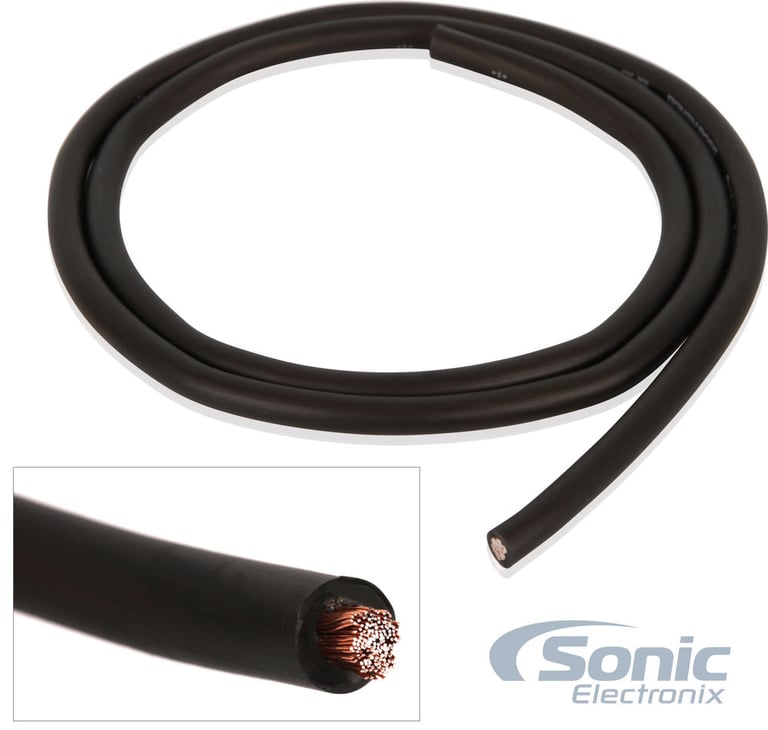

- 3 ft. (.91 meters) Black 8 gauge ground wire

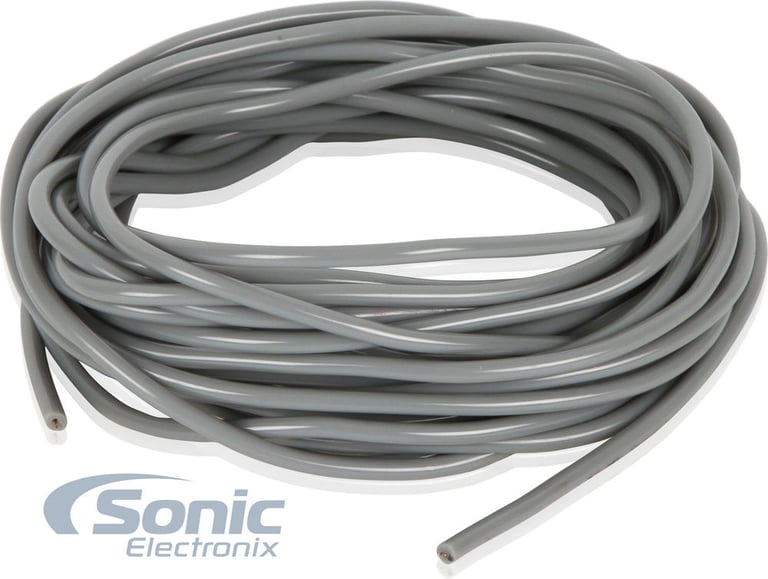

- 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

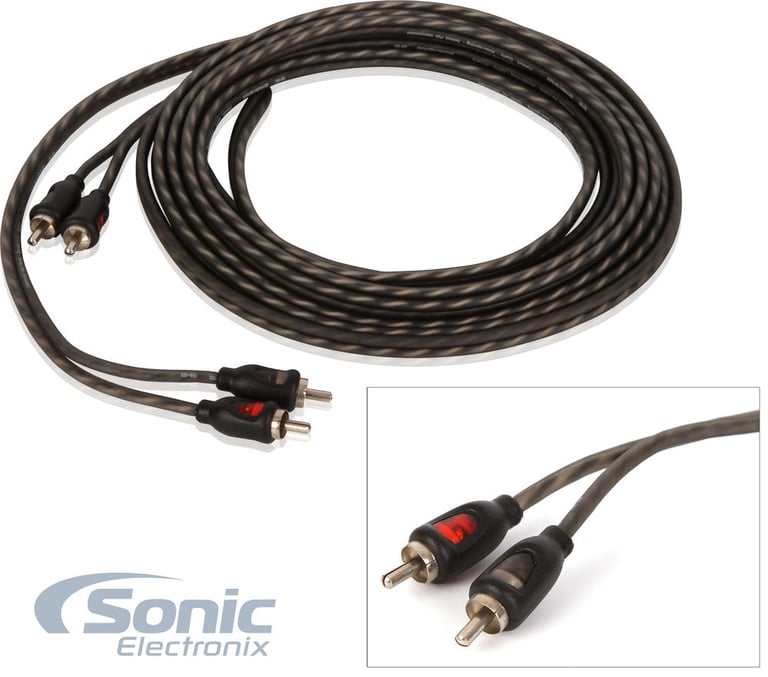

- 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

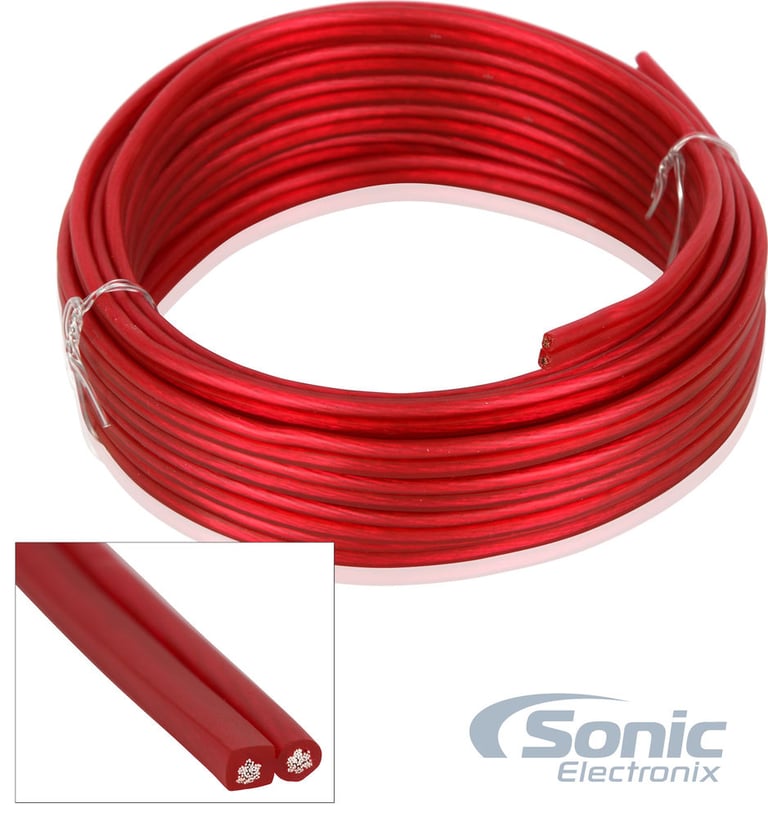

- 20 ft. (6.1 meters) Speaker cable

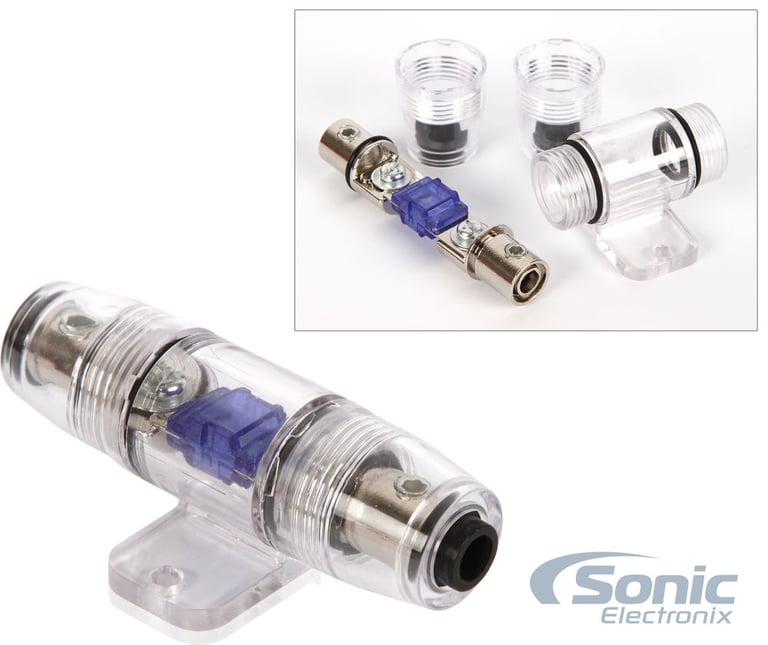

- One In-line Mini-ANL Fuse Holder with a 60 amp Mini-ANL fuse
- One black rubber firewall grommet
- One 8 Gauge red chrome plated ring terminals
- One 8 Gauge black chrome plated ring terminal
- Three 18 Gauge red Spade terminal
- Two 18 Gauge black Spade terminal
- One 18 Gauge red butt connector
- Ten 4" Black zip ties
