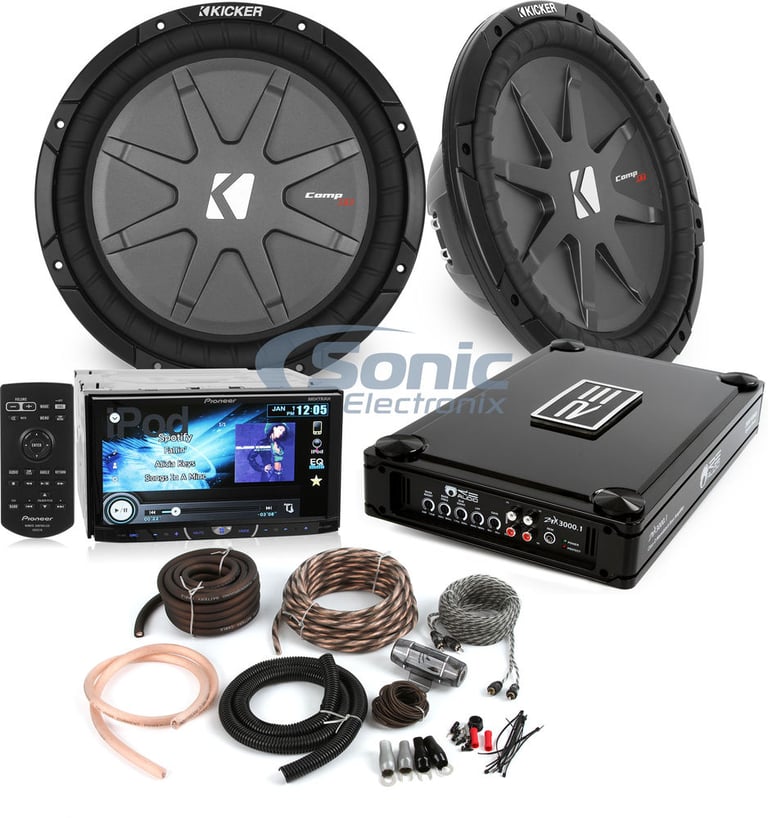

Kicker + RE Audio Bass Upgrade w/ Pioneer AVH-X4600BT

Key Benefits:

• Smartphone Integration:
• Made for / Works with iPod and iPhone
• Pandora control from iPhone and Android
• Enjoy Advanced App Mode, you'll need Pioneer's CD-IU201S cable for iPhone 4 or 4S, or the CD-IU203S cable for iPhone 5
• AppRadio LIVE app compatibility
• Condenses your favorite apps into a single user interface
• Eliminates the need to open different apps individually
• Access your navigation, music and weather apps from a single screen
• Accesses Facebook and calendar events
• Requires iPhone 4 or newer

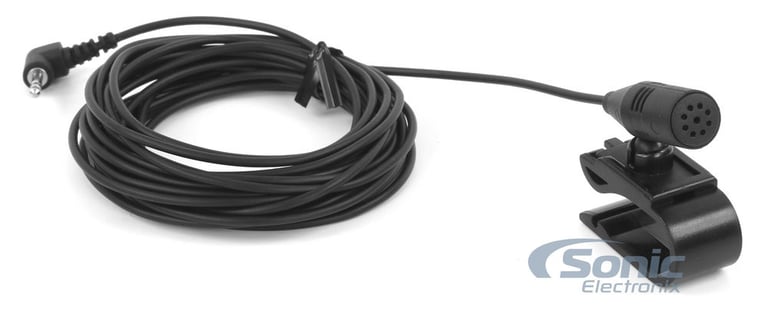

• Make and receive phone calls without taking your hands off the wheel
• Stream music from your Smartphone to your car's speakers
• MirrorLink ready: Mirror your smartphone directly to the stereo (requires CD-ML100 MirrorLink adapter and works)
• Bluetooth:
• Handsfree Calling (HFP), Bluetooth Audio Streaming (A2DP / AVRCP), Bluetooth Advanced Sound Retriever, Bluetooth Guest Mode, Bluetooth Pairing via USB for iPhone
• MIXTRAX:
• MIXTRAX app Illumination Effects
• 3 Sets of 4V preamp outputs:
• Expand your sound system with front, rear and subwoofer channel outputs.

General Features:

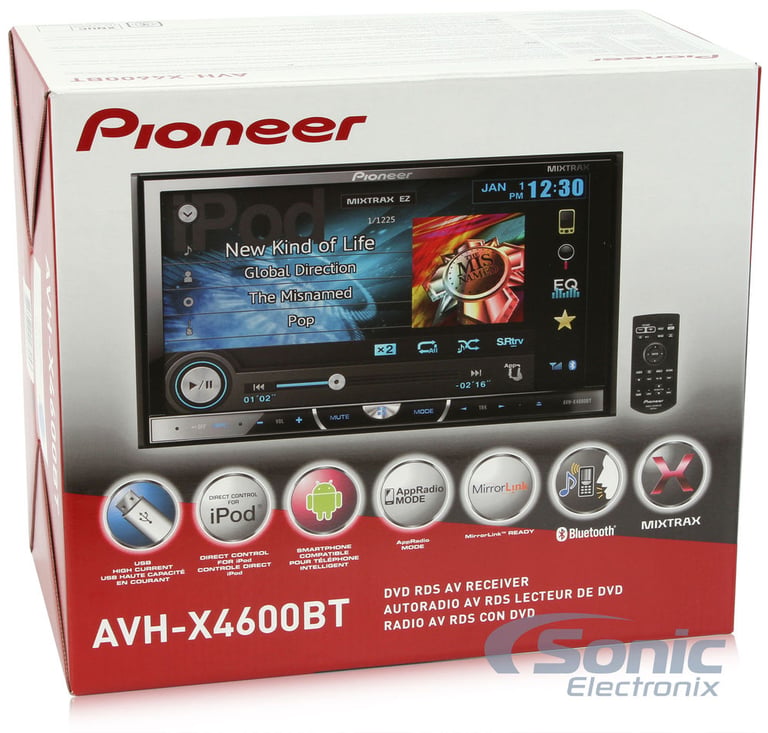

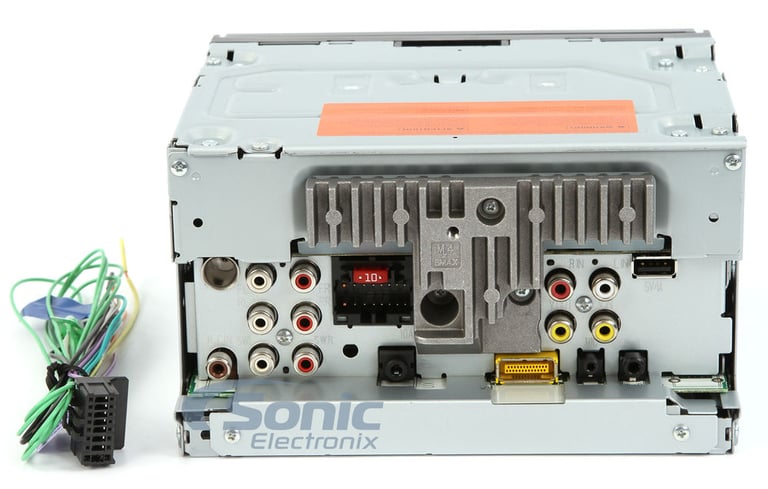

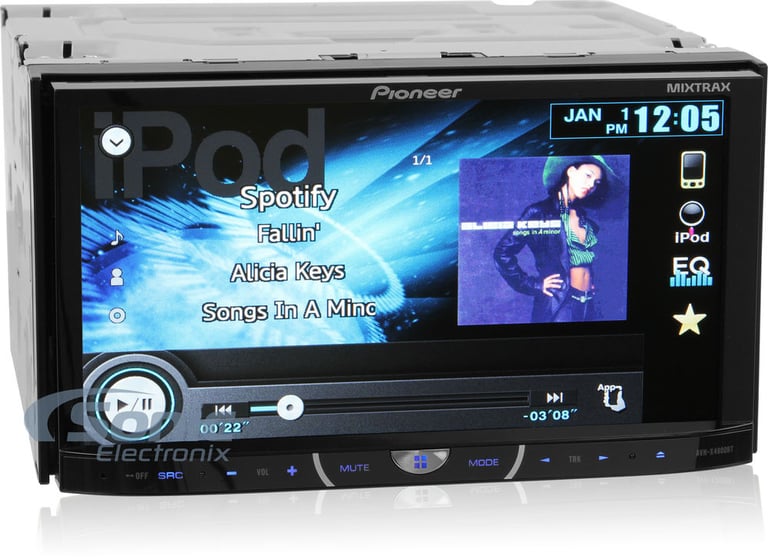

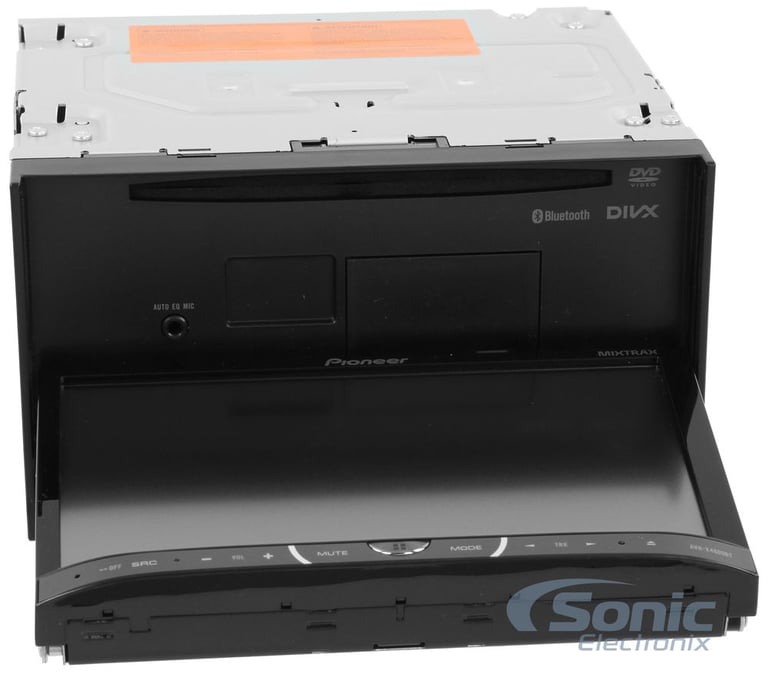

• Pioneer AVH-X4600BT Double DIN In-Dash Receiver
• MIXTRAX: MIXTRAX app Illumination Effects
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 17 watts x 4 channels

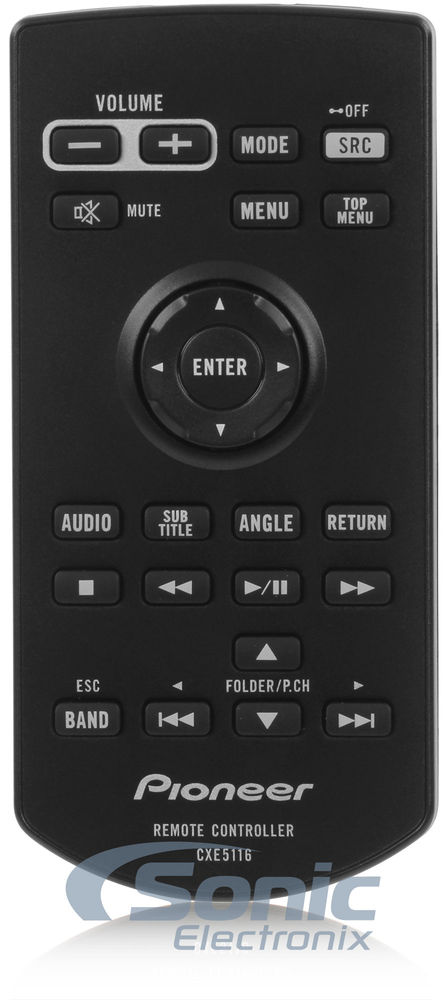

• Wireless remote control included
• 1-year Sonic Electronix Warranty

Playback and Audio Features:

• Playback of CD, CD-R, CD-RW, DVD, DVD-RW, MP3 and WMA
• AM/FM tuner with 24FM/6AM presets
• iPod and iPhone Ready (Music only): Standard USB-to-iPod Cable compatible. However, Pioneer recommends the iPod and iPhone USB to Lightning Interface Cable for iPhone 5, 5S, 5C or the Pioneer USB-to-30 pin iPod Adapter for Pioneer In-Dash Car Stereos for the best compatibility.
• Ipod 2-way control: Requires Pioneer CD-IU201V (for audio & video)
• 8-Band parametric equalizer with 7 selectable preset EQ curves
• Subwoofer Crossover with Slope Adjustments
• High Pass Filter with Slope Adjustments
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
• Rear USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)

Expandability Options:

• 3 Sets of 4V preamp outputs (front, rear and subwoofer)
• GPS Navigation Ready: Pioneer AVIC-U250 required and sold separately
• MirrorLink Ready: The CD-ML100 is required and sold separately.
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input. The Pioneer NDBC5 is recommended and sold separately
• Steering Wheel Control Ready: PAC ControlPRO or Axxess ASWC-1 are required and sold separately
• Steering wheel mounted remote ready: The Pioneer CD-SR100 can be used and is sold separately

General Features:

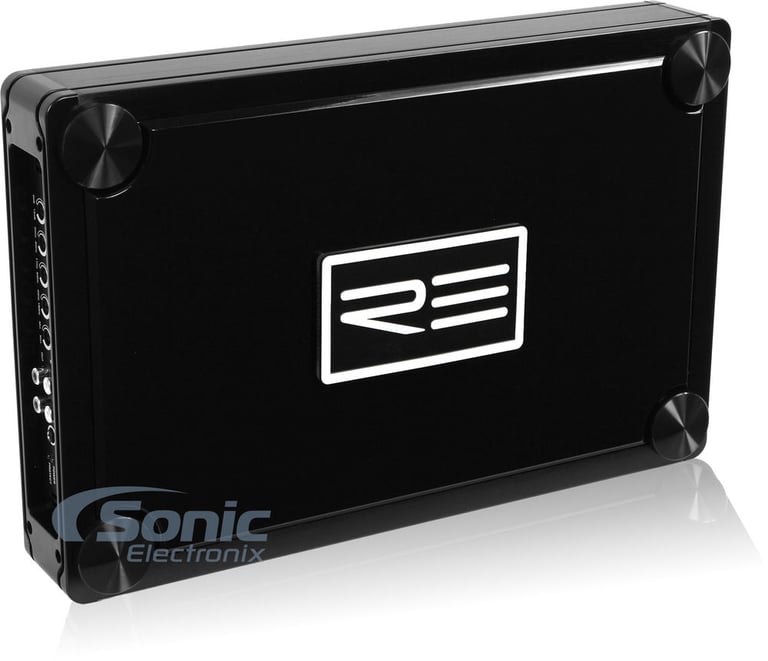

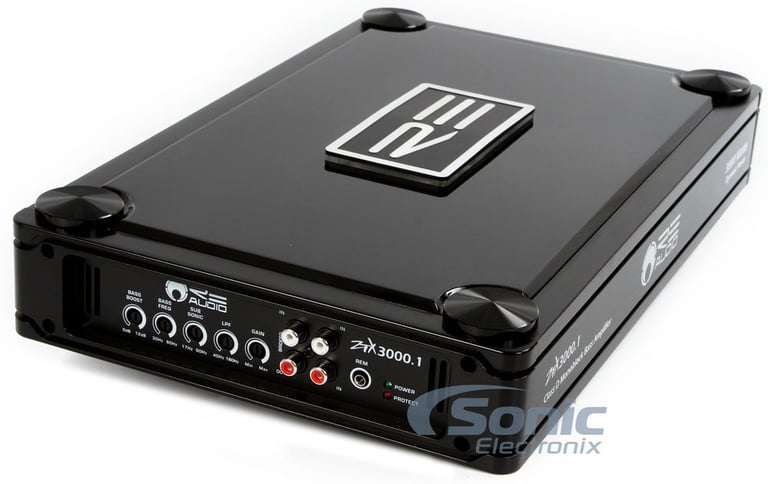

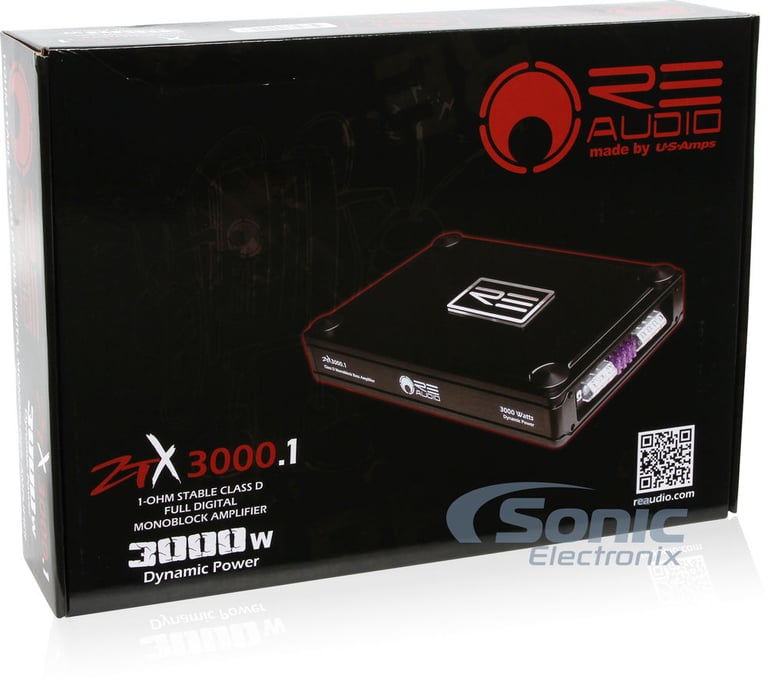

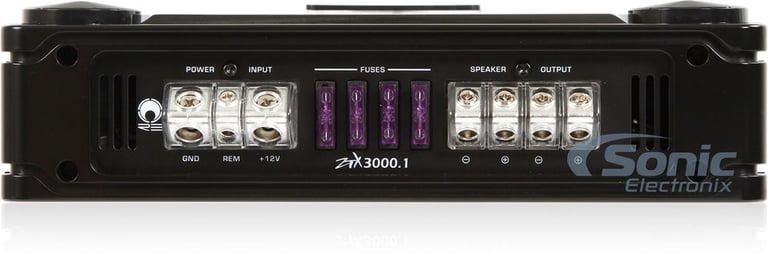

• ZTX Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 600 watts x 1 chan.
• 2 ohm: 1000 watts x 1 chan.
• 1 ohm: 1400 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply

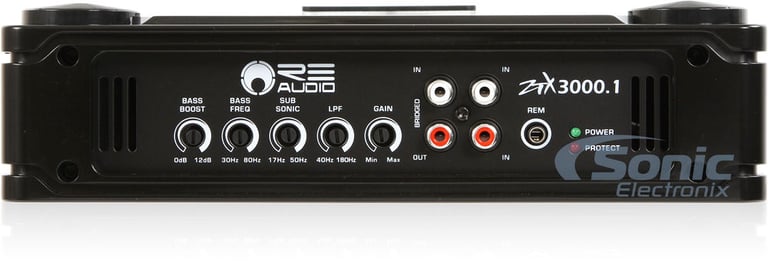

• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)

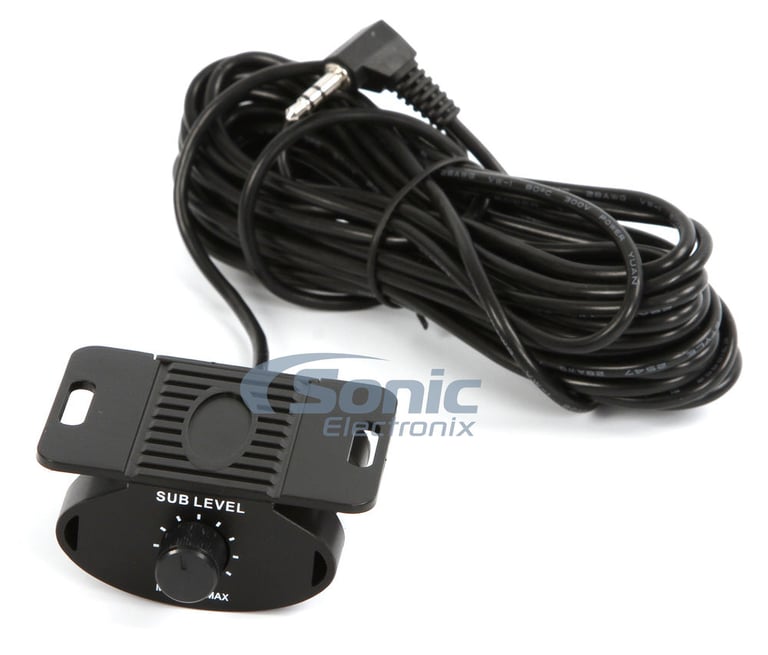

• Wired remote control bass knob included
• Soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Input sensitivity:
• Level: 100mV-6V
• Variable low-pass filter (40-180 Hz, 24 dB/octave)
• Variable subsonic filter (17-50 Hz, 24 dB/octave)
• 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Dimensions: 9-1/2"W x 14-3/4"L x 2-7/16"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

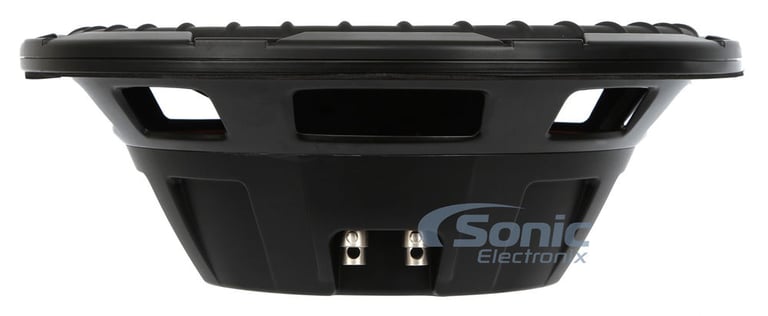

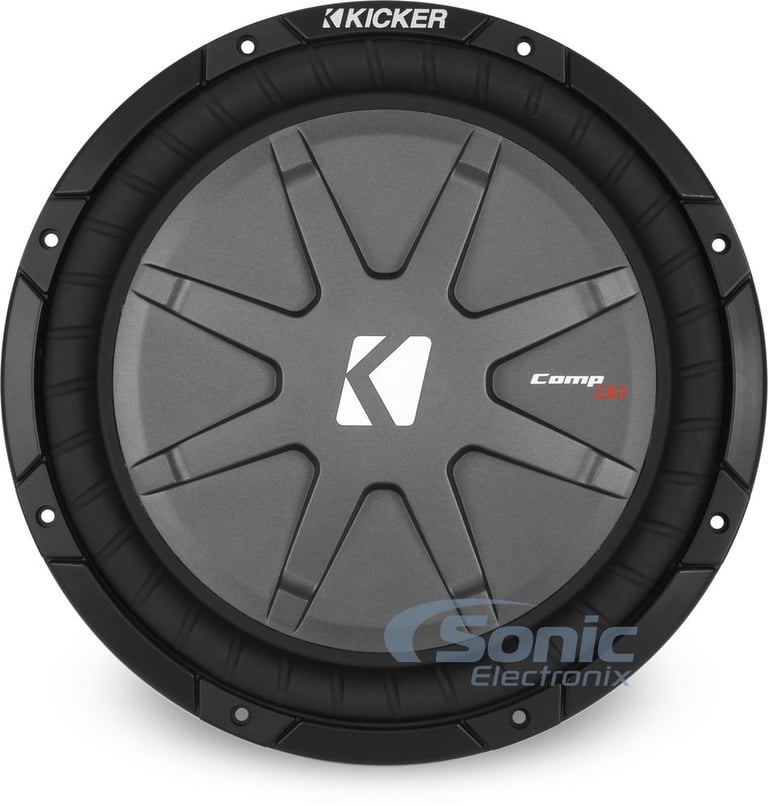

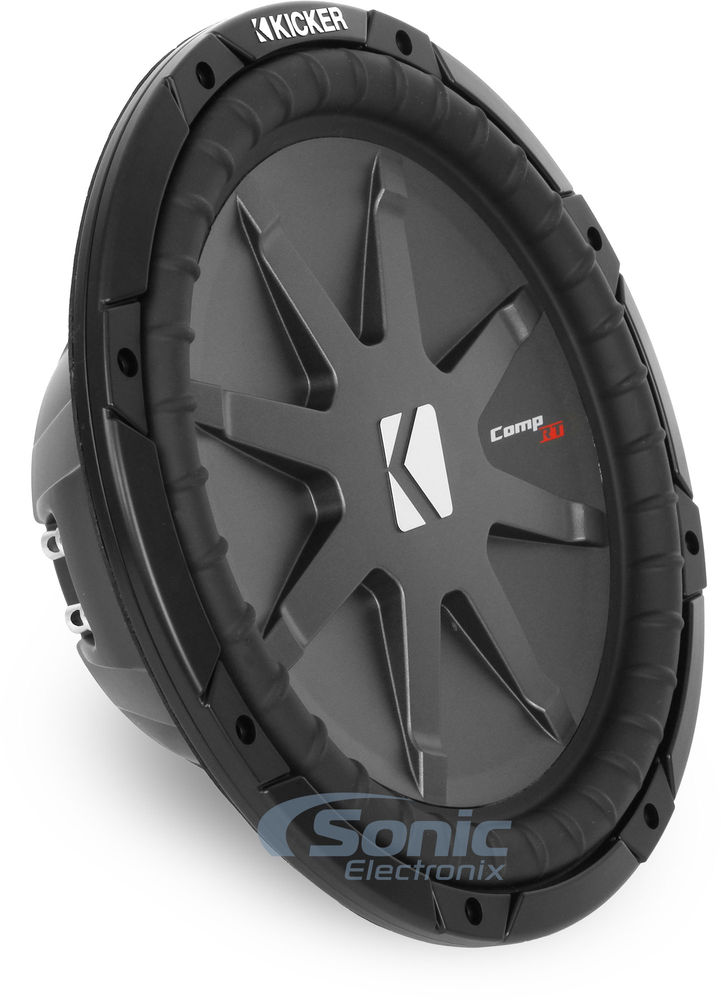

• 12" Dual 2 Ohm CompRT Series Subwoofer
• Power Handling:
• Peak: 3200 watts total / 1600 watts each
• RMS: 1600 watts total / 800 watts each
• Impedance: 2 ohm
• Injection-molded polypropylene cone
• Tough Santoprene surround with interlocking front gasket
• Dual pair of spring-loaded wire terminals custom designed for shallow mount installations
• Weather-proof for outdoor powersports applications
• Double venting for max cooling
• Inverted-bumped back plate and bumped top plate for full voice-coil clearance and excursion while maintaining a shallow profile
• High-temp voice coil for increased power handling
• Resonance Frequency (Fs): 32.7 Hz
• Top-mount depth: 3-3/4"
• Sensitivity: 87.1 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

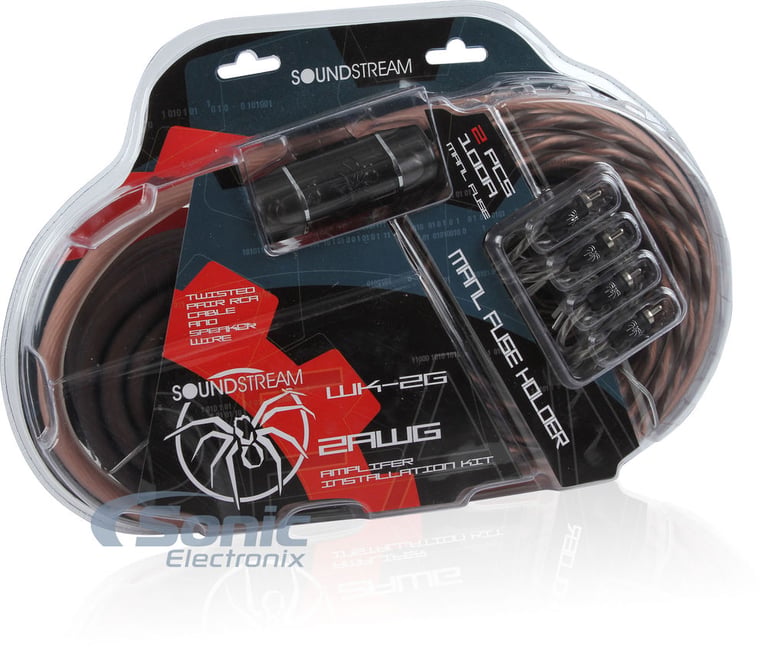

• 2 Gauge Complete Amplifier Installation Kit
• Designed specifically for car audio systems over 1000 watts
• Premium power and ground wire provides optimal power transfer
• Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
• RCA Interconnects are made with twisted-pair technology for noise reduction
• Terminals are nickel-plated for excellent signal transfer
• Mini-ANL Fuse holder offers ideal protection for mid-powered systems
• 1-year Manufacturer's warranty

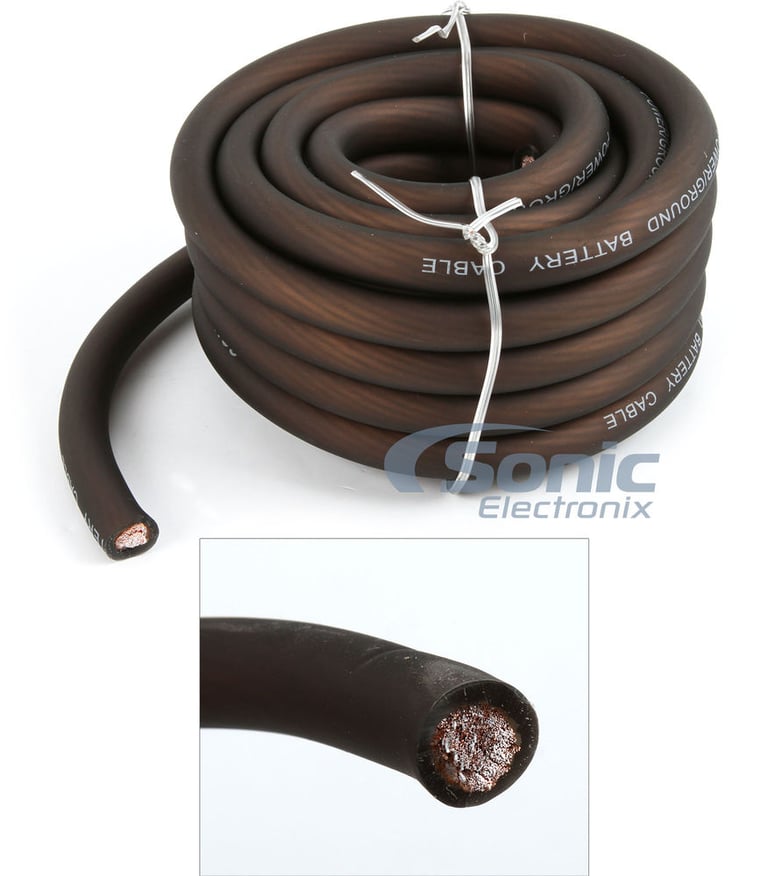

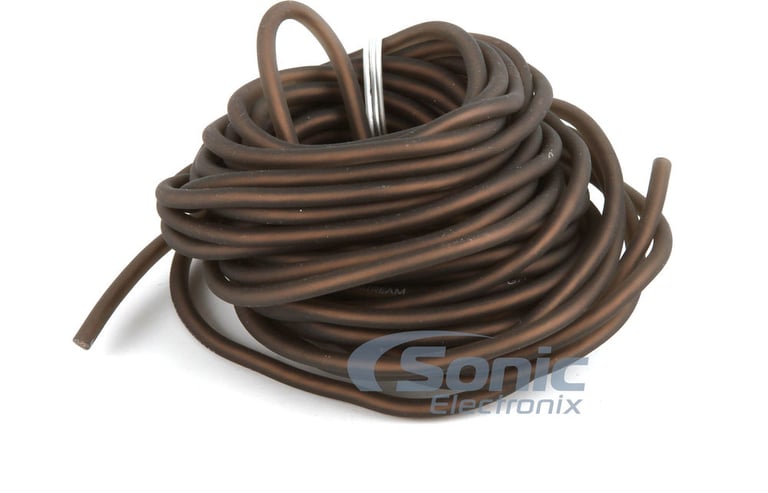

1. 17 ft. of 2 AWG Black power cable
2. 3 ft. of 2 AWG Clear ground cable
3. 17 ft. of 18 AWG Black remote turn-on wire

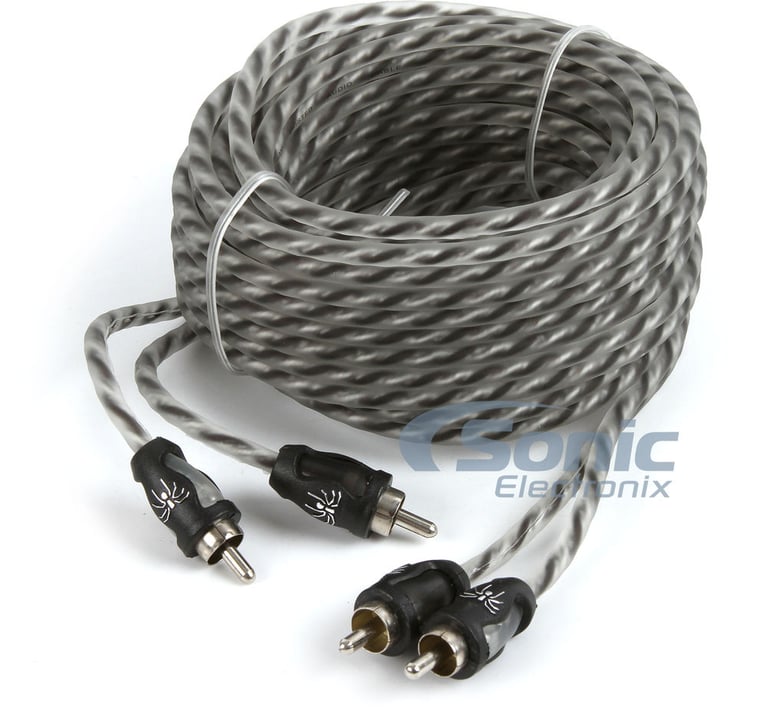

4. 17 ft. of Black and Clear twisted pair shielded RCA cable

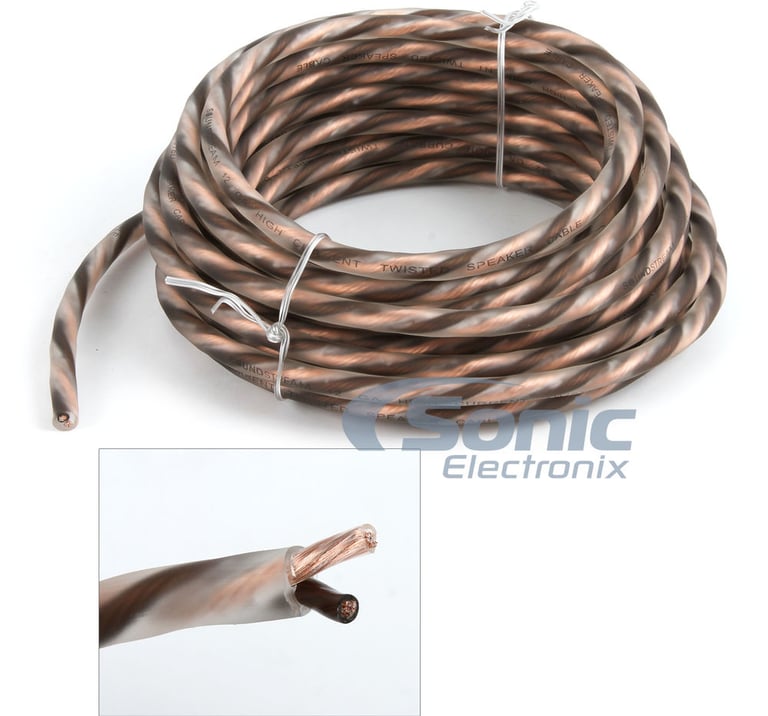

5. 30 ft. of 12 AWG Black and Clear speaker wire

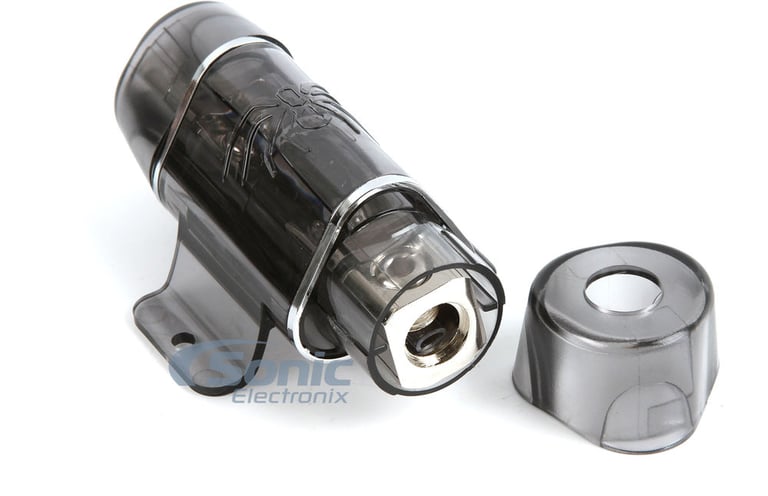

6. 2 AWG In-line Mini-ANL fuseholder
7. 100 Amp ANL fuse

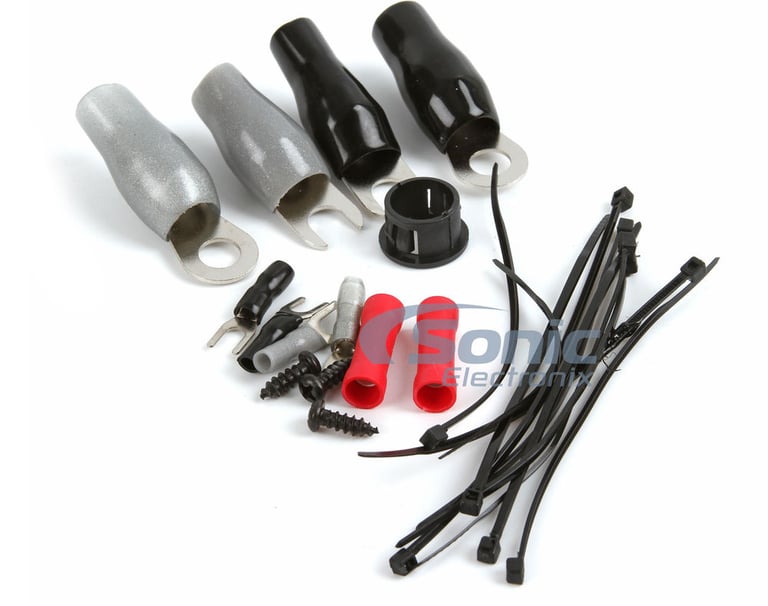

8. Complete Installation Accessories
