• 160w x 1 @ 4ohm , 200w x 1 @ 3ohm , 250w x 1 @ 2ohm
• NexD™ ultra-high-speed switching design
• Black powder-coated finish
• Gasketed cover for the controls
• Stainless steel hardware for durability
• Accepts RCA (low-level) & Speaker-level (high-level) signal
• Signal to Noise Ration: 85 dB

Learn more about the mhx3001

Product Highlights

Description

Authorized dealer

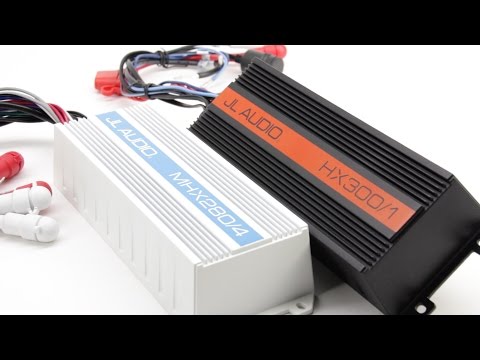

HX300/1 - Monoblock Class D Full Range Amplifier

Engineered specifically for limited-space marine applications, the MHX300/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious punch, while still being kind to small charging systems. Its ultra-compact, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it ideal for applications where moisture would prohibit use of a conventional 12V amplifier.

Producing a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), the MHX300/1 full-range, monoblock amplifier can be used alone or in stereo pairs. Use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system or full-range satellites. Onboard controls include an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch. Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver's seat. This marine amplifier features a white powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Key Features:

Small Footprint, Big Kick

The JL Audio MHX300/1 is clearly designed to be as small as possible without sacrificing the quality and performance we all expect from a JL Audio product. At 1.77" x 3.09" x 8.66" the JL Audio MHX300/1 is one of the smallest amplifiers on the market. When compared to its small footprint, the engineering is extraordinary considering the amp is equipped with a proper bank of settings - including a 24 dB per octave filter slope - and true full range frequency response (20 Hz - 12,000 Hz) . Putting the 'nerdy' figures aside, and you still have an amplifier that put outs solid modest power for any sized setup - 160 W @ 4Ω , 220 W @ 3Ω , & 300 W @ 2Ω.

NexD Switching Technology

JL Audio have taken the simple fixed PWM approach - found in almost all common amplifiers - and enhanced it with a very high switching frequency: 400 kHz, which is exponentially higher than most Class D Full-range amplifiers. This pushes the amplifier's bandwidth to a much higher frequency than seen before, and still provide minimal distortion and improved efficiency, while keeping typically bulky circuity more compact. Your speakers will reward you with crisp, clear performance. The bottom line is simply great audio: clean, powerful and reliable.

General Features:

Monoblock Class D Full Range Amplifier
RMS Power Rating @ 14.4 V:

4 ohm: 160 watts x 1 chan.

3 ohm: 220 watts x 1 chan.
2 ohm: 300 watts x 1 chan.
1 ohm: ----------N/A-----------

RMS Power Rating @ 12.5 V:

4 ohm: 160 watts x 1 chan.
3 ohm: 200 watts x 1 chan.
2 ohm: 250 watts x 1 chan.
1 ohm: ----------N/A-----------

NexD™ ultra-high-speed switching design
Black powder-coated finish
Gasketed cover for the controls
Stainless steel hardware for durability
IPX6 water-resistance rating
M-RBC-1 remote level control (sold separately)
Controls bass levels only
LED power (green) and protect (red) indicators
Accepts RCA (low-level) & Speaker-level (high-level) signal

JL Audio Speaker Wire to RCA Adaptor recommended, sold separately

Switchable Input sensitivity: 250 mV-4 V (Low) to 750 mV-15 V (High)

Variable Bass Boost: 0 to +12 dB bass boost at 43Hz
Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
Frequency Response: 20 - 12,000 Hz
Total Harmonic Distortion (THD): <1.0%
Signal to Noise Ration: 85 dB
Subsonic filter: 20 - 40 Hz
Selectable phase: 0 / 180°
Fuse Rating: 30A x 1
Dimensions: 8.66"W x 3.09"D x 1.77"H
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Authorized Internet Dealer
1-year Sonic Electronix Warranty

Check out the JL Audio MHX300/1 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

160 watts x 1 channel

RMS Power @ 2 ohms

300 watts x 1 channel

RMS Power @ 1 ohm

Not Stable

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

40 - 400 Hz

Subsonic Filter

20 - 40 Hz

Signal-to-Noise Ratio

85 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio M-RBC-1

Fuse Rating

30A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
