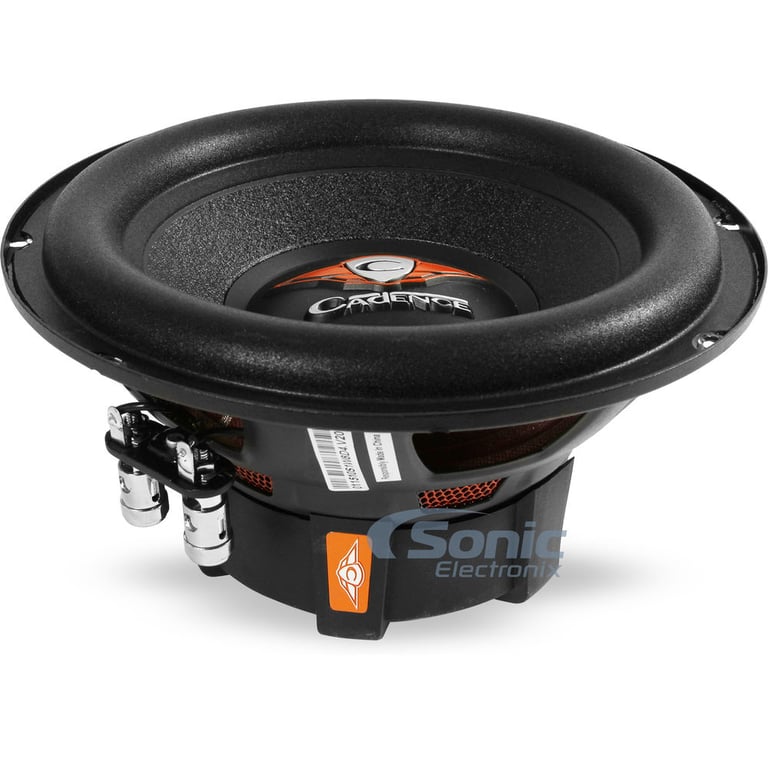

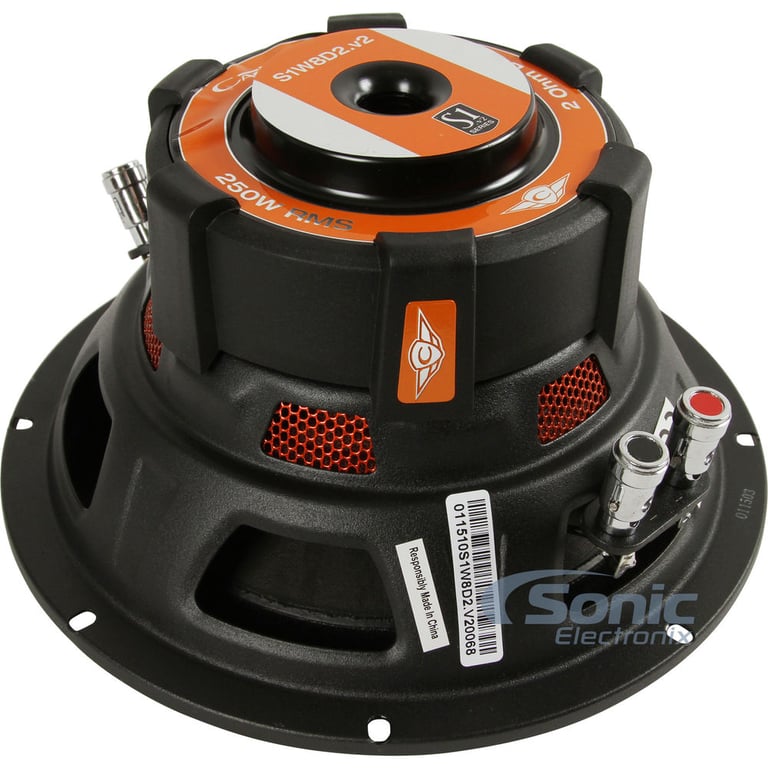

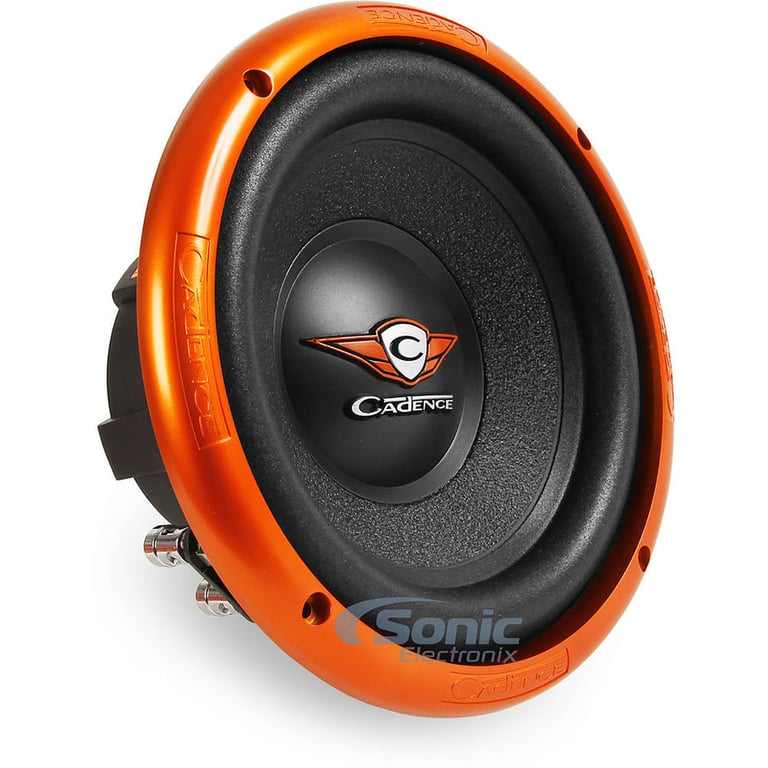

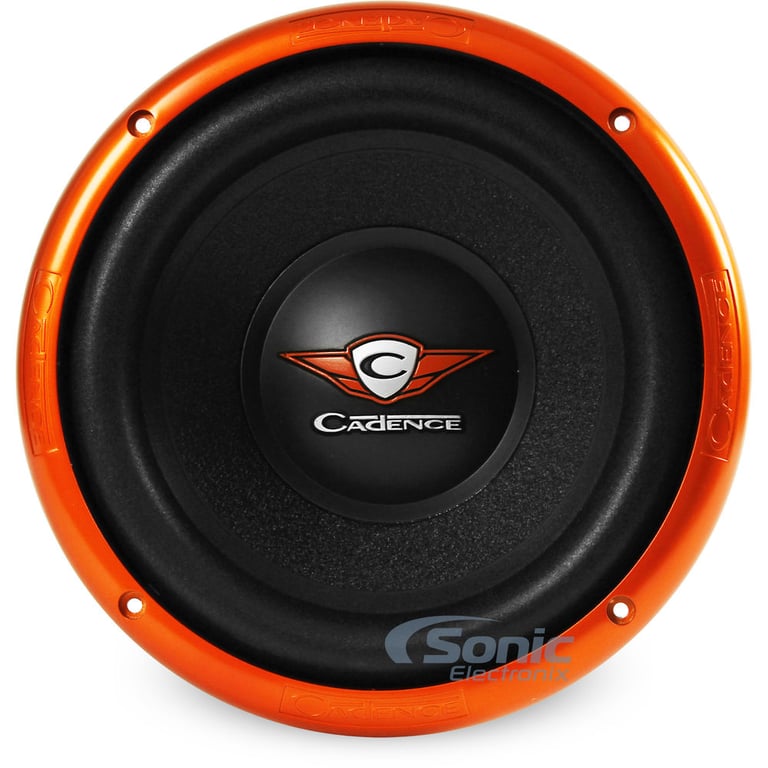

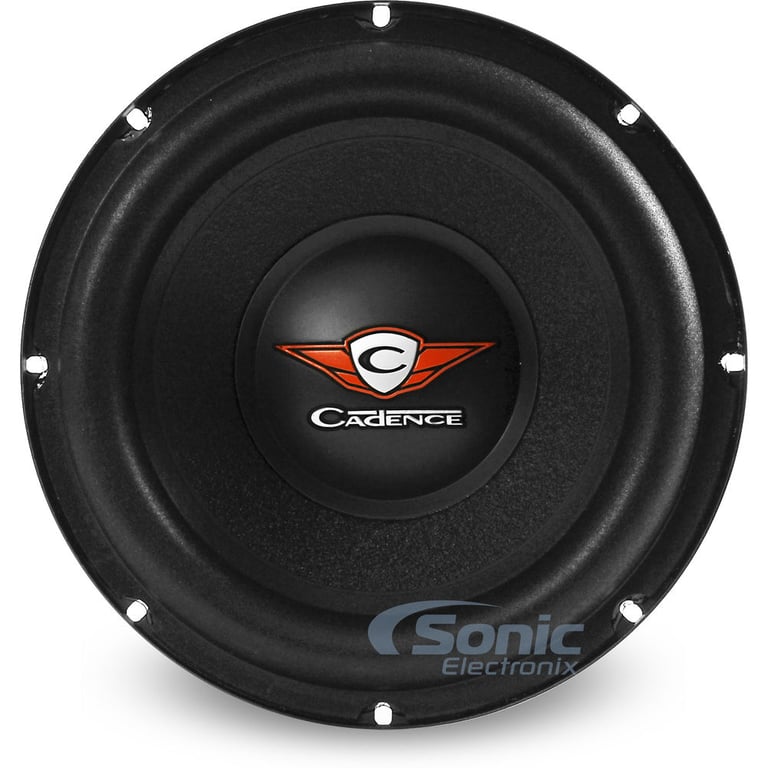

Cadence S1W8D2.v2

500W 8" S1 Series Dual 2 ohm Car Subwoofer

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• 250W RMS
• 500W Max
• Pressed Paper Pulp Cone
• Double Laminated Foam Surround
• Expanded and Rolled Steel Basket
• Magnet Motor Heatsink with Heat Pump Cooling Technology
• Black Aluminum 4 Layer Voice Coil

Learn more about the s1w8d2v2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

99-5824B main

Metra 99-5824B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2010-2012 Transit Connect (Matte Black)

-55.01%

$35.99

List price $79.99

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

15
-33.36%

$79.96

List price $119.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Limited time!
Kappa 503CF main

Infinity Kappa 503CF (INFSPKKA503CFAM)

480W Peak (160W RMS) 5.25" Kappa Series 2-Way Component 3-ohm Speaker System

1
-37.77%

$279.99

List price $449.95

Product Highlights


• 250W RMS
• 500W Max
• Pressed Paper Pulp Cone
• Double Laminated Foam Surround
• Expanded and Rolled Steel Basket
• Magnet Motor Heatsink with Heat Pump Cooling Technology
• Black Aluminum 4 Layer Voice Coil

Description


Cadence brand icon

Authorized dealer


General Features:

  • 8" Dual 2-Ohm S1 Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended Power Range: 100 - 250 watts RMS
  • Pressed Paper Pulp Cone
  • Double Laminated Foam Surround for High Speed Bass Response
  • Expanded and Rolled Steel Basket
  • Magnet Motor Heatsink with Heat Pump Cooling Technology
  • Aero Style Overized Magnet Motor Vent
  • Linear Progressive Conex Spiders
  • Integrated High-Current Tinsel Leads
  • Black Aluminum 4 Layer Voice Coil
  • Ultra Saturated, High “BL” Magnetic Motor Gap
  • One Piece Extended Pole Technology
  • Oversize Double Laminated Stitched Surround
  • Dual Nickel Plated Spring Loaded Push Terminals
  • Fiber Reinforced Ultra-Stiff Paper Composite Cone
  • 3-D Injected Poly Dustcap
  • Stylized Protective Rubber Magnet Boot Cover
  • Molded Plastic Trim Gasket
  • Top-mount depth: 4.13"
  • Cutout Diameter: 7.36"
  • Frequency Response: 10 - 750 Hz
  • Magnet Weight: 23 oz
  • Sensitivity: 84 dB
  • Xmax: 8.5 mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the Cadence S1W8D2.v2 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cadence S1W8D2.v2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cadence S1W8D2.v2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cadence S1W8D2.v2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Cadence S1W8D2.v2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

Specifications & Details


Subwoofer Specifications
Series
S1 Series
Subwoofer Size
8"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
10 - 750 Hz
Sensitivity
84 dB
Xmax (millimeters)
8.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Optimum Sealed Box Volume
.45 cubic feet
Maximum Sealed Box Volume
Infinite Baffle
Optimum Ported Box Volume
.80 cubic feet
Top-Mount Depth (Mounting Depth)
4.13"
Cutout Diameter
7.36"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Equivalent Compliance (Vas)
25.693 liters
Total Speaker Q Value (Qts)
0.564
Electrical Q Value (Qes)
0.628
Mechanical Q Value (Qms)
5.477
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S1W8D2.v2

Weight:

5.00lbs

Internal SKU:

s1w8d2v2

Internal Product ID:

94084

Product and How-to Videos


Customer Ratings & Reviews


Cadence S1W8D2.v2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great sounding little sub!

I have this subwoofer in a 0.8cu ft sealed truck box. It hits harder than I expected, I was surprised! Goes deep, down to around 25hz, even out of the box with no break-in time. It's wired to 4ohms driven by an 1100w Boss amp. I know folks will say I'm overpowering it, but I don't run my amps at max power, ever. They run cooler and last longer.

By Michael on February 5, 2017 Checkmark Icon Verified purchase

2 found this helpful




WCC690 small

West Coast Customs WCC690

6" x 9" 2-Way Convertible Component/Coaxial Car Speakers System by Diamond Audio (WCC-690)

$129.99

List price $299.99

HAW10D4 small

Hifonics HAW10D4

10" Alpha Series 1000W Dual 4-Ohm Car Audio Subwoofer

$149.99

List price $169.99

HM-50DR small

Cuisinart HM-50DR

Power Advantage™ 5-Speed Hand Mixer (Dark Fuchsia)

$49.95

List price $90.00

99-7816G small

Metra 99-7816G Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2011 Civic

(9)

$29.99

List price $45.99

QTOY 2 10 small

Ground Shaker QTOY 2 10

10" Dual Sealed Toyota Tundra Truck Subwoofer Enclosure

$123.95

List price $168.00

CVE31 small

Coby CVE31 (CVE31WHT) In-Ear Noise Isolating Earphones - White

MP3/iPod Digital Stereo Earphones w/ 3.5mm Plug and Super Bass Performance

(2)

$8.99

List price $9.99

VMX-10.4 small

Cerwin-Vega VMX-10.4

V-Max 10.4 Dual 4 ohms 10" Subwoofer V-Max 10

$99.99

List price $189.99

TW12D4 small

Hifonics TW12D4

1000W Max (500W RMS) 12" TITAN Series Dual 4 Ohm Car Subwoofer

(1)

$69.99

List price $199.99

TFE60 small

DCM Loudspeakers TFE60

6-1/2" 2-Way Bookshelf Speaker

$249.95

List price $249.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Ford Transit Connect

1987 Dodge Mini Ram

1987 Nissan Van

2015 Ford Transit Connect

2009 Dodge Avenger

2000 Dodge Durango

2015 Chevrolet Sonic

2009 Buick Allure

2002 Chevrolet Express 2500

2013 Dodge Challenger

Vehicle
Store
Delete

2007 Harley Davidson FXSTC Softail Custom

Vehicle
Store
Delete

2019 Can-Am Defender HD5

2024 Can-Am Defender MAX DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
