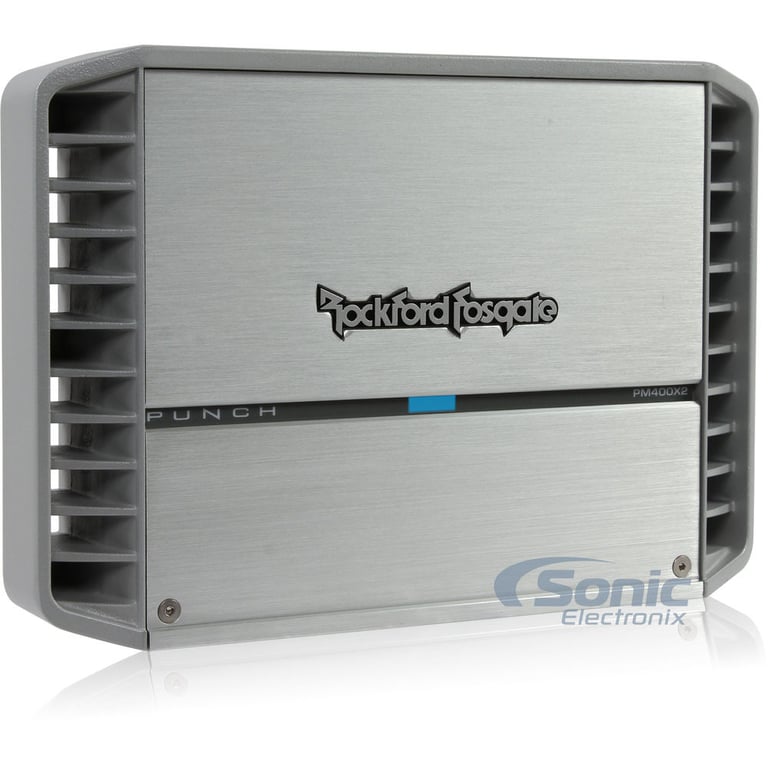

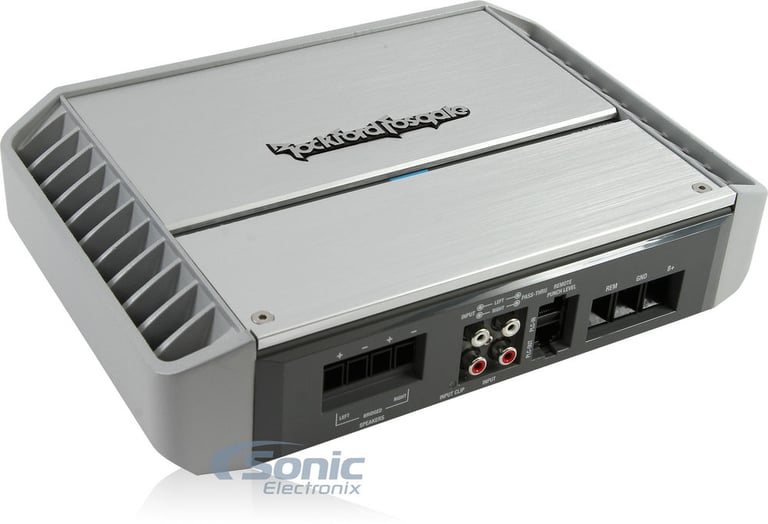

Rockford Fosgate Punch PM400X2

400W Punch Series Class-ab 2-Channel Marine Amplifier

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• 125 watts RMS x 2 chan. @ 4 ohm
• 200 watts RMS x 2 chan. @ 2 ohm
• 400 watts RMS x 1 chan. @ 4 ohm Bridged
• CEA-2006 Compliant
• Features C.L.E.A.N. Set-up
• Protected against Dust, UV, & Corrosion
• Marine grade two part epoxy coating on circuit boards

Learn more about the pm400x2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
MVA-13L main

Beat-Sonic MVA-13L

Install a New Car Stereo and Retain Climate Controls and Other Factory Features in select 2005-2009 SC430 with Mark Levinson Sound System and Factory Navigation

-10.00%

$387.00

List price $430.00

Limited time!
DMX958XR main

Kenwood eXcelon DMX958XR

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

3
-25.08%

$899.00

List price $1200.00

PRO-HY6.4B main

DS18 PRO-HY6.4B (Sold Individually)

450W Peak (225W RMS) 6.5” PRO Series Hybrid Coaxial Midrange 4-ohm Motorcycle and Powersports Loudspeaker

4

Product Highlights


• 125 watts RMS x 2 chan. @ 4 ohm
• 200 watts RMS x 2 chan. @ 2 ohm
• 400 watts RMS x 1 chan. @ 4 ohm Bridged
• CEA-2006 Compliant
• Features C.L.E.A.N. Set-up
• Protected against Dust, UV, & Corrosion
• Marine grade two part epoxy coating on circuit boards

Description


Rockford Fosgate brand icon

Authorized dealer

Rockford Fosgate PM400X2

Rockford Fosgate PM400X2 - 400 Watt 2-Chanel Amplifier

The PM400X2 is a 400 Watt 2-channel amplifier with high dynamic power using Class-ab technology and a conformal coated pc board designed for motorsport and marine applications. Don't let the small footprint fool you (2.38" x 7.76" x 11.03"), the PM400X2 is packed with industry leading technology. Rockford Fosgate does not simply paint an amplifier white and call it "Marine Grade"; with corrosion resistant stainless steel hardware and two-part epoxy coated circuit boards, these units are designed with the most extreme elements in mind. Regardless if you're driving typical speakers or two subwoofers, the hefty output capability will deliver the right amount of PUNCH that you want wherever you take it!



UV Inhibitor Materials

Beat the Elements

Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4326 testing and certification procedures. Rockford Fosgate moto-marine amplifiers not only have the capabilities you expect a Rockford amp to have, but they have been designed to stand up to the environmental conditions you are likely to subject them to.


CLEAN (Calibrated Level Eliminates Audible Noise)

C.L.E.A.N. Set-Up

Take the headache out of tuning your amplifier. Rockford Fosgate’s integrated level setting technology called CLEAN (Calibrated Level Eliminates Audible Noise), utilize simple LED indicators to identify both signal clipping from the audio source and the output level clipping to the speakers. This precise level set-up eliminates speaker damaging distortion.





General Features:













  • 2-Channel Punch Series Class-ab Marine Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 2 chan.
    • 2 ohm: 200 watts x 2 chan.
    • Bridged, 4 ohm: 400 watts x 1 chan.
  • Dynamic Power:
    (PVC/PowerCube)
    • 4 ohm: 149 watts x 2 chan.
    • 2 ohm: 256 watts x 2 chan.
  • Includes a Rockford Fosgate Performance Verification Certificate
    w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet")
  • CEA-2006 compliant amplifier
  • CE Compliant
  • LED power (blue) and protect (red) indicators
  • Features C.L.E.A.N. Set-up with 10-step set-up procedure
  • Muted turn on

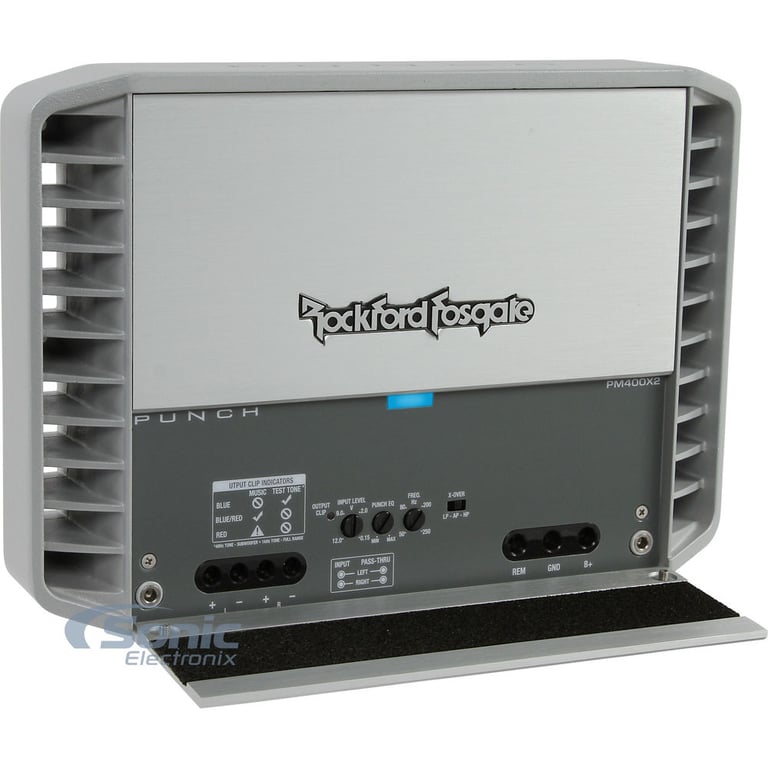

  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware

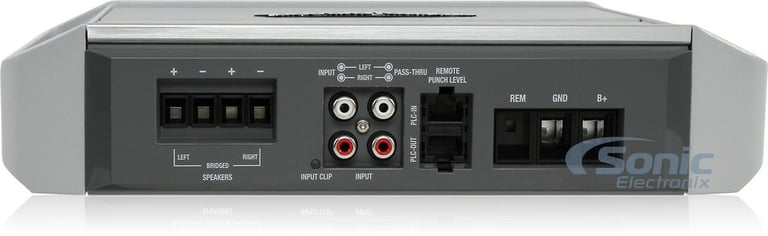

  • Preamp RCA outputs to daisy chain multiple amps
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables
  • Protected against Dust, UV, & Corrosion
  • Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
  • Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen3)
  • High level input capable with Auto Turn-On circuit:
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • Input sensitivity: 150 mV - 12 V
  • Frequency Response: 20 - 20,000 Hz
  • Efficiency (average): 72% @ 4-Ohm
  • Total Harmonic Distortion (THD): <1.0%
  • Punch EQ Bass: 0 - +18dB boost @ 45Hz.
  • 12dB/octave Butterworth crossover (selectable)
  • Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Recommended Fuse Rating: 60A x 1 inline (not included)
  • Operating Voltage: 9 - 16 VDC
  • Max Current Draw: 55A
  • Average Current Draw: 28A
  • Power Wire Gauge: 4 AWG - 8 AWG
  • Speaker Wire Gauge: 8 AWG - 18 AWG
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7.76"W x 11.03"L x 2.38"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
Bridged RMS Power
400 watts x 1 channel
Amplifier Specifications
Series
Punch Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
60A X 1 In-Line Fuse Recommended
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

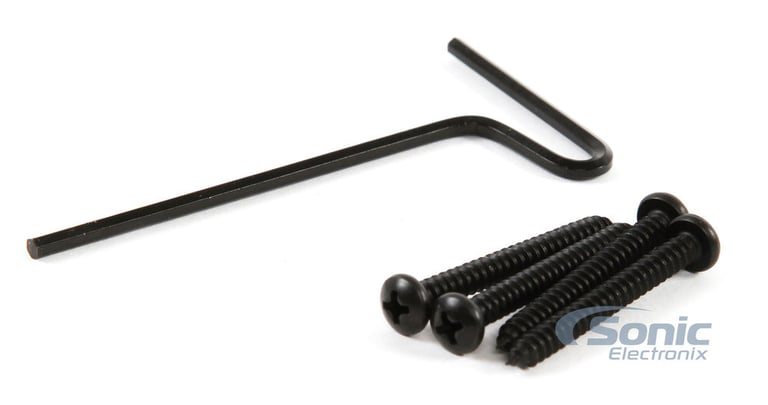

Mounting screws (4)
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PM400X2

Weight:

10.00lbs

Internal SKU:

pm400x2

Internal Product ID:

94298

Product and How-to Videos


Customer Ratings & Reviews


Rockford Fosgate Punch PM400X2 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


RFIF2SW main

Rockford Fosgate RFIF2SW Speaker to RCA Adapter

• Speaker Line High Level Input To Female RCA Output Adapter
• Converts Factory (OEM) High Level Speaker Outputs into RCA Outputs for Use with an Aftermarket Amp

(15)

$14.99

List price $14.99


TM750X1bd small

Rockford Fosgate Power TM750X1bd

750W Compact Marine/Powersports Amplifier

$439.99

List price $553.48

GM1599B small

Scosche GM1599B / GM1599

Double DIN Installation Dash Kit for select 2004-2012 vehicles from Chevrolet, Pontiac, Saturn

(24)

$10.99

List price $10.29

RSd300.1_ISPKBL8-BG small

Phoenix Gold RSd 300.1 (RSd300.1) + Amplifier Kit

300W RMS, Radial Sd Series Class AB Monoblock Amplifier w/ 8 Gauge Amplifier Kit

(27)

$114.81

List price $369.98

PPS4-10 small

Rockford Fosgate Punch Pro PPS4-10 (Sold Individually)

700W Peak (350W RMS) 10" Punch Pro Series Pro Audio Speaker

(6)

$249.99

List price $249.99

HMS 12 B4-LD-W small

Hertz HMS 12 B4-LD-W

1000W Peak (500W RMS) 12" HMS Series Single 4-ohm Infinite Baffle Marine Subwoofer with LED and White Grille

$699.99

List price $860.00

No picture

Rockford Fosgate Shallow-Mount Punch P312D4S

Dual 4 ohms Stage 3 Punch 12" Shallow-Mount Subwoofer

$109.99

List price $279.99

95-3081S small

Metra 95-3081S

Single DIN or Double DIN Dash Kit for select 2008-2014 CTS (Silver)

(1)

$219.99

List price $361.99

ZXI44_2 small

DS18 ZXI-44 (2-Pairs, 4-Total)

300W Peak (100W RMS) 4" ZXI Series 2-Way 4-Ohm Coaxial Car Speakers (2-Pairs)

$161.90

List price $161.90

51CWQ152_2 small

Kicker CWQ152 (51CWQ152) - 2 Pairs

2400W Peak (1200W RMS) 15" CompQ Series Dual 2-ohm Subwoofer

(1)

$899.98

List price $959.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1981 Ford Mustang

2007 Lexus SC430

2016 BMW Z4

2001 Toyota 4Runner

2004 Mazda B2300

2024 Audi A4 Quattro

2007 Ford Mustang

2014 BMW 428i

1982 Audi 5000

1986 Buick Skylark

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
