Name: Rockford Fosgate Punch PM400X2 OPEN BOX
Brand: Rockford Fosgate
SKU: ls-pm400x2-obc6
Price: 276.95 USD
Availability: Discontinued

by Rockford Fosgate

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

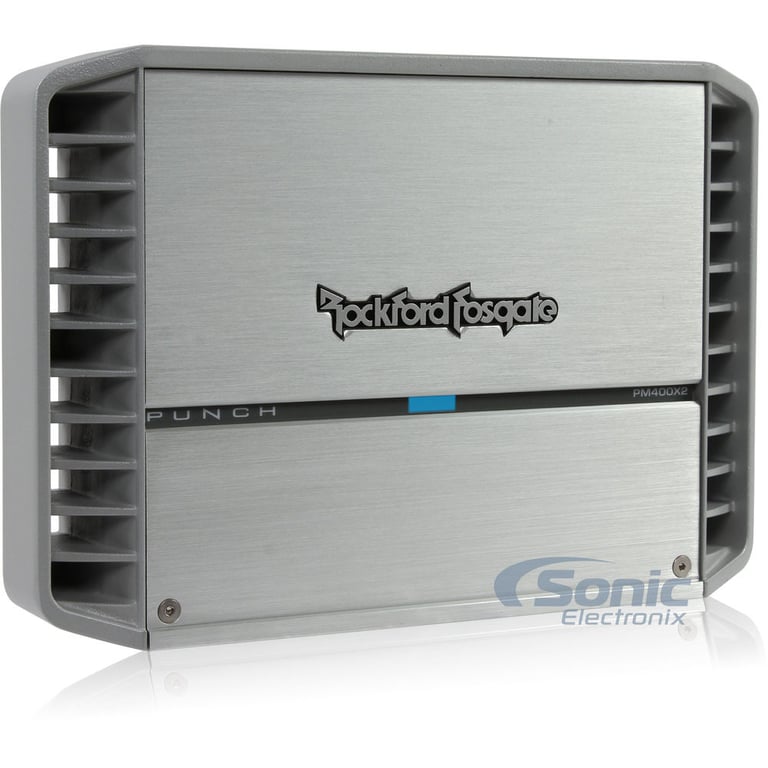

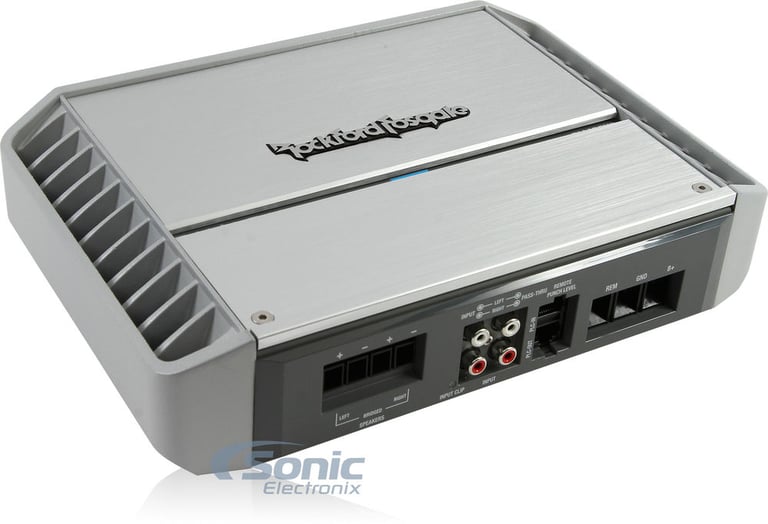

Rockford Fosgate Punch PM400X2 OPEN BOX Image 1 — Rockford Fosgate Punch PM400X2 OPEN BOX

Rockford Fosgate Punch PM400X2 OPEN BOX Image 2 — Rockford Fosgate Punch PM400X2 OPEN BOX

Rockford Fosgate Punch PM400X2 OPEN BOX Image 3 — Rockford Fosgate Punch PM400X2 OPEN BOX

Rockford Fosgate Punch PM400X2 OPEN BOX Image 4 — Rockford Fosgate Punch PM400X2 OPEN BOX

Rockford Fosgate Punch PM400X2 OPEN BOX Image 5 — Rockford Fosgate Punch PM400X2 OPEN BOX

Rockford Fosgate Punch PM400X2 OPEN BOX Image 6 — Rockford Fosgate Punch PM400X2 OPEN BOX

Product highlights

• 125 watts RMS x 2 chan. @ 4 ohm
• 200 watts RMS x 2 chan. @ 2 ohm
• 400 watts RMS x 1 chan. @ 4 ohm Bridged
• CEA-2006 Compliant
• Features C.L.E.A.N. Set-up
• Protected against Dust, UV, & Corrosion
• Marine grade two part epoxy coating on circuit boards

Learn more about the ls-pm400x2-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Rockford Fosgate PM400X2 - 400 Watt 2-Chanel Amplifier

The PM400X2 is a 400 Watt 2-channel amplifier with high dynamic power using Class-ab technology and a conformal coated pc board designed for motorsport and marine applications. Don't let the small footprint fool you (2.38" x 7.76" x 11.03"), the PM400X2 is packed with industry leading technology. Rockford Fosgate does not simply paint an amplifier white and call it "Marine Grade"; with corrosion resistant stainless steel hardware and two-part epoxy coated circuit boards, these units are designed with the most extreme elements in mind. Regardless if you're driving typical speakers or two subwoofers, the hefty output capability will deliver the right amount of PUNCH that you want wherever you take it!

Beat the Elements

Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4326 testing and certification procedures. Rockford Fosgate moto-marine amplifiers not only have the capabilities you expect a Rockford amp to have, but they have been designed to stand up to the environmental conditions you are likely to subject them to.

CLEAN (Calibrated Level Eliminates Audible Noise)

C.L.E.A.N. Set-Up

Take the headache out of tuning your amplifier. Rockford Fosgate’s integrated level setting technology called CLEAN (Calibrated Level Eliminates Audible Noise), utilize simple LED indicators to identify both signal clipping from the audio source and the output level clipping to the speakers. This precise level set-up eliminates speaker damaging distortion.

General Features:

2-Channel Punch Series Class-ab Marine Amplifier
RMS Power Rating:

4 ohm: 125 watts x 2 chan.
2 ohm: 200 watts x 2 chan.
Bridged, 4 ohm: 400 watts x 1 chan.

Dynamic Power:
(PVC/PowerCube)

4 ohm: 149 watts x 2 chan.
2 ohm: 256 watts x 2 chan.

Includes a Rockford Fosgate Performance Verification Certificate
w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet")
CEA-2006 compliant amplifier
CE Compliant
LED power (blue) and protect (red) indicators
Features C.L.E.A.N. Set-up with 10-step set-up procedure
Muted turn on

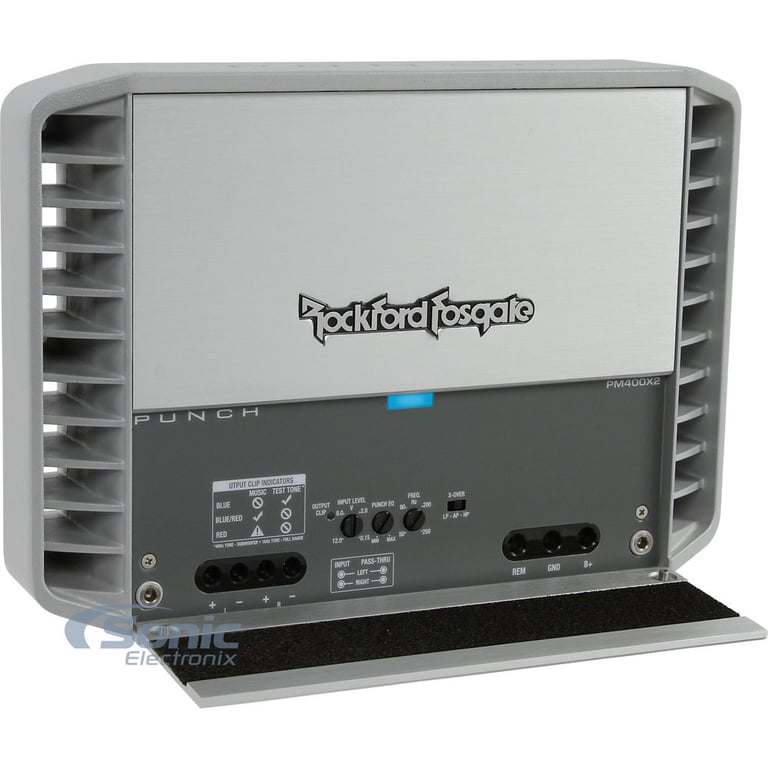

Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
Marine grade two part epoxy coating on circuit boards

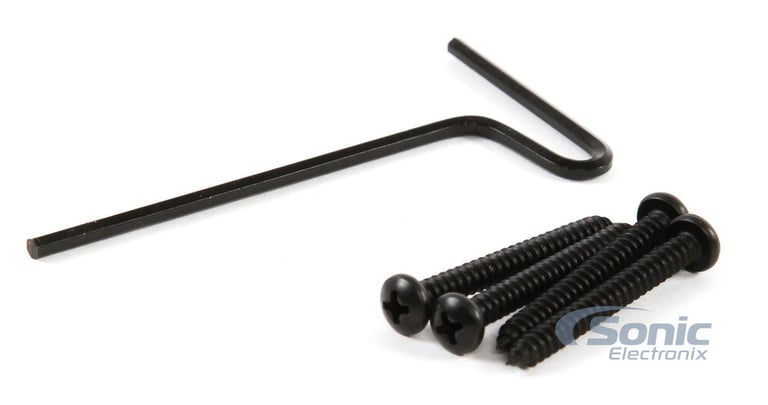

Marine grade stainless steel hardware

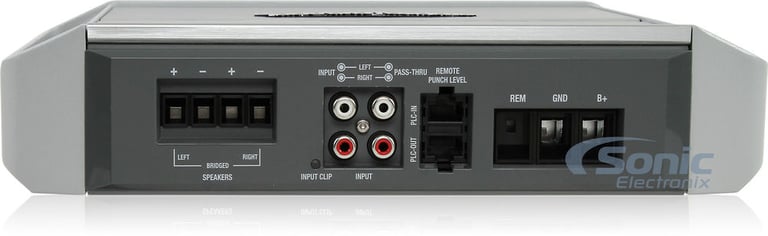

Preamp RCA outputs to daisy chain multiple amps
Balanced Differential Inputs, to eliminate noise picked up by signal cables
Protected against Dust, UV, & Corrosion
Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen3)
High level input capable with Auto Turn-On circuit:

Requires Rockford Fosgate RFIF2SW, sold separately

Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
Input sensitivity: 150 mV - 12 V
Frequency Response: 20 - 20,000 Hz
Efficiency (average): 72% @ 4-Ohm
Total Harmonic Distortion (THD): <1.0%
Punch EQ Bass: 0 - +18dB boost @ 45Hz.
12dB/octave Butterworth crossover (selectable)
Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
Recommended Fuse Rating: 60A x 1 inline (not included)
Operating Voltage: 9 - 16 VDC
Max Current Draw: 55A
Average Current Draw: 28A
Power Wire Gauge: 4 AWG - 8 AWG
Speaker Wire Gauge: 8 AWG - 18 AWG
4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 7.76"W x 11.03"L x 2.38"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Amplifier Specifications

Number of Channels

2-Channel

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
