PN1.1000D | 1000 Watt Monoblock Amplifier | Soundstream

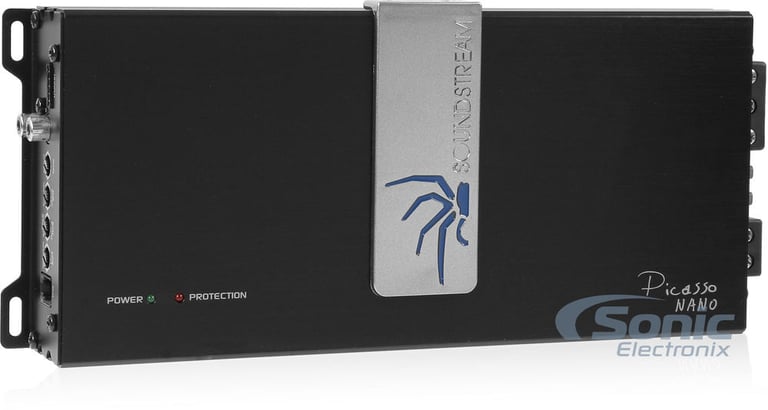

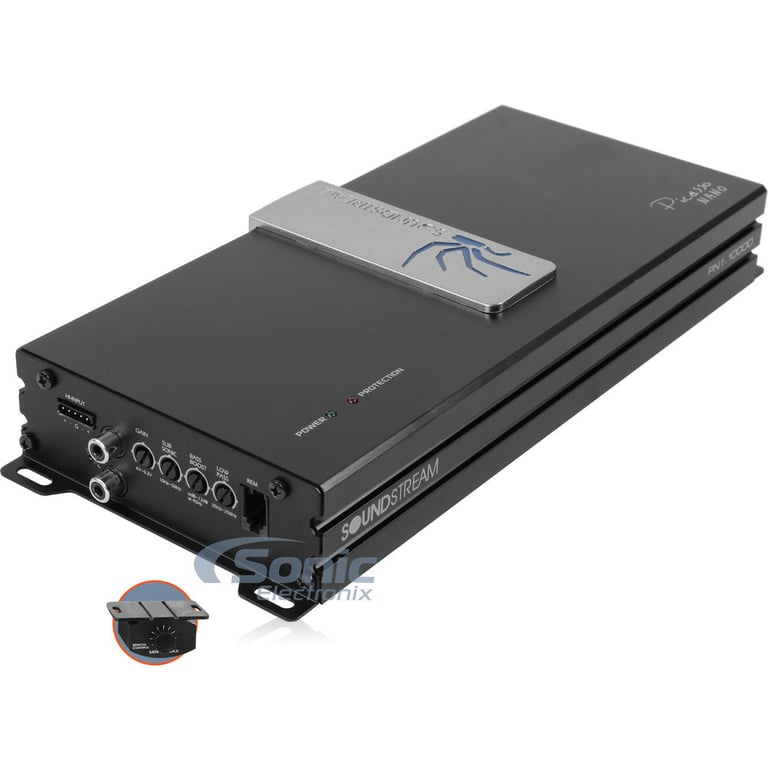

Soundstream PN1.1000D

1000W Monoblock Picasso Nano Series Class D Amplifier

1000W Monoblock Picasso Nano Series Class D Amplifier

• RMS: 350W x 1 @ 4 ohms, 600Wx 1 @ 2 ohms
• Total Power: 1000W
• Pulse Width Modulated MOSFET power supply
• 4.75 W x 10.25 L x 1.50 H

4.5

(4)
List price $259.99
Save: $75.00

$184.99

In Stock with warranty
Thanks , You Pay:
Order within 8 hrs 28 mins to ship today

FREE delivery: Thu, June 24 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Soundstream

Authorized dealer

General Features:

  • Picasso Nano Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 350 watts x 1 chan.
    • 2 ohms: 600 watts x 1 chan.
    • 1 ohm: 1000 watt x 1 chan.
  • Pulse Width Modulated MOSFET power supply

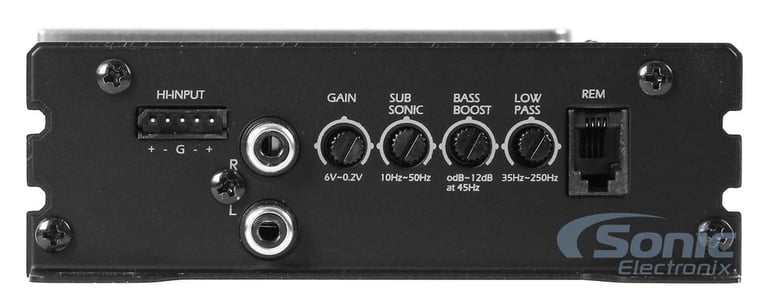

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV - 6V
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Variable high-pass filter: 10 - 50 Hz, 12 dB/octave
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 4.75"W x 10.25"L x 1.50"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

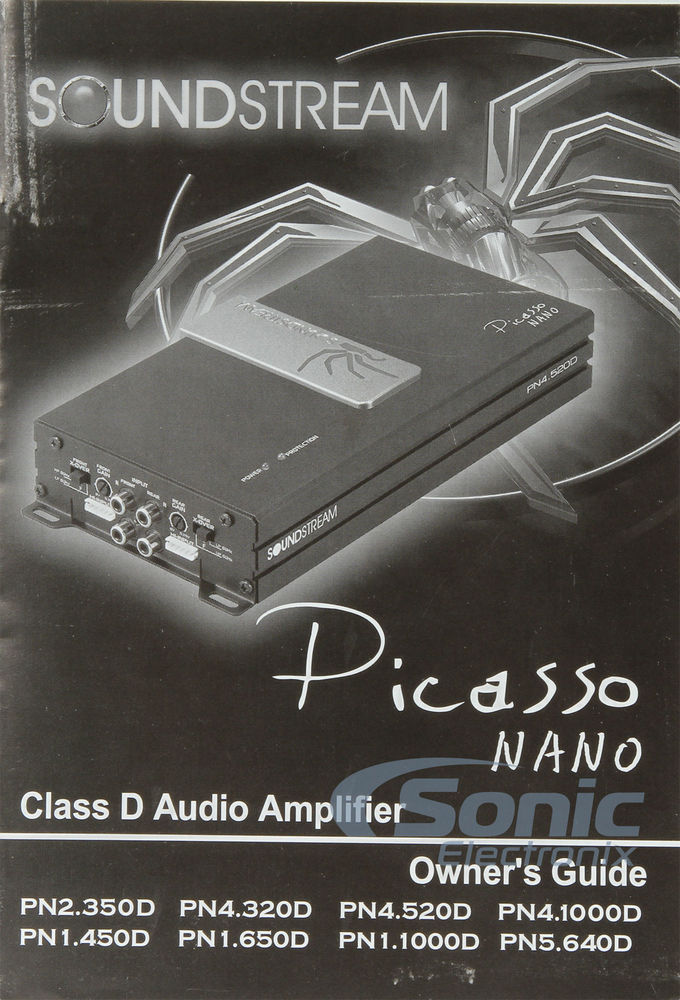

Check out the Soundstream PN1.1000D Owner's Manual

FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
350 watts x 1 channels
RMS Power @ 2 ohms
600 watts x 1 channels
RMS Power @ 1 ohm
1000 watts x 1 channels
Amplifier Specifications
Amplifier Series
Picasso-Nano (Soundstream)
Marine Certified
No
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 50 Hz
Bass Boost
0 - 12 dB
Bass/Gain Remote
Yes
Fan Cooled
No

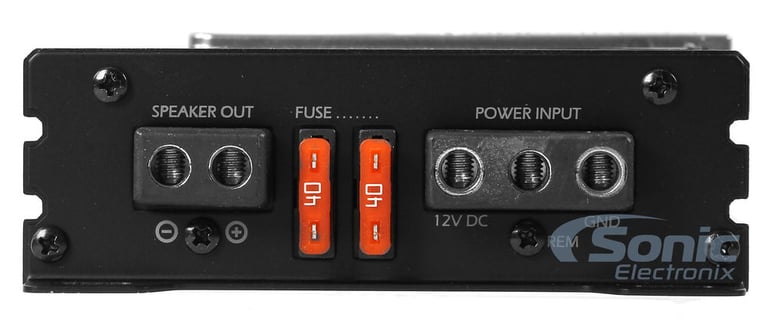

Fuse Rating
2A x 40
Total Fuse Rating
80
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer

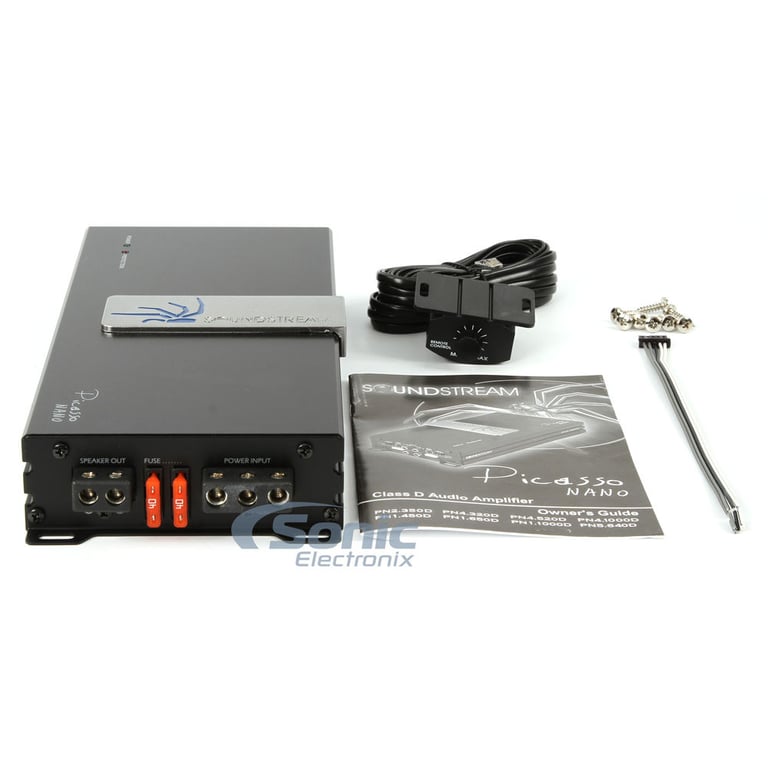

What is in the box?
WITB: Amplifiers
Amplifier

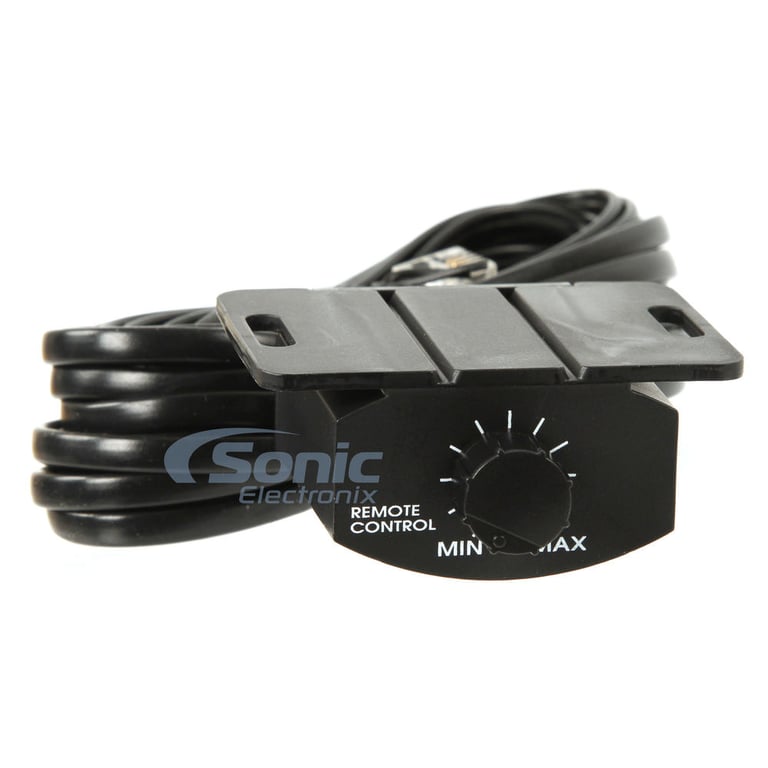

Wired gain knob (wire attached)
Mounting screws (4)
High-level input wiring harness w/ molex connector
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
REVIEWS
Soundstream PN1.1000D

Soundstream PN1.1000D

4.5

(4)

Write a review

Overall rating distribution

5 star
75%
4 star
0%
3 star
25%
2 star
0%
1 star
0%

By feature average rating

Durability
5
Value
5
Features
4.5
Design
4.5
Usability
4.8

Brian

February 11, 2016

Good budget amplifier.

I own the PN1.650D and recommended the PN1.1000D to a customer. They were very pleased with the ridiculously small size this amp is and how big a punch it packs with such a small case. These Picasso nano amplifiers are well done. Thanks Soundstream and Sonic Electronix!

3

found this helpful.

Anonymous

June 4, 2018

Soundstream PN1.1000D

Tiny and powerful, but if you need an actual 1000 watts this isn't the amp for you. Mine only does 833 watts RMS.

Adam

March 19, 2017

Great Amp, small in size packs a big punch

I put this amp in my wife's car along with two picasso 10's sounds great! The amp is small to be mounted almost anywhere. Great Amp for the price!

Joseph

November 2, 2015

Big power from this small package

I was a little taken back by the size of this amp. I expected it to let me down when it came to output. But after installation, by the first five seconds of the first song thru it...I knew. This was a great buy!! This amp KICKS!!! And it's barely in the second notch of the base controller with the gain way down.

Definitely a great purchase!!!
