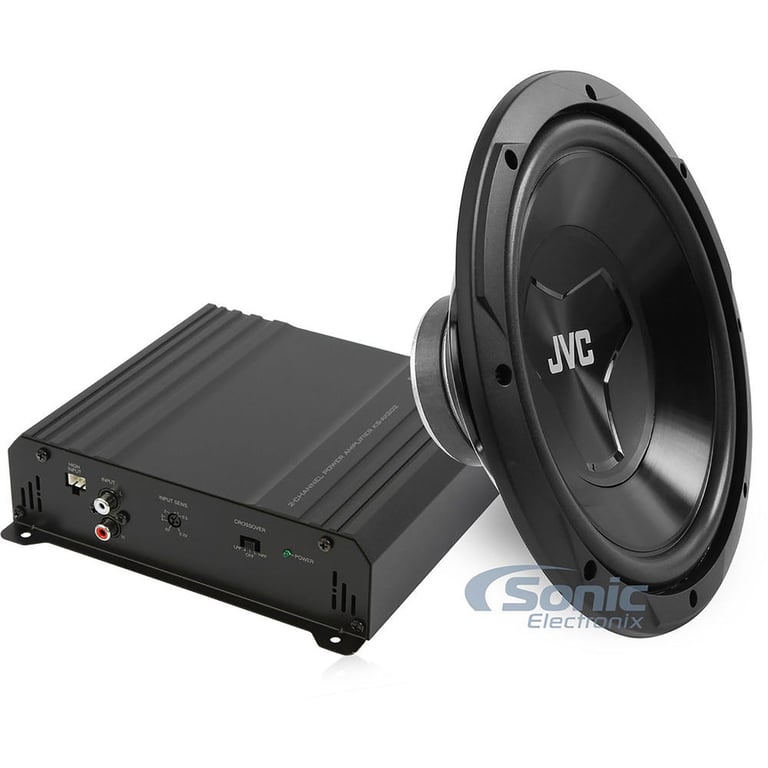

JVC CS-PK202

1000W 12" Subwoofer + Amplifier Car Audio Package

JVC
Shop all JVC
Product videos
highlight-star-icon

• 2 Channel Class AB Car Amplifier
• RMS Power: 40W x 2 @ 4 ohm, 60W x 2 @ 2 ohm
• CEA-2006 Low Pass Filter
• 12" Single 4 ohm Subwoofer
• Peak Power: 1000W
• RMS Power: 150W

Learn more about the cspk202

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

72-5605 main

Metra 72-5605

Install a New Tweeter in select 2011-2024 vehicles from Ford, Lincoln

-22.23%

$13.99

List price $17.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

Product Highlights


• 2 Channel Class AB Car Amplifier
• RMS Power: 40W x 2 @ 4 ohm, 60W x 2 @ 2 ohm
• CEA-2006 Low Pass Filter
• 12" Single 4 ohm Subwoofer
• Peak Power: 1000W
• RMS Power: 150W

Description


JVC brand icon

Authorized dealer

Small Subwoofer Driver Frame

Small Subwoofer Driver Frame

The JVC CS-W120's small frame design makes it a perfect solution for a wide range of applications. From custom OEM integration to traditional installs with minimal space, the CS-W120 fits almost anywhere. Its 5-1/16" depth Almost makes the driver a "shallow mount", making it perfect for the enthusiast that lacks space but wants the sound of a full sized woofer.





21.30 oz Magnet

Well Rounded Modest Power

The JVC CS-W120 houses a 21.30 oz Magnet to make up its motor and provide its modest power. At 150w RMS, the CS-W120 is perfect for a beginner's set up or for the seasoned veteran who is only looking to fill in the lack of low end in an existing system. A pair of drivers in a sealed enclosure is the most common set up, because it provides very well rounded sound quality.





Fine Tuned for Sealed Enclosures

Fine Tuned for Sealed Enclosures

The JVC CS-W120 was designed to save space. As such, it has been fine tuned to work best in a Sealed Enclosure, perfect for the enthusiast building a "SQ (Sound Quality) System". The driver is designed to work well within a fairly wide range of enclosure air volumes in order to fit anyone's particular sound preference.

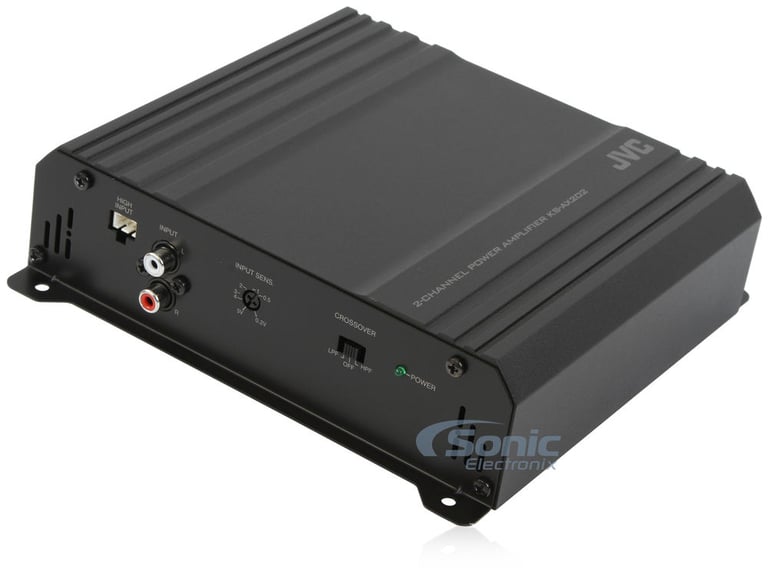

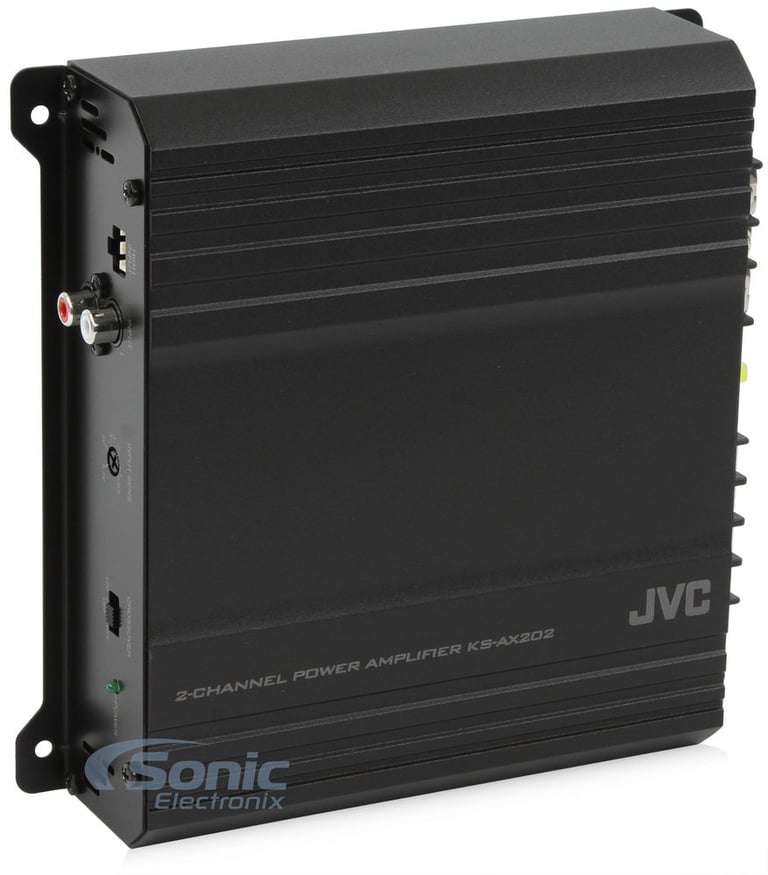

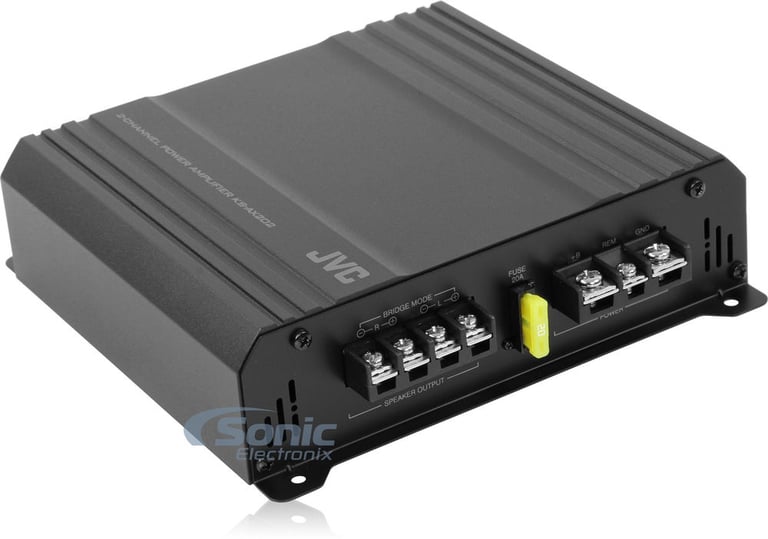

Amplifier General Features:

  • AX Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 2 chan.
    • 2 ohm: 60 watts x 2 chan.
    • Bridged, 4 ohm: 120 watts x 1 chan.
  • Max power output: 300 watts
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (off) indicators
  • Soft start turn-on
  • 2 or Mono channel operation

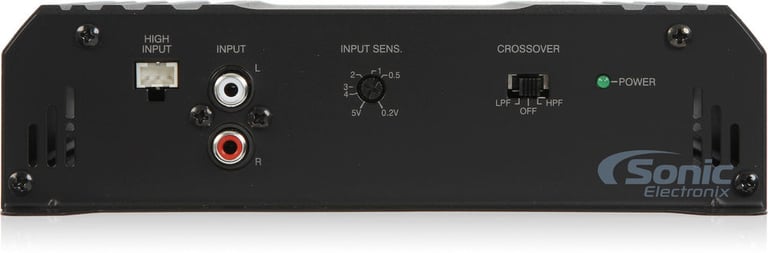

  • Speaker-level (high-level) inputs

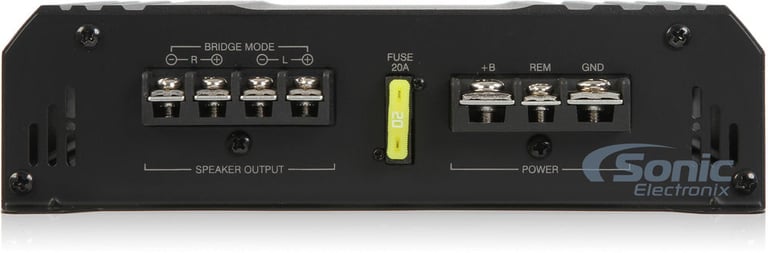

  • Nickel-plated RCA, Power and Speaker output terminals
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 5 - 50,000 Hz
  • Total Harmonic Distortion (THD): < 0.06%
  • Signal to Noise Ration: 80 dB
  • Selectable crossover filters: LPF / OFF / HPF
    • High-pass filter: 150Hz, 12 dB/octave
    • Low-pass filter: 80Hz, 12 dB/octave
  • Fuse Rating: 20 A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.

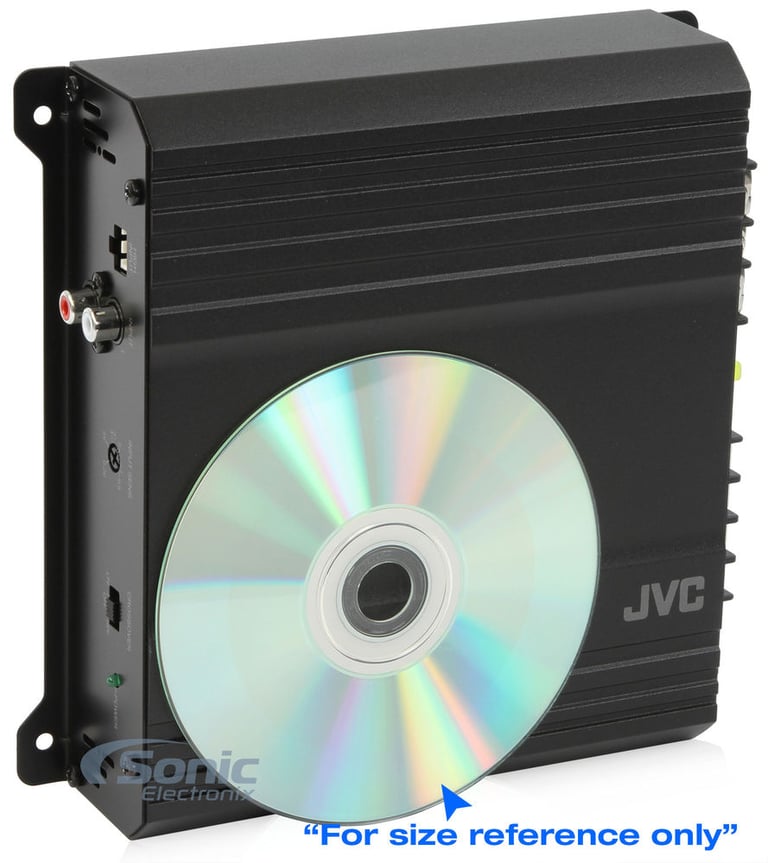

  • Dimensions: 7-3/8"W x 7-5/16"L x 2"H
  • Weight: 2.7 lbs
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

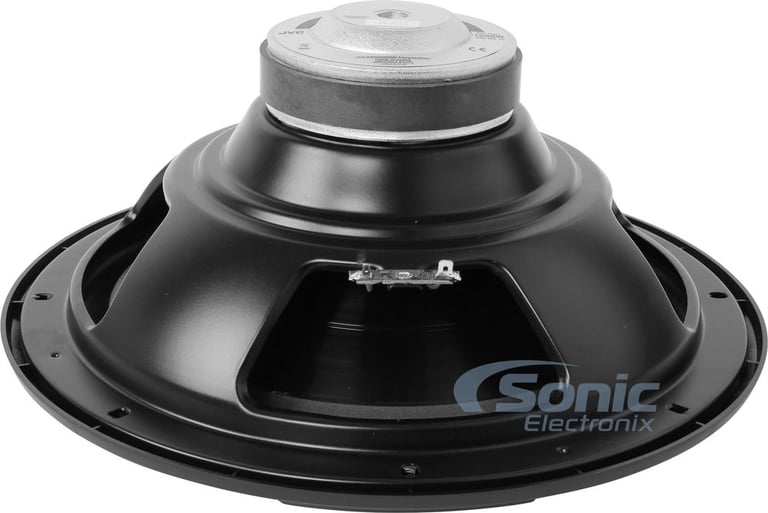

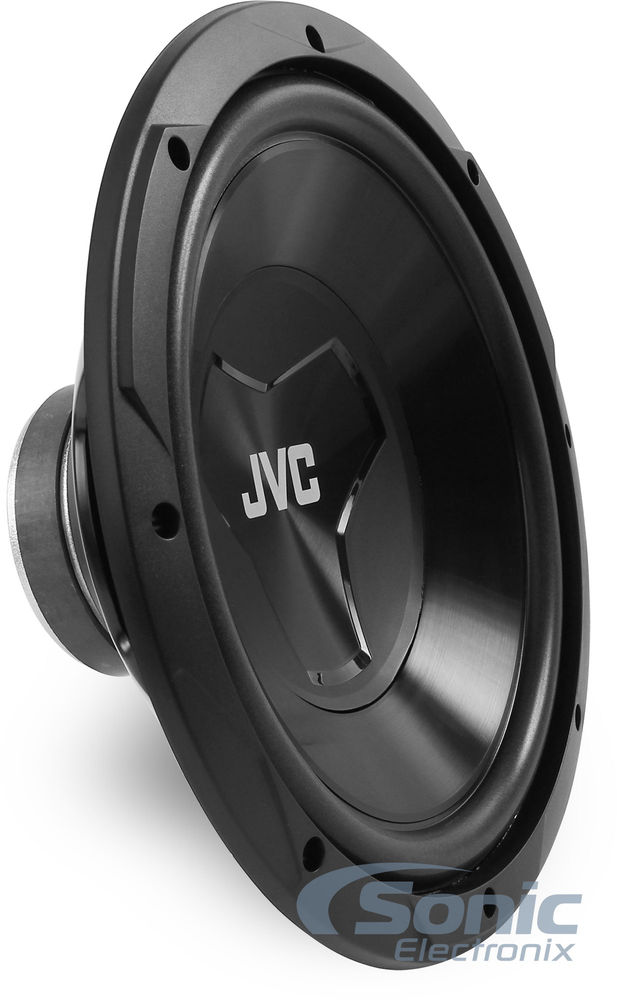

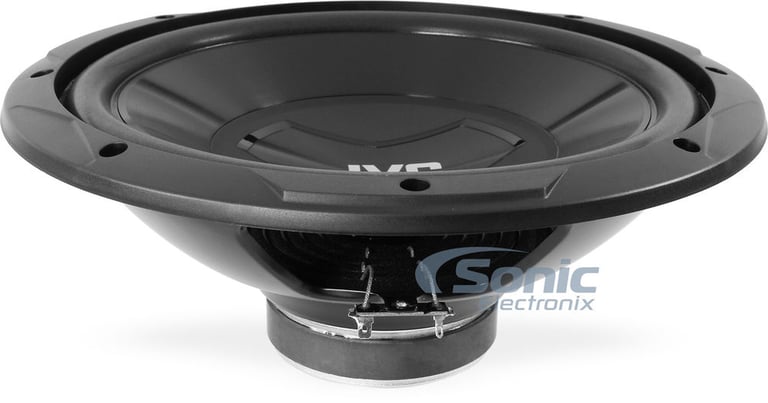

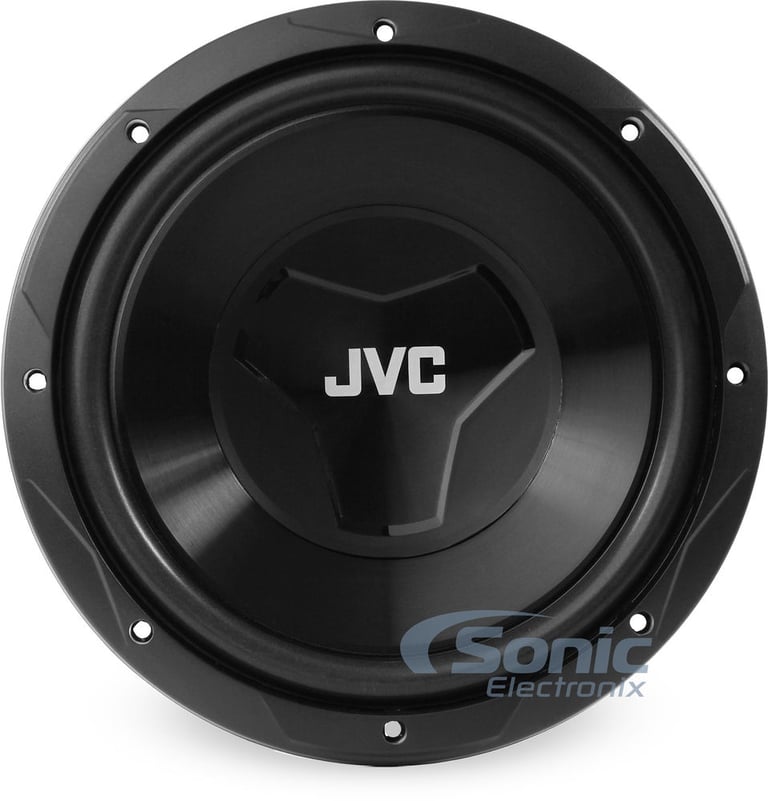

Subwoofer General Features:

  • 12" W Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 150 watts
  • Recommended power range: 75 - 150 watts RMS
  • Polypropylene Cone
  • High density foam surround
  • Super heat resistant ABS gasket
  • Faston terminals
  • Single 4 ohm voice coil
  • Top-mount depth: 5-1/16"
  • Cutout Diameter: 11-1/8"
  • Magnet Mass: 21.30 oz
  • Voice Coil Dia.: 1-1/2"
  • Frequency Response: 25 - 2500 Hz
  • Sensitivity: 85dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
40 watts x 2 channel
RMS Power @ 2 ohms
60 watts x 2 channel
Bridged RMS Power
120 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
300 watts
Total RMS Power Output
120 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
150Hz
Low-Pass Crossover Frequency
80Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
No
Fuse Rating
20A x 1
Subwoofer Specifications
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
150 watts
Peak Power Handling
1000 watts
Woofer Surround
Foam
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
0.70 cubic feet
Maximum Sealed Box Volume
1.50 cubic feet
Sensitivity
85 dB
Frequency Response
25 - 2500 Hz
Xmax (millimeters)
5.20 mm
Top-Mount Depth (Mounting Depth)
5-1/16"
Cutout Diameter
11-1/8"
Recommended Enclosure Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

CS-PK202

Weight:

11.80lbs

Internal SKU:

cspk202

Internal Product ID:

94584

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


JVC CS-PK202 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


050371 small

Boom Mat 050371

Pair of Boom Mat Speaker Baffles - 6" x 8" Oval Speakers, Slim

(3)

$12.99

List price $19.99

050361 small

Boom Mat 050361

Pair of Boom Mat Speaker Baffles - 5" x 7" Oval, Slim

(3)

$9.99

List price $11.09

050341 small

Boom Mat 050341

Pair of Boom Mat Speaker Baffles - 6.75" Round, Slim

(2)

$9.99

List price $11.05

SPL-12DV small

Atrend SPL-12DV

Dual 12" SPL Series Vented Subwoofer Enclosure (Coated Finish)

(3)

$289.99

List price $449.99

PTR8UR small

Pyle PTR8UR - Red

Vintage Classic Hot Rod Style Retro AM/FM Radio Turntable Stereo System USB/SD Vinyl-to-MP3 Recorder

(1)

$99.99

List price $268.99

ALPKCE440I small

Hyper Cable ALPKCE440I

USB iPod/iPhone Cable for Use with Alpine Receiver CDA-105

$19.99

List price $29.99

SPW12250 small

Hitron SPW12250

250 ft of 12 gauge speaker wire

$62.95

List price $149.99

WPB80 small

Waring WPB80

Professional Bar Blender w/ 48 oz. Jar

$59.95

List price $100.00

No picture

Waring PBB25

390W Professional Bar Blender

$129.31

List price $199.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Ford Escape

2000 Mazda 626

2019 Dodge Durango

2013 Ford Edge

2011 Saab 9-3X

2012 Lexus LFA

2002 Jaguar S-Type

2008 MINI Cooper

2006 Mazda MPV

2017 Kia Rio

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
