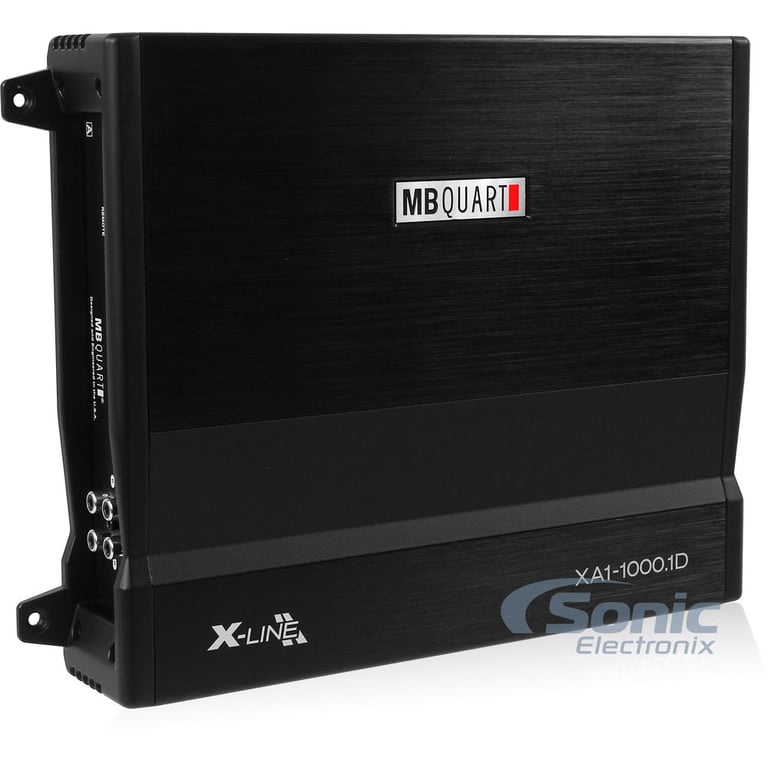

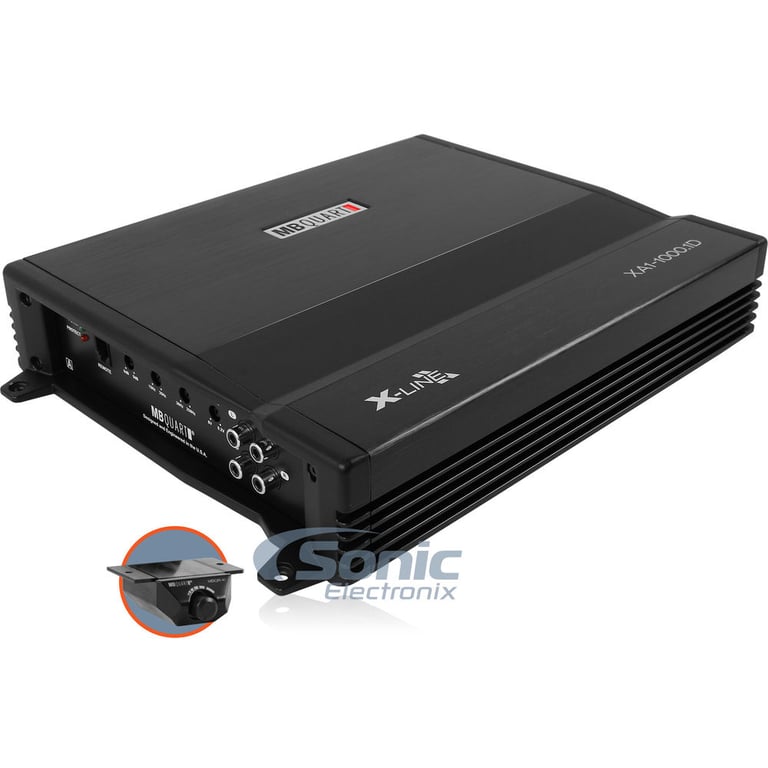

MB Quart XA1-1000.1D

1000W Monoblock X-Line Series Class D Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• Peak : 250W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Elaborate preamplifier with extended control
• Frequency Response: 10 - 300 Hz

Learn more about the xa110001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
91970 main

Select Increments Centra-Pod (91970)

Custom-fit speaker enclosures for select 1976-1995 CJ7 and Wrangler

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

Product Highlights


• Peak : 250W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Elaborate preamplifier with extended control
• Frequency Response: 10 - 300 Hz

Description


MB Quart brand icon

Authorized dealer

General Features:

  • X-Line Series Monoblock Class D Amplifier
  • Peak Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.

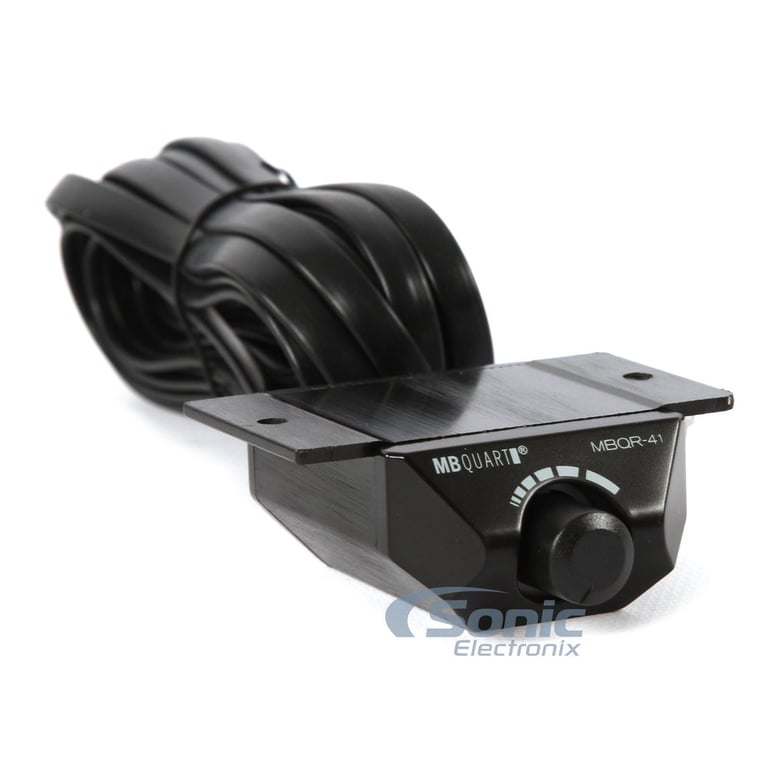

  • Wired remote bass level control included
  • Fluid-FETS hand selected insulated MOSFETS
  • Focused mass heat sink designs
  • Q-Stasis preamp stage with wide input range
  • Elaborate preamplifier with extended control
  • Easy access mounting tabs for a secure install

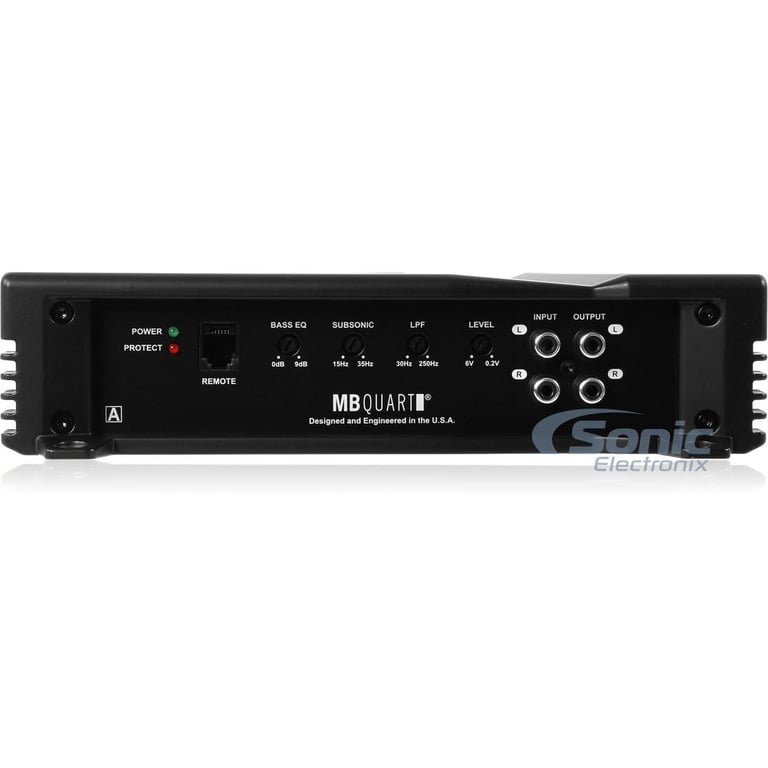

  • LED power (green) and protect (red) indicators
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 10 - 300 Hz
  • Signal to Noise Ratio: >90 dB
  • Total Harmonic Distortion (THD): <0.5%
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Variable low-pass filter: 40 - 300 Hz
  • Subsonic filter: 10 - 40 Hz

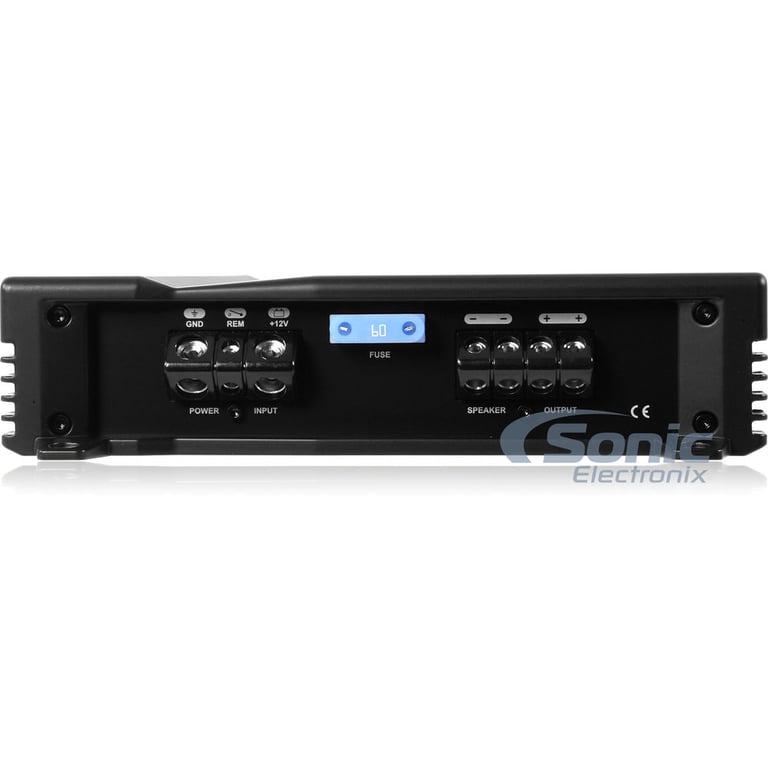

  • Fuse Rating: 60A x 1
  • CEA-2006 compliant amplifier
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9.20"W x 12.50"L x 2.20"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
