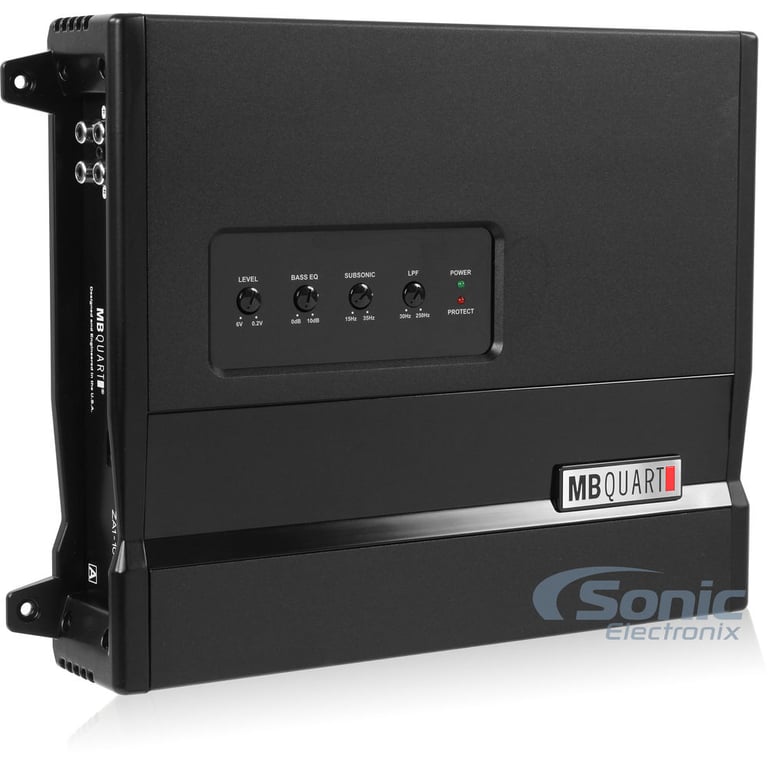

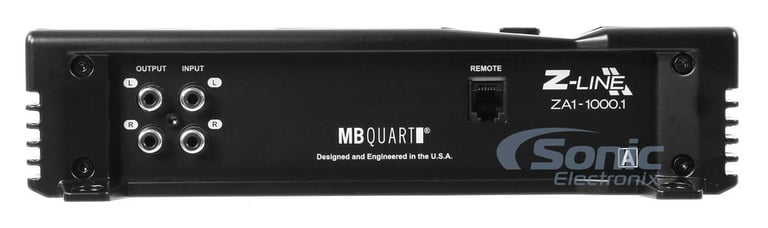

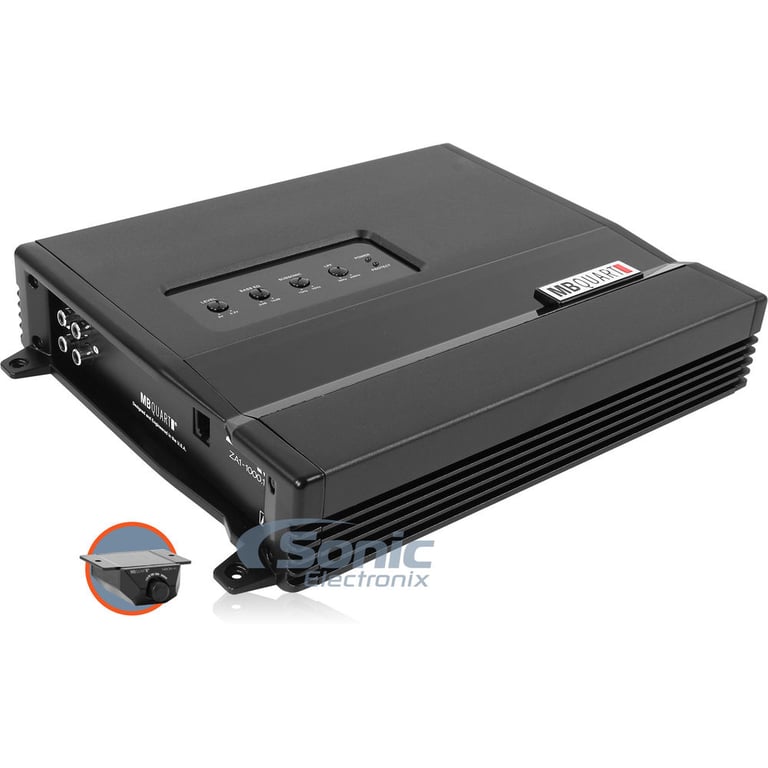

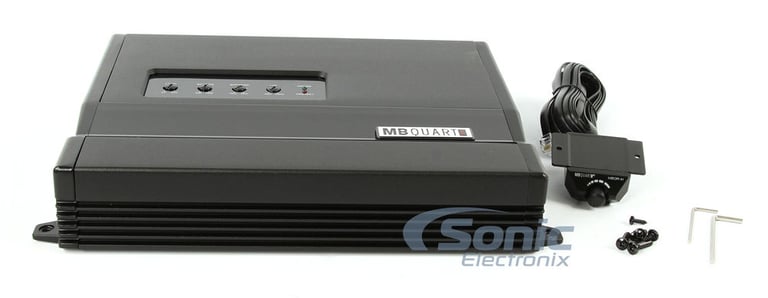

MB Quart ZA1-1000.1

1000W Monoblock Z-Line Series Class SQ A/B Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• RMS: 475W x 1 @ 4 ohm, 750W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Top mounted controls for simple setup & adjustment
• Frequency Response: 15 - 250 Hz

Learn more about the za110001

We apologize

This item has been discontinued


Loading...
AXDI-CL2 main

Axxess AXDI-CL2

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

7
-10.75%

$82.99

List price $92.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• RMS: 475W x 1 @ 4 ohm, 750W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Top mounted controls for simple setup & adjustment
• Frequency Response: 15 - 250 Hz

Description


MB Quart brand icon

Authorized dealer

Z-Line Series: Designed for Sound Quality

With the Z-Line Series, MB Quart focused not only on creating amplifiers with great output, but with great sound quality as well. The Z-Line Series Amplifiers feature Q-Stasis pre-amp technology, Class SQ A/B and Class Q1 proprietary class D topology, and Fluid-FETS outputs all utilized to deliver high end quality.





Sonic Electronix Power Certified Amplifier

The MB Quart ZA1-1000.1 monoblock amplifier is a Sonic Electronix Certified Amplifier This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings
Learn more about this amp's Sonic Electronix Certified Power Here!


Impedance
Claimed Output
Dynamic Results
4 Ω
475W @ 14.4V
462W @ 14.13V
2 Ω
750W @ 14.4V
711W @ 14.03V
1 Ω
1000W @ 14.4V
1009W @ 14.07V



General Features:

  • Z-Line Series Monoblock Class SQ A/B Amplifier
  • RMS Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 462 watts x 1 chan.
    • 2 ohm: 711 watts x 1 chan.
    • 1 ohm: 1009 watts x 1 chan.

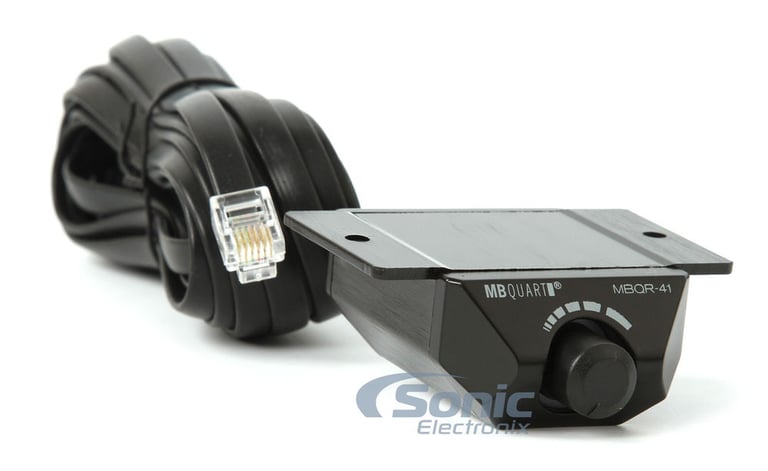

  • Wired remote bass level control included
  • Fluid-FETS hand selected insulated MOSFETS
  • Focused mass heat sink designs
  • Q-Stasis preamp stage with wide input range
  • Top mounted controls for simple setup & adjustment
  • Elaborate preamplifier with extended control
  • Easy access mounting tabs for a secure install
  • LED power (green) and protect (red) indicators
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • Signal to Noise Ratio: >90
  • Total Harmonic Distortion (THD): <0.5%
  • Variable Bass Boost: 0 to +10 dB bass boost at 45Hz
  • Variable low-pass filter: 30- 250 Hz
  • Subsonic filter: 15- 35 Hz

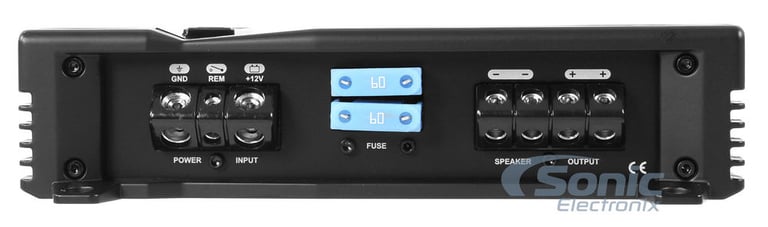

  • Fuse Rating: 60A x 2
  • CEA-2006 compliant amplifier
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9.20"W x 12.50"L x 2.20"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
475 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
950 watts x 1 channel
Peak Power @ 2 ohms
1500 watts x 1 channel
Peak Power @ 1 ohm
2000 watts x 1 channel
Amplifier Specifications
Series
Z-Line Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
60A x 2
Strappable
No
Sonic Certified Amplifier
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZA1-1000.1

Weight:

9.20lbs

Internal SKU:

za110001

Internal Product ID:

94879
