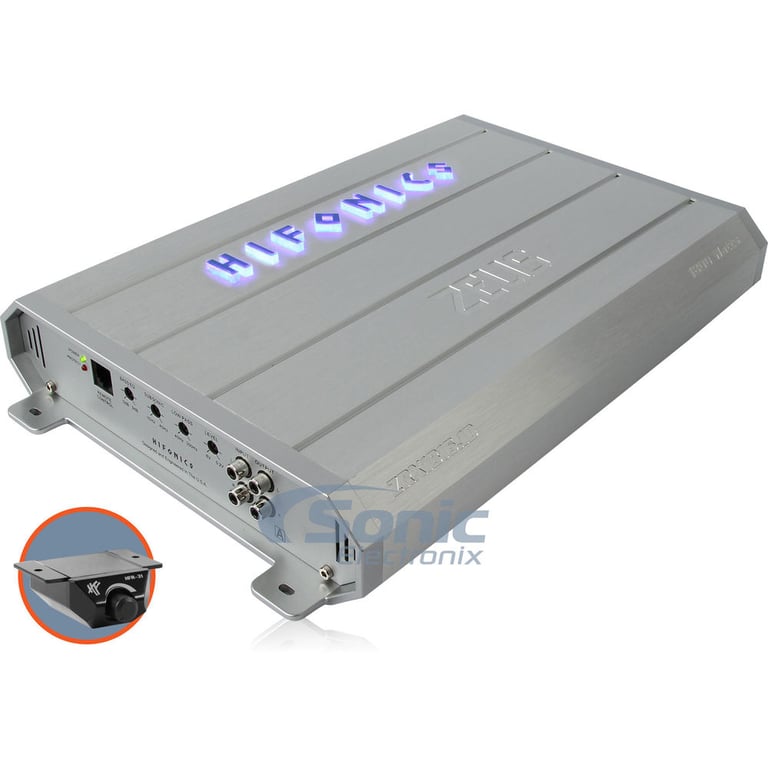

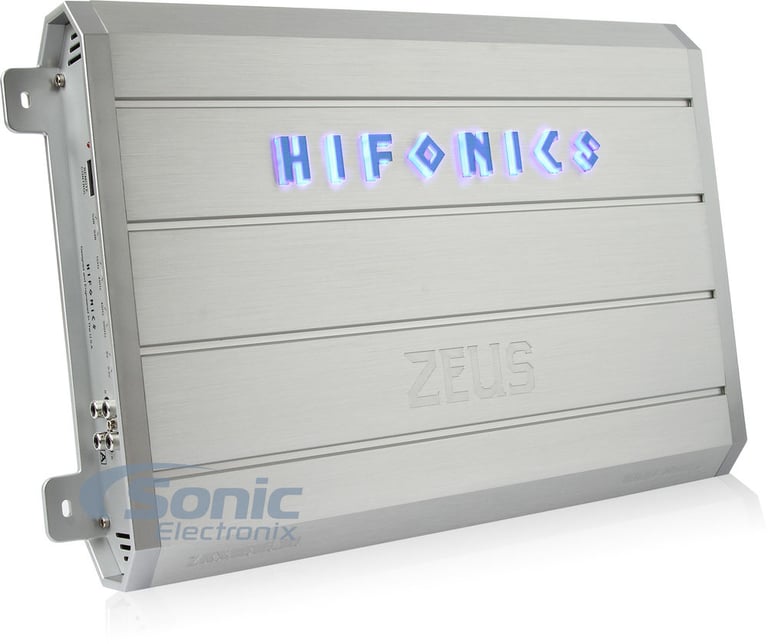

Hifonics Zeus ZRX1816.1D

1800 Watt Monoblock Zeus Series Class D 1-Ohm Stable Subwoofer Amplifier - (Zeus 1800 Watt)

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• RMS Power: 500W x 1 @ 4 ohm, 900W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total Peak Power: 1800W
• Variable Low Pass Filter
• Dimensions: 10" W x 15.7" L x 2.4" H

Learn more about the zrx18161d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

MP69 main

DS18 MP69

Adapts 6x9" Speaker Space to 6.5" Speaker and 1.38" Tweeter

2
Limited time!
Kappa 693M main

Infinity Kappa 693M (INFSPKKA693MAM)

720W Peak (240W RMS) 6x9” Kappa Series 3 Way Coaxial 3-ohm Speakers

14
-31.43%

$239.95

List price $349.95

Limited time!
40PS692 main

Kicker PS692 (40PS692)

360W Peak (180W RMS) 6x9” PS Series 2 Way Coaxial 2-ohm Powersports and Motorcycle Speakers

-27.29%

$159.96

List price $219.99

EPICPRO6X main

AudioControl EPICPRO6X

600W Peak (400W RMS) 6.5" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

1

Product Highlights


• RMS Power: 500W x 1 @ 4 ohm, 900W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total Peak Power: 1800W
• Variable Low Pass Filter
• Dimensions: 10" W x 15.7" L x 2.4" H

Description


Hifonics brand icon

Authorized dealer



General Features:

  • Zeus Series Monoblock Class D Car Amplifier
  • Max Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 900 watts x 1 chan.
    • 1 ohm: 1800 watts x 1 chan.
  • Max power output: 1800 watts

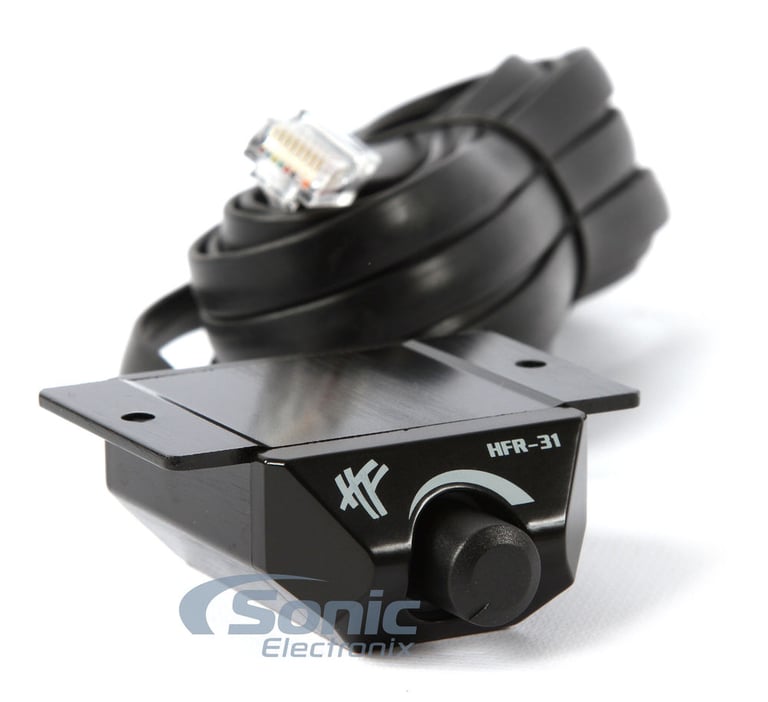

  • Wired remote bass level control included
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Mono channel operation
  • Variable low-pass filter (40-300 Hz, 24 dB/octave)
  • Frequency Response: 10-300 Hz
  • Old School Hifonics heatsink provides superior heat dissipation
  • Military grade PCB construction
  • Simpatico coil design
  • Hifonics surface mount design
  • DC, short circuit, thermal and overload protection
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 10"W x 15.7"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Hifonics ZRX1816.1D thumbnail
(newest, current model)
Hifonics ZRX1800.1D thumbnail
(previous model, replaced by Hifonics Zeus ZRX1816.1D)

Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 vehicles from Ram

-10.53%

$849.99

List price $949.99

SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

51K5RDL7T102 main

Kicker 51K5RDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

-10.53%

$849.99

List price $949.99

51KR_46CXA_RCT_XK42_NK_49K main

Kicker KRDL7T10 Sub Enclosure + CXA1200.1 Amp + Remote w/ Free Amp Install Kit

1000W RMS Dual 10" Sealed Truck Enclosure, 1200W RMS Class D Monoblock Amp, Wired Bass Remote, 4 Gauge OFC Amp Kit, and 2 Koozies

158
-18.40%

$1,290.01

List price $1580.93

51KTDL7_NDA15_XK42_NK_49K main

Kicker 51KTDL7T102 + NVX NDA15001 w/ Free Amp Install Kit

1000W RMS Loaded Dual 10" Sealed Truck Enclosure with 1500W RMS Class D Monoblock Car Amplifier, 4 Gauge OFC Wiring Kit, and Koozies

137
-24.94%

$1,050.02

List price $1398.94

51KRDL_NDA15_XK42_NK_KK main

Kicker KRDL7T10 Subwoofer Enclosure + NVX NDA15001 Amp w/ Free Amp Install Kit

1000W RMS Loaded Dual 10 inch Sealed Truck Enclosure, 1500W RMS Class D Monoblock Amplifier with Bass Remote, 4 Gauge OFC Wiring Kit and Koozies

138
-24.94%

$1,050.02

List price $1398.94

51L7T_CXA12_ARCT_XK42_NK_KK main

Kicker 51KTDL7T102 Enclosure + CXA1200.1 Amp w/ Free Amp Install Kit

Kicker 1000W RMS Loaded Dual 10" Sealed Truck Enclosure, 1200W RMS Monoblock Amp, Bass Remote, NVX 4-Gauge OFC Wiring Kit, and Koozies

157
-18.40%

$1,290.01

List price $1580.93

51K5_CXA12_CXAR_XK42_NK_49K main

Kicker 51K5RDL7T102 + CXA1200.1 Amp + Bass Knob w/ Free Amp Install Kit

1000W RMS Loaded Dual 10" Sealed Truck Enclosure with 1200W RMS Monoblock Amplifier, Bass Remote, 4 Gauge OFC Wiring Kit, and Koozies

157
-18.40%

$1,290.01

List price $1580.93


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

GP-3500.1D small

Crunch GP-3500.1D

• 875 watts x 1 channel @ 4 ohm
• 1750 watts x 1 channel @ 2 ohm
• 3500 watts x 1 channel @ 1 ohm
• Total Peak Power: 3500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$99.99

List price $219.99

CXA800.1 small

Kicker CXA800.1 (46CXA8001T)

• 300 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• 800 watts x 1 channel @ 1 ohm
• Total RMS Power: 800 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$299.99

List price $329.99

Specifications & Details


Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
500 watts x 1 channel
Peak Power @ 2 ohms
900 watts x 1 channel
Peak Power @ 1 ohm
1800 watts x 1 channel
Amplifier Specifications
Series
Zeus Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.10%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

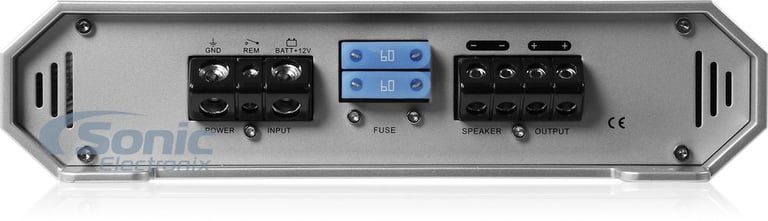

Fuse Rating
60A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRX1816.1D

Weight:

11.00lbs

Internal SKU:

zrx18161d

Internal Product ID:

94889
