AudioControl The Epicenter 600

600W RMS Monoblock Epicenter Series Class D Amplifier w/ The Epicenter Bass Restoration Built-In

Product videos
highlight-star-icon

• RMS: 200W x 1 @ 4 ohms, 350W x 1 @ 2 ohms, 600W x 1 @ 1 ohm
• THE EPICENTER® Digital Bass Restoration Built-in
•MILC™ Maximum Input Level Control
• Line-Level RCA Inputs and Active Speaker-Level Inputs)
• ACR-3 Remote Control Included
• 7.95" W x 9.00" L x 2.10" H

Learn more about the theepicenter600

We apologize

This item has been discontinued

Product Highlights


• RMS: 200W x 1 @ 4 ohms, 350W x 1 @ 2 ohms, 600W x 1 @ 1 ohm
• THE EPICENTER® Digital Bass Restoration Built-in
•MILC™ Maximum Input Level Control
• Line-Level RCA Inputs and Active Speaker-Level Inputs)
• ACR-3 Remote Control Included
• 7.95" W x 9.00" L x 2.10" H

Description


AudioControl brand icon

Authorized dealer


Powerful and Packed with Technology

Simply the most advanced subwoofer amplifiers in car audio today! The Epicenter 600 and 1200 amplifiers incorporate AudioControl's patented Bass Restoration Processor to deliver earth-shaking, ground pounding and chest thumping power to your subwoofer system. Carefully applied signal processing at just the right spot, enhances the listening experience and maximizes your bass quality. Today's amplifiers are difficult to separate from one another, The Epicenter 600 and 1200 have done so in ground breaking fashion with their unparalleled processing power. In a real-world listening environment, we invite you to compare these amplifier to any other amplifier in the same power category, at any price, and you will quickly learn that the Epicenter amplifiers will always have more bass! It's time to hear what you have been missing.

AudioControl's engineering team designed the amplifier from the ground up, to deliver superb performance and high-fidelity sound. The chassis is made up of a solid one piece aluminum chassis that helps to evenly distribute heat. A black brushed aluminum cover protects the bank of controls that make the amplifier so special. On the processing end, these amplifiers have active high level inputs - taken from the world famous LC2i - to optimize the audio signal going to the amp, and Maximum Input Level Control - MILC - to optimize the signal delivered from the amp.





The

Put Life Back Into Your Music

The Epicenter amplifier is not a cold heartless box for increasing the loudness of bass frequencies in your system. It restores the bass frequencies to how they were meant to be. It is a bass-frequency re-enactor. Your favorite music will come alive and breath, and live again.





The

An Amp That Protects Itself

AudioControl's engineering department designed these amplifiers from the ground up. They feature a black brushed aluminum finish, with black powder-coated cast alloy heat sinks and bottom panel in one single piece. A black-brushed aluminum cover finishes off the sleep design.




Sonic Electronix Power Certified Amplifier

The Epicenter 600 monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings. Learn more about this amp's Sonic Electronix Certified Power Here, and to browse all recently tested amplifiers Click Here.

Impedance
Claimed Output
Certified Results
Dynamic Results
4 Ω
200W @ 14.40V
262W @ 14.20V
253W @ 14.18V
2 Ω
350W @ 14.40V
413W @ 14.11V
417W @ 14.11V
1 Ω
600W @ 14.40V
611W @ 14.01V
672W @ 14.13V




Save on the Open Box Version:
Available Now - CLICK HERE


General Features:

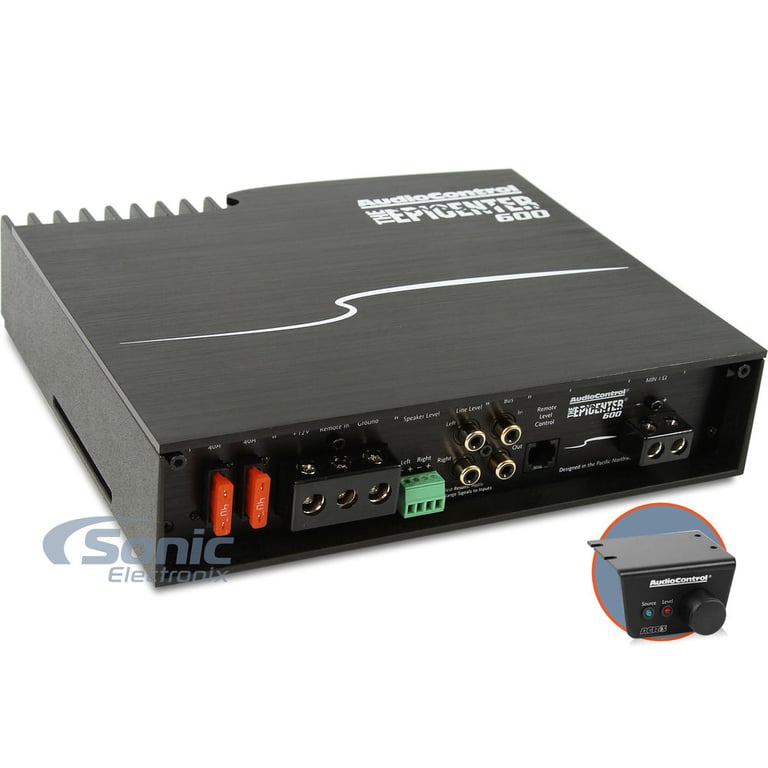

  • The Epicenter Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 200 watts x 1 chan.
    • 2 ohms: 350 watts x 1 chan.
    • 1 ohm: 600 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohms: 262 watts x 1 chan.
    • 2 ohms: 413 watts x 1 chan.
    • 1 ohm: 611 watts x 1 chan.

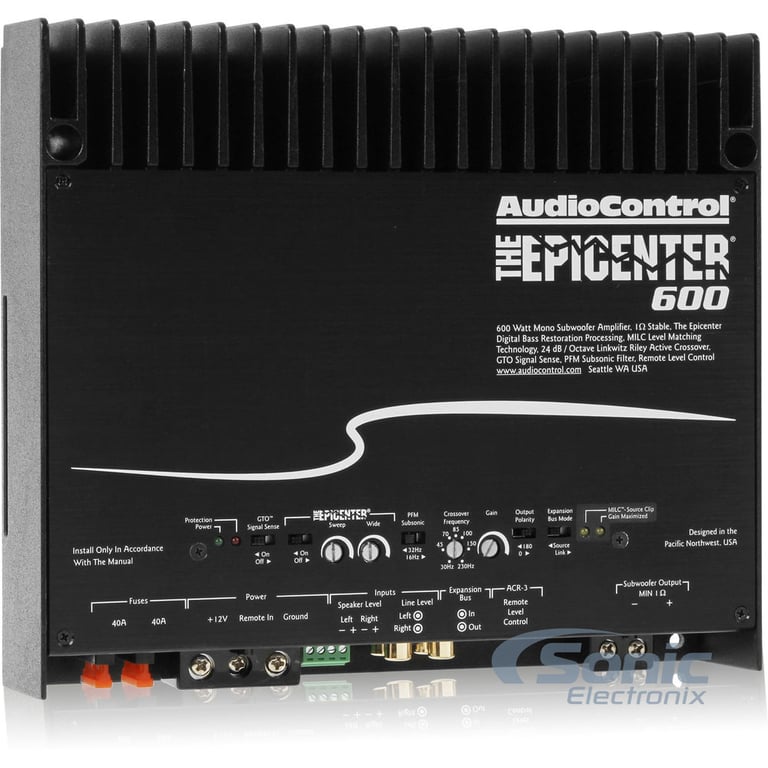

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Gold plated speaker and RCA terminals
  • THE EPICENTER Digital Bass Restoration Built-in
  • MILC Maximum Input Level Control
    • Maximum Input Level Control prevents clipping and damaging distortion
  • 24 dB/octave Linkwitz-Riley Alignment Crossover
  • GTO Signal Sense
  • PFM Subsonic Filter

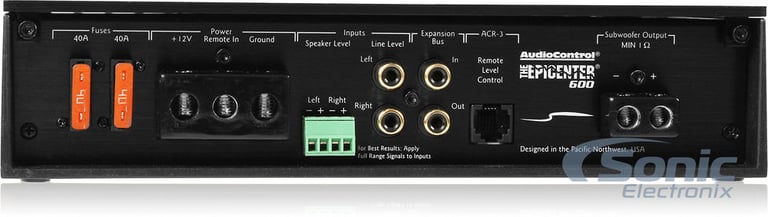

  • Line-Level RCA Inputs and Active Speaker-Level Inputs
  • Expansion Bus
    • Allows two or more amps to be controlled by one set of controls

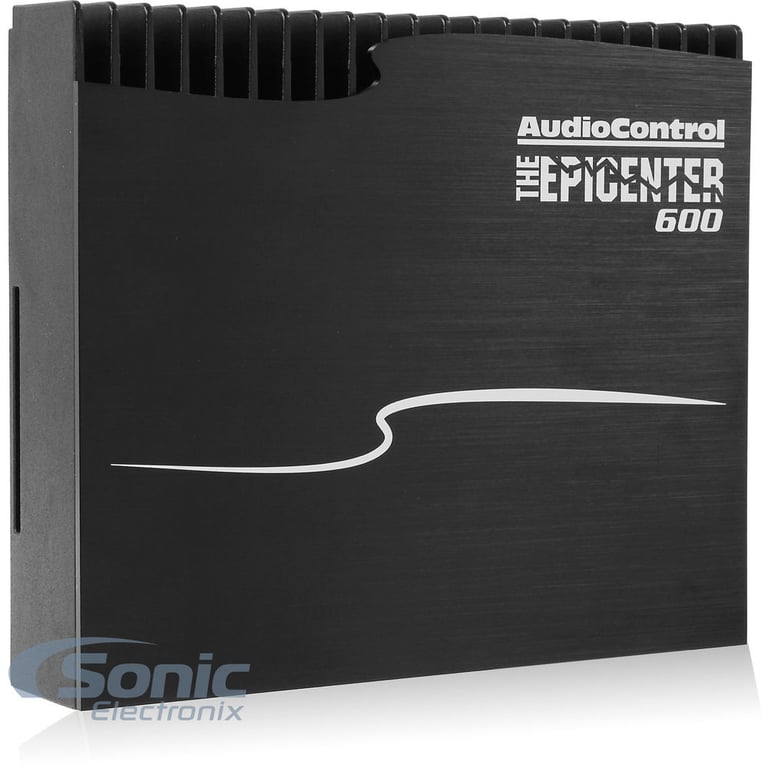

  • Solid One-Piece Aluminum Chassis

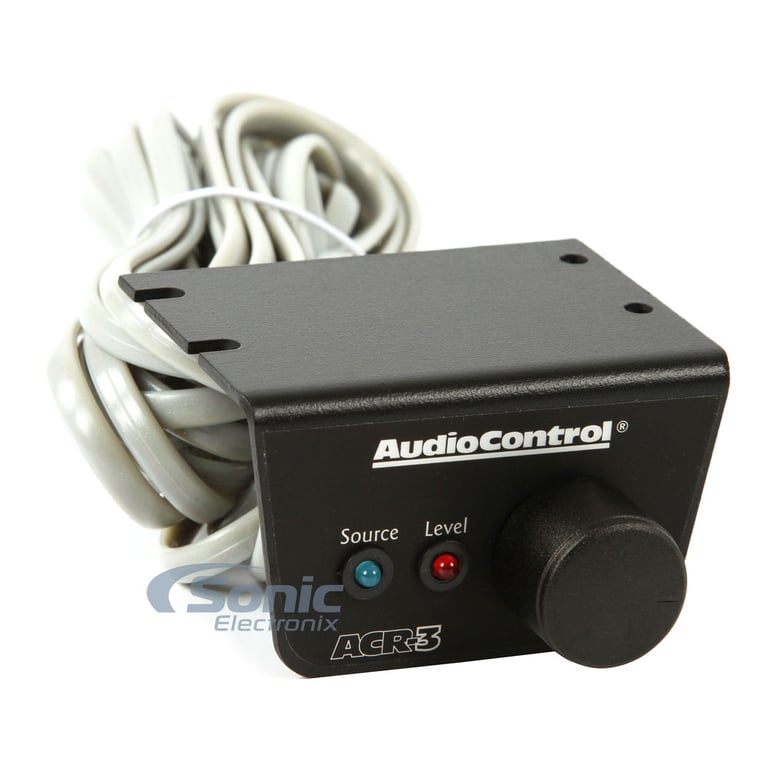

  • ACR-3 Remote Control for Subwoofer Level and THE EPICENTER effect
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 16 - 250 Hz
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ration: 104 dBa, Ref 600 W at 1 Ohm
  • Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave Linkwitz-Riley
  • Subsonic filter: Selectable 16 or 32 Hz , 18dB/Octave
  • Phase Selector: 0 - 180°
  • Fuse Rating: 40A x 2
  • CEA-2006 compliant amplifier
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7.95"W x 9.00"L x 2.10"H
  • Authorized Internet Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)
Check out the AudioControl The Epicenter 600 Owner's Manual

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
350 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Amplifier Specifications
Series
The Epicenter Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
Yes
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
16 or 32 Hz Selectable
Signal-to-Noise Ratio
104 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
Strappable
Yes
Sonic Certified Amplifier
Yes
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TheEpicenter600

Weight:

4.50lbs

Internal SKU:

theepicenter600

Internal Product ID:

95304

Product and How-to Videos


  • AudioContol Epicenter 600 Class D Monoblock Amplifier | Product Overview
  • AudioControl Epicenter600 Car Amplifier Dyno Test | SMD D'Amore AD-1
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews



5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4
Usability
3

Customer Reviews

Sort by:

Loading...

Features Galore

Quality amplifier from a reputable company. High-grade materials and manufacturing combined with industry-leading bass restoration create a true sound quality focused amplifier. Certified power ratings ensure that the unit is being used to its full potential.

What separates the AudioControl Epicenter 600 & 1200 amplifiers from run-of-the-mill units are the vast array of features included in the amp.

The built-in Epicenter bass restoration will restore low bass frequencies, and you will be hearing notes in your favorite songs that you have never heard before! (specifically pre-1980s rock music and EDM drastically improves). The drawback is that songs with strong bass tones (rap, hip-hop) and digitally enhanced vocals, the bass restoration will overpower these tones and pollute the sound. In this case, just keep the restoration low.

The speaker-level inputs make connecting to an OEM system simple and accurate. The GTO Signal Sense feature is great as well, providing an automatic turn-on for the amp when an audio signal is sensed, and removing the requirement of a remote wire. The ACR-3 remote allows for both subwoofer level and bass restoration to be adjusted from a single dial. (see ease of use)

For troubleshooting, the amplifier also comes with a handy "diagnostics system", consisting of various LEDs, that notify the user if a short or other fault as occurred.

Ease of Use - 3*
Over the past month of using this amplifier, i noticed three main issues with the ease of use...

The first issue is with the screws that hold the cover plate on. The design requires the screws to be loosened 90% before the lid can be removed, causing the screws to fall out often, and have a potential for loss. Unfortunately, once the screws are completely loosened, the cover plate, more often than not, will still be stuck to the unit, forcing the user to pry it up with their fingers or a flat-head. Once the cover plate is removed, it is just as hard to get on as it was to get off. This is a major design flaw that makes any adjustments time-consuming.

Second, the 4GA power/ground wire terminals are sized pretty tight, preventing strands of slightly oversized wire from securing (and possibly touching the "remote wire" terminal preventing the amplifier from turning off!).

Finally, (and the biggest issue) is with the ACR-3 remote. I'm not sure if mine came wired backwards from the manufacturer, or if the color of the LED callouts in the manual were reversed, but it took me weeks to figure out the problem. In the manual, they specify that the BLUE light adjusts restoration, and the RED light adjusts the subwoffer level. This was incorrect on my remote. I now have to remember "RED is for Restoration, and BLUE is for Bass.

This amplifier is best suited as a sound-quality amplifier. While it is very powerful and can handle high SPL woofers, it is not as cost-effective as other high-powered amps used for SPL. The outstanding build quality and value of combined features make this an attractive find for those looking for and "advanced" amplifier. This being AudioControls first attempt at an amplifier, quality control and design are still a working-progress, however at this price, its hard to beat industry-leading guts!

By John on April 8, 2016 Checkmark Icon Verified purchase

2

found this helpful.
