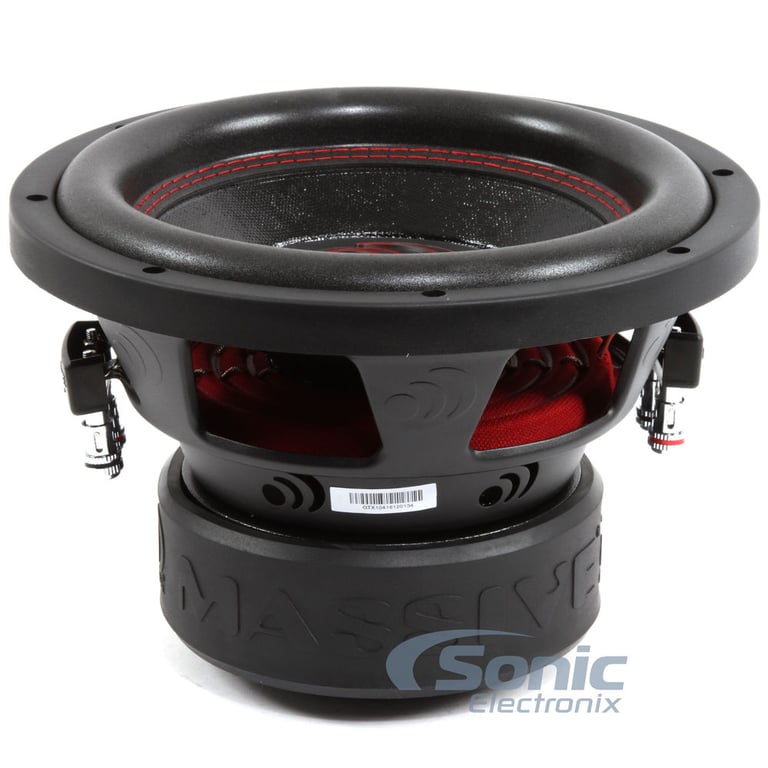

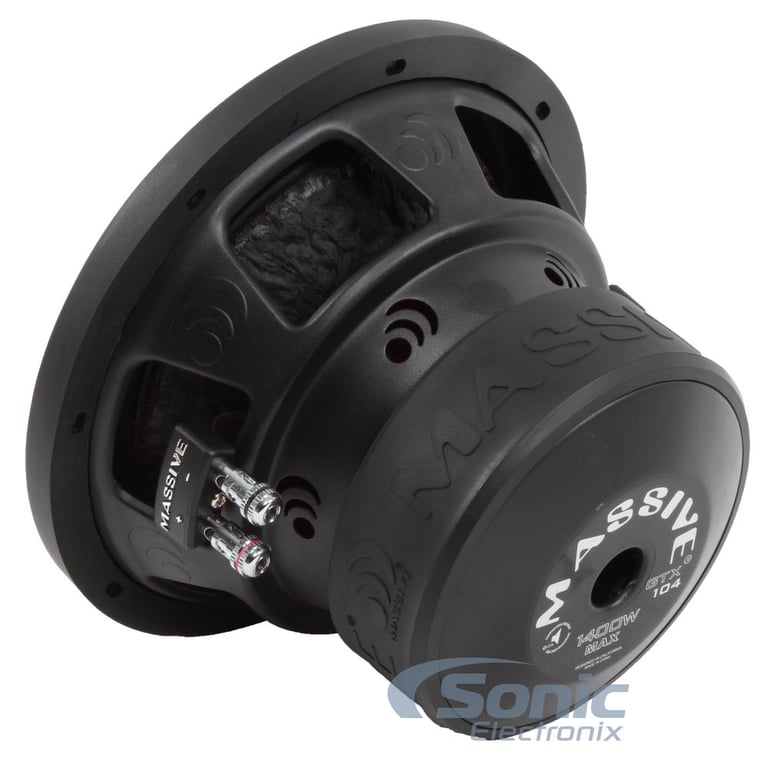

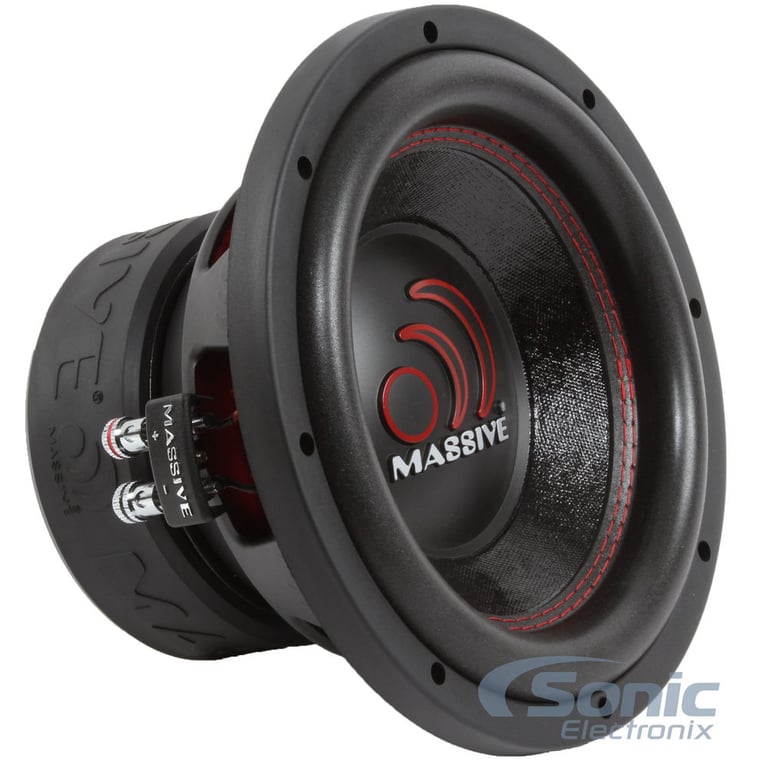

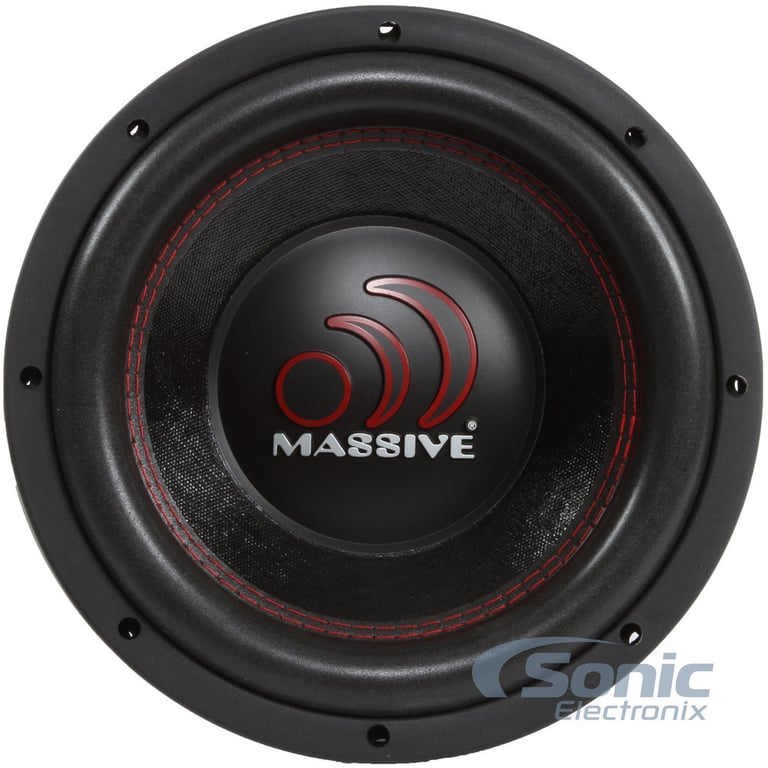

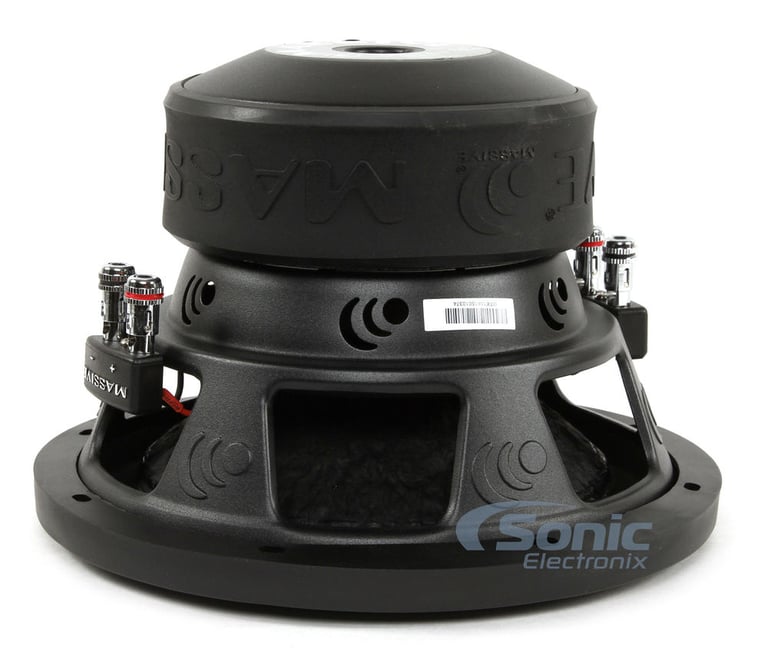

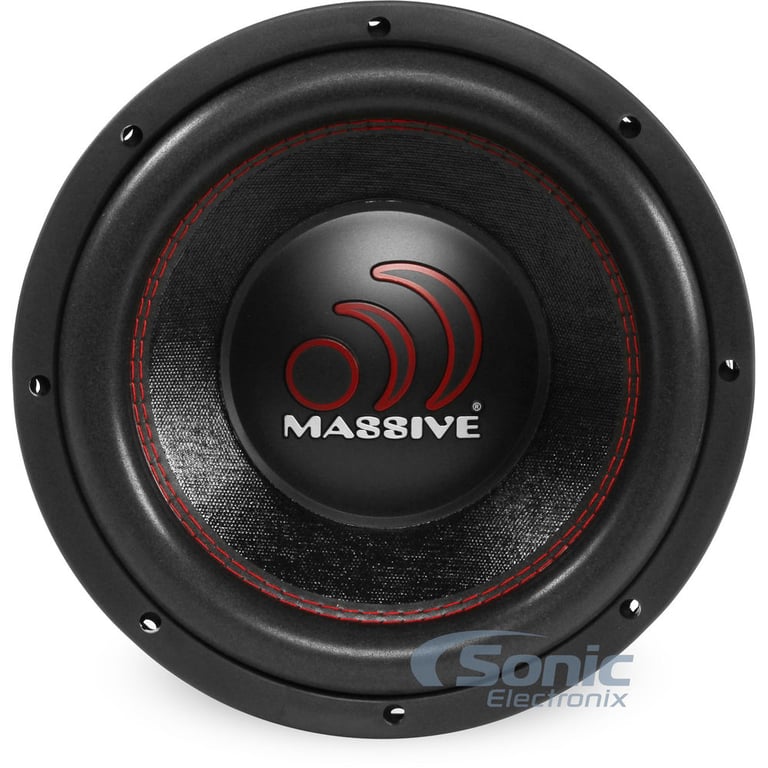

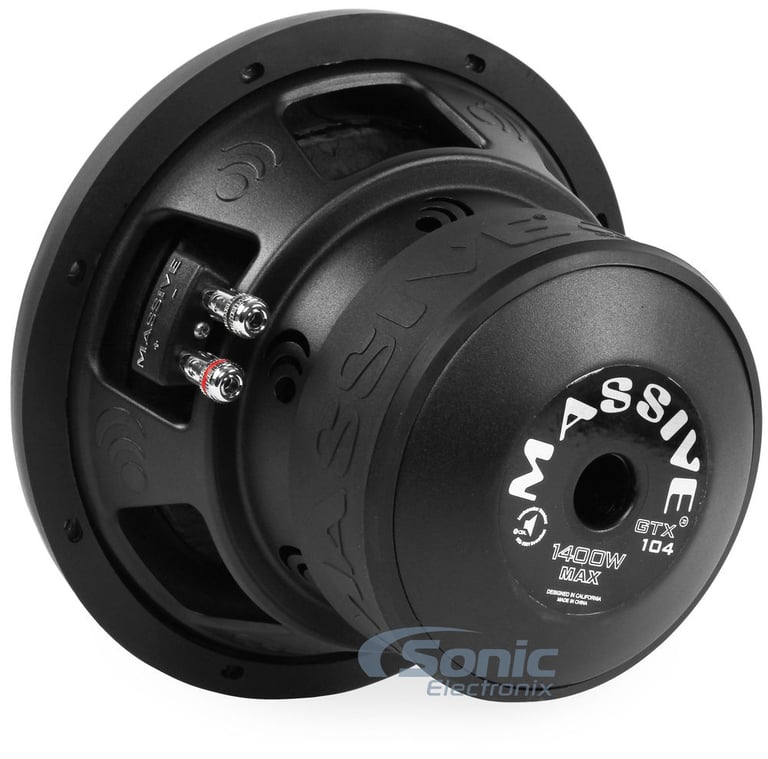

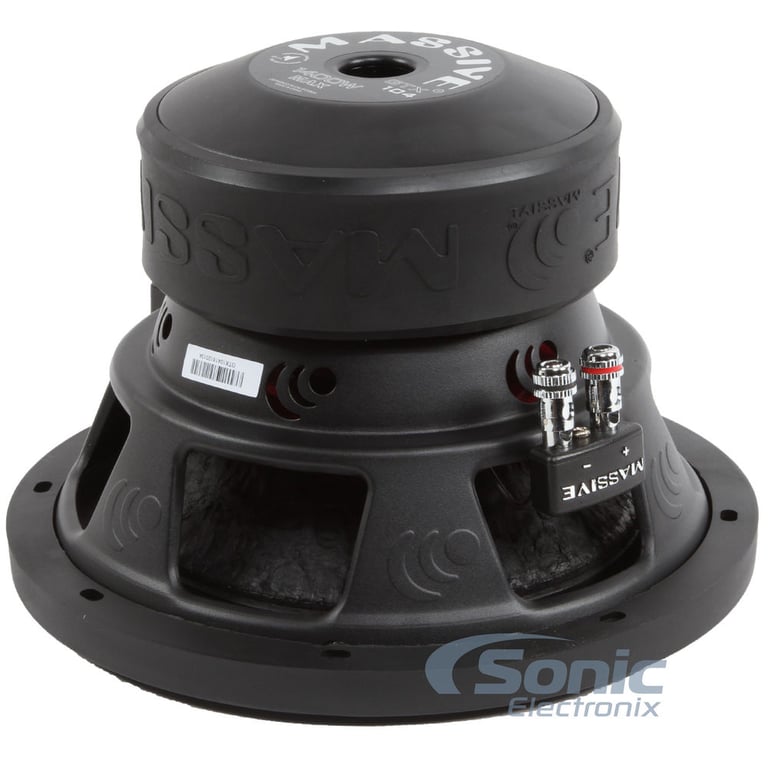

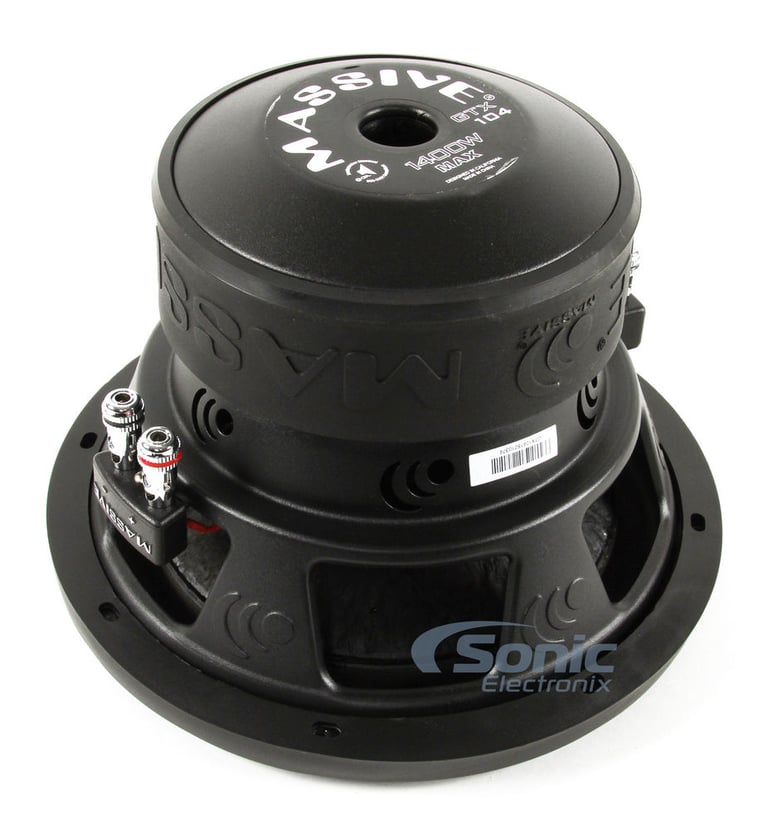

Massive Audio GTX104

1400W Max (700W RMS) 10" GTX Series Dual 4-Ohm Car Subwoofer

Product videos
highlight-star-icon

• 1400 Watts Max
• 700 Watts RMS
• Non Pressed Paper Cone
• High Quality Pressed Foam Surround
• Heavy Gauge Steel Basket
• Customized Rubber Gasket
• Round Shape PP Vacuum Dust Cap

Learn more about the gtx104

We apologize

This item has been discontinued

Product Highlights


• 1400 Watts Max
• 700 Watts RMS
• Non Pressed Paper Cone
• High Quality Pressed Foam Surround
• Heavy Gauge Steel Basket
• Customized Rubber Gasket
• Round Shape PP Vacuum Dust Cap

Description


Massive Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 4 Ohm GTX Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 700 watts
  • Non-Pressed Paper Cone

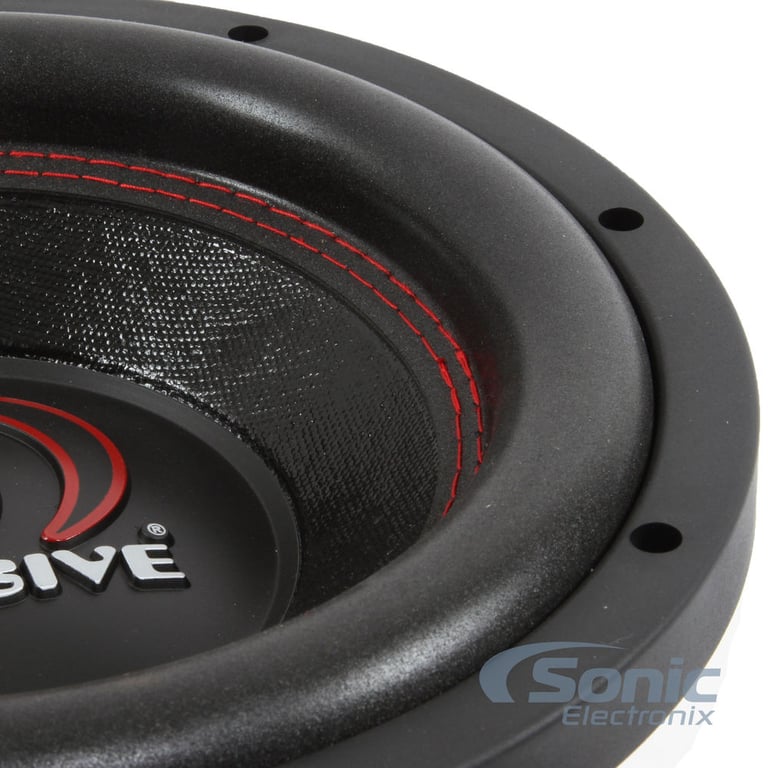

  • High Quality Pressed Foam Surround
  • Poly Cotton Spider featuring Woven Round Tinsel Leads
  • Round Shape PP Vacuum Dust Cap
  • Customized Rubber Gasket Along with a Magnet Boot
  • Heavy Gauge Steel Basket with Industrial Style Painting

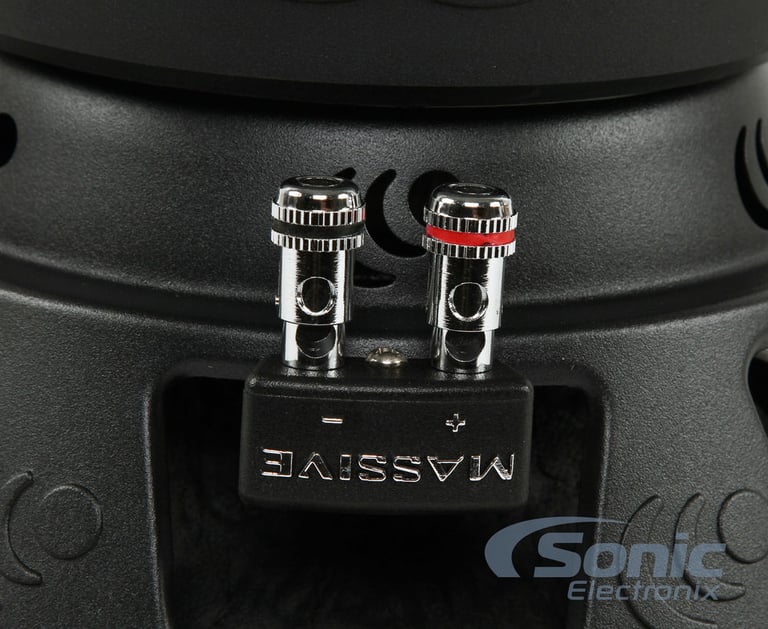

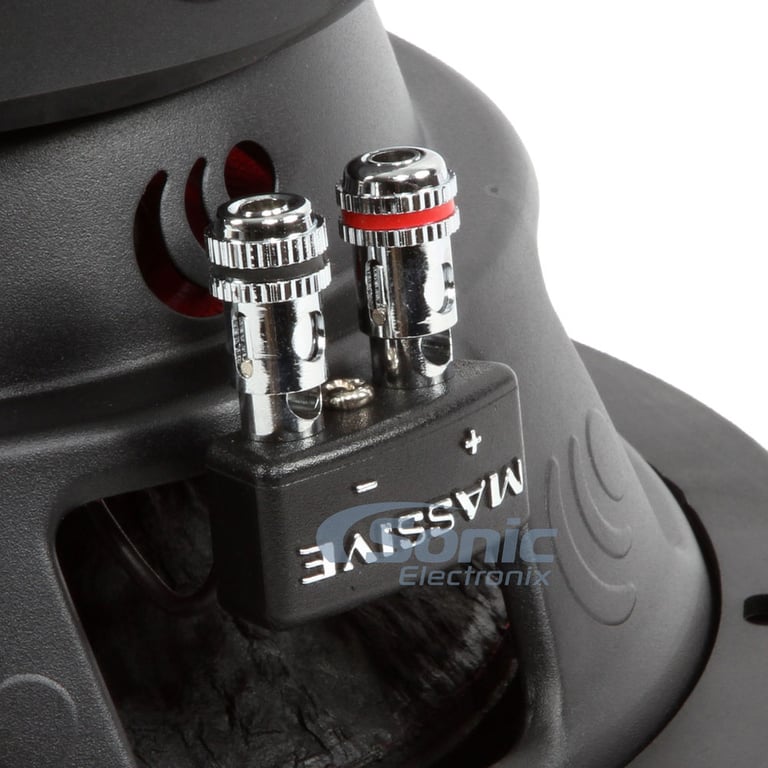

  • 5-Way Binding Push Terminals
  • 2.5" 4 Layer Hi-Temp Voice Coil
  • 120 oz High Flux Strontium Ferrite Magnets
  • Top-mount depth: 6.34"
  • Cutout diameter: 9.05"
  • Sensitivity: 87.5 dB
  • Resonance Frequency: (49.8 fs)
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

    Massive Audio GTX104 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Massive Audio GTX104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Massive Audio GTX104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Massive Audio GTX104 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Massive Audio GTX104 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
GTX Series
Subwoofer Size
10"
Peak Power Handling
1400 watts
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Voice Coil Diameter
2.5"
Sensitivity
87.5 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
EROM Foam
Magnet Structure
Double Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.72 cubic feet
Electromechanical Parameters
Free-Air Resonance (Fs)
49.8 Hz

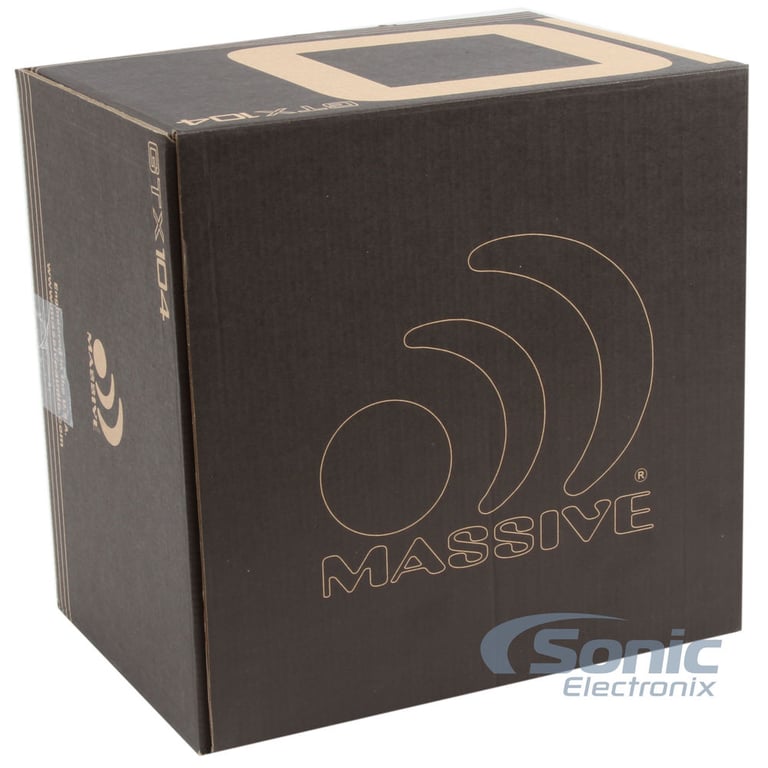

What is in the box?
Paperwork
User manual
Warranty/Registration card
Brand sticker/decal
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GTX104

Weight:

20.00lbs

Internal SKU:

gtx104

Internal Product ID:

95644

Product and How-to Videos


  • Dalek Massive @ Massive Audio Booth | CES 2014
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews



5 star
64%
4 star
9%
3 star
9%
2 star
9%
1 star
9%



Durability
4.7
Value
4.9
Features
4.6
Design
4.8
Usability
4.7

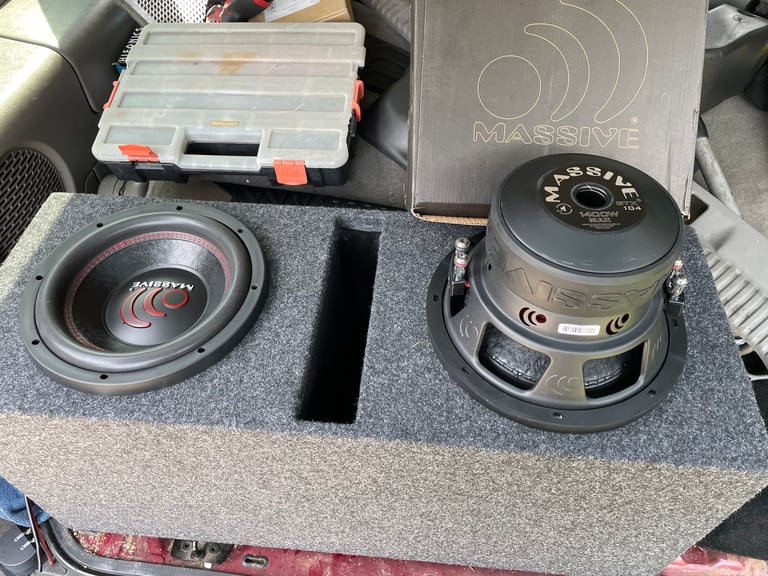

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Best bang for the buck in my opinion

I got a great deal on an already in-expensive sub...it looks well made and has quality parts....it can take a lot of power(at least all the power i have thrown at it anyways)
I did smell a little bit of voice coil heating up the first couple times i turned up the volume but i attribute that to not being broke in all the way yet..cuz i haven't smelled anything since...i've got it at 1 ohm with a cadence mono-block 1200 watt sub amp...i've probably got the gain up about a little more than halfway and it seems to be fine...i don't expect it to blow anytime soon (no obvious signs anyways) but time will tell...
It is replacing a j&l w6 and i think it is actually sounding better than the j&l the longer it plays...i am totally happy with the purchase and if this one goes i will probably buy another...i recommend this sub to anyone who is running the same setup...u will be happy with it i am sure...
Great sounding and can take a pounding!!

By Anonymous on September 3, 2018

24

found this helpful.

The little sub that pounds!!

Ya...this is pretty good speaker...its built like a brick shit-house.its well constructed and looks like it can take some abuse..
.i got it to re place an aging J&L audio w6 10" sub that the foam.surround was separating from cone and cauding a nasty rattle
....it was a tossup between a power acoustic..
A soundstream, and the massive audio i ordered...im glad i got this little thumper cuz the price was rite and it looked a little more like it could handle a beaTing . Its mounted in a cheap little 10 inch ported tube... and it sounded great!! I was surprised at how loud it was...it outpounded the j&l which was probably 500$ : more....i cant wait to put it in a better box and
See what it sounds like then...so far i like it alot and i would recommend to anybody in the market for a inexpensive powerful great sounding sub....and i will buy again if i need another sub anytime soon....

By Anonymous on September 1, 2018 Checkmark Icon Verified purchase

23

found this helpful.

Great but

I recommended this subwoofer to my friends and they are satisfied... the subwoofer hit very hard and I have a 1500 watt ssl on it.... needs more raw power though.... overall good buy..

By Anonymous on August 5, 2018

22

found this helpful.

Great Sub For The Money

You can't go wrong with this sub for the money. This is the second set I've bought. The first set still going strong for over 2 years now powered by Fosgate T1500. Great Speaker.

By Tony on March 25, 2020 Checkmark Icon Verified purchase

21

found this helpful.

Solid bass build rock solid

Got this on a ported 1.3 cubic feet tuned at 37 can’t ask more for single 10 woofers feeding it 600 watts arms.

By JORGE on April 23, 2020 Checkmark Icon Verified purchase

19

found this helpful.

WHERE DA' AT???

I NEVER DID GET ANYTHING AS I WAS EXPECTING EM WITH THE 3 /4 DAY WINDOW,,ONLY TO FIND OUT THAT THEY WERE ON BACK ORDER ,,,NOT LOOL SONIC

By Rick on September 20, 2021 Checkmark Icon Verified purchase

18

found this helpful.

Massive Audio GTX104

Overall product meet what I needed. You will need to make sure you have a large enough box to have this sub running right or it will sound to punchy.

By Anonymous on June 9, 2018

16

found this helpful.

Wow! What a knocker!

I was looking into buying a new JL or Fosgate sub when I got talked into buying a Massive Audio GTX 104. I had never heard of these subs but for the price, I figured I would give it a try. At half the price of a comparable JL or RF, I admit I was skeptical. My GTX 104 is in a T-line box and it sounds great cranking out anything, from the new Megadeth to Zack Brown band. Then my nephew that competes in bass competitions, asked me how it sounded with some Skrillex or Bass Mekanik. I had never played that kind of music through it so I had no idea. Well, my nephew competes with 2 12" Digital Design subs and several thousands watts, yet, he was very impressed. Now, I'm not here to tell you my single 10 GTX 104, powered by a 600watt rms Pioneer amp even comes close to his competition system. But, I have since then, sat several people in my pass seat and its fun to see they're jaw drop when I show them a single 10" sub beatin' that hard and droppin' so low. Yep, I'm sure glad I decided to go with the GTX 104, instead of the over priced, over rated brands.

By Robb on June 6, 2016

16

found this helpful.

Massive Audio GTX104

Sounded real good behind a thousand watt monoblock amp but didn't last very long 4 days then one voice coil quit working

By Anonymous on August 13, 2018

16

found this helpful.

This thing is a best

10 “ Rock harder the 2 12 I am in sock with this brand definitely recommend people to try this brand out.

By Eric on April 24, 2023 Checkmark Icon Verified purchase

14
