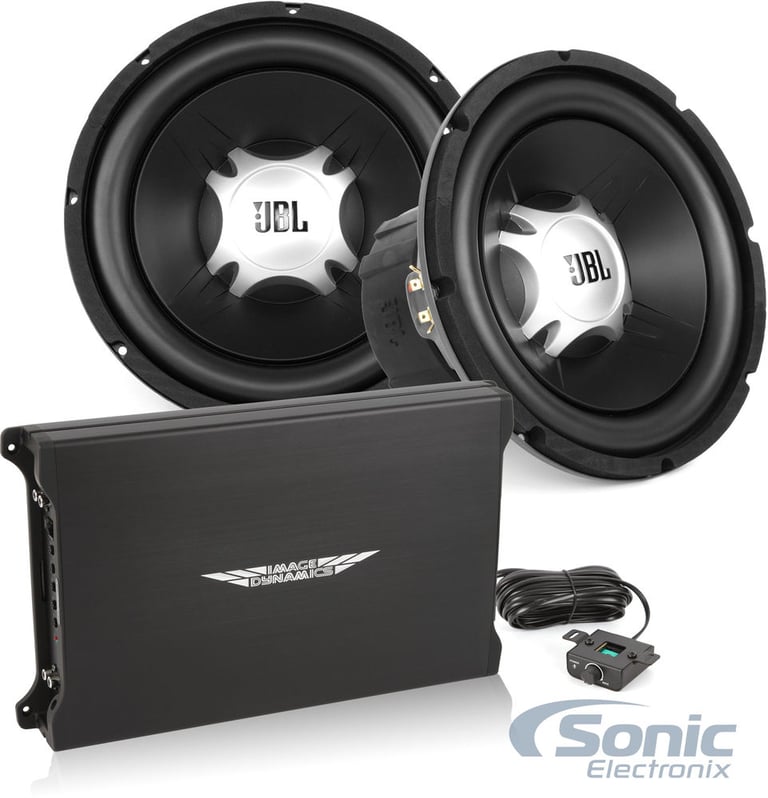

Image Dynamics + JBL 600W Sound Quality Package

Image Dynamics Q600.1 Premium Hi-Fidelity Amplifier & Two (2) JBL GT5-10D Subwoofers

highlight-star-icon

•Q Series Monoblock Class A/B Car Amplifier
• 600W Total Power Amplifier
• Optically isolated MOSFET power supply
• Fully vented motor structure for smoother response from driver
• Double stacked magnets covered in a classic black rubber ring

Learn more about the q6001_2-gt510d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
82-7500 main

Metra 82-7500

5-1/4" - 6-1/2" Universal Speaker Adapter Brackets for select 1990-2013 vehicles from Honda, Acura, Mazda

9
-10.53%

$16.99

List price $18.99

95-7863 main

Metra 95-7863 Dash Kit

Install a new Double-DIN car stereo in select 2003-2011 Element

4
-41.68%

$13.99

List price $23.99

99-7863 main

Metra 99-7863 Dash Kit

Install a new Single-DIN car stereo in select 2003-2011 Element

2
-43.76%

$17.99

List price $31.99

HA08BCB main

Scosche HA08BCB Wiring Harness

Install a new car stereo in select 1998-2019 vehicles from Honda, Acura

4
-16.74%

$9.95

List price $11.95

70-7863 main

Metra 70-7863 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2003-2011 Element

9
-10.45%

$59.99

List price $66.99

HonK834 main

American International HONK834

Double DIN Stereo Dash Kit for select 2003-2011 Element

2
-55.91%

$14.99

List price $34.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Description


Image Dynamics brand icon

Authorized dealer

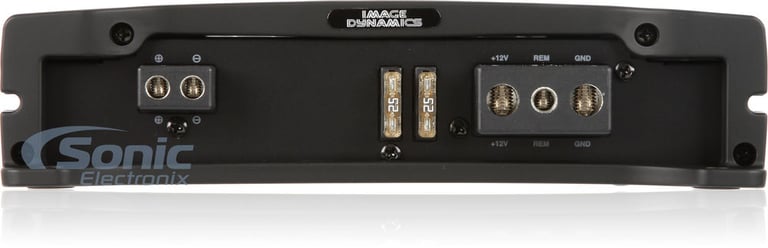

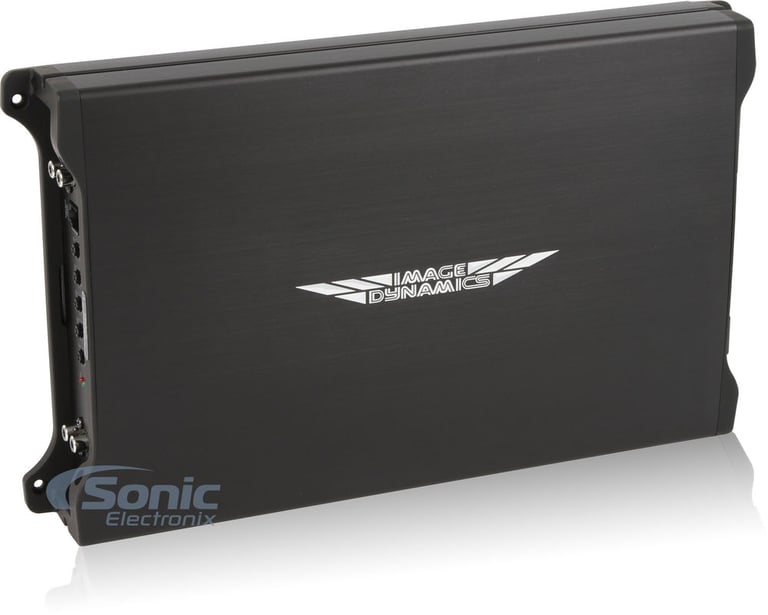

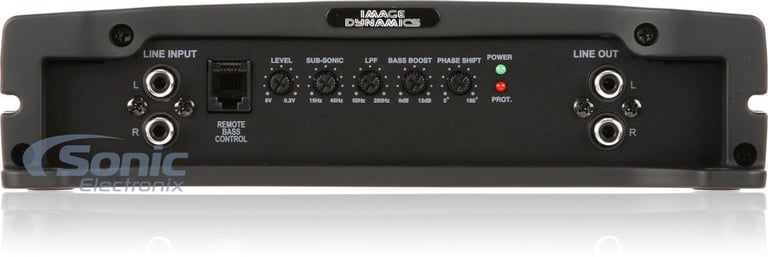

Image Dynamics Q600.1

600 RMS Monoblock Class A/B High Fidelity Q Series Car Amplifier
Quantity: 1

  • Q Series Monoblock Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
    • 1 ohm: 600 watts x 1 chan.
  • Optically isolated MOSFET power supply
  • LED power indicator
  • Variable bass boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation

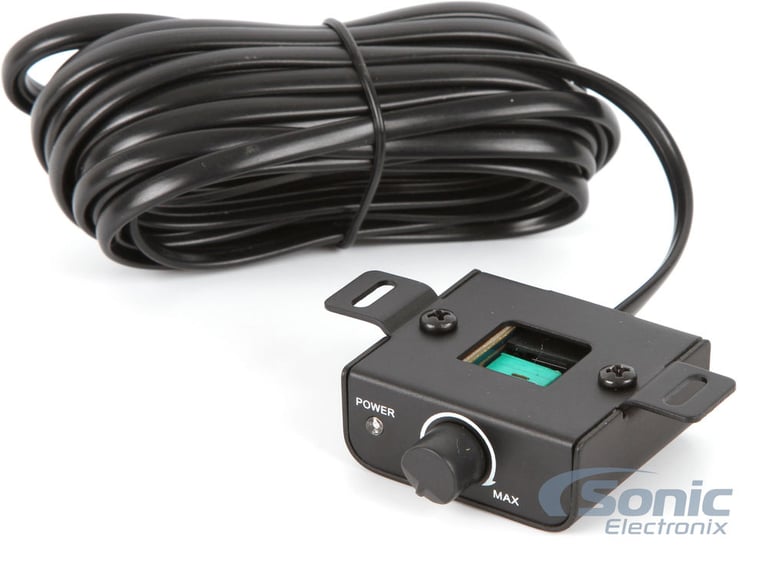

  • Remote bass level included
  • Bridgeable Capability
  • Bi-Polar High-current output devices
  • Auxiliary full range output
  • Two-layer PC Board with heavy 2 oz copper
  • Massive ground planes and precision caps
  • 5-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Variable subsonic filter (15-45 Hz, 12 dB/octave)
  • Frequency response: 10-20,000 Hz
  • Signal-to-Noise ratio: 98dB
  • Dimensions: 17-3/4"L x 8-1/2"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

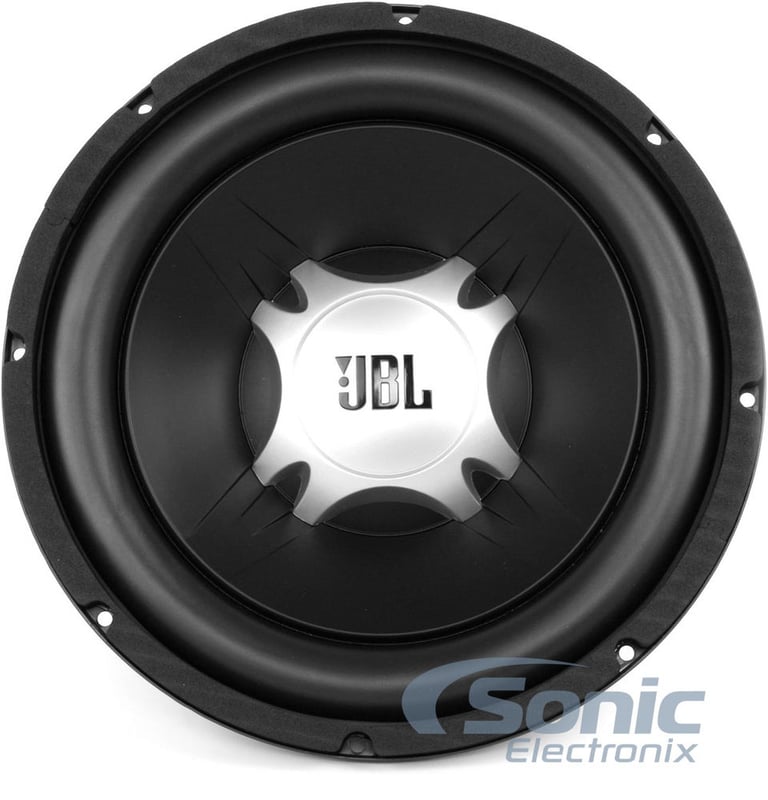

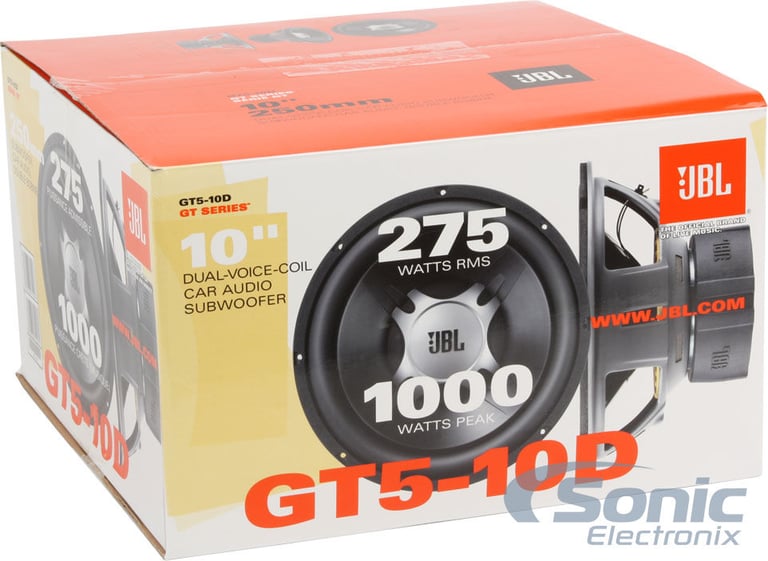

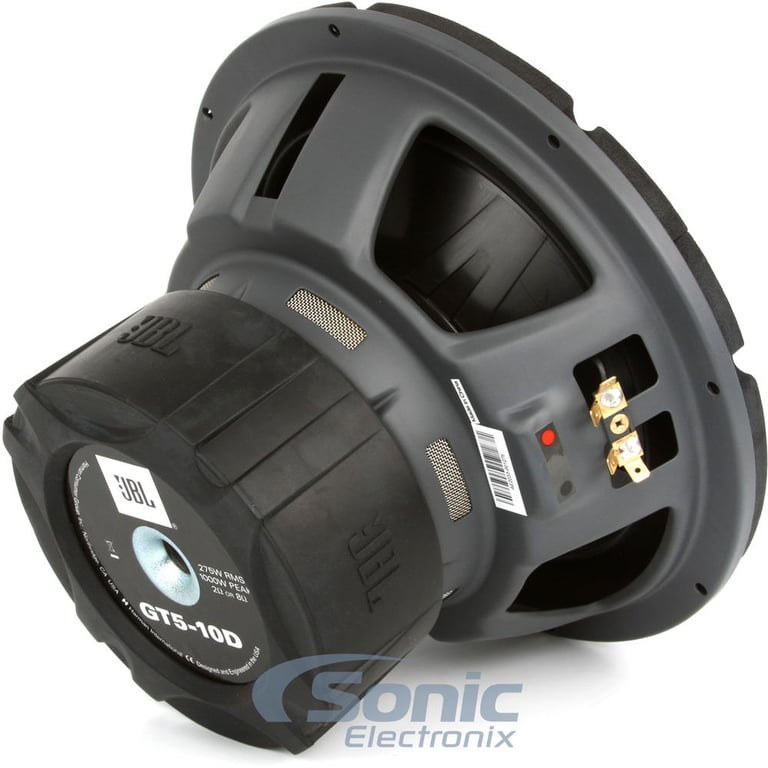

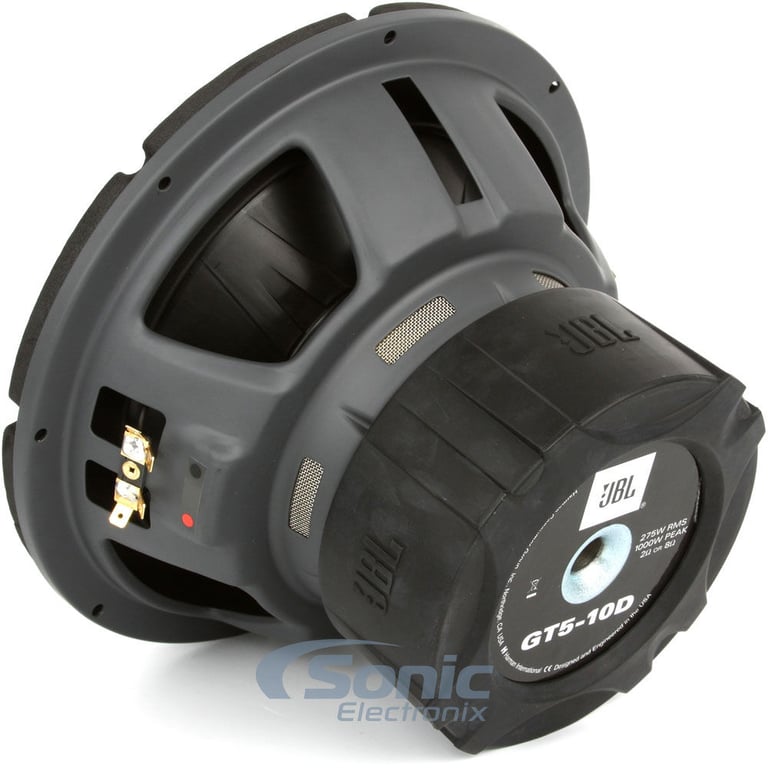

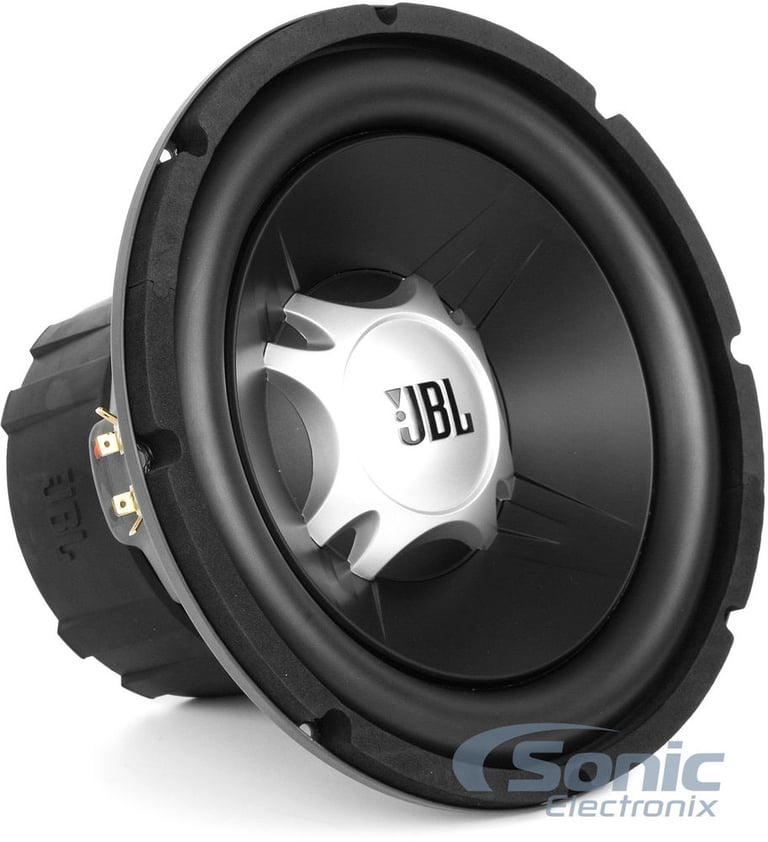

JBL GT5-10D

275W 10" GT Series Dual 4 ohm Subwoofer
Quantity: 2

General Features:

  • Two (2) 10" Dual 4 Ohm GT5 Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts each / 2000 watts total
    • RMS: 275 watts each / 550 watts total
  • Impedance: 4 Ohm / 1ohm Final Load (Parallel)
  • Polypropylene woofer cone material
  • Hi-roll rubber surround
  • Progressive spider
  • Fully vented motor structure for smoother response
  • Rubber-coated tinsel leads help to protect the leads against wear and harsh use
  • Double stacked magnets covered in a classic black rubber ring
  • Frequency response: 30-500 Hz
  • Sensitivity: 91 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

P300-10 small

Rockford Fosgate Punch P3 P300-10

• 10" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(58)

$339.99

List price $339.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 45 Hz
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Series
GT5 Series
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
275 watts
Peak Power Handling
1000 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
.75 cubic feet
Maximum Sealed Box Volume
.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Sensitivity
91 dB
Frequency Response
30 - 500 Hz
Xmax (millimeters)
14.2 mm
Top-Mount Depth (Mounting Depth)
5-15/16"
Cutout Diameter
9-3/16"
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q600.1_2-GT5-10D

Weight:

35.50lbs

Internal SKU:

q6001_2-gt510d

Internal Product ID:

96332

Customer Ratings & Reviews


Image Dynamics + JBL 600W Sound Quality Package thumbnail image

5 star
70%
4 star
20%
3 star
10%
2 star
0%
1 star
0%



Durability
4.6
Value
4.7
Features
4.5
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great SQ Amp

The following review is for Q600.1, which is a part of the bundle you are viewing.

Just got this amp installed. performs great Paired with My IDMAX 12" D2 @ 1 OHM. I usually have Two Subs In the Trunk but decided to run just one with a sealed box. Without a doubt this set up is more powerful than my last. This amp gets really hot because it has only two heat fins. Can not run this amp with my seats up. the wiring is 100% NVX OFC 4G wire with tight connections and a 1F Capacitor. Durability rated at 3 stars due to this overheating issue maybe would be two stars if this amp fails on me soon. I love the Power and Grace idea that Image dynamics stands by but the thermal design is killing this amp. I don't know if I would buy this amp again. I'll try setting up a forced cooling solution for the time being.

By SQ Lover on July 18, 2013

47 found this helpful


Excellent amp

The following review is for Q600.1, which is a part of the bundle you are viewing.

This amp rocks paired with the IDQ12 it is driving. This amp has some power and I only have it turned up only halfway. Once I get around to fully tuning the system and crank it, my neighbors will probably hate me. I'm very satisfied with the quality and performance of this, now just need to add more matting to my car to kill some resonance.

By Jonathan on November 11, 2012

41 found this helpful


Serious contender

The following review is for GT5-10D, which is a part of the bundle you are viewing.

This sub is the ultimate in performance. It gives you fat bass and serious lows down to it's Fs of 31 Hz. High quality sub, good surround, large magnet, and nicely built for producing bass notes. does not require much of a big box but you'll be surprised with the output that you get from this sub.

By Mike on August 11, 2010

28 found this helpful


Randy Ford

The following review is for GT5-10D, which is a part of the bundle you are viewing.

Wow is this a ten, dam i have had some sub's in the pass but this little guy isn't so little in sound. My friend thought i had 2 12s and i said nope your wrong. Just remember the right tuning, a good clean amp, with low THD makes a world of a difference.

By Randy Ford on December 19, 2012

27 found this helpful


Killer Subs!

The following review is for GT5-10D, which is a part of the bundle you are viewing.

These are fantastic subs. I have two in separate boxes hooked to a Polk 5 channel amp with 500 watts going to them at 2 ohms. They are tight and clean. I highly recommend them to anyone buying a sub.

By REX on October 31, 2011

25 found this helpful


SICK A** SUBS!!!

The following review is for GT5-10D, which is a part of the bundle you are viewing.

I replaced my two rockford fosgate 12" p1 subs with these and these out bumped them by allot!!! clean hard hitting bass!! have them running on a jensen 900 watt mono amp and these subs hit hard!!!! GREAT BUY!!!

By jose on December 26, 2009

23 found this helpful


Thunder

The following review is for GT5-10D, which is a part of the bundle you are viewing.

The JBL 10 inch woofers hit like thunder. It would be difficult to find a speaker with the power handling and SPL at this price. Highly recommended!

By Keith on July 12, 2015

17 found this helpful


ID Q600.1

The following review is for Q600.1, which is a part of the bundle you are viewing.

Paid 150 for this bad boy. Had for 4 months strong before I decided to send a 5 hz sine wave throw it and blew it. None of the fuses even went. Worked well with the sundown E12. It wasn't very punchy though... I don't have good electrical and I'm not exactly sure if that was the problem but it seemed to excel in constant notes. It would get very hot as well, which may be the dirty power's fault. Definitely did rated though. Being class AB it was very inefficient. I keep voltage just as well with my current MB Quart onx1600.1D at near full power. Honestly, I wouldn't recommend it unless you're going for a system with good brand names. Can do much better at the same price and opposed to popular consensus I think my class d sounds better, but it has a lot more leeway too. It looks very classy and high quality though. Indifferent

By Sage on March 18, 2016

12 found this helpful


Wide range of notes

The following review is for GT5-10D, which is a part of the bundle you are viewing.

Biggest plus is how wide and the range all jbl subs hit. Also jbl in my opinion get very loud. Not the best sub ever heard but for a budget it's not bad so this is for the everyday listener who's more on the musical side that listens to a lot of music genres

By Melissa on August 10, 2015

11 found this helpful


Deepnotez

The following review is for GT5-10D, which is a part of the bundle you are viewing.

I used 8/10 isobaric all JBL gt5 in the back of a Monte Carlo. I did a 148 with new subs

By Deepnotez on December 11, 2015

8 found this helpful




AXLOC-HN3 small

Axxess AXLOC-HN3

2-Channel 110W Line Output Converter with Gain Controller for select 2016-2025 vehicles from Honda with Non-Amplified Systems

(2)

$93.99

List price $104.99

HE-B3150 small

Heise HE-B3150

165W Universal 31.5” Blackout Series Single Row 33 LED Light Bar

$492.99

List price $547.99

KAPPA603CF_2 small

Infinity Kappa 603CF (2-Pairs, 4-Total)

1320W Peak (440W EMS) 6.5" Kappa Series 2-way Component Speaker System (2-Pairs)

(6)

$719.90

List price $999.90

PRO-X5.4M small

DS18 PRO-X5.4M (Sold Individually)

300W Peak (150W RMS) 5.25” PRO-X Series 4-ohm Midrange Loudspeaker

(1)

$44.95

List price $44.95

72630 small

General Electric 72630

Rca Extension Adapter, Rca Jack To Rca Jack, 2 Pk

$3.00

List price $3.99

VIMGM-94 small

Crux VIMGM-94

Video In-Motion Activation for select 2006-2017 vehicles from GMC, Chevrolet, Cadillac

(1)

$213.30

List price $331.80

PR603CF_2 small

Infinity Primus 603CF (PR603CF) (2-Pairs, 4-Total)

720W Peak (240W RMS) 6.5" Primus Series 2-Way Component Speakers (2-Pairs)

(1)

$259.90

List price $319.90

No picture

Sonic Sub Box: 2SBV10 (Black)

Dual 10" Bottom Vented MDF Enclosure

$69.99

List price $159.99

SK6641 small

Stinger SK6641

4 Gauge 6000 Series Complete Amplifier Installation Kit

(40)

$130.99

List price $279.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Honda Element

2015 Ram 2500

2012 Mitsubishi Eclipse

2007 Mazda B3000

2003 Chevrolet Blazer

1985 Isuzu Impulse

1992 Geo Tracker

1975 Volkswagen Dasher

1969 Cadillac DeVille

2000 Subaru Outback

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
