Name: Kenwood KACM3004 OPEN BOX COMPLETE
Brand: Kenwood
SKU: LS-kacm3004-OBCra228126
Price: 119.99 USD
Availability: Discontinued

by Kenwood

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

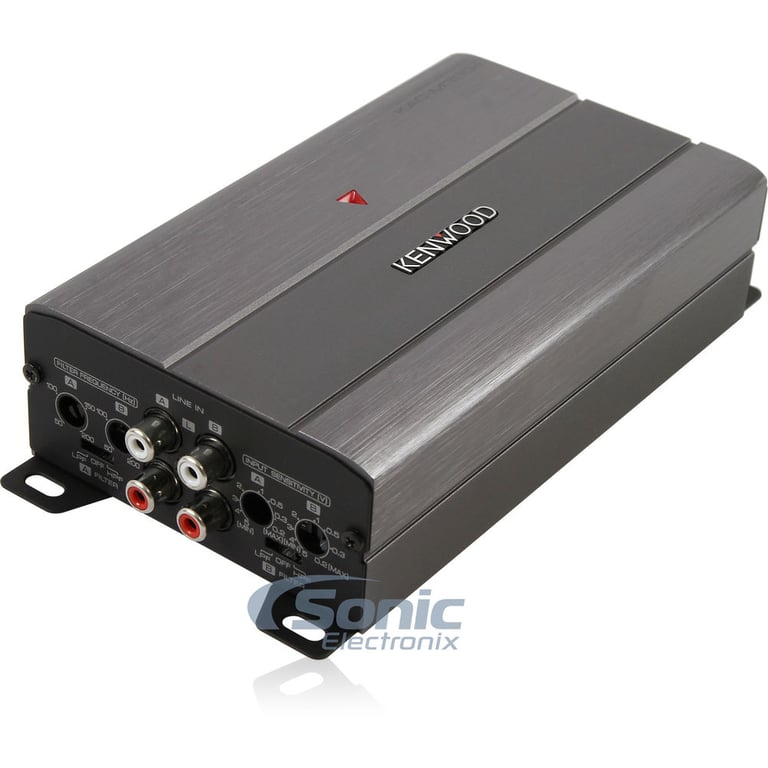

Kenwood KACM3004 OPEN BOX COMPLETE Image 1 — Kenwood KACM3004 OPEN BOX COMPLETE

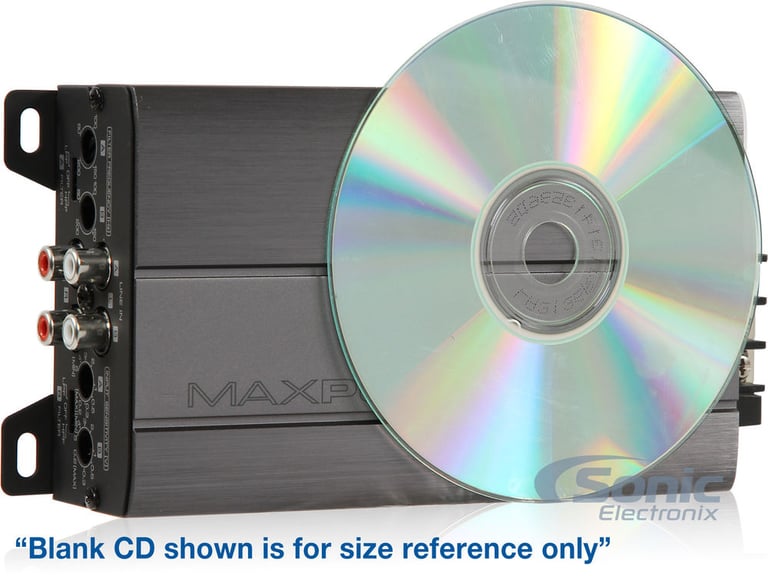

Kenwood KACM3004 OPEN BOX COMPLETE Image 2 — Kenwood KACM3004 OPEN BOX COMPLETE

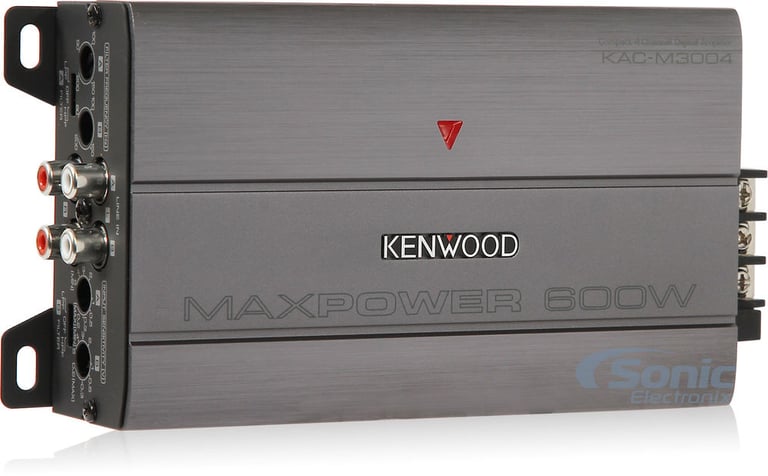

Kenwood KACM3004 OPEN BOX COMPLETE Image 3 — Kenwood KACM3004 OPEN BOX COMPLETE

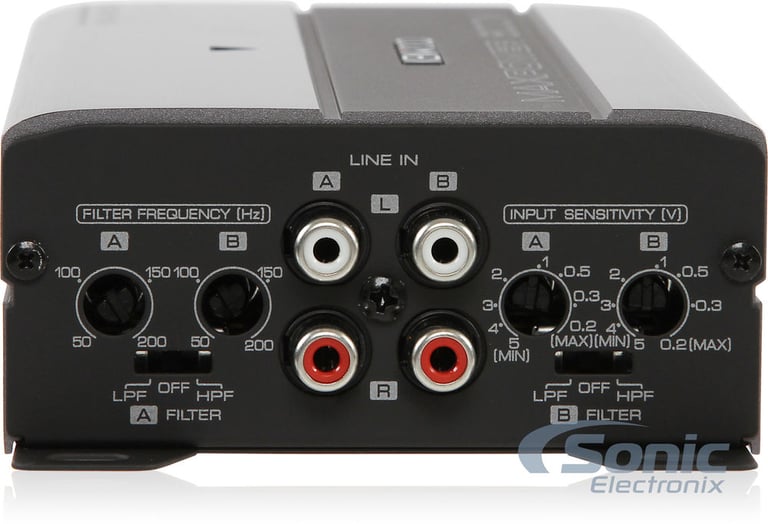

Kenwood KACM3004 OPEN BOX COMPLETE Image 4 — Kenwood KACM3004 OPEN BOX COMPLETE

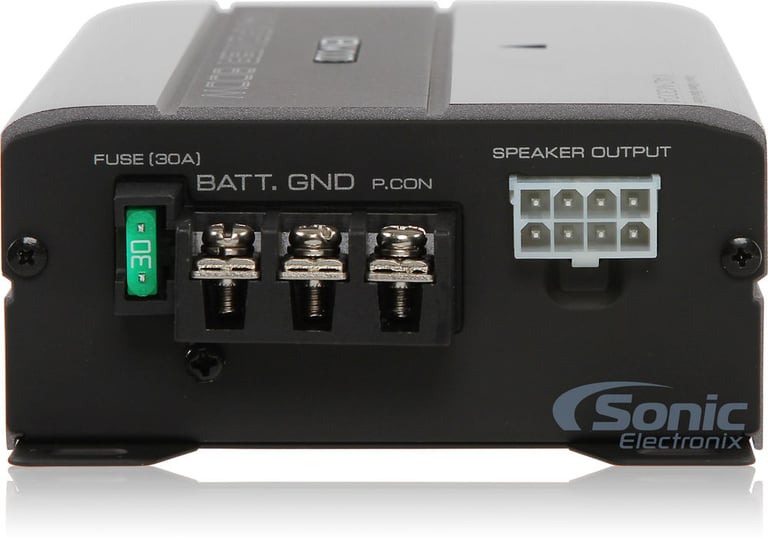

Kenwood KACM3004 OPEN BOX COMPLETE Image 5 — Kenwood KACM3004 OPEN BOX COMPLETE

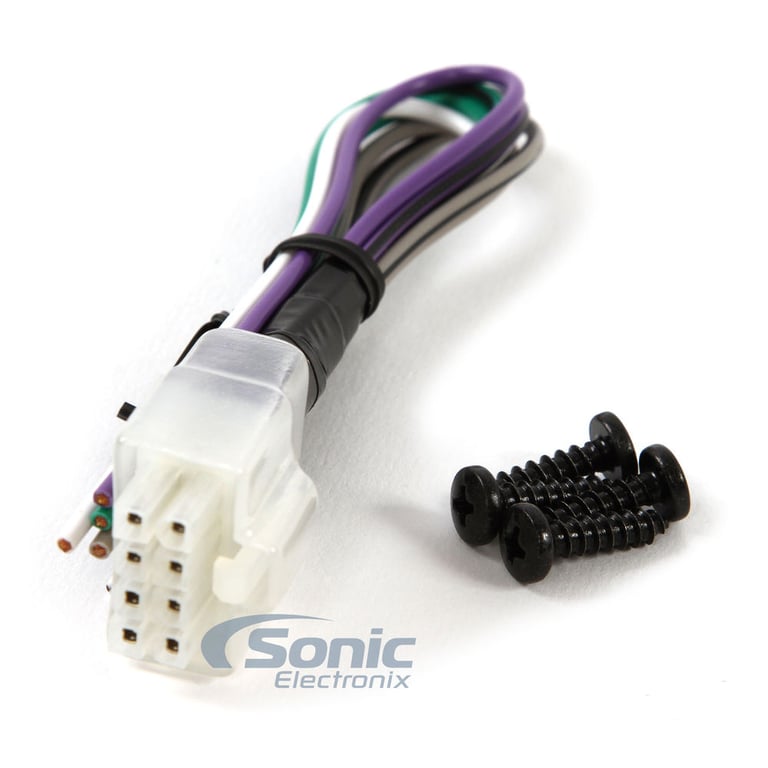

Kenwood KACM3004 OPEN BOX COMPLETE Image 6 — Kenwood KACM3004 OPEN BOX COMPLETE

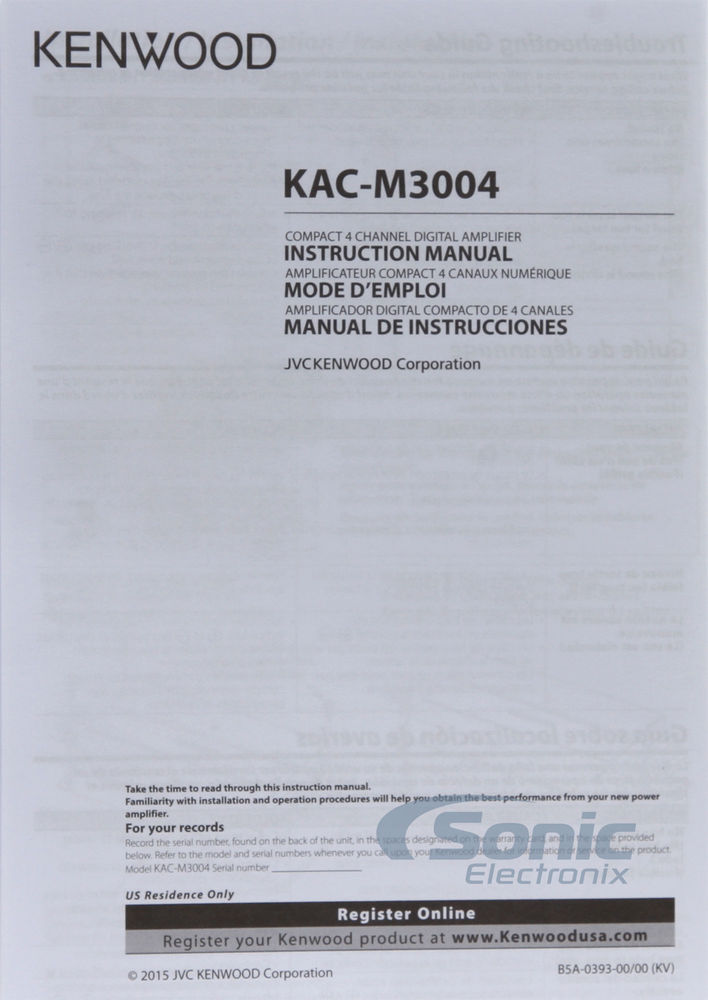

Kenwood KACM3004 OPEN BOX COMPLETE Image 7 — Kenwood KACM3004 OPEN BOX COMPLETE

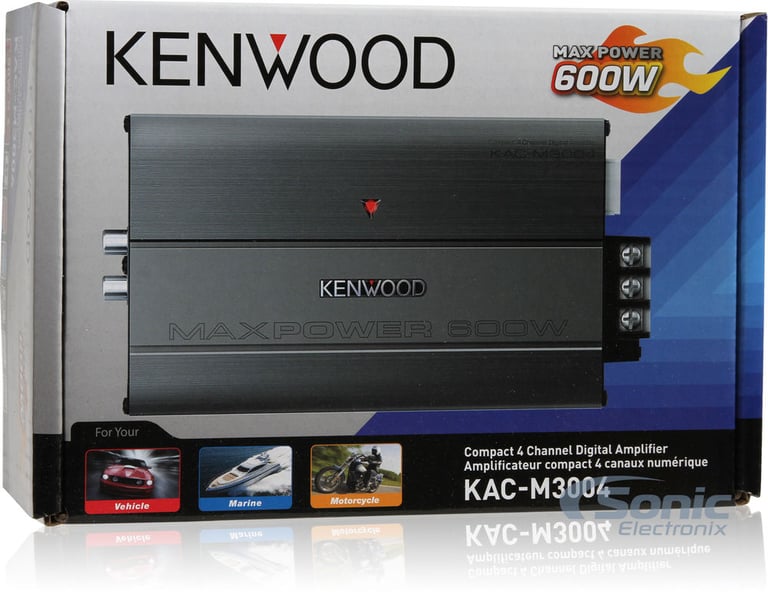

Kenwood KACM3004 OPEN BOX COMPLETE Image 8 — Kenwood KACM3004 OPEN BOX COMPLETE

Kenwood KACM3004 OPEN BOX COMPLETE-video

Product videos

Product highlights

Item has been previously installed and wires cut
• RMS: 50W x 4 @ 4 ohm, 75W x 4 @ 2 ohm &bull, 150W x 2 Bridged @ 4 Ohm ; Total Peak Power: 600W
• CEA-2006 Compliant/Preamp Outputs/LPF
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Lo-Level (RCA) and Speaker-level (high-level) inputs
• Dimensions: 6-1/2"W x 4"D x 1-13/16"H

Learn more about the LS-kacm3004-OBCra228126

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Small, Powerful and Versatile

Many of today’s powersports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. Kenwood’s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.

Item Condition: Open Box Complete

Item has been previously installed and wires cut

General Features:

Compact Series 4-Channel Class D Car / Marine Amplifier
RMS Power Rating:

4 ohm: 50 watts x 4 chan.
2 ohm: 75 watts x 4 chan.
Bridged, 4 ohm: 150 watts x 2 chan.

Max power output: 600 watts x 1 chan.
Conformal-coated circuit board — suitable for power sports and marine applications
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
4 or 2-channel operation
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Input sensitivity:

Low level: 0.2V-5V
High level: 4V-12V

Frequency Response: 20 - 20,000 Hz
Signal to Noise Ration: 89 dB
Variable low-pass filter: 20 - 200 Hz, 24 dB/octave
Variable High-pass filter: 20 - 200 Hz, 24 dB/octave
Fuse Rating: 30A x 1
CEA-2006 compliant amplifier
10 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 6-1/2"W x 4"D x 1-13/16"H
Authorized Internet Dealer
1-year Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

600 watts

Total RMS Power Output

150 watts

Maximum Input Gauge Size

10 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 200 Hz

Low-Pass Crossover Frequency

50 - 200 Hz

Signal-to-Noise Ratio

89 dB

Remote bass/level controller

Fuse Rating

30A x 1

Strappable

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
