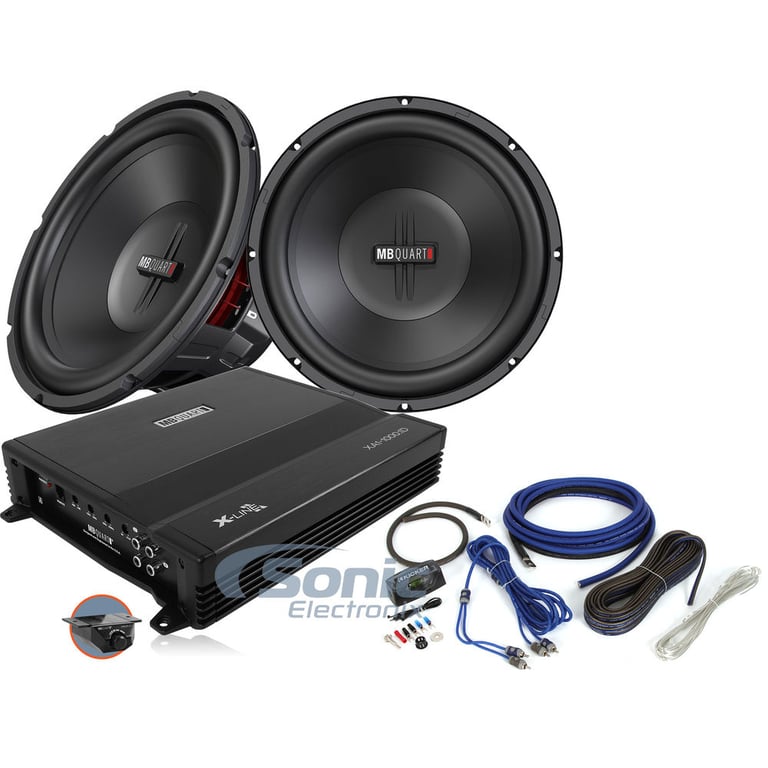

MB Quart X-Line Amplifier & Subwoofers Package with Premium Amp Wiring Kit

XA1-1000.1D 1000W X-Line Series Class D Amplifier + (2) DW1-304 12" Dual 4-Ohm Discus Series Subwoofer + Kicker 100% OFC Amp Kit

MB Quart
Shop all MB Quart
EXCLUSIVE
highlight-star-icon

• X-Line Series Monoblock Class D Amplifier
• Frequency Response: 10 - 300 Hz
• 12" Dual 4-Ohm Discus Series Subwoofers
• Thermal formed Polypropylene cone and dust cap
• Complete 4 Gauge OFC CK-Series 2-Channel Amplifier Installation Kit

Learn more about the xa110001d_dw1304

We apologize

This item has been discontinued


Loading...
SB-GM-4GSUVCNSL/10TW1 main

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

Custom fit subwoofer enclosure for select 2015-2021 vehicles from Chevrolet, Cadillac, GMC with Front Bucket Seats and Factory Console

2

$1,249.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Description


MB Quart brand icon

Authorized dealer

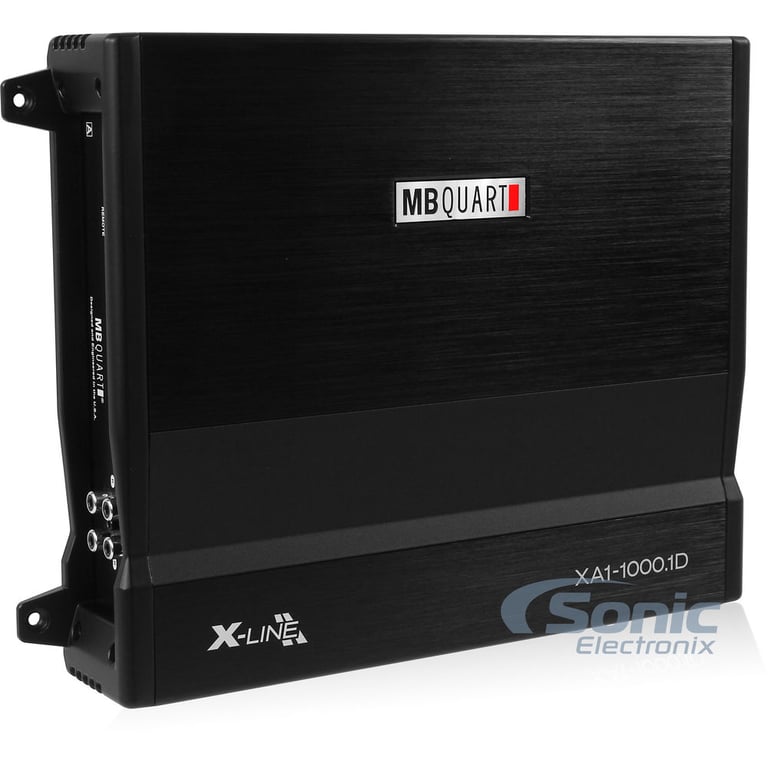

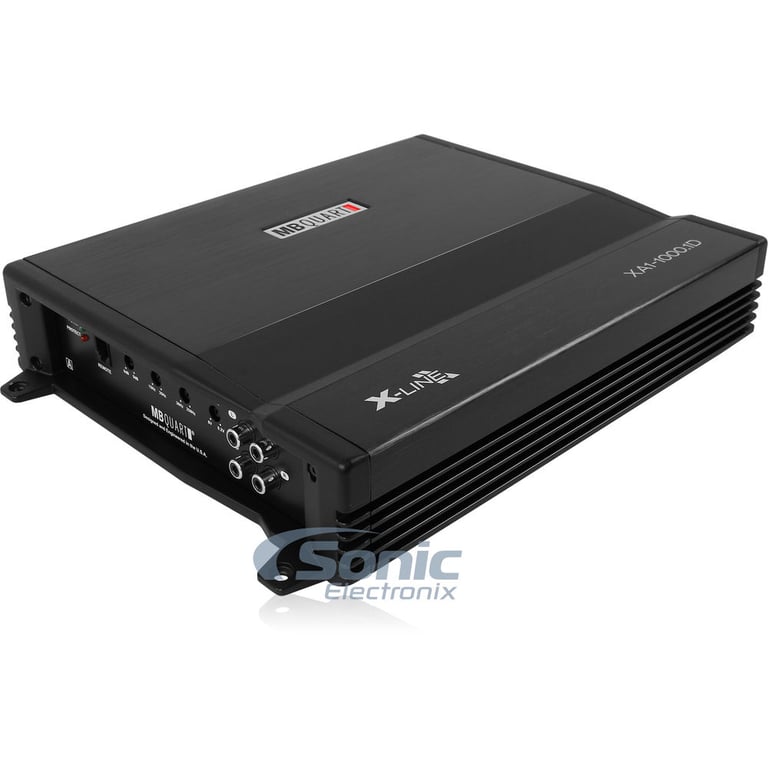

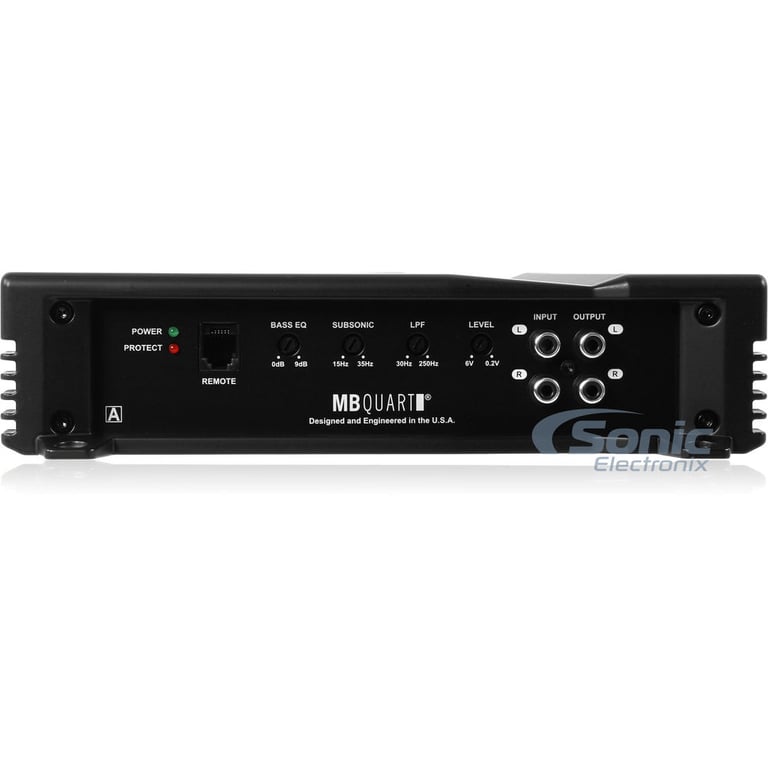

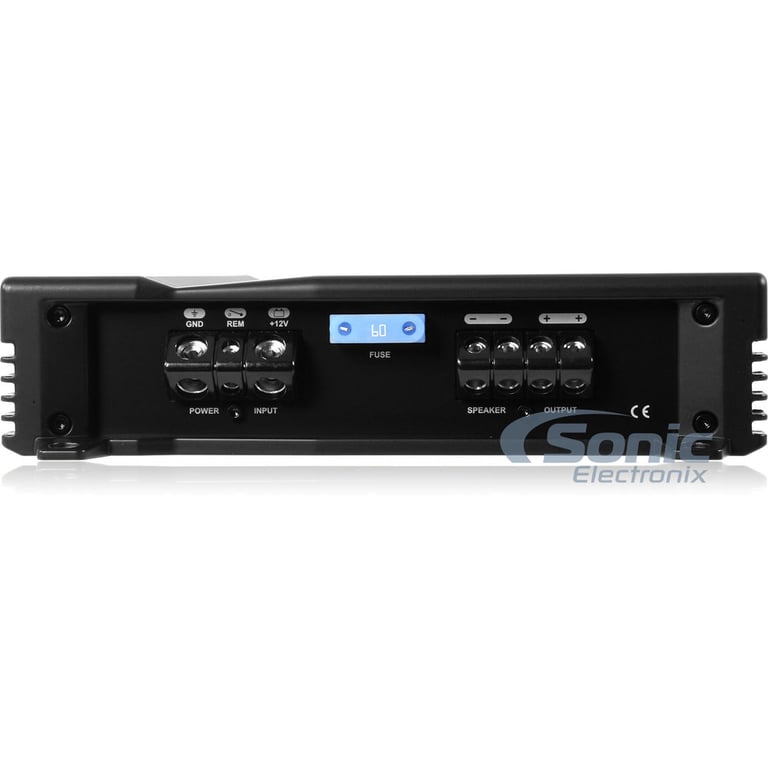

MB Quart XA1-1000.1D

1000W Monoblock X-Line Series Class D Amplifier
Quantity: 1

General Features:

  • X-Line Series Monoblock Class D Amplifier
  • Peak Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Fluid-FETS hand selected insulated MOSFETS
  • Focused mass heat sink designs
  • Q-Stasis preamp stage with wide input range
  • Elaborate preamplifier with extended control
  • Easy access mounting tabs for a secure install
  • LED power (green) and protect (red) indicators
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 10 - 300 Hz
  • Signal to Noise Ratio: >90 dB
  • Total Harmonic Distortion (THD): <0.5%
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Variable low-pass filter: 40 - 300 Hz
  • Subsonic filter: 10 - 40 Hz
  • Fuse Rating: 60A x 1
  • CEA-2006 compliant amplifier
  • 4 gauge power and ground wiring is recommended for installation.
  • Dimensions: 9.20"W x 12.50"L x 2.20"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

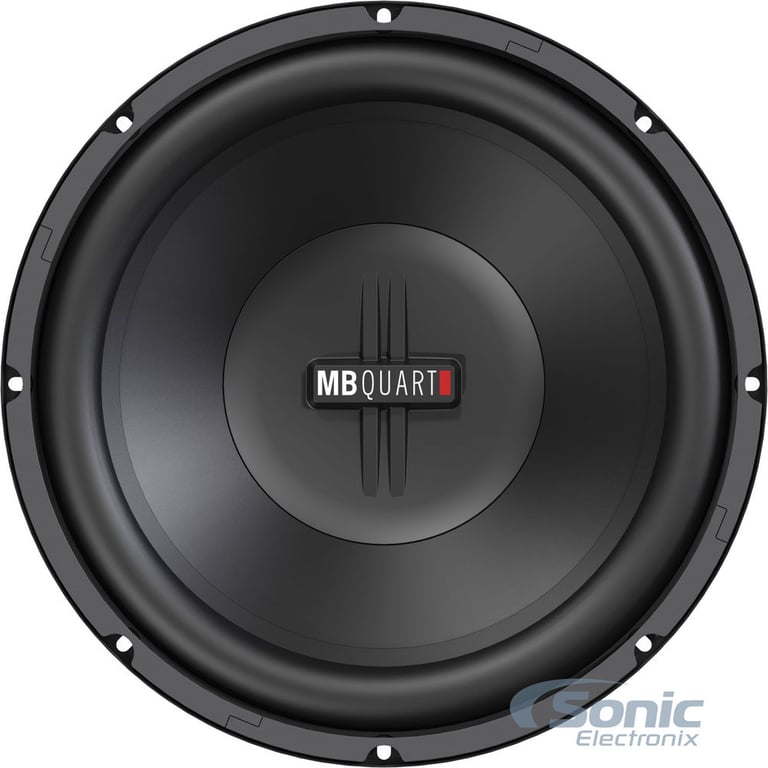

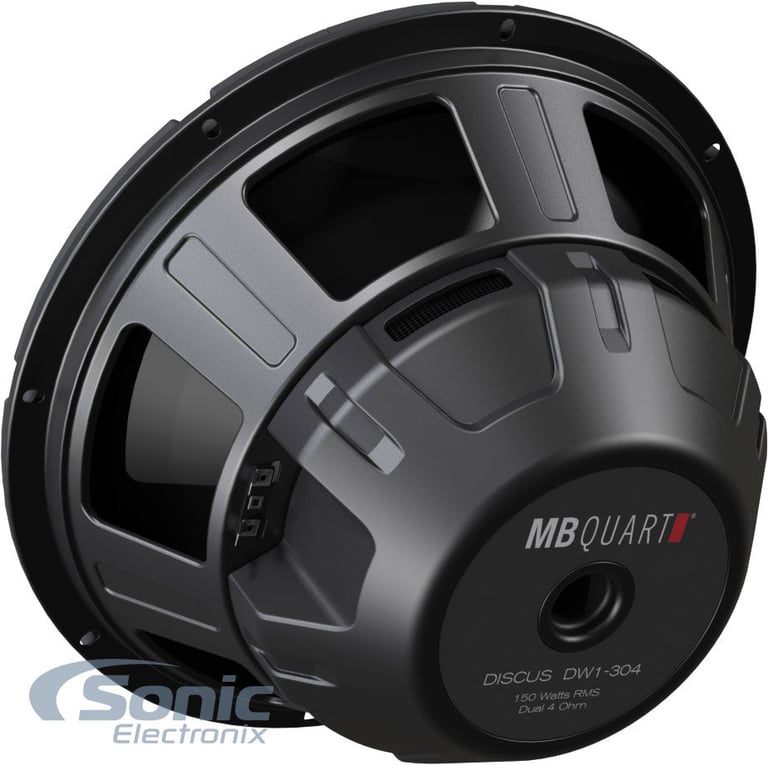

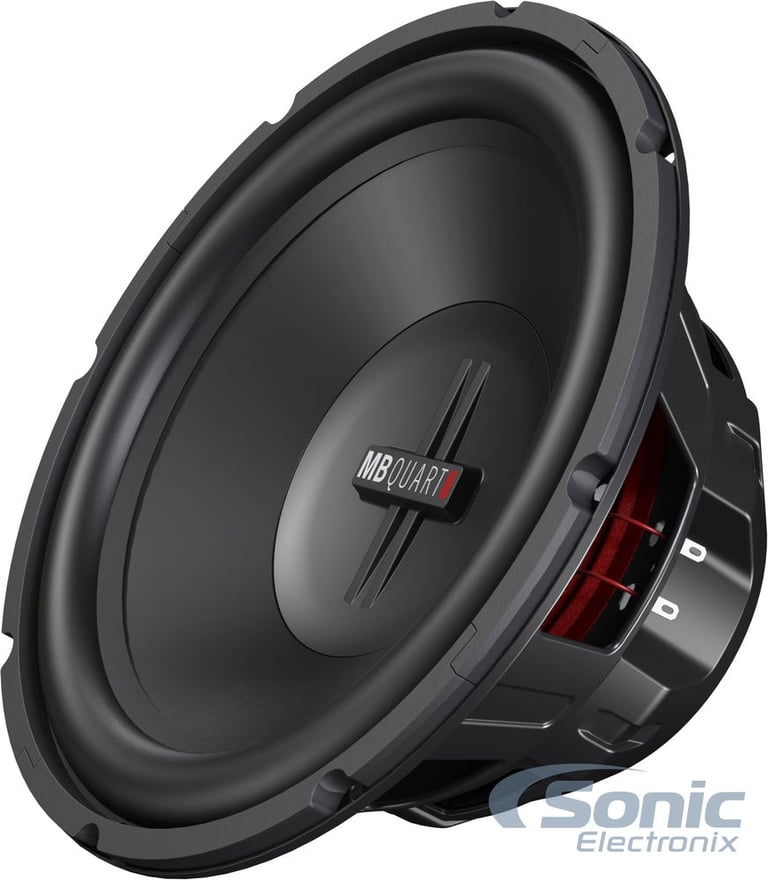

MB Quart DW1-304

400W 12" Dual 4-Ohm Discus Series Car Subwoofer
Quantity: 2

General Features:

  • 12" Dual 4-Ohm Discus Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Thermal formed Polypropylene cone and dust cap
  • UV rubber surround
  • Stamped deep-drawn steel basket
  • Dual 4-Ohm 2" voice coils
  • Top-mount depth: 5-1/2"
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

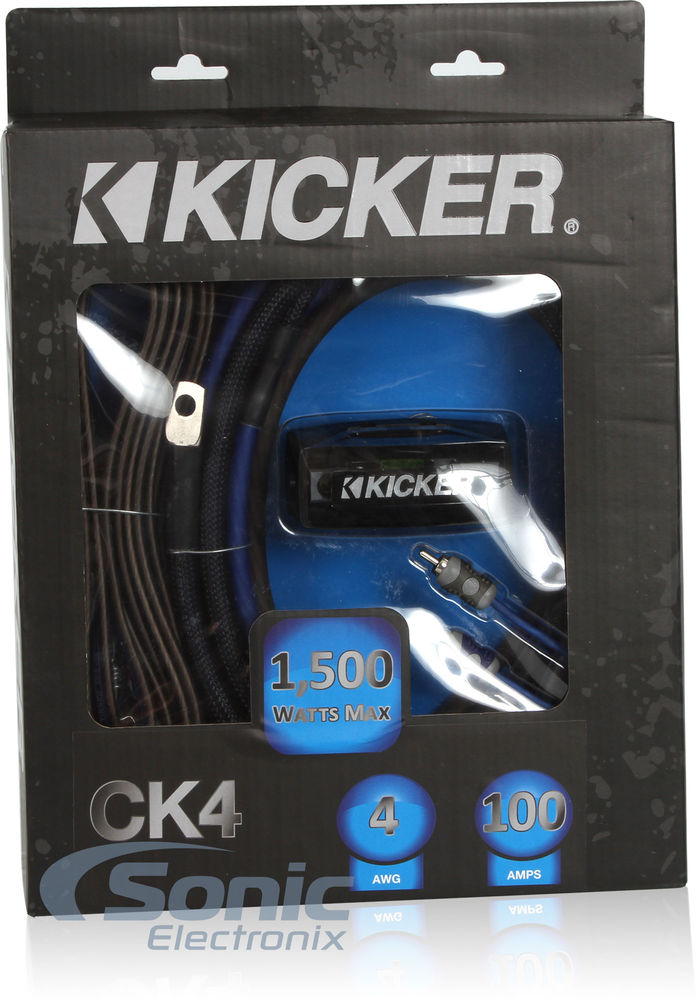

Kicker CK4

Complete 4 Gauge OFC CK-Series 2-Channel Amplifier Installation Kit
Quantity: 1

Product Features:

  • Complete 4 Gauge OFC CK-Series 2-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1000 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • RCA Interconnects are made with twisted-pair technology for noise reduction
  • Terminals are nickel-plated for excellent signal transfer
  • AFS Fuse holder offers ideal protection for high powered systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

What's in the Box:

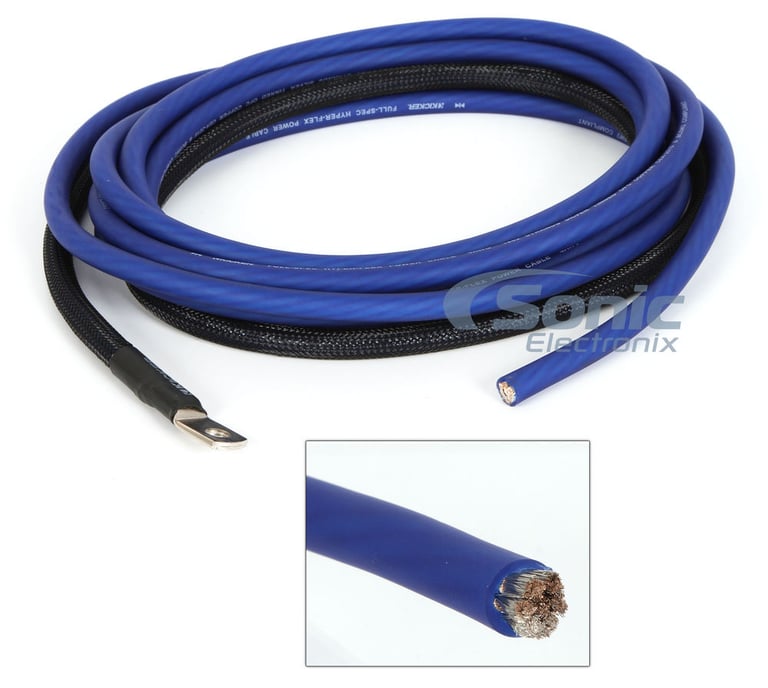

  • 17ft. CK-Series 4 Gauge OFC matte blue multi-strand power wire

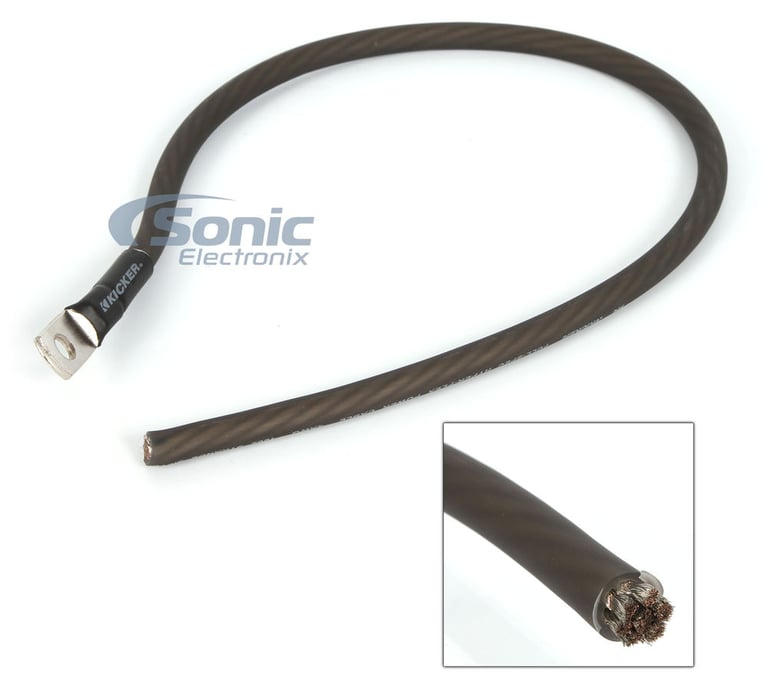

  • 2ft. CK-Series 4 Gauge OFC matte smoked multi-strand ground wire

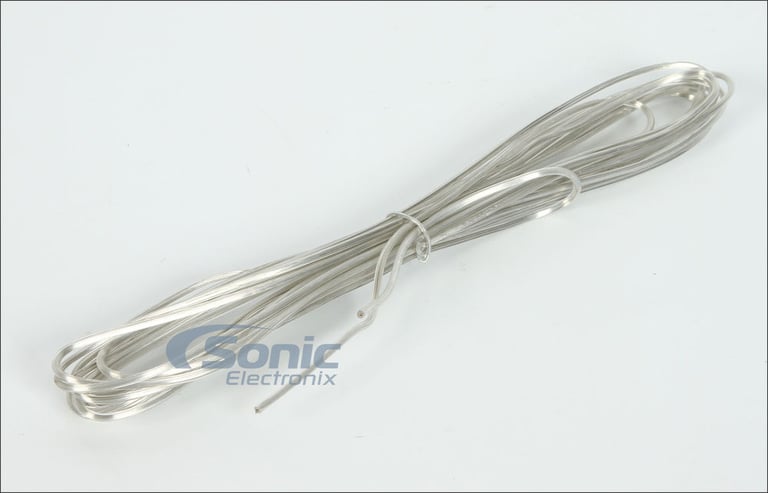

  • 17ft. 16 Gauge OFC clear remote turn-on wire

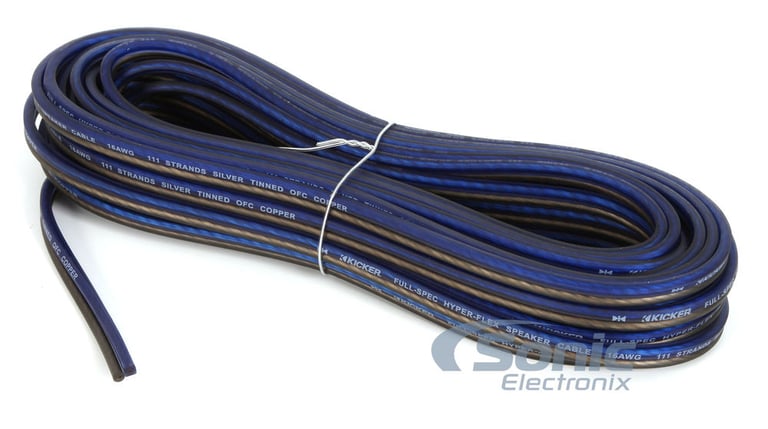

  • 40ft. 16 Gauge OFC two-color speaker wire

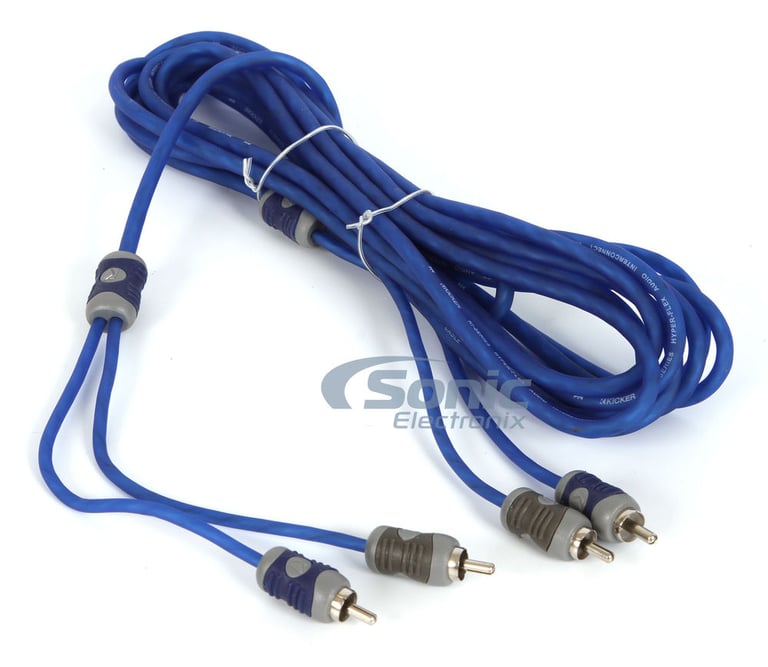

  • 17ft. CK-Series noise rejecting braided three conductor RCA cable with precision machined ends

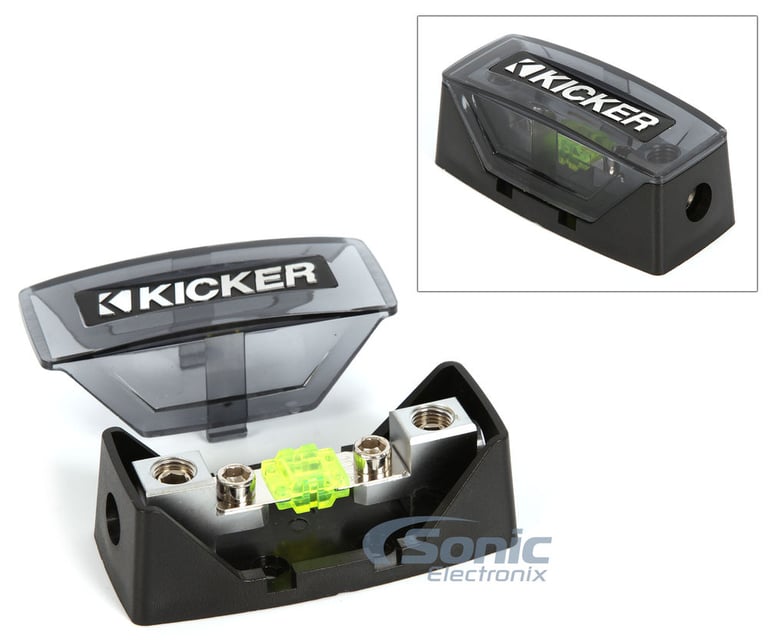

  • CK-Series compact brass AFS fuse holder with 100A fuse

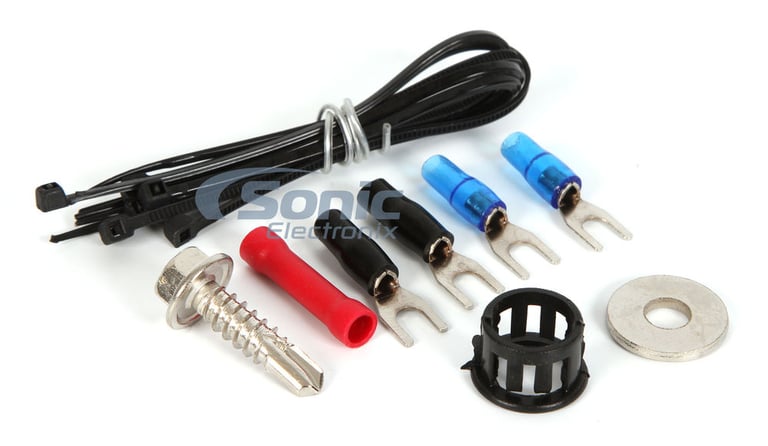

  • 4 Gauge spade terminals, with red and black boots for amp connection
  • Miscellaneous connectors, terminals and wire ties
2011 Kicker Authorized Online Dealer and eBay Seller

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
60A x 1
Subwoofer Specifications
Series
Discus Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
200 watts
Peak Power Handling
400 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Injection Molded Polypropylene
Sensitivity
88 dB
Frequency Response
30 - 250 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XA1-1000.1D_DW1-304

Weight:

31.10lbs

Internal SKU:

xa110001d_dw1304

Internal Product ID:

97832
