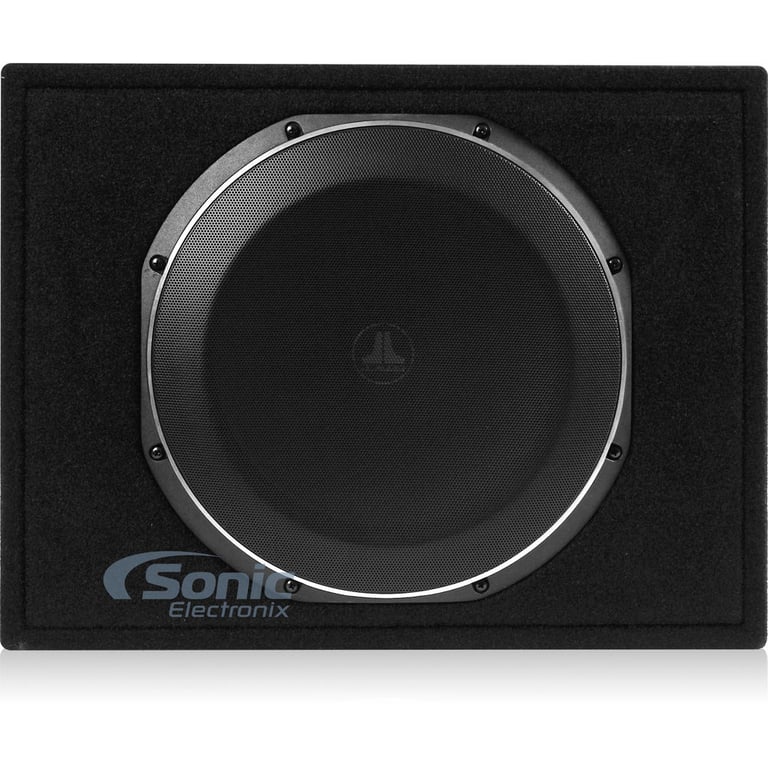

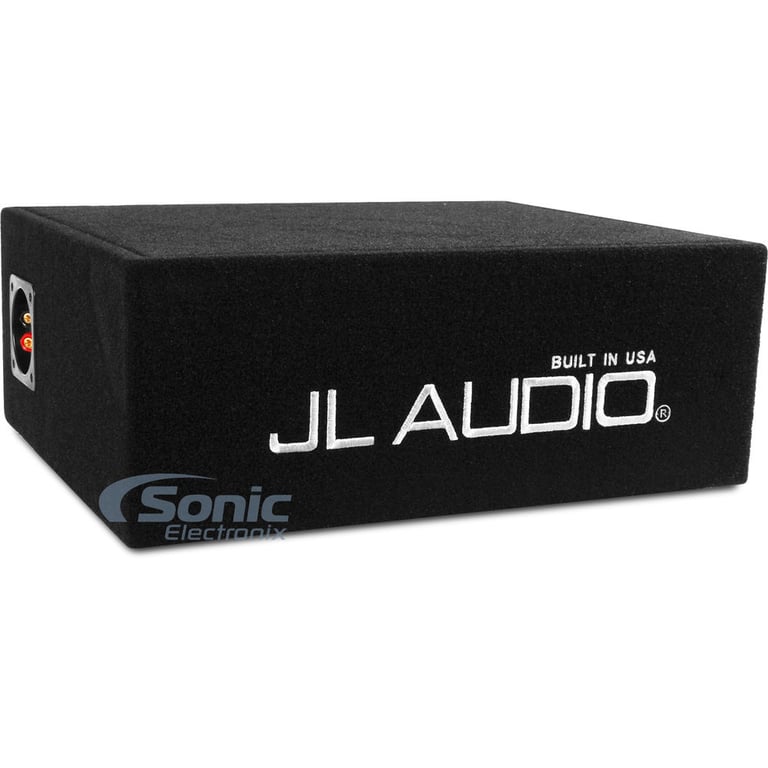

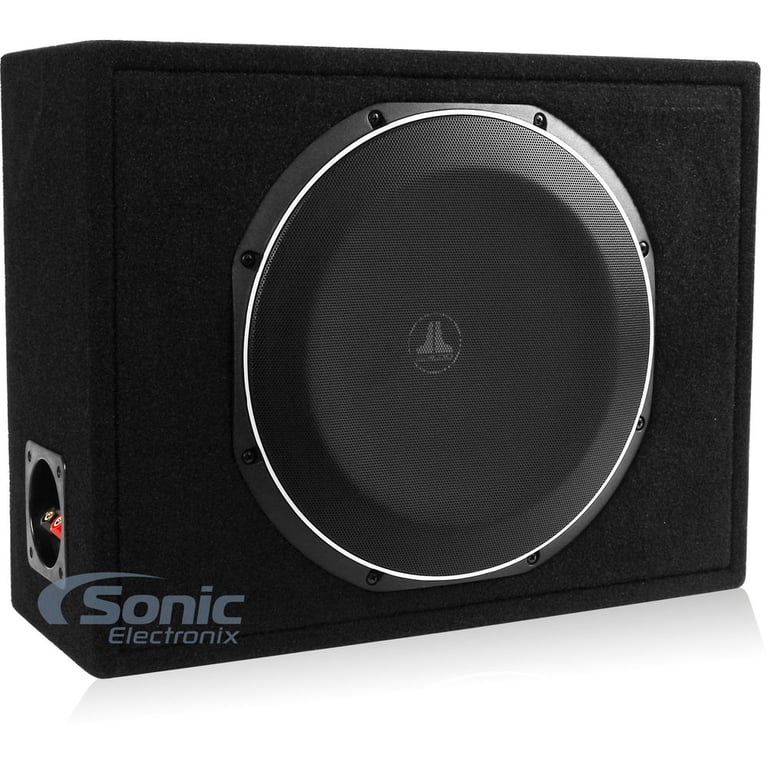

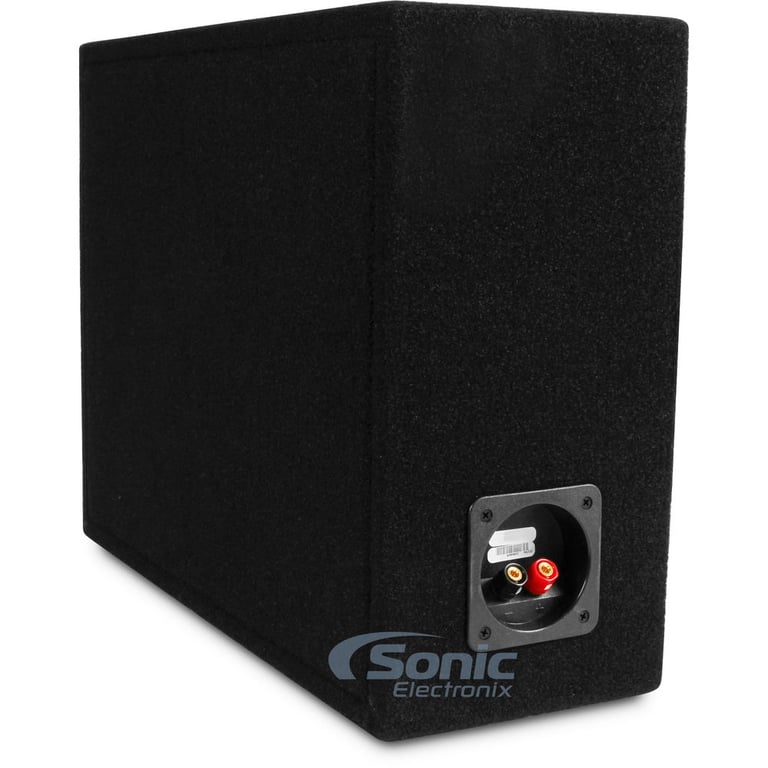

JL Audio PowerWedge CS112LG-TW1-4

300W Single 12" 12TW1-4 Sealed PowerWedge Low-Profile Loaded Enclosure

JL Audio
Shop all JL Audio
highlight-star-icon

• Single 12TW1-4 Series Subwoofers Enclosure
• Final Impedance: 4-Ohm
•Wired, loaded and ready to connect via a five-way binding post terminal
• Enclosure Dimensions: 6.625 " BD x 18.00" W x 13.75 " H

Learn more about the cs112lgtw14

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

MVH-S622BS main

Pioneer MVH-S622BS

Double DIN Digital Media Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-10.00%

$179.99

List price $200.00

Limited time!
XAV-AX6000 main

Sony XAV-AX6000

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius XM Ready)

10
-21.71%

$548.00

List price $699.99

C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
SXE-1751S main

Alpine SXE-1751S

440W Peak (80W RMS) 6.5" SXE-Series 2-way 4-ohm Component Speakers with Mylar-Titanium Tweeters

4
-16.67%

$64.99

List price $77.99

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Description


JL Audio brand icon

Authorized dealer


Save on the Open Box Version:
Available Now - CLICK HERE




General Features:

  • Single 12" Sealed Subwoofer Enclosure
  • Power Handling:
    • RMS: 300 watts
  • Recommended power range: 75 - 300 watts RMS
  • Nominal Impedance: 4-Ohm
  • Preloaded with dual 12TW1-4 Series Subwoofers
  • Wired, loaded and ready to connect via a five-way binding post terminal
  • Precision-built in USA at JL Audios Miramar, Florida factory
  • Matching Amplifier: JL Audio XD300/1v2
  • Enclosure Dimensions: 6.625" D x 18.00" W x 13.75 " H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Subwoofer Features:

  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • DMA-optimized motor design
  • No pole vent: permits mounting close to rear wall of enclosure
  • Long linear excursion capability
  • Patented concentric tube architecture
  • Patented floating cone attach method technology
  • Cast alloy frame with flat edges for tight driver grouping
  • Precision-built in USA at JL Audios Miramar, Florida factory
  • Frequency Response: 24 - 200 Hz
  • Xmax: 10 mm
  • Sensitivity: 85.15 dB

Enclosure Features:

  • Construction: CNC-Cut High-Grade MDF
  • Black, high-grade automotive carpet wrap
  • JL AUDIO embroidered in silver on the front baffle
  • Steel mesh grilles are included

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

TNE212D small

MTX Audio TNE212D

• Sealed enclosure with 2 12" Terminator Series Subwoofer
• 200 watts RMS each
• Final Impedance: 2-ohm
• Dimensions: 29.63" L x 14" H x 13.5" W

(32)

$219.95

List price $249.95

R2S-1X10 small

Rockford Fosgate Prime R2S-1X10

• Sealed truck enclosure with 1 10" Prime R2 Series Subwoofer
• 200 watts RMS (400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 19" L x 13.5" H x 5.25" W x 3.25" W2

(17)

$239.99

List price $239.99

49L7TDF122 small

Kicker L7TDF122 (49L7TDF122)

• Sealed truck enclosure with 1 12" Solo-Baric L7 Series Subwoofer
• 300-600 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 23 7/8" L x 6 1/2" H x 15" W

(5)

$399.99

List price $429.99

CLS113RG-W7AE small

JL Audio CLS113RG-W7AE

• ProWedge 13" W7AE Loaded Sealed Subwoofer Enclosure
• 3000W Peak
• 1500W RMS
• 3 Ohm Final Impedance
• High Grade Black Carpet Finish
• Engraved JL Audio and W7 Logos
• Rear Firing Design
• 10th Anniversary Edition W7 Subwoofer

(8)

$2199.99

List price $2299.99

TRTP122 small

Kicker TRTP122 (48TRTP122)

• Sealed truck enclosure with 2 12" CompRT Series Subwoofer
• 250-500 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 27 1/2" L x 6 1/8" H x 14 5/8" W

(4)

$349.99

List price $379.99

BXSQ112 small

NVX BXSQ112

• Sealed enclosure with 1 12" SQ Series Subwoofer
• 600 watts RMS (1200 watts Peak)
• Final Impedance: 2-ohm

$349.99

List price $479.99

49DL7TDF122 small

Kicker DL7TDF122 (49DL7TDF122)

• Sealed enclosure with 2 12" Solo-Baric L7T Series Subwoofer
• 1200 watts RMS Power
• Final Impedance: 2-ohm
• Dimensions: 38-3/16" L x 8-1/4" H x 17-1/8" W

(1)

$749.99

List price $849.99

BE-TOYHIG3-VS102 small

NVX Loaded BOOST Box - 2014-2019 Toyota Highlander - BE-TOYHIG3-VS102

• Sealed BOOST enclosure with 1 10" N Series Subwoofer
• Fits select 2014-2019 Highlander and Highlander Hybrid
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$349.99

List price $437.99

BE-TSLAY-G1P small

NVX Loaded BOOST Box - 2020-2023 Tesla Model Y - BE-TSLAY-G1P (Passenger's Side)

• Sealed BOOST enclosure with 1 10" N Series Subwoofer (Passenger Side)
• Fits select 2020-2023 Model Y (5-seat models only)
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$279.99

List price $562.99

TL7T122 small

Kicker TL7T122 (46TL7T122)

• Sealed truck enclosure with 1 12" Solo-Baric L7T Series Subwoofer
• 600 watts RMS power handling
• Final Impedance: 2-ohm
• Dimensions: 21.5" L x 13.75" H x 7.75" W x 4.375" W2

(9)

$295.96

List price $399.99

Specifications & Details


Subwoofer Specifications
Series
TW1 Series
Subwoofer Size
12"
RMS Power Handling
300 watts
Peak Power Handling
600 watts
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Sensitivity
85.15 dB
Frequency Response
24 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CS112LG-TW1-4

Weight:

30.80lbs

Internal SKU:

cs112lgtw14

Internal Product ID:

97963
