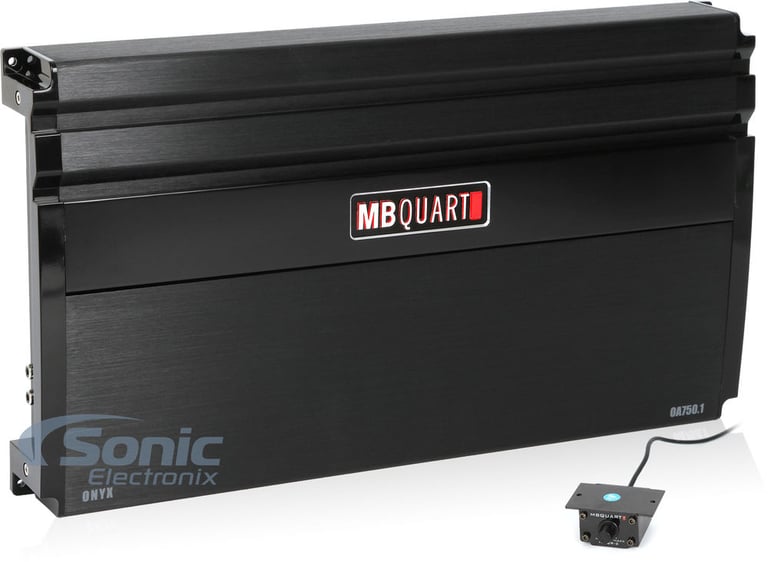

MB Quart OA750.1

750W Max Class Q1 1-Channel Monoblock Onyx Series Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• Peak: 350W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 750W x 1 @ 1 ohm
• Total Peak Power: 750W
• 1 Pair of Preamp RCA Outputs
• Variable Bass Boost: 0 to +12 dB
• Class Q1 Circuitry
• Dimensions: 9-7/16"W x 15-3/4"D x 2-1/4"H

Learn more about the oa7501

We apologize

This item has been discontinued


Loading...
99-7954 main

Metra 99-7954 Dash kit

Install a new Single-DIN or Double-DIN car stereo in select 2007-2013 SX4

2
-50.02%

$14.99

List price $29.99

Product Highlights


• Peak: 350W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 750W x 1 @ 1 ohm
• Total Peak Power: 750W
• 1 Pair of Preamp RCA Outputs
• Variable Bass Boost: 0 to +12 dB
• Class Q1 Circuitry
• Dimensions: 9-7/16"W x 15-3/4"D x 2-1/4"H

Description


MB Quart brand icon

Authorized dealer

General Features:

  • Onyx Series 1-Channel Monoblock Class Q1 Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 350 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
    • 1 ohm: 750 watts x 1 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • 1 Ohm stable
  • LED power (green) and protect (red) indicators
  • Variable BassEQ Boost (0 to +12 dB bass boost fixed at 45 Hz)
  • Built-in system diagnostics
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

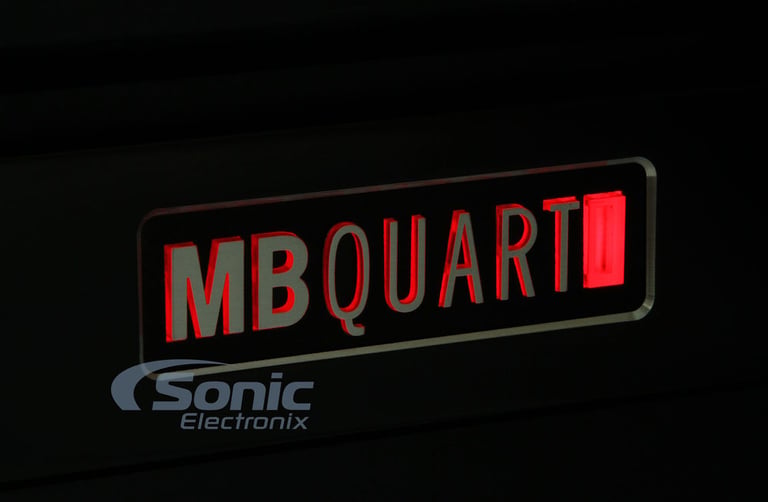

  • Heavy duty Black Onyx aluminum alloy heat-sink with illuminated MB Quart design
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (40-300 Hz)
  • Variable low-pass filter (10-40 Hz)
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-7/16"W x 15-3/4"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

GP-3500.1D small

Crunch GP-3500.1D

• 875 watts x 1 channel @ 4 ohm
• 1750 watts x 1 channel @ 2 ohm
• 3500 watts x 1 channel @ 1 ohm
• Total Peak Power: 3500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$99.99

List price $219.99

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(27)

$199.99

List price $287.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
350 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
750 watts x 1 channel
Amplifier Specifications
Series
ONYX Series
Number of Channels
1 - Mono
Total Peak Power Output
750 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
92 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
60A x 1
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OA750.1

Weight:

11.50lbs

Internal SKU:

oa7501

Internal Product ID:

67858

Product and How-to Videos


  • MB Quart Onyx Amplifiers | New for 2013 OA Series
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


MB Quart OA750.1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Good amp for the price

I bought this to pair with a Apline SWS-10" in May last year and it hasn't disappointed me. There isn't a fan in it and I'm impressed that it hasn't overheated yet because I deliver pizzas and put everything in my trunk so it gets fairly hot & moist back there along with the hot and moist weather there already is here. I did have to crank the power up quite a bit to get a good amount of power to the sub but once you turn it up it does a good job.

Pros: It's easy to use, basic control knobs, sub volume remote, durability

Cons: None any real ones that I can think of. Has nice clean sound, just don't overload it with power. If you do it can get a little messy. Can't say if it's because of the sub or the amp, but bass junkies shouldn't be looking at this amp anyways

P.S. I actually bought an 800-watt version of this but I guess it got discontinued. I'm sure 50-watts wouldn't make too much of a difference.

By Spencer on February 18, 2014

25 found this helpful
