See all parts that fit your 2006 RL

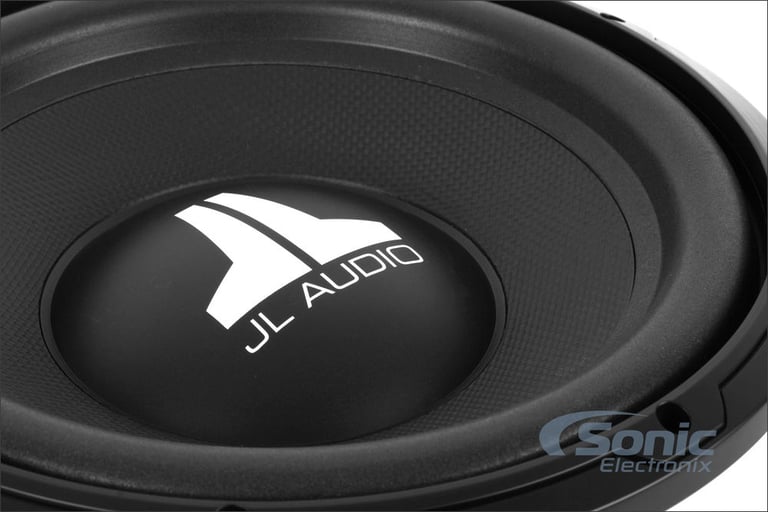

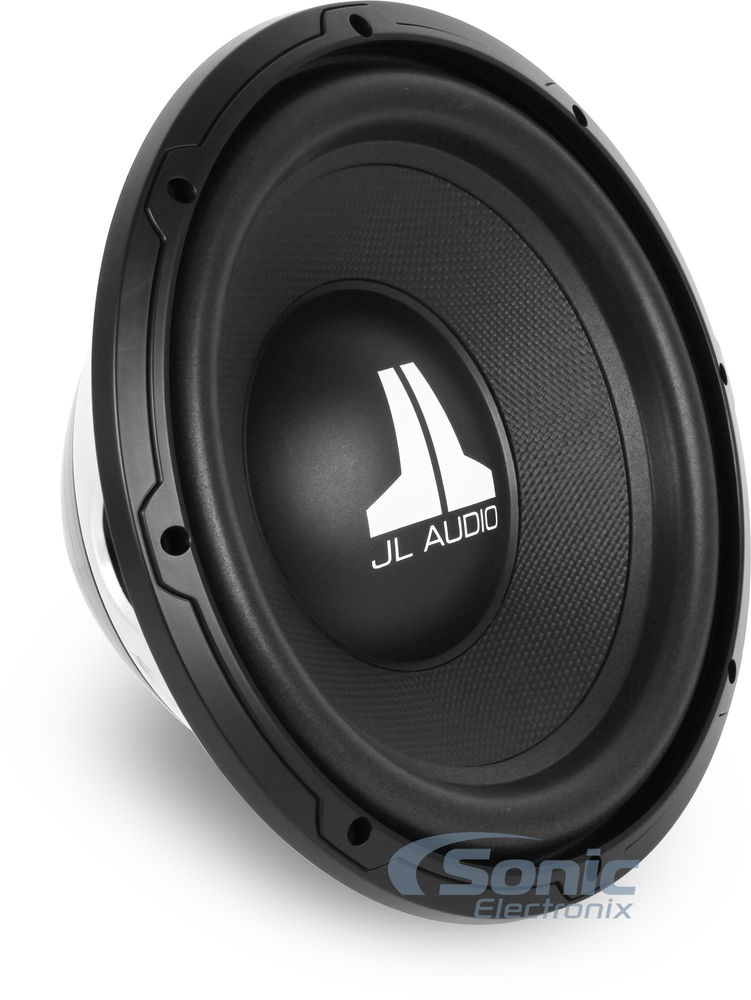

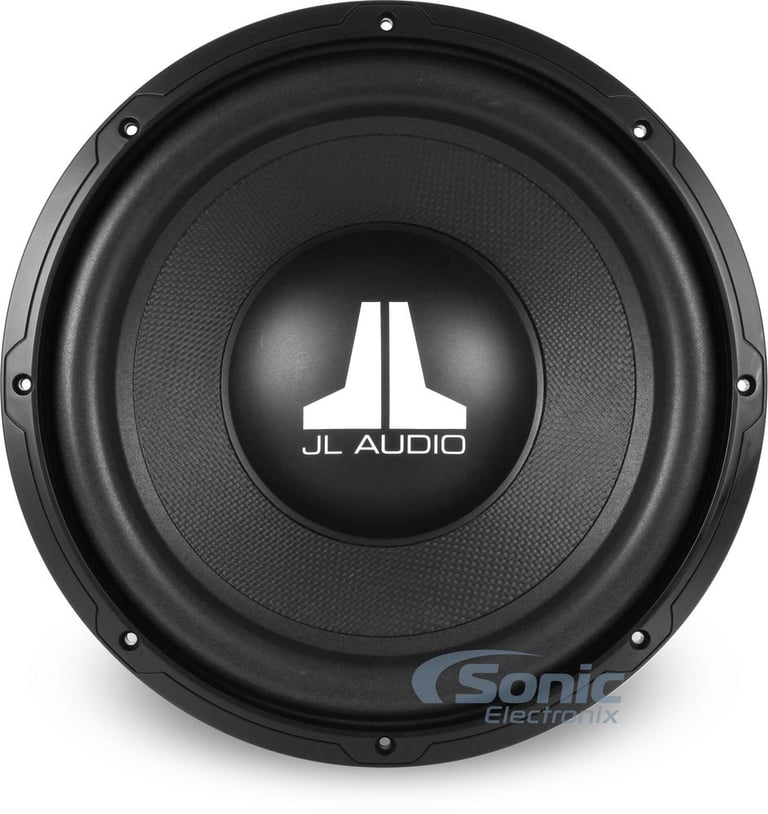

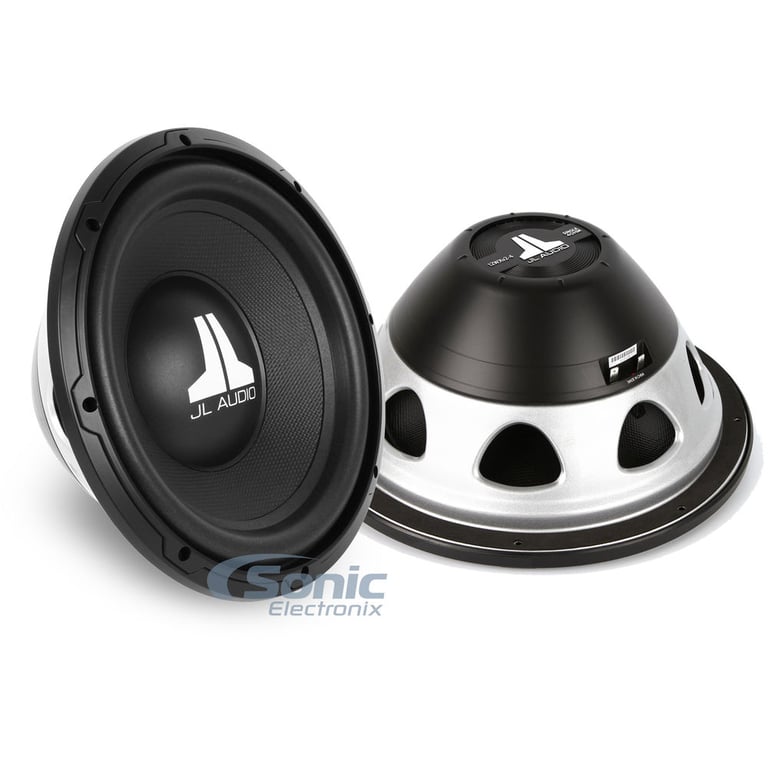

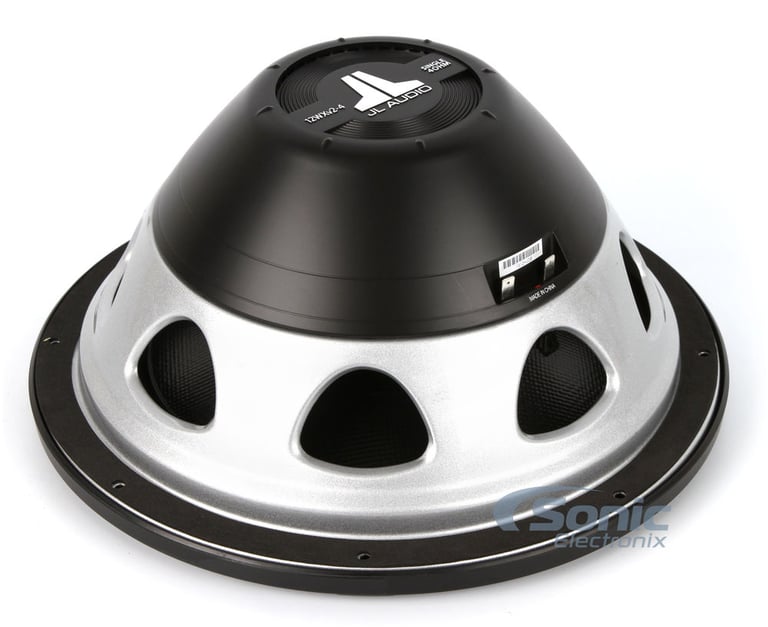

JL Audio 12WXv2-4 Buy One Get One 50% Off

Pair of 200W 12" WXv2 Series Single 4 ohm Subwoofers

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 2 Subs
• 500W Peak
• 200W RMS
• Polypropylene Woofer Cone Material
• Elevated Frame Cooling
• Integrated Foam Rear Gasket
• Resists Breakdown Under Extreme Conditions

Learn more about the 12wxv24_2

We apologize

This item has been discontinued


Loading...
HON1B3 main

GROM Audio HON1B3 Bluetooth Streaming Kit (GROM-BT3-HON1)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2001 - 2015 Acura and Honda Factory Radios

5
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

82-7500 main

Metra 82-7500

5-1/4" - 6-1/2" Universal Speaker Adapter Brackets for select 1990-2013 vehicles from Honda, Acura, Mazda

9
-10.53%

$16.99

List price $18.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Product Highlights


• 2 Subs
• 500W Peak
• 200W RMS
• Polypropylene Woofer Cone Material
• Elevated Frame Cooling
• Integrated Foam Rear Gasket
• Resists Breakdown Under Extreme Conditions

Description


JL Audio brand icon

Authorized dealer

  • Product history:

    JL Audio 12WXv2-4_2 thumbnail
    (newest, current model)
    JL Audio 12WX-4 thumbnail
    (previous model, replaced by JL Audio 12WXv2-4 Buy One Get One 50% Off)

    Subwoofer Wiring Guide


    Wiring Guide to Wire 1 JL Audio 12WXv2-4 Buy One Get One 50% Off Subwoofer

    Mono Amp

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 JL Audio 12WXv2-4 Buy One Get One 50% Off Subwoofers

    Mono Amp

    2 Channel Amp

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 JL Audio 12WXv2-4 Buy One Get One 50% Off Subwoofers

    4 Channel Amp

    Wiring Guide to Wire 4 JL Audio 12WXv2-4 Buy One Get One 50% Off Subwoofers

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp


    Loading...
    Limited time!
    46CSC654 main

    Kicker CSC65 (46CSC654)

    600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

    123
    -33.36%

    $79.96

    List price $119.99

    Limited time!
    Club 622 main

    JBL Club 622

    360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

    5
    -28.58%

    $99.95

    List price $139.95

    43DSC6504 main

    Kicker DSC650 (43DSC6504)

    480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

    28
    -10.53%

    $84.99

    List price $94.99

    DB652 main

    Polk Audio DB652 (DB 652)

    600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

    12
    -9.16%

    $109.00

    List price $119.99

    MPK 163.3 main

    Hertz MPK163.3

    600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

    2
    -14.89%

    $999.99

    List price $1175.00

    PNW-65CS2 main

    AudioControl PNW-65CS2

    250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

    4
    -5.90%

    $319.00

    List price $339.00

    XED62 main

    Cerwin-Vega XED62

    600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

    15
    -16.67%

    $49.99

    List price $59.99

    NSP65 main

    NVX NSP65

    540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

    93
    -35.19%

    $69.99

    List price $107.99

    PH654 main

    Cerwin-Vega PH654

    600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

    2
    -16.67%

    $189.99

    List price $227.99

    Club 522F main

    JBL Club 522F (SPKCB522FAM)

    270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

    -42.29%

    $74.99

    List price $129.95


    Best selling similar products

    Marine Club 12 small

    JBL CB122 Club Marine 12

    • Peak Power: 1200 watts
    • RMS Power: 400 watts
    • Polypropylene Cone
    • Rubber Surround
    • Impedance: Single 4 ohm
    • Mount depth: 7-13/16"
    • Sensitivity: 89 dB

    (1)

    $119.95

    List price $379.95

    VCW124v3 small

    NVX VCW124 Version 3 (VCW124v3)

    • Peak Power: 2400 watts
    • RMS Power: 1200 watts
    • Impedance: Dual 4 ohm
    • Carbon Fiber Enhanced Non-Pressed Paper Cone
    • Custom High Roll Foam Surround with black nylon stitching
    • Mount depth: 7.02"
    • Sensitivity: 85 dB (1W/1m)

    (132)

    $239.99

    List price $287.99

    12W6v3-D4 small

    JL Audio 12W6v3-D4

    • RMS Power: 600 watts
    • Impedance: Dual 4 ohm
    • Mineral-Filled Polypropylene Cone
    • Butyl Rubber Surround
    • Mount depth: 7.52"
    • Sensitivity: 85.4 dB

    (25)

    $949.99

    List price $949.99

    SQW124 small

    NVX SQW124

    • Peak Power: 1200 watts
    • RMS Power: 600 watts
    • Impedance: Dual 4 ohm
    • Polypropylene Cone
    • Rubber Surround
    • Mount depth: 3.51"
    • Sensitivity: 84 dB

    $299.99

    List price $359.99

    VCW122v3 small

    NVX VCW122 Version 3 (VCW122v3)

    • Peak Power: 2400 watts
    • RMS Power: 1200 watts
    • Impedance: Dual 2 ohm
    • Carbon Fiber Enhanced Non-Pressed Paper Cone
    • Custom High Roll Foam Surround with black nylon stitching
    • Mount depth: 7.02"
    • Sensitivity: 85 dB (1W/1m)

    (94)

    $239.99

    List price $287.99

    CWRT124 small

    Kicker CWRT124 (48CWRT124)

    • Peak Power: 1000 watts
    • RMS Power: 500 watts
    • Impedance: Dual 4 ohm
    • UV-Treated Polypropylene Cone
    • UV-resistant Santoprene Surround
    • Mount depth: 3-3/4"
    • Sensitivity: 85.5 dB

    (3)

    $199.96

    List price $279.99

    SRX1240 small

    Memphis SRX1240

    • Peak Power: 500 watts
    • RMS Power: 250 watts
    • Impedance: Single 4 ohm
    • Polypropylene Cone
    • Rubber Surround
    • Mount depth: 4.92"
    • Sensitivity: 85 dB

    $79.99

    List price $139.95

    Stage 122 small

    JBL Stage 122 (JBLSUBST122AM)

    • Peak Power: 1000 watts
    • RMS Power: 250 watts
    • Impedance: Single 4 ohm
    • Polypropylene Cone
    • Rubber Surround
    • Mount depth: 6"
    • Sensitivity: 91 dB

    $109.95

    List price $129.95

    SW-M12D2 small

    Sundown Audio M-12 D2 12" (M12D2)

    • Peak Power: 4000 watts
    • RMS Power: 2000 watts
    • Impedance: Dual 2 ohm
    • Polypropylene Cone
    • High Roll Foam Surround
    • Mount depth: 10.88"
    • Sensitivity: 80.6 dB

    (2)

    $599.99

    List price $719.99

    52L7XS121 small

    Kicker L7XS121 (52L7XS121)

    • RMS Power: 1500 - 3000 watts
    • Impedance: Dual 1 ohm
    • Double-pressed pulp Cone
    • Nitrile Butadiene Rubber NBR Surround
    • Mount depth: 10-1/8"

    $1399.99

    List price $1499.99

    Specifications & Details


    Subwoofer Specifications
    Series
    WX Series
    Subwoofer Size
    12"
    Peak Power Handling
    500 watts
    RMS Power Handling
    200 watts
    Voice Coil(s)
    Single
    Impedance (Per Voice Coil)
    4 ohm
    Frequency Response
    22 - 250 Hz
    Sensitivity
    87.17 dB
    Xmax (millimeters)
    9.5 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Polypropylene
    Woofer Surround
    Foam
    Magnet Structure
    Single Stacked
    Subwoofer Grille
    Optional (Accessory required and sold separately)
    Re-Cone Kit Available
    No
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Minimum Sealed Box Volume
    1.375 cubic feet
    Maximum Sealed Box Volume
    1.375 cubic feet
    Minimum Ported Box Volume
    1.75 cubic feet
    Maximum Ported Box Volume
    1.75 cubic feet
    Top-Mount Depth (Mounting Depth)
    5-5/16"
    Cutout Diameter
    11-1/16"
    Shallow Mount Installation
    No
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    27.43 Hz
    Equivalent Compliance (Vas)
    94.49 liters
    Total Speaker Q Value (Qts)
    0.562
    Electrical Q Value (Qes)
    0.596
    Electrical Resistance of Voice Coil (Re)
    3.51 ohm
    Mechanical Q Value (Qms)
    9.970
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    12WXv2-4_2

    Weight:

    15.80lbs

    Internal SKU:

    12wxv24_2

    Internal Product ID:

    98322

    Product and How-to Videos


    Customer Ratings & Reviews


    JL Audio 12WXv2-4 Buy One Get One 50% Off thumbnail image

    5 star
    80%
    4 star
    20%
    3 star
    0%
    2 star
    0%
    1 star
    0%



    Durability
    4.8
    Value
    4.8
    Features
    4.4
    Design
    4.4
    Usability
    5

    Customer Reviews

    Sort by:

    Loading...

    Great sub for the money

    The following review is for 12WXv2-4, which is a part of the bundle you are viewing.

    Bought this to match up with the single 12" that I already had. You cant go wrong for this price. Im running 2 of these off a JL 250/1 amp at 2ohms and they hit hard. Not OMG I blew out the windows hard but hard enough to shake every little bit of the car.

    By Bob on September 17, 2013

    38 found this helpful


    These hit decent for the price

    The following review is for 12WXv2-4, which is a part of the bundle you are viewing.

    I've been running one for about a year now. Have it hooked up to a small JL Audio JX250/1 mono amp. The combo hits harder than other systems I have built with double the power. I liked the sub so much I just bought another one so I can drop the amp down to 2 ohms.

    I know there are tons of subs out there that are probably much better than this, but for under $100, this is a great value sub that plays like it costs twice the price.

    By bob on July 23, 2013

    39 found this helpful


    Why hate a jl of any kind

    The following review is for 12WXv2-4, which is a part of the bundle you are viewing.

    These subs are perfect starters especially in my small compact car. I hooked 2 of them up and they bump all the lows and mids to perfection. I run a lot of power to them and they show no signs of letting up. They can be pushed passed there max to be honest. I run almost 1300 watts through the pair in a sealed enclosure. They hit hard and loud. If you do buy these, buy a pair and be prepared.

    By TMM on March 20, 2012

    35 found this helpful


    Great product, great sound

    The following review is for 12WXv2-4, which is a part of the bundle you are viewing.

    Quality products, great sound, at an affordable price. You can't go wrong!

    By Janell on September 10, 2015 Checkmark Icon Verified purchase

    15 found this helpful


    Can't ever go wrong with JL Audio

    The following review is for 12WXv2-4, which is a part of the bundle you are viewing.

    Running a single in my wife's car with a small amp and box and it gives the perfect sound we were looking for for her car. JL does it again, as always.

    By Marcus on April 14, 2026 Checkmark Icon Verified purchase




    TI-712B small

    Farenheit TI-712B

    In-Dash 7" LCD DVD/MP3/DivX Touchscreen Car Stereo Receiver w/ Bluetooth

    $129.99

    List price $399.99

    MS-12SD2_JAD1200.1 small

    1800W JBL and NVX Bass Package

    12" MS Series Dual 2 ohm Subwoofer w/ Class D Monoblock Amplifier

    (118)

    $330.70

    List price $614.94

    12TW1-2 small

    JL Audio 12TW1-2 - New (Damaged Packaging, Product A+)

    300W 12" TW1 (Thin-Line) Series Single 2-ohm Subwoofer

    (1)

    $446.49

    List price $469.99

    MDR-XB21EX small

    Sony MDR-XB21EX (MDRXB21EX) Extra Bass Earbuds

    Specially Designed to Reproduce Powerful Bass with 9mm Dynamic Neodymium Drivers

    (5)

    $32.99

    List price $39.99

    NSW124V2,NSW124V2 small

    (BOGO 10% OFF) 2 NVX NSW124v2 12" Car Subwoofers

    (2) NVX 12" Car Subwoofers 700W RMS (1400W Peak) (Regularly $119.98)

    (33)

    $189.98

    List price $239.98

    M2000.4 small

    Autotek Mean Machine M2000.4

    2000W Mean Machine Series 4-Channel Class AB Car Amplifier

    (19)

    $119.95

    List price $239.99

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2006 Acura RL

    2005 Lamborghini Murcielago

    2011 BMW 335i xDrive

    2002 Land Rover Range Rover

    2014 Porsche 911

    2012 Volkswagen Golf

    2018 Kia Soul

    1996 Eagle Summit

    2010 Jeep Wrangler

    2001 Saturn LW300

    Vehicle
    Store
    Delete

    2016 Can-Am Commander 1000 XT-P

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
