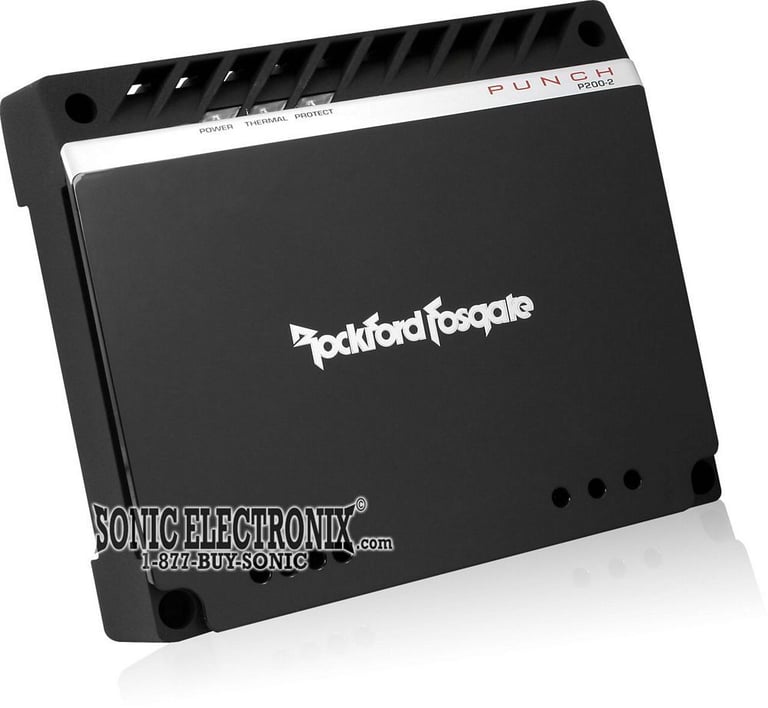

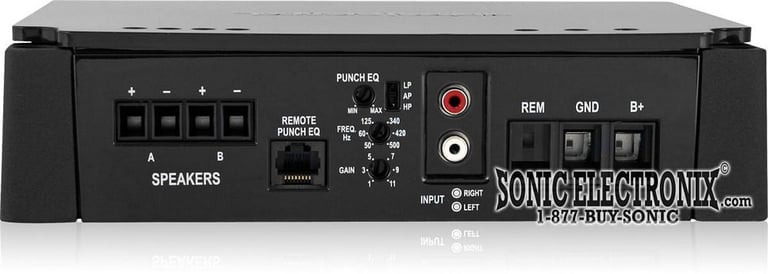

Rockford Fosgate P200-2 Punch Series Compact 2-Channel Amplifier

Rockford Fosgate Punch P200-2

Punch Series Compact 2-Channel Amplifier

Punch Series 2-Channel Class AB Car Amplifier • 50W x 2 chan. @ 4 ohms • 100W x 2 chan. @ 2 ohms • MOSFET power supply • RCA Pass-thru outputs

We apologize

This item has been discontinued

DESCRIPTION
Rockford Fosgate

Authorized dealer

  • Punch Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 2 chan.
    • 2 ohms: 100 watts x 2 chan.
    • Bridged, 4 ohms: 200 watts x 1 chan.
  • MOSFET power supply
  • Remote bass level input (remote level control sold separately)
  • LED power, thermal, and protect indicators
  • Tuned Bass EQ (0-18 dB bass boost at 45 Hz or 0-12 dB bass boost at 12 kHz depending on crossover selection)
  • On-board differential inputs eliminates noise picked up by the signal cable
  • 2/1 channel operation
  • Integrated Trans•ana technology simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
  • RCA Pass-thru outputs
  • Featured custom designed TO-247 MOSFETs have 60% more metal tab area providing more power handling capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in most competitor's amps.
  • Built in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
  • Cast aluminum heatsink evenly distributes excess heat across entire amplifier heatsink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Dimensions: 9"L x 7.625"W x 2.25"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 2 channels
RMS Power @ 2 ohms
100 watts x 2 channels
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 1 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Bridged Peak/Max Power
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Amplifier Specifications
Amplifier Series
Marine Certified
Amplifier Class
AB
Number of Channels
2
Total RMS Power Output
200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 18 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
40A x 1
Total Fuse Rating
Strappable
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Paperwork
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
VIDEOS AND HOW - TO
  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • How To Install an Amplifier: Car Amplifier Basics Part 2
REVIEWS
Rockford Fosgate Punch P200-2

Rockford Fosgate Punch P200-2

4.8

(20)

Write a review

Overall rating distribution

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
4.7
Value
4.5
Features
4.5
Design
4.5
Usability
4.7

Jeff

May 5, 2011

Oustanding

I've had this amp for a while and i run a single Rockford Fosgate Punch 12 with an 8 gauge and it never gave mw any problems, I've had two MTX's hooked up before this and they blew fast with a rating higher than the amp. Main thing I like about this amp is that I have bumped it for a whole our in the summertime and it never overheated. I like the design as well.

10

found this helpful.

Dan

March 23, 2010

Beautiful Surprise

Without question, this amplifier offers the best bang for your system buck. The birthsheet for my amp reads 81 Watts x 2 @ 4 ohm. This amplifier is clean and looks good. I've been a sound quality competitor for 15 years and I've never purchased anything of this quality for so little. I'd expect the performance delivered to cost twice as much - and I'd willingly pay for it.

10

found this helpful.

Alexander

April 14, 2012

more than expected

I have this with two cheap hifonics and it makes those subs hit and sound great. Freaking impresses me. The whole combo does.

8

found this helpful.

Blueeyes

January 13, 2011

Amp

Rockford is a well know brand is really good..... Got at good price as well...

8

found this helpful.

nathan

December 20, 2008

Rockford Amp

I would definitely recommend this amp to anyone who is buying an amp for their speakers, not so well with a high RMS sub. With my speakers it has never gone into thermal mode, even on my 7 hour trips. I have 8 speakers going through this one amp and my truck sounds amazing so. i would definitely recommend this product.

7

found this helpful.

Bryan

October 24, 2008

Rockford Fosgate

Little amp that packs a punch, I had two rockfords hooked up to this little amp and they pounded with great clarity. Very underated amp, highly recommend

6

found this helpful.

james

April 17, 2012

Nice 2 channel amp!

Have this amp wired in parallel running four pioneer 6x8 speakers and it sounds really clean. Has a good adjustable EQ and a breeze to hook-up. I also got it at a good price. Thanks sonicelectronix!

5

found this helpful.

Old Man Car Audio

April 6, 2010

A Punch 45 with a new cover.

Rockford has always stuck with the same goal.. SURPRISE!!

5

found this helpful.

Joe

December 28, 2009

A beast

This amp is incredible for it's size. Very strong and reliable.

5

found this helpful.

Jordan

June 16, 2012

High quality amp for mids and highs

This little amp has been wonderful. I have it hooked up to two Kicker KS600 6.5" for my mids and highs in my daily driver.

It puts out well over rated power of 50 watts at 4ohms. Metered at 82 watts RMS at 4ohms so you have lots of headroom. I have my gain all the way down, it pushes these kickers to their max, and it sounds great doing it. Doesn't get warm at all, feels solid. I probably have enough clean juice to add a little 8 for mids if i wanted.

The connections look really clean you don't even see them, just the wire going to the amp, which also saves room, and it is very nice to not have to use any ring terminal connector etc for the power/ground/remote wires. Overall a very well designed amp, I recommend for anyone running up to roughly 1,500 watts of subwoofers. I'm running 1,000 watts clean on my subs and my mids and highs are borderline too loud for me with the gain all the way down. ;)

4

found this helpful.

JMC

August 10, 2010

Great deal!

Exactly what we wanted and more! Fits perfect, slimmer than we thought so plenty of room behind the seat.

4

found this helpful.

chris

February 1, 2010

great buy!

i got this thing running my boston acoustic s60 components for the time being and it does great. its crisp clean and pushes them to the max. its small and compact and will fit where you need it.

4

found this helpful.

Jonny

January 12, 2009

Not bad for the price.

We wired this amp bridged to two kenwood 12's and it sounded good, but when I turned the volume up loud the amp went into safe mode because there was too much power going through it. So we wired it straight up and it's not as loud but it does not cut out at all. Even the rock songs sound good on it, and rap is loud but nothing overwhelming. Overall a good amp if your looking to improve your sound and give it a little thump, but don't expect this thing to rattle your neighbors windows.

5

found this helpful.

Bryan

October 13, 2008

great buy

I bought this and hooked it up to 2 12" Rockford P3's and I thought that the subs wouldn't be good because of the amp. I was pretty wrong. pulling up next to someone is always fun now. I almost gave an old couple a heart attack the other day. Its a great amp and for this price, worth it.

5

found this helpful.

Colin

March 17, 2012

Amazing little amp.

I bought this amp just as a temp amp to power my old Rockford Punch Z Subwoofer. Well, in around 3 1/2 to 4 hours, the sub blew. So now, it's running a 10" RF R2. Let me tell you, this amp packs quite a punch. They say it's only 200 watts max power bridged, but when you check out the birth sheet, it says 263 watts @ 4ohms bridged.

3

found this helpful.
