Name: RE Audio SA500.1
Brand: RE Audio
SKU: sa5001
Price: 154.99 USD
Availability: Discontinued

by RE Audio

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

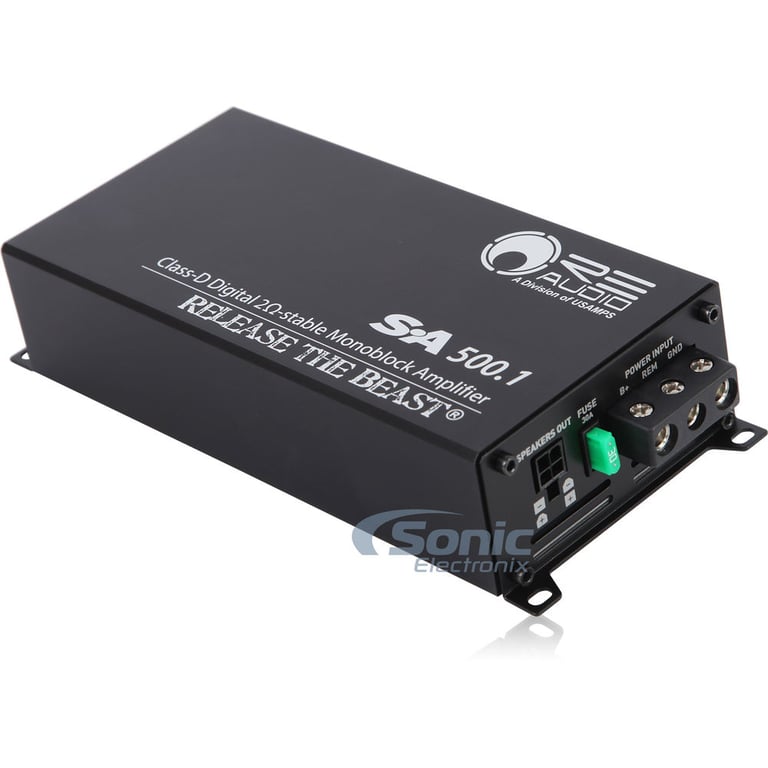

RE Audio SA500.1 Image 1 — RE Audio SA500.1

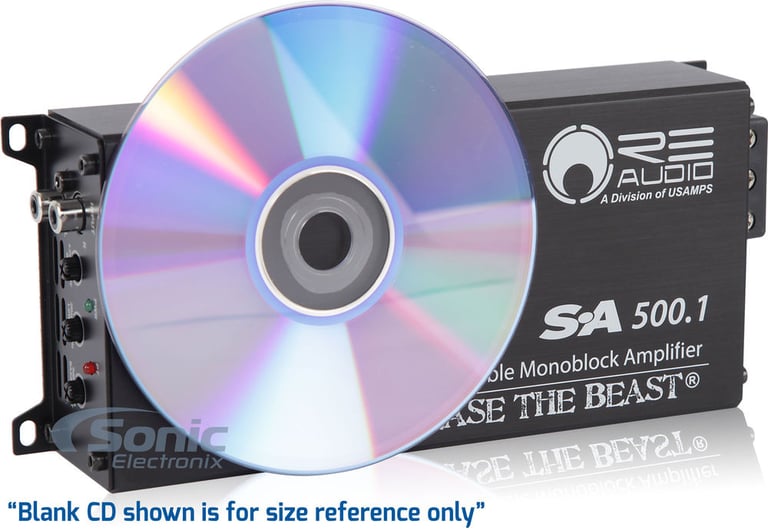

RE Audio SA500.1 Image 2 — RE Audio SA500.1

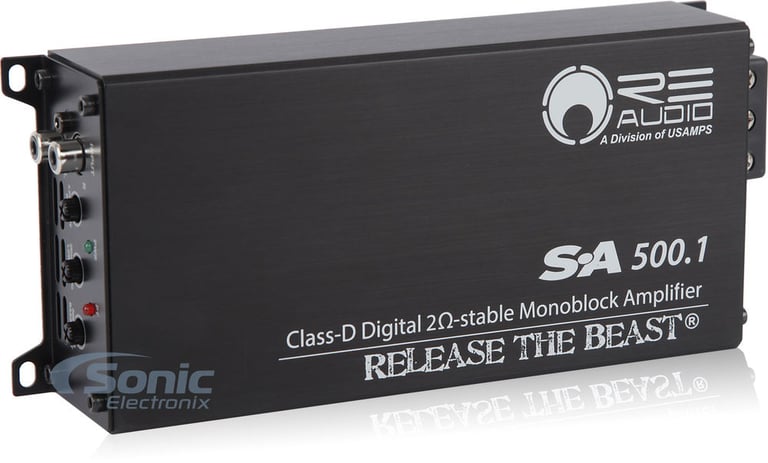

RE Audio SA500.1 Image 3 — RE Audio SA500.1

RE Audio SA500.1 Image 4 — RE Audio SA500.1

RE Audio SA500.1 Image 5 — RE Audio SA500.1

RE Audio SA500.1 Image 6 — RE Audio SA500.1

RE Audio SA500.1 Image 7 — RE Audio SA500.1

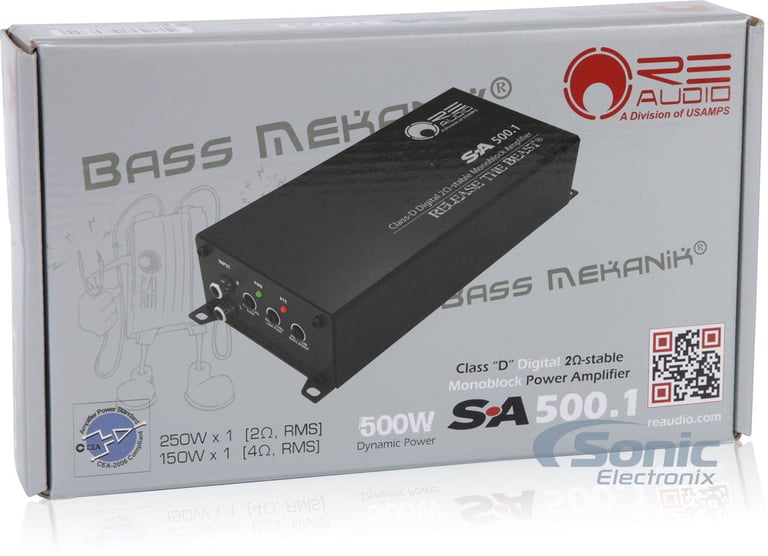

RE Audio SA500.1 Image 8 — RE Audio SA500.1

Product videos

Product highlights

• 150 Watts RMS x 1 @ 4 ohm
• 250 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 500 Watts
• CEA-2006 Compliant
• Variable Bass Boost : 0 to +12 dB bass boost at 45 Hz

Learn more about the sa5001

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

• 150 Watts RMS x 1 @ 4 ohm
• 250 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 500 Watts
• CEA-2006 Compliant
• Variable Bass Boost : 0 to +12 dB bass boost at 45 Hz

Description

Authorized dealer

Sonic Electronix Power Certified Amplifier

RE Audio's SA500.1 monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings.

Impedance	Claimed Output	Certified Results	Dynamic Results
4 Ω	150W @ 14.4V	150W @ 14.16V	160W @ 14.24V
2 Ω	250W @ 14.4V	215W @ 14.13V	252W @ 14.18V

General Features:

SA Series Monoblock Class D Car Amplifier
RMS Power Rating: (@14.4V)

4 ohm: 150 watts x 1 chan.
2 ohm: 250 watts x 1 chan.

Sonic Electronix Certified Power Rating*:

4 ohm: 150 watts x 1 chan.
2 ohm: 215 watts x 1 chan.

Peak power output: 500 watts
Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
CEA-2006 compliant amplifier
Nickel-plated RCA level inputs
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
3-way protection circuitry (thermal, overload, and speaker short protection)
THD : <0.05 %
SN Ration : 80db
Frequency Response : 35Hz ~ 250Hz

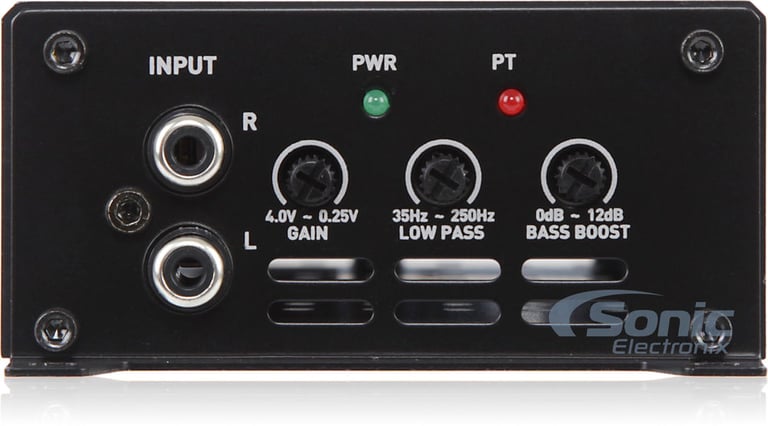

Variable low-pass filter : 50 Hz ~ 250Hz, 24 dB/oct
Variable Bass Boost : 0 to +12 dB bass boost at 45 Hz

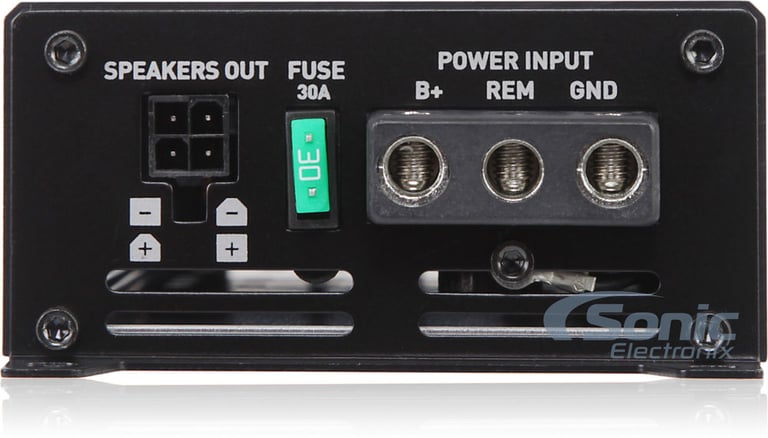

Fuse Rating: 30A x 1
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions : 3.56" W x 7.1" L x 1.67" H
Weight (LBS/KG) : 2.2 / 1.00
Authorized Internet Dealer
1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

150 watts x 1 channel

RMS Power @ 2 ohms

250 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

500 watts

Total RMS Power Output

250 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<0.05%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

30A x 1

Total Fuse Rating

Strappable

Sonic Certified Amplifier

Yes

Amp Bluetooth Connectivity

Hi-Res Certified

What is in the box?

Paperwork

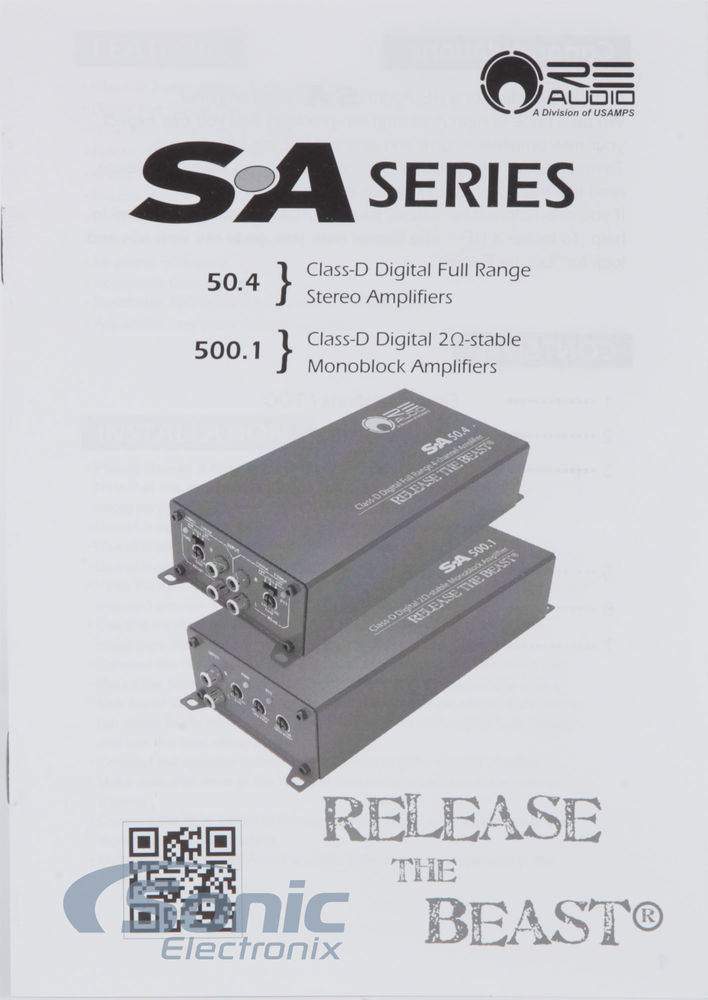

User manual

WITB: Amplifiers

Amplifier

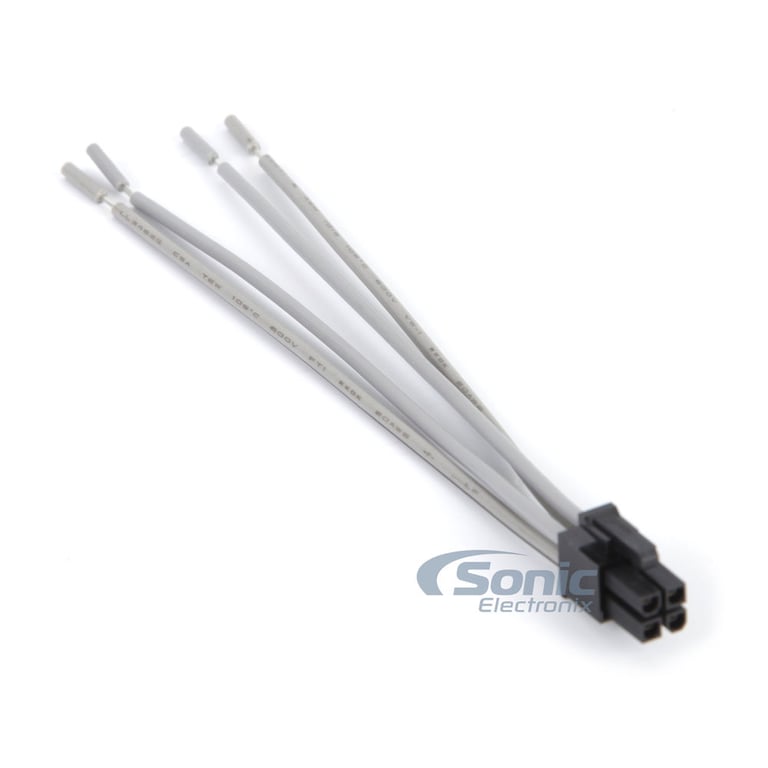

High-level input wiring harness w/ molex connector

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
