Name: JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B
Brand: JL Audio
SKU: LS-jl10001-black-RB
Price: 570.00 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

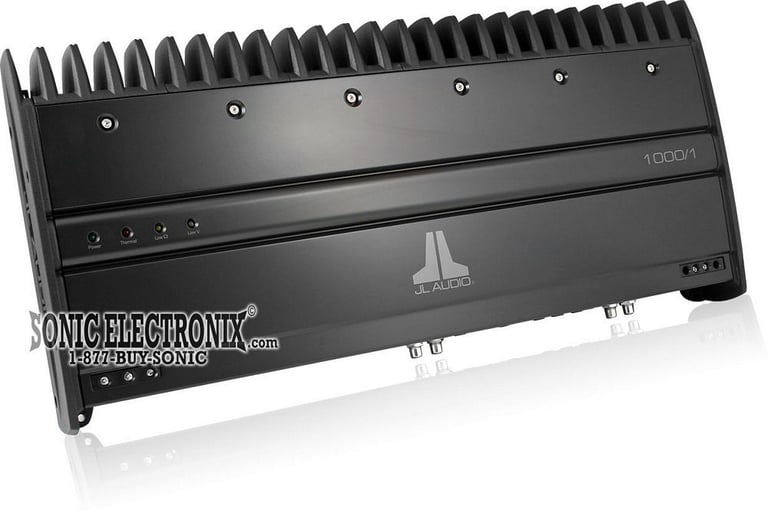

JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B Image 1 — JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B

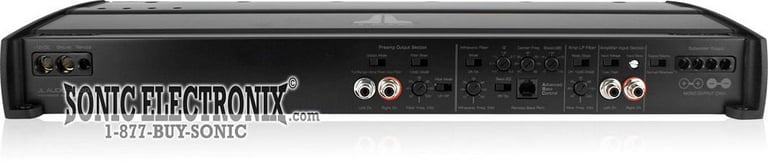

JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B Image 2 — JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B

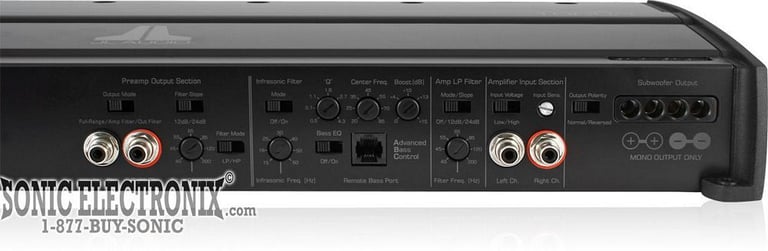

JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B Image 3 — JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B

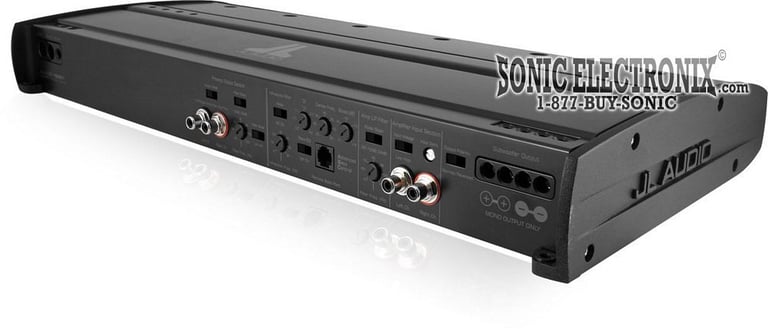

JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B Image 4 — JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B

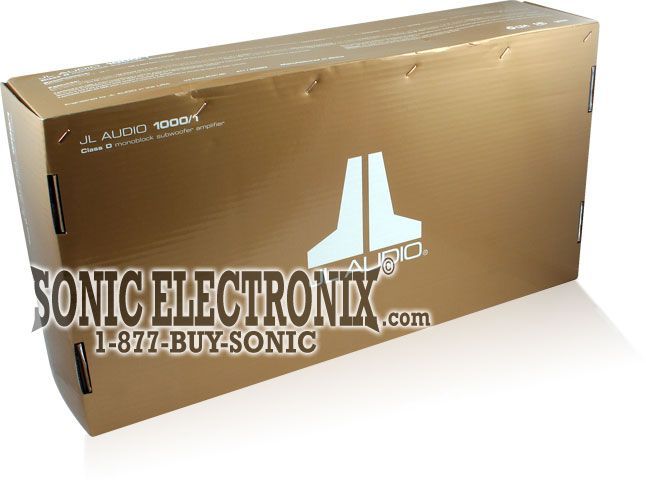

JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B Image 5 — JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B

JL Audio 1000/1 (BLACK SPECIAL EDITION) R/B-video

Product videos

Product highlights

1000 watts, MonoBlock Class D Amplifier

Learn more about the LS-jl10001-black-RB

Product Highlights

1000 watts, MonoBlock Class D Amplifier

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

1 pair of Differential-Balanced Inputs
Fully variable on-board crossover: (40Hz - 200Hz), selectable-slope LP (12 or 24 dB per octave)
2-channel Preamp Outputs: independent active filter, parallel with amp filter or full-range
Bass EQ that is parametric with variable bass boost up to 15dB and you can use a Remote Bass Control (optional RBC-1)
Fully variable Infrasonic Filter: 24dB/octave from 15-60Hz
Output Polarity Reversal switch allows instant output polarity reversal
Dual mono speaker output connections that accepts up to 8 gauge wire
12 volt and Ground connections accept 4 gauge wire or 2 gauge or 1/0 gauge

Specifications:

Rated Power: 1000 watts RMS at 1.5 ohm - 4 ohm (at 11V-14.5V)
THD at RMS Power: <0.05% @ 4 ohm
S/N Ratio: >95dB below rated power
Frequency Response: 5Hz - 500 Hz
Damping Factor: >500 at 4 ohm /50Hz
Input Range switchable from 200mV-2V RMS
to 800mV-8V RMS
Dimensions: 19.7"L x 9.25"W x 2.36"H

Due to the complexities of installation, previous customer abuse, and improper installation, the JL Audio 1000/1 (BLACK) is now a repair only item whether defective on day 1 or day 365 of ownership.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

1000 watts x 1 channel

RMS Power @ 2 ohms

1000 watts x 1 channel

RMS Power @ 1 ohm

(at 1.5 ohms) 1000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1000 watts

Minimum Impedance Unbridged

1.5 ohm

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

40 - 200 Hz

Low-Pass Crossover Frequency

40 - 200 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio RBC-1

Fuse Rating

100A x 1
