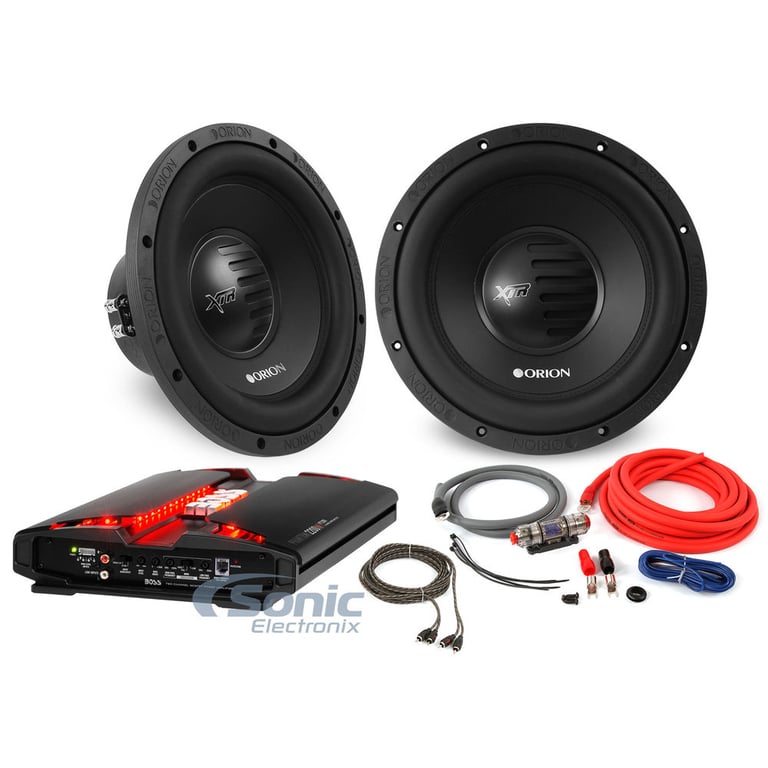

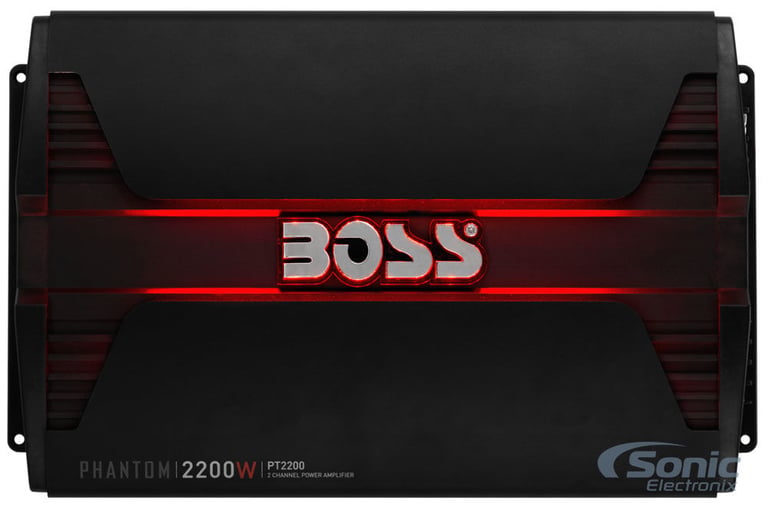

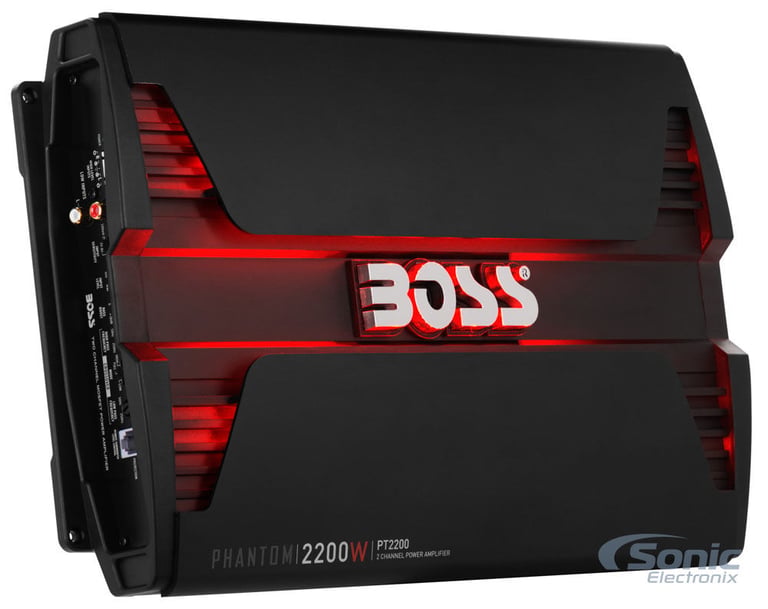

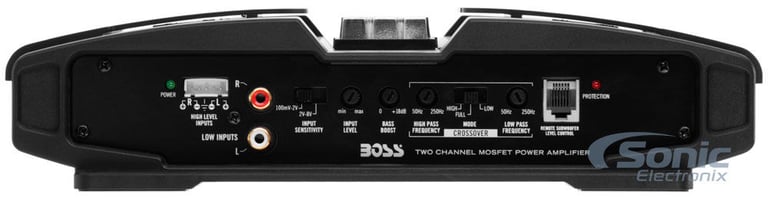

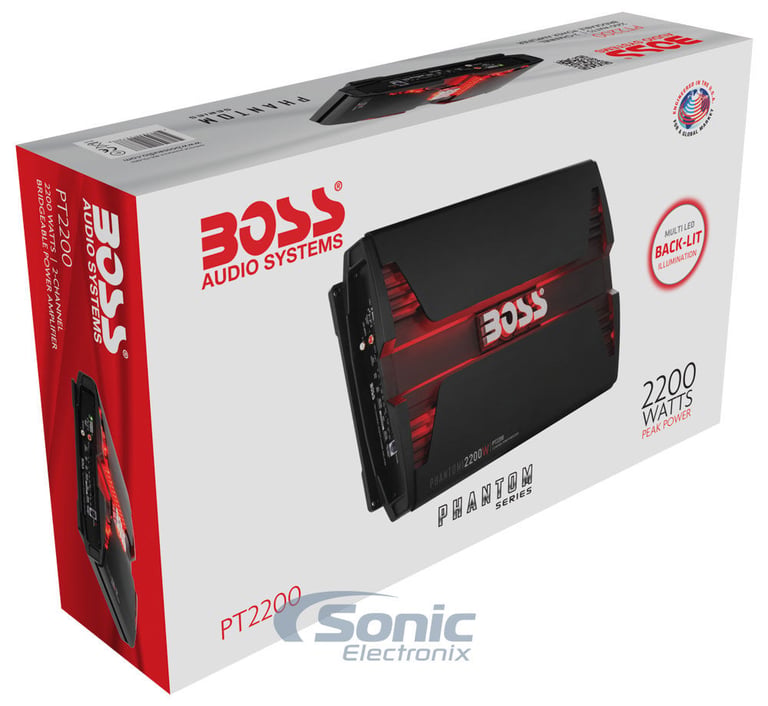

Boss PT2200
2200W 2-Channel Phantom Series Full Range Class AB Amplifier
Quantity: 1
|
General Features:
- Phantom Series 2 Channel Full Range Class AB Amplifier
- RMS Power Rating:
- 4 ohm: 550 watts x 2 chan.
- Peak Power Rating:
- 2 ohm: 1100 watts x 2 chan.
- Bridged, 4 ohm: 2200 watts x 1 chan.
- Pulse Width Modulated MOSFET power supply

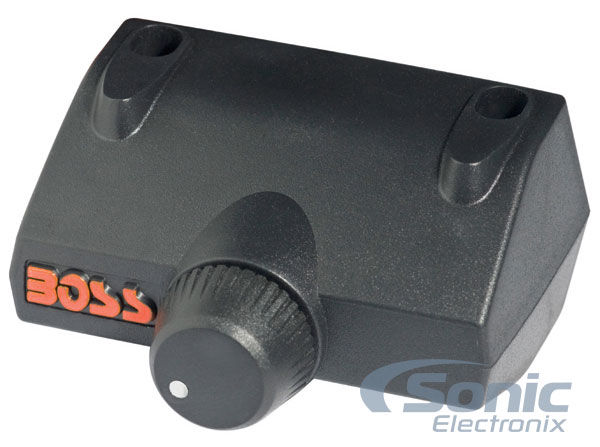

- Wired remote bass level control included
- Soft start turn-on

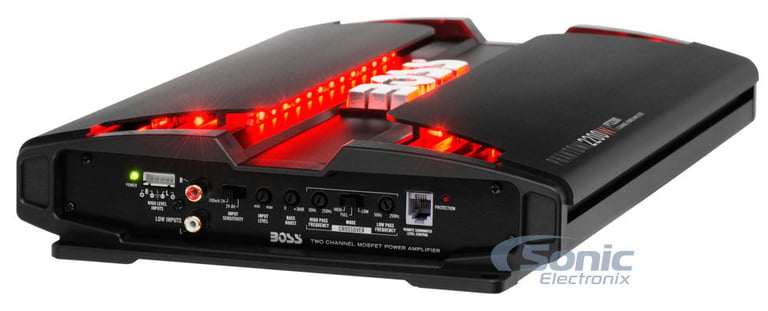

- Speaker-level (high-level) inputs
- Gold-plated RCA low level and high level inputs
- 3-way protection circuitry (thermal, overload, and speaker short protection)

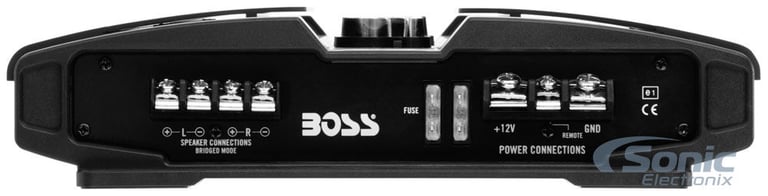

- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty black anodized heat-sink
- Input sensitivity:
- Low level: 2V - 8V
- High level: 100mV - 2V
- Frequency Response: 9 - 50,000 Hz
- Total Harmonic Distortion (THD): 0.01%
- Signal to Noise Ration: 103 dB
- Channel Separation: 90 dB
- Damping Factor: 125+
- Variable Bass Boost: 0 to +18dB
- Variable high-pass filter: 50 - 250 Hz
- Variable low-pass filter: 50 - 250 Hz
- Fuse Rating: 25A x 2
- 4 gauge power and ground wiring is recommended for installation.
- Dimensions: 10.31"W x 16.00"L x 2.25"H
- Authorized Internet Dealer
- 1 year Sonic Electronix, and 5 years Manufacturer's warranty
Check out the Boss PT2200 Owner's Manual

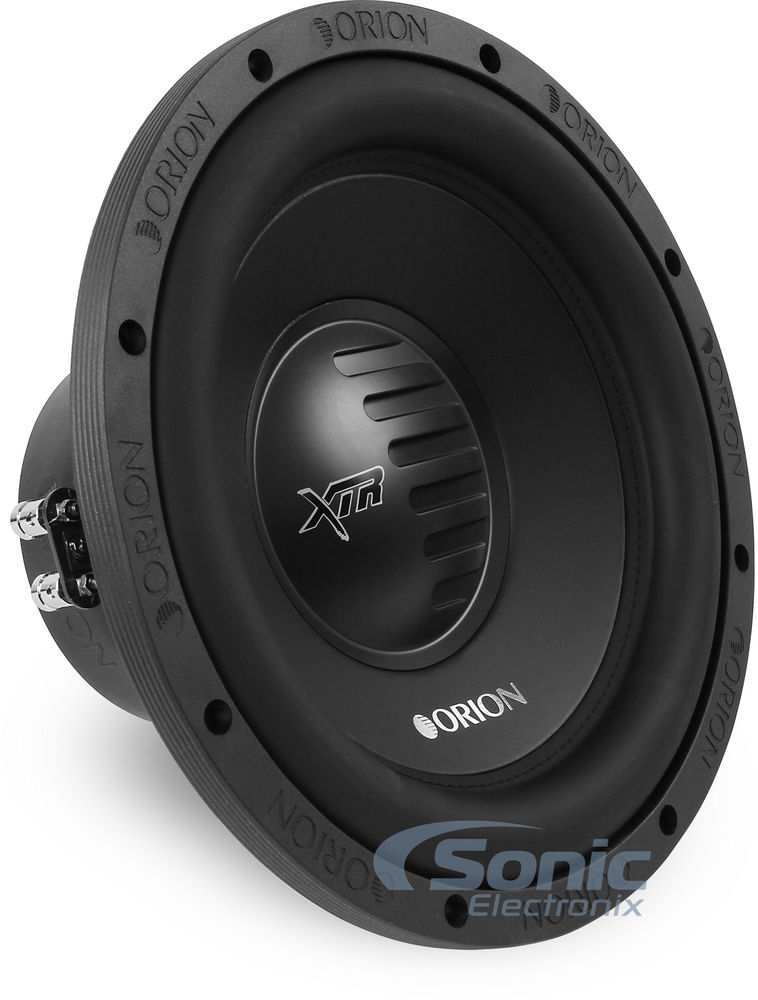

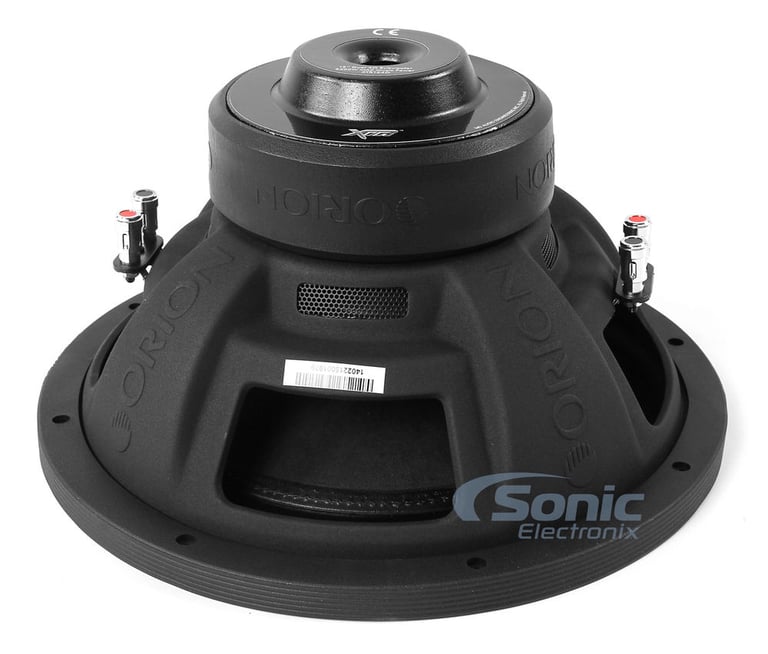

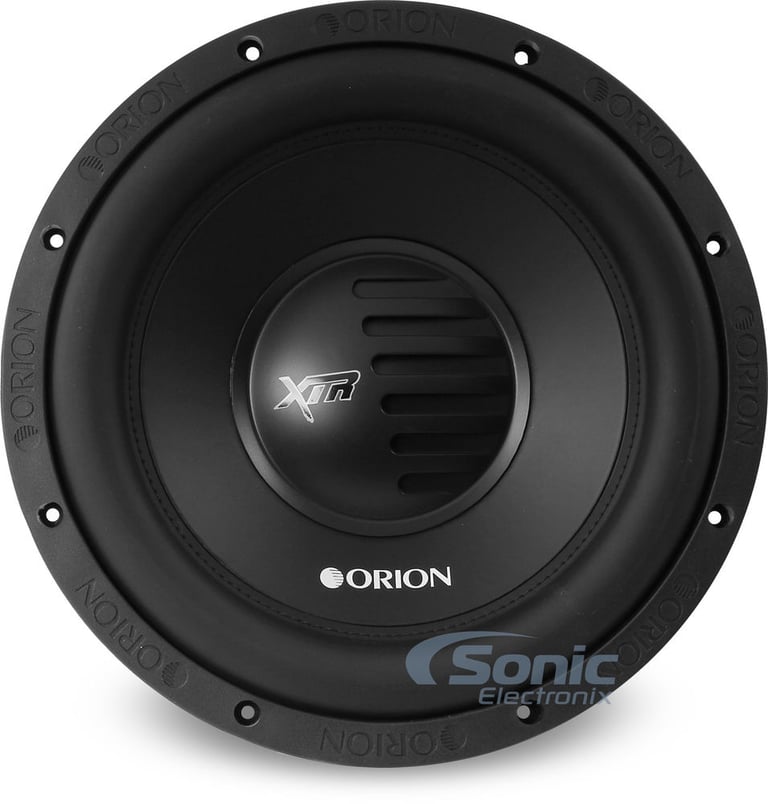

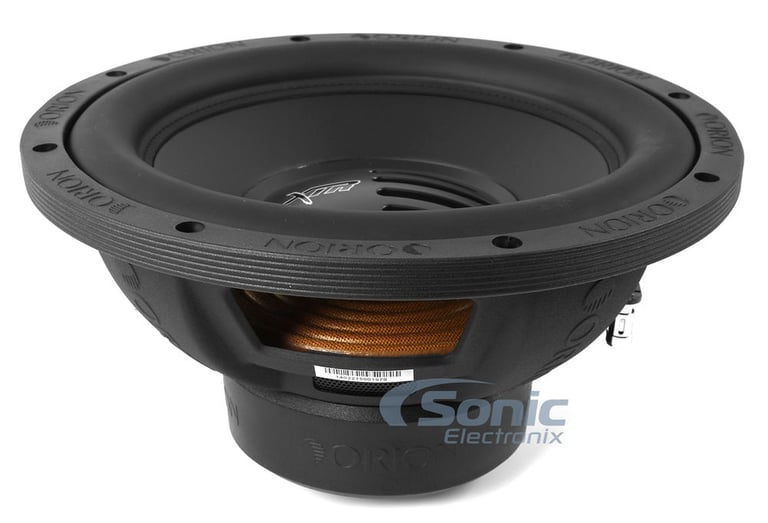

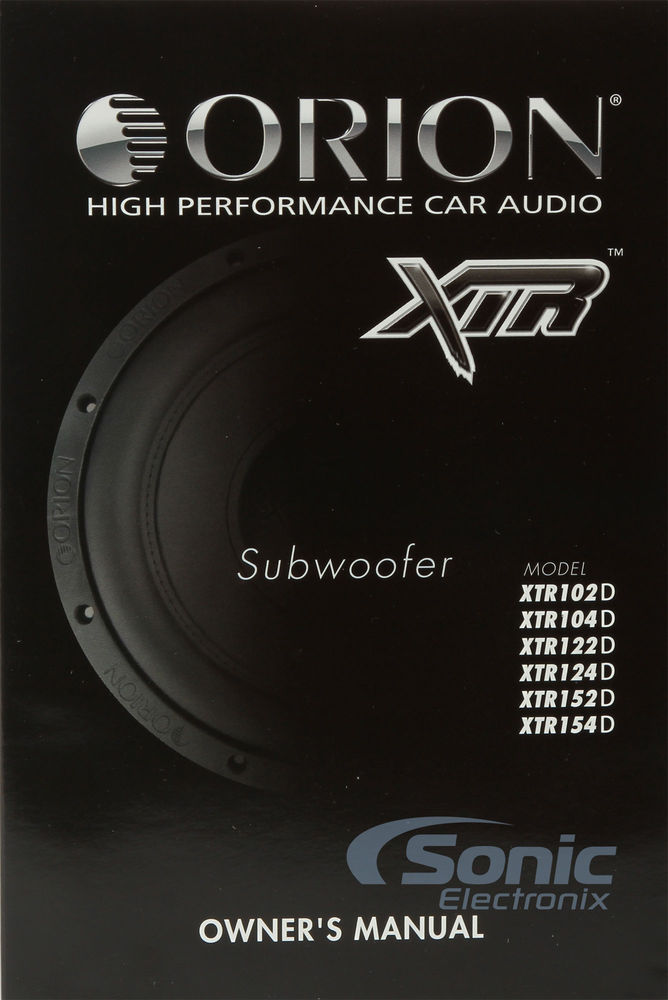

Orion XTR124D
2400W 12" XTR Series Dual 4-ohm Car Subwoofer
Quantity: 2
General Features
- XTR Series Dual 4 ohm Subwoofer
- Power Handling:
- MAX: 4800 watts per pair / 2400 watts each
- RMS: 1200 watts each / 600 watts each
- Polypropylene dust cap - moisture and UV resistant
- Oversized Nitrile-butadiene rubber surround
- Paper woofer cone
- Custom stamp steel frame
- Kapton voice coil former
- TT steel front plate
- Large ceramic magnets
- Steel back plate/pole piece T yoke assembly
- 1.125" bottom end vent
- PVC magnet protector
- High temperature copper dual voice coil
- Interlaced conex spider with stitched and looped tinsel leads
- PVC trim ring decor

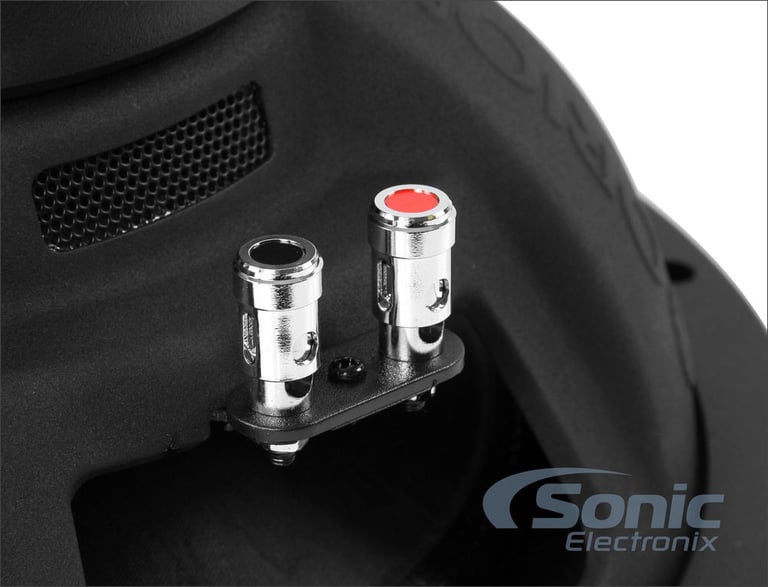

- Spring loaded push terminals
- Frequency response: 20 - 250 Hz
- Sensitivity: 87.27 dB
- Xmax: 12.075 mm
- Top-Mount Depth: 6.22"
- Cutout Diameter: 10.91"
- Driver Displacement: 0.077 ft³
- Recommended sealed enclosure: 1.50 ft³
- Recommended ported enclosure: 1.50 ft³
- 1-year Sonic Electronix Warranty
TruConnex TC4KIT-4B by Metra
4 Gauge Full Spec CCA Amplifier Wiring Kit for Systems up to 650 Watts
Quantity: 1
General Features:
- 4 gauge Power Amplifier Installation Kit
- Designed specifically for car audio systems up to 650 watts
- Premium power and ground wire provides optimal power transfer
- Terminals are Nickel-plated for excellent signal transfer
- ANL Fuse holder offers ideal protection
- True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Package Includes:

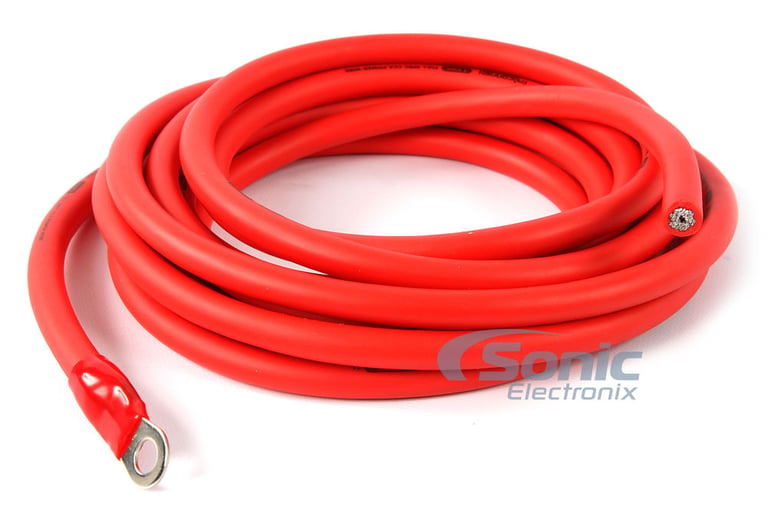

- 17 ft. of 4 AWG Red power cable

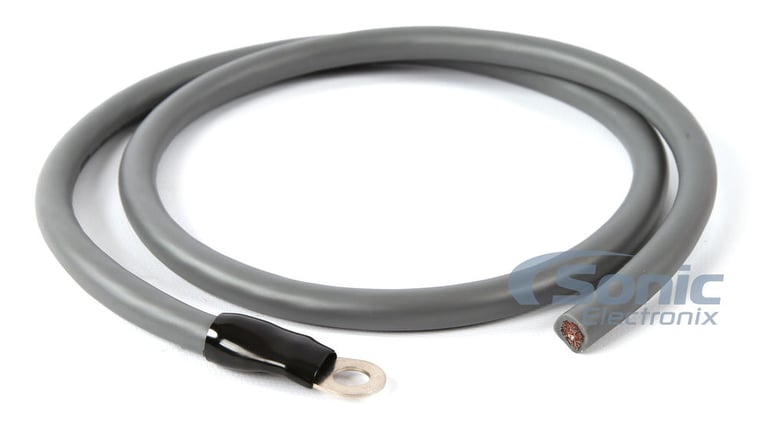

- 3 ft. of 4 AWG Gray ground cable

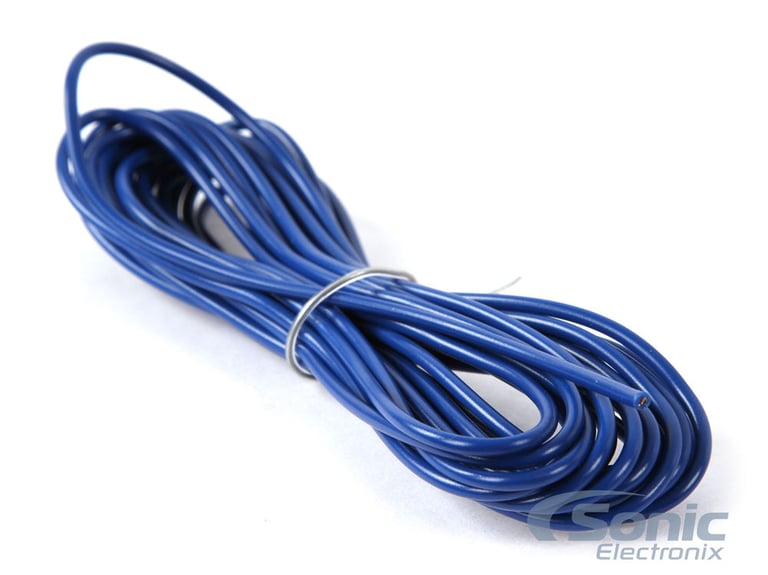

- 17 ft. of Blue remote turn-on wire

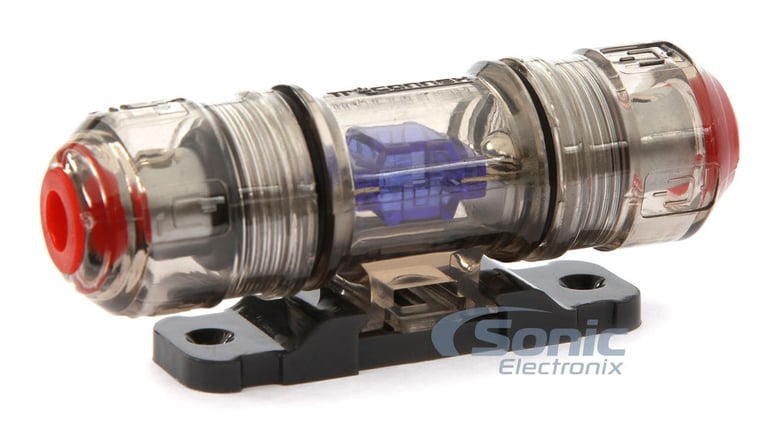

- In-line mini ANL fuseholder
- 60 Amp ANL fuse

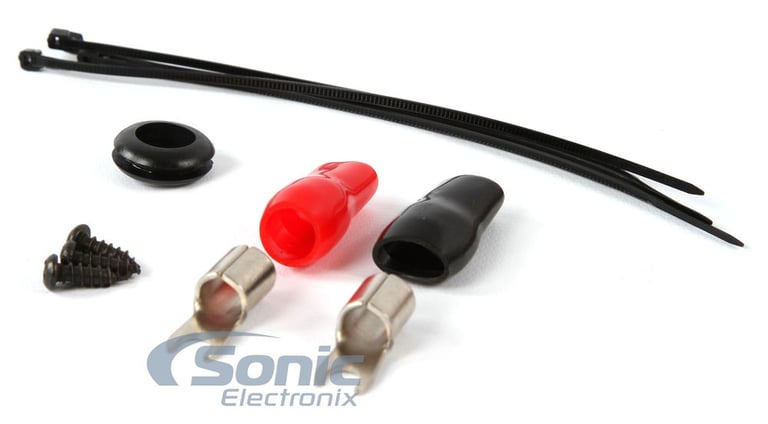

- Ring Terminals
- Ground Terminals
- Vinyl Cable Ties
- Screws
- Spade Terminals
- Grommets

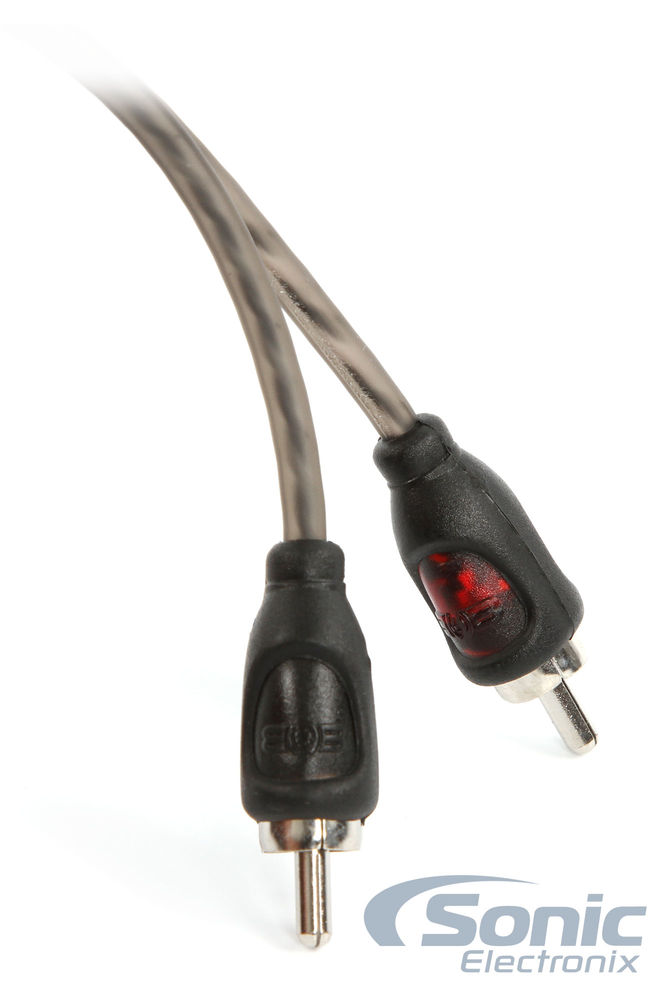

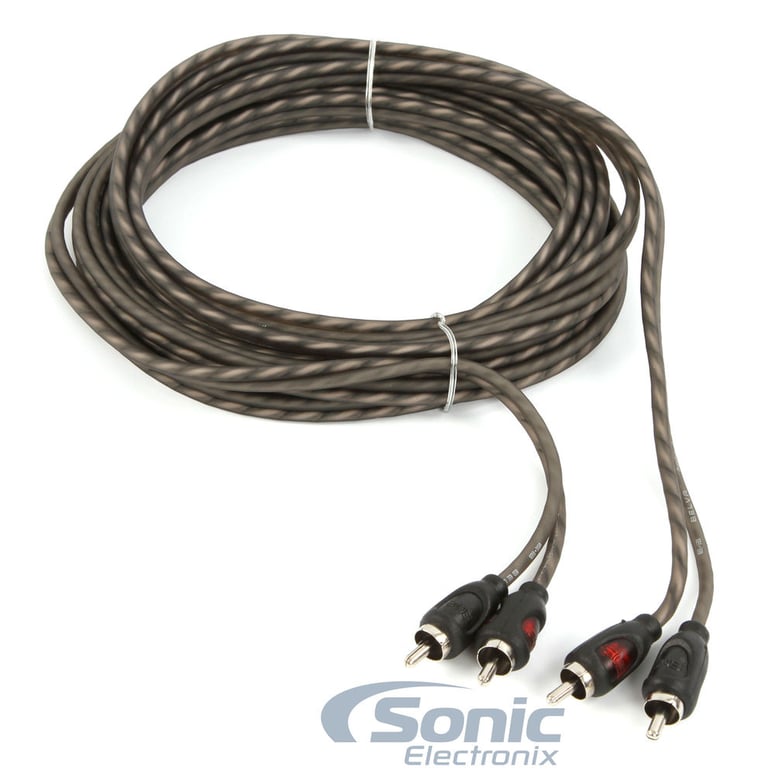

Belva BBIC5
5m (16.4 Ft) 2-Channel RCA Audio Interconnect Cable (CCA)
Quantity: 1
General Features:
- Audio Interconnect Cable (CCA)
- 2-Channel RCA, perfect for stacking, strapping or connecting amps
- Helical Twist construction minimizes noise and interference
- Patented high tolerance compact machined metal end
- Packed in resealable bag
- Length: 5m (16.4 feet)
- Also available in 9.8 Ft.
- Authorized Internet Dealer
- 1-year Sonic Electronix Warranty
