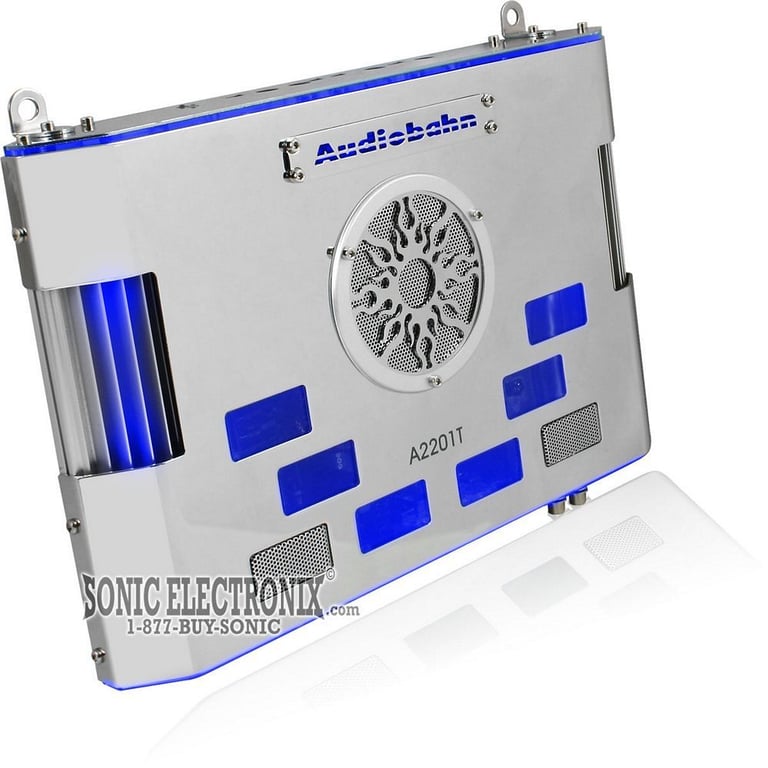

Audiobahn A2201T

280W Max, Class A/B 2-Channel Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

2-Channel Class A/B Amplifier with Cobalt Blue Illumination and chrome finish • 280W Max Power Output • 140W RMS @ 2 ohm • 100W RMS @ 4 ohm • Digital LCD Voltmeter Display • Cooling Fan • Preamp Outputs

Learn more about the a2201t

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
51KSS504 main

Kicker KSS5 (51KSS504)

400W Peak (200W RMS) 5.25" KS Series 2 Way Component 4-ohm Speaker System

2
-10.71%

$249.99

List price $279.99

Product Highlights


2-Channel Class A/B Amplifier with Cobalt Blue Illumination and chrome finish • 280W Max Power Output • 140W RMS @ 2 ohm • 100W RMS @ 4 ohm • Digital LCD Voltmeter Display • Cooling Fan • Preamp Outputs

Description


  • 280W Max, Class A/B 2-Channel Car Amplifier
  • RMS Power Rating:
    • 50 watts x 2 chan. @ 4 ohm
    • 70 watts x 2 chan. @ 2 ohm
    • 140 watts x 1 chan. @ 4 ohm Bridged
  • Max Power Output: 280 watts @ 2 ohm stereo or 4 ohm bridged
  • Full MOSFET Power Supply with Soft Start Class A/B Circuitry
  • Preamp Outputs
  • Cobalt Blue Illumination (on/off switch for your preference)
    • Circuit Board, Heat Sink, Audiobahn Name Plate, Volt-meter and End Caps illuminate
  • Cobalt Blue Digital Volt-meter Display
  • Clipping Blue LED Indicators under the volt-meter display
  • Cooling Fan
  • Chrome Flame Cooling Fan Grill Cover Included (other optional designs available and sold separately)
  • Double Sided Glass Epoxy Circuit Board
  • High Gloss Chrome Plated Finish
  • Nickel Plated Block Terminals
  • 3-way Protection Circuitry: Thermal, Short Circuit and Overload
  • High quality Bipolar Audio Stage
  • On/Off Bass Boost Setting: 0 or +18dB
  • Variable High-Pass Crossover: 50-750Hz
  • Variable Low-Pass Crossover: 50-120Hz
  • Variable Subsonic Filter: 20-50Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • THD: 0.02%
  • Phase Control: 0 or 180°
  • 10- or 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 8-1/4" L x 12-3/4" W x 2-1/4" H
  • 1-year SonicElectronix.com warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-500.2 PRO small

Deaf Bonce Apocalypse ATOM-500.2 PRO

• 231 watts x 2 channel @ 4 ohm
• 390 watts x 2 channel @ 2 ohm
• 500 watts x 2 channel @ 1 ohm
• Bridged: 780 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 500 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$189.90

List price $189.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 2 channel
RMS Power @ 2 ohms
70 watts x 2 channel
Bridged RMS Power
140 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
280 watts
Total RMS Power Output
140 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
On/Off Switch (0 or +18dB)
Remote bass/level controller
No
Fuse Rating
20A x 1

Item Details


Manufacturer:

Model Number:

A2201T

Weight:

10.00lbs

Internal SKU:

a2201t

Internal Product ID:

9954
