Name: Belva BB5000D (Factory Refurbished)
Brand: Belva
SKU: LS-bb5000d-RB
Price: 199.99 USD
Availability: Discontinued
Rating: 4.6667 (3 reviews)

Shop all Belva

by Belva

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

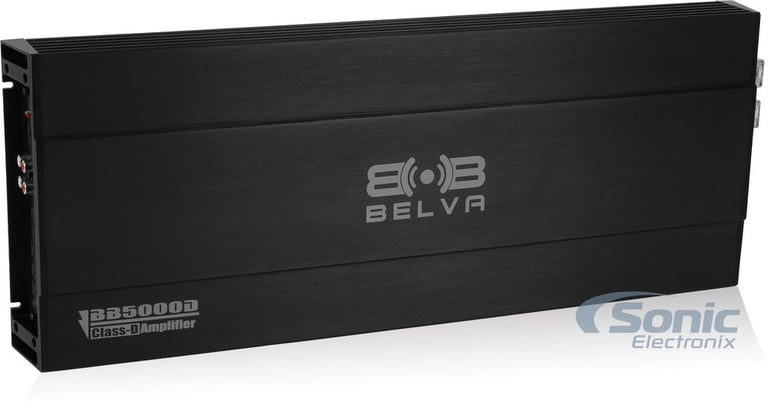

Belva BB5000D (Factory Refurbished) Image 1 — Belva BB5000D (Factory Refurbished)

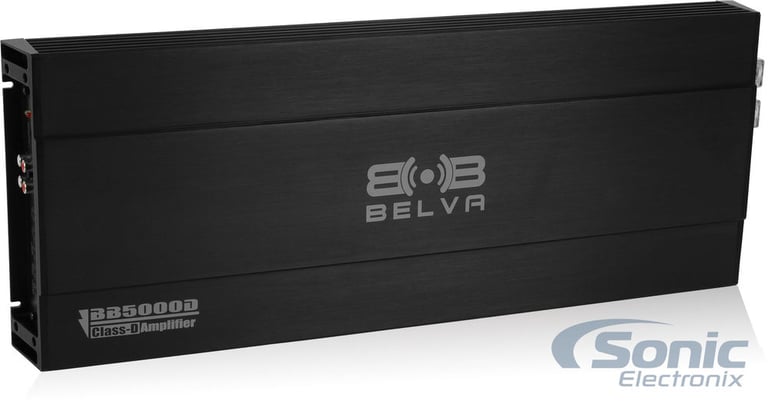

Belva BB5000D (Factory Refurbished) Image 2 — Belva BB5000D (Factory Refurbished)

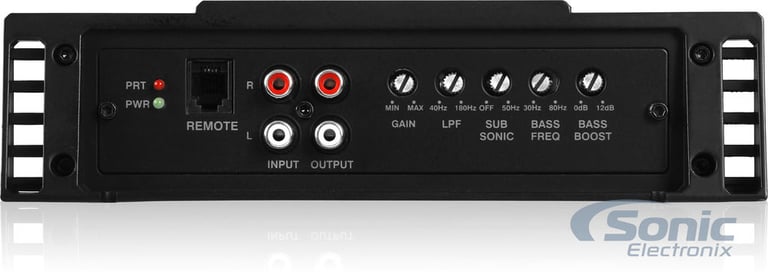

Belva BB5000D (Factory Refurbished) Image 3 — Belva BB5000D (Factory Refurbished)

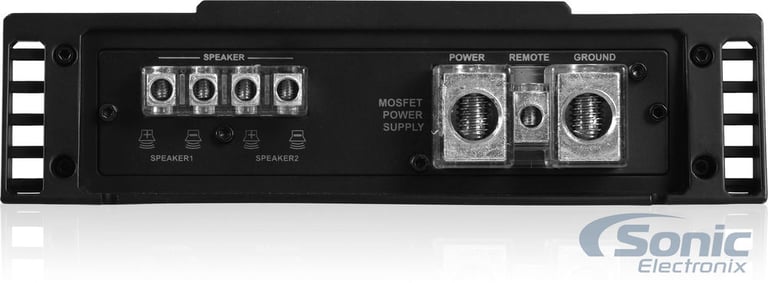

Belva BB5000D (Factory Refurbished) Image 4 — Belva BB5000D (Factory Refurbished)

Belva BB5000D (Factory Refurbished)-video

Product videos

Product highlights

• RMS: 1200W x 1 @ 4 ohm, 1800W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Total Peak Power: 5000W
• 1 Pair of Preamp Outputs
• Bass Boost 0-12 dB from 30-80 Hz
• Subsonic Filter from 20-50 Hz
• Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H

Learn more about the LS-bb5000d-RB

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

BB Series

The BB Series by Belva are designed to get loud! These monoblock beasts are exceptional performance amps engineered to output maximum power. If you need an amplifier that can output heavy power levels without a problem, the Belva BB Series monoblock amplifiers are right for you!

These amplifiers are built with a high quality, organized circuit board. Every amplifier in the BB Series has high power output. The BB5000D is capable of outputting 3000 watts of RMS power. This amount of power is sure to be able to adequately supply most subwoofer systems with the proper amount of wattage. Belva amplifiers will keep your woofers pumping out deep bass with honest sound reproduction and reduced distortion.

Note: *Factory Refurbished to Like New Condition.

General Features:

BB Series Monoblock Class D Car Amplifier
RMS Power Rating:

4 ohm: 1200 watts x 1 chan.
2 ohm: 1800 watts x 1 chan.
1 ohm: 3000 watts x 1 chan.

Max power output: 5000 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Low level: 100mV-6mV

Variable low-pass filter (40-180 Hz, 12 dB/octave)
Subsonic filter (12 dB variable from 20Hz - 50 Hz)
Frequency response: 20-30,000 Hz
200-240 Amp in-line fuse required, see our selection of recommended fuse holders
Depending on operating impedance, 1/0 or 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H
Authorized Internet Dealer
90 Day Sonic Electronix Warranty

Note: Internal fuses are not included, so an external 200-240 Amp ANL Fuse (sold seperately) is required to safely operate this amplifier.

*Factory Refurbished items are not tracked individually for the original cause of needing to be refurbished.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1200 watts x 1 channel

RMS Power @ 2 ohms

1800 watts x 1 channel

RMS Power @ 1 ohm

3000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

5000 watts

Total RMS Power Output

3000 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 180 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Strappable

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Belva BB5000D (Factory Refurbished) thumbnail image

Overall rating distribution

5 star		67%
4 star		33%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.7
Value		5
Features		4.4
Design		4.7
Usability		5

Customer Reviews

Sort by:

Puts in work!

Bought 2 of these to push 6 jbl p1222 12s. It will suck the air out of your chest. Have played them really hard and have never been able to get them war. Dont use the recommen2fuses. Use a 300 amp fuse to get full power

By Thor hammer on December 15, 2015

Report abuse

Great amp

I bought this amp to match up with an orion hcca 12 and it pushed it great. I didn't get a chance to clamp it but from what I've read it does about 2500 to 2600 rms witch is not bad for how cheap it is. I bought the factory remanufactured one off e bay and it was a little cheaper. It fried in about a week but sonic electronix was great and let me return it for another one I haven't yet installed it but the old one seemed to do fine and make good power overall I plan to use them again. The amp is big it uses 1/0 inputs it does not over heat like I have read about it I spaced it an inch away from the mounting surface and I ran it full tilt for over an hour and it barely got warm I would recommend this amp is anyone on a budget looking for good power

By Ssaudio on December 13, 2015

Report abuse

How much I Love my amp

I loved it I can't wait till they come out with a 20,000 watt amp

By Adam parker on November 11, 2015

1 found this helpful

Report abuse
