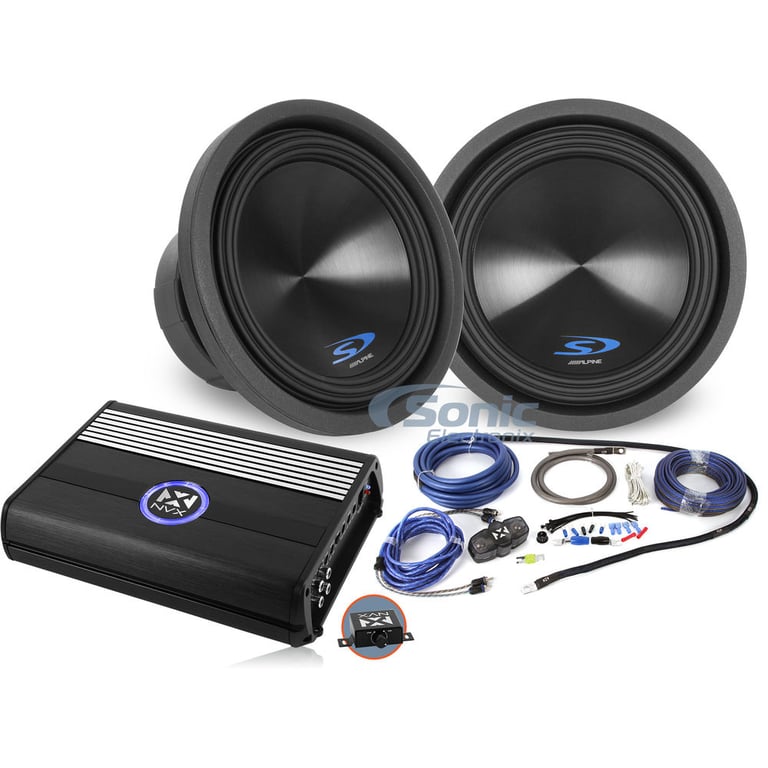

Alpine + NVX 450 Watt RMS Bass Bundle

General Features:

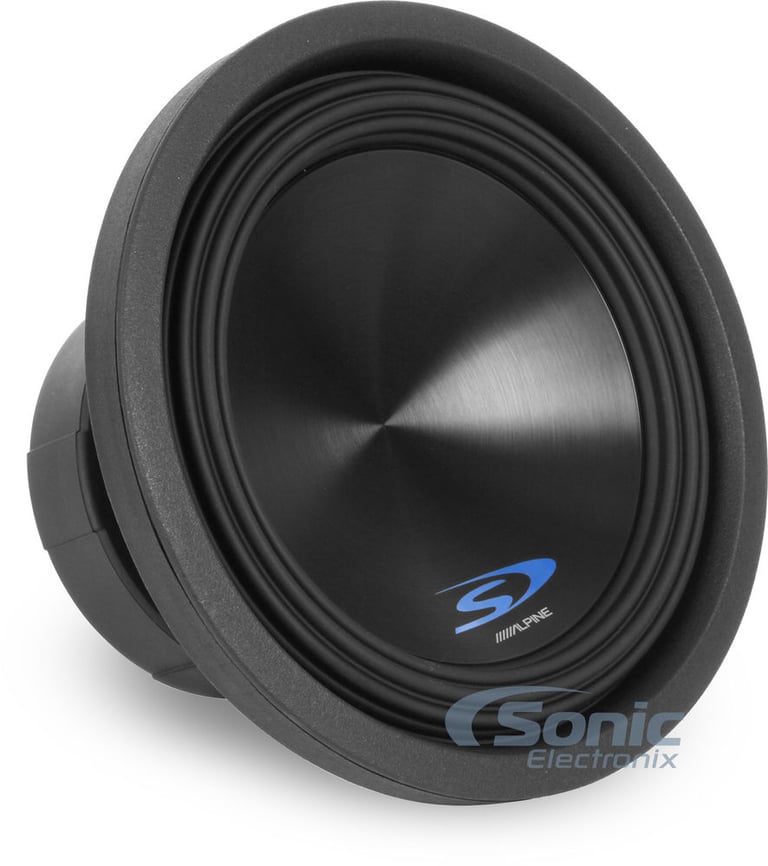

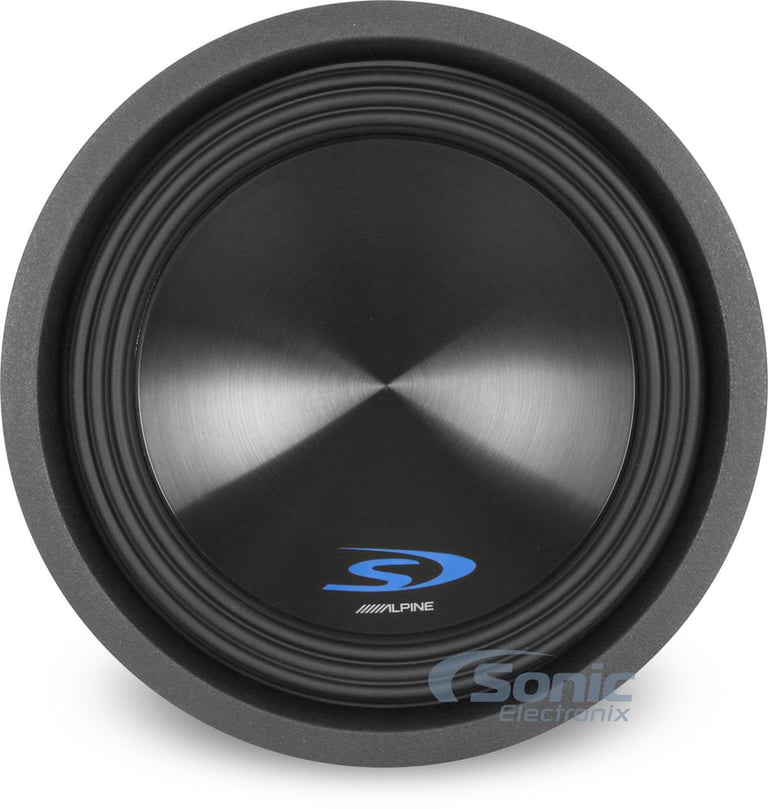

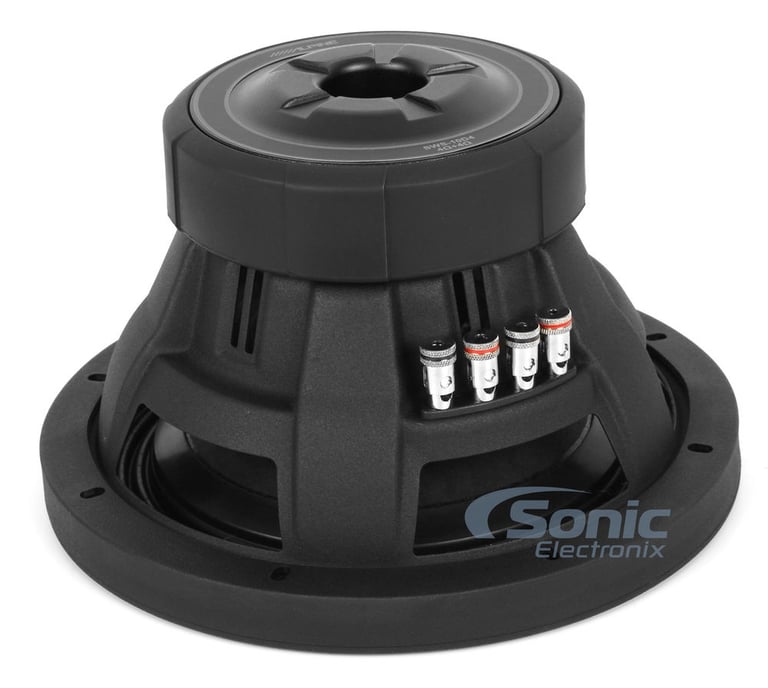

• 10" Dual 4-Ohm Type-S Series Car Subwoofer
• Power Handling:
• Peak: 2000 watts per pair / 1000 watts per driver
• RMS: 300 - 1000 per pair / 150-500 watts per driver
• Impedance: Dual 4 ohm
• Final Impedance: 4 Ohm - Wired in Series/Parallel
• Kevlar reinforced cone
• HAMR performance surround
• Progressive spider for reliable and consistent control
• FEA Optimized Dual-Sided CRC Motor Structure
• CEA-2031 compliant
• 10" Protective 2-Piece Subwoofer Grille Available, sold separately:
• Alpine KTE-10G
• 2.5" Voice Coil
• 64 oz. magnet motor structure
• Frequency response: 28-200 Hz
• Resonance Frequency (Fs): 35 Hz
• Sensitivity: 85.5 dB
• Top-mount depth: 5-9/16"
• 1-year Sonic Electronix Warranty

General Features:

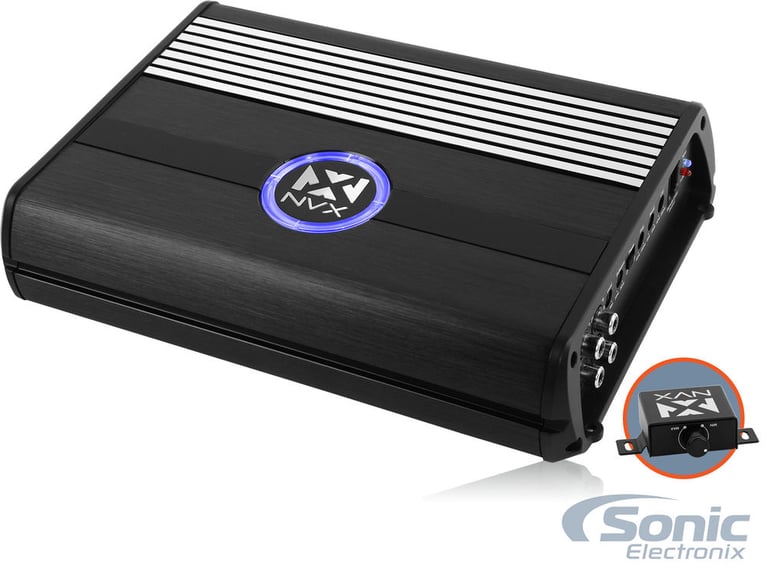

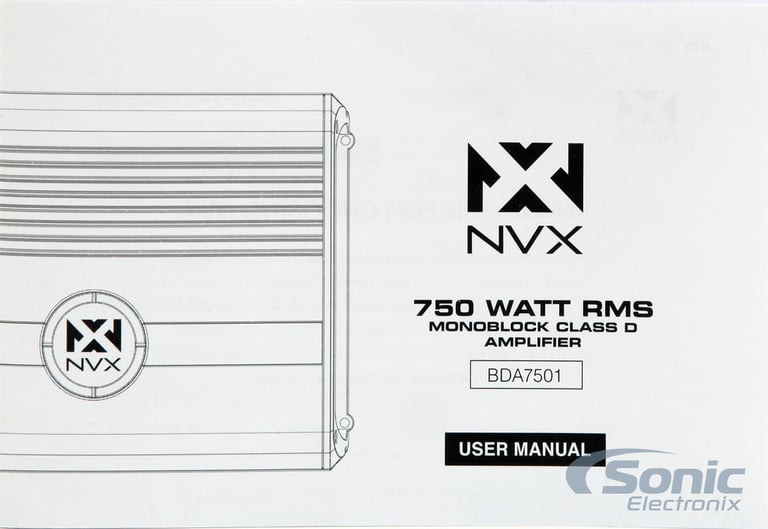

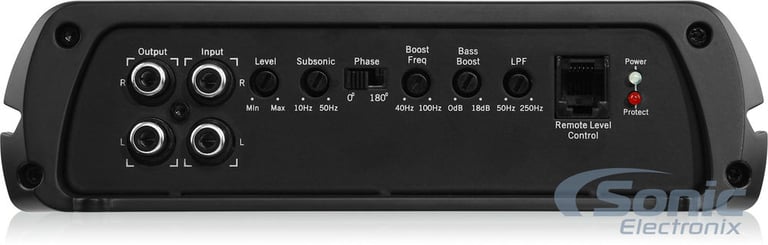

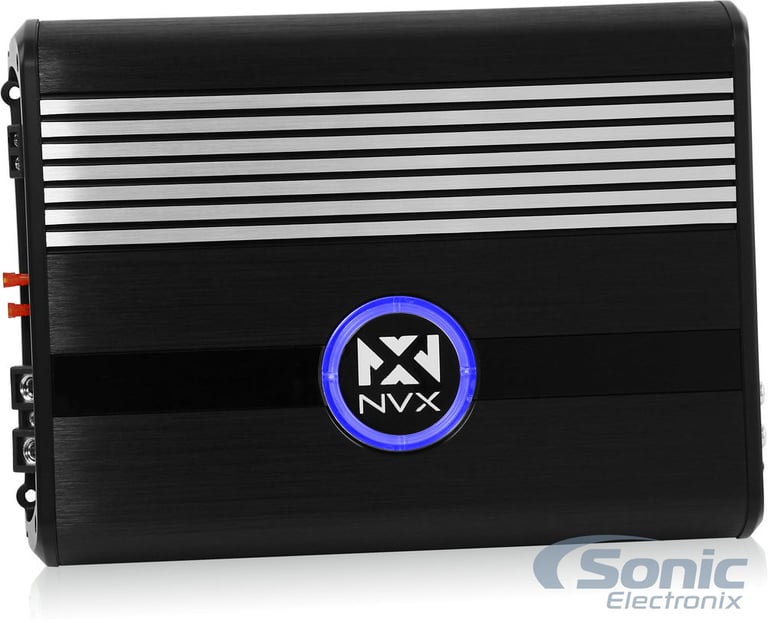

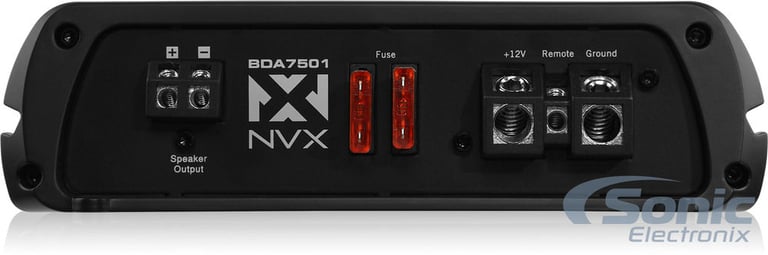

• B.O.O.S.T. Series Monoblock Class D Car Amplifier
• True RMS Power Rating:
• 4 ohm: 450 watts x 1 chan.
• 2 ohm: 750 watts x 1 chan.

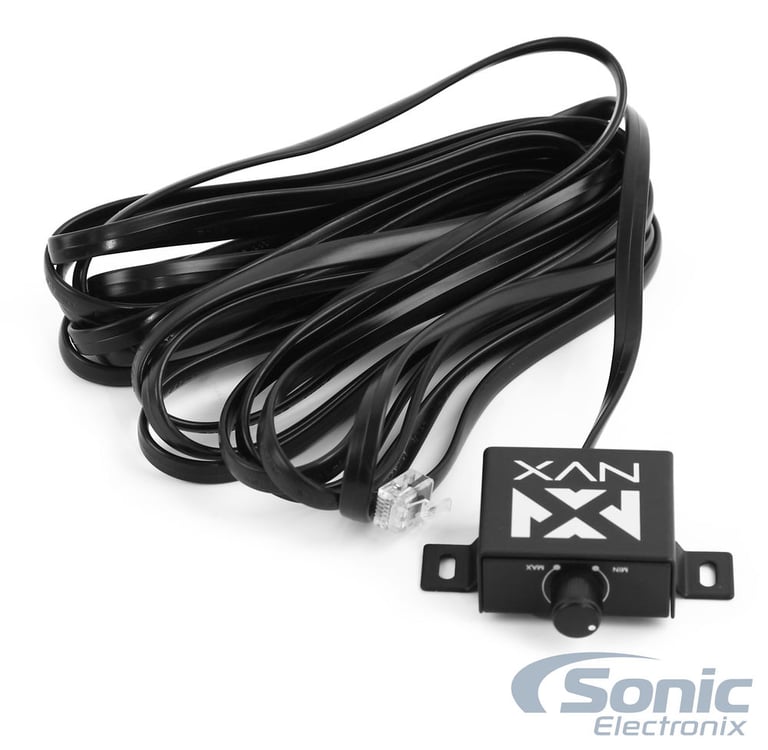

• Wired remote bass level control included
• Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
• Mono channel operation
• Variable low-pass filter (50-250 Hz, 24 dB/octave)
• Subsonic filter (24 dB at 15 Hz)
• Frequency Response: 20-500 Hz
• Signal to Noise Ratio: 90dB
• Input Sensitivity: .25-6.0 V
• High quality platinum finish connections provide solid electrical connection and resist corrosion
• Integrated overload, short circuit, thermal and reverse polarity circuit protection
• 4 gauge power and ground wiring is required for installation
• Dimensions: 7"W x 9.75"L x 2"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

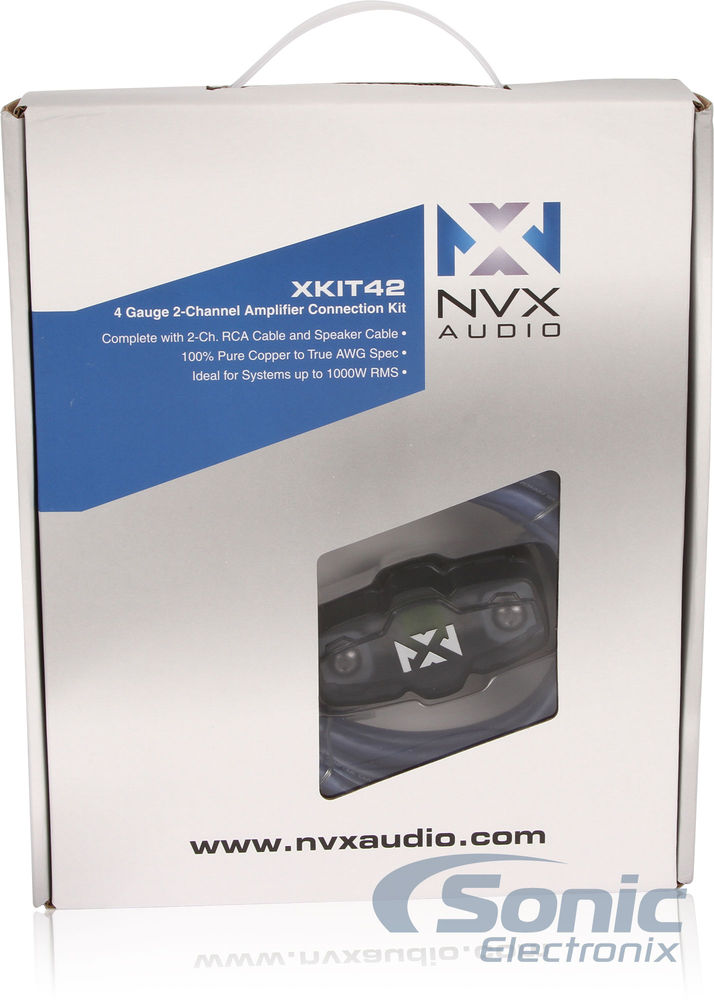

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal

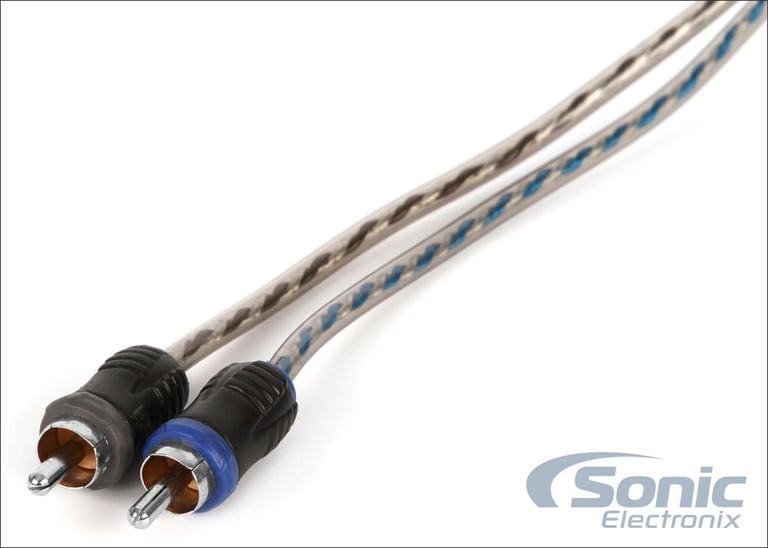

• Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
• Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Strand Count: 1862
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

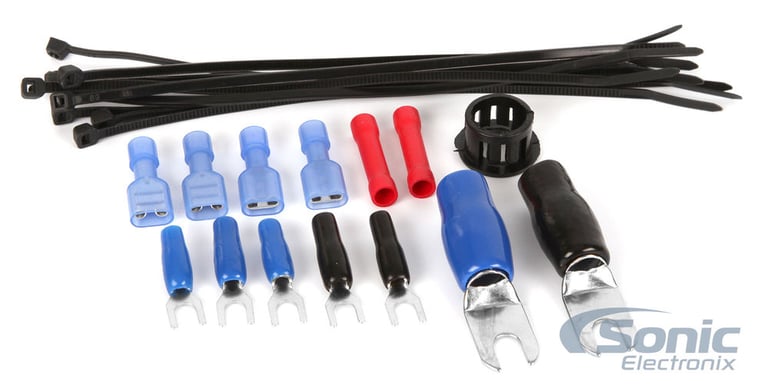

Kit includes:

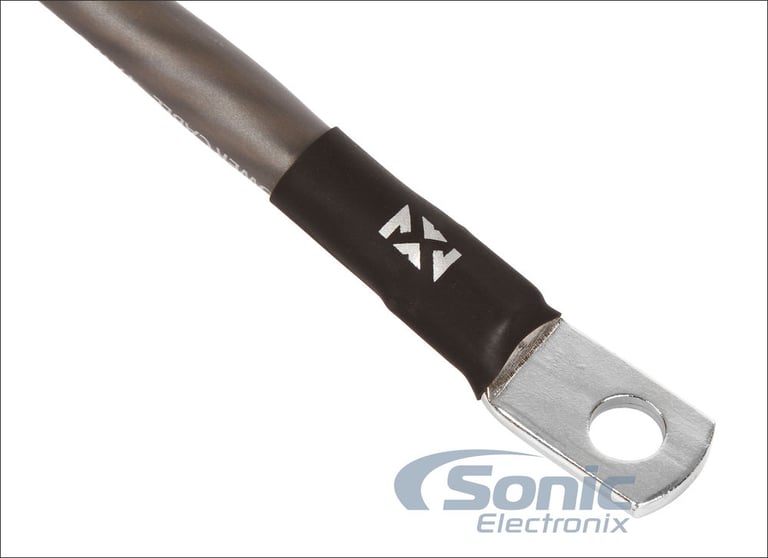

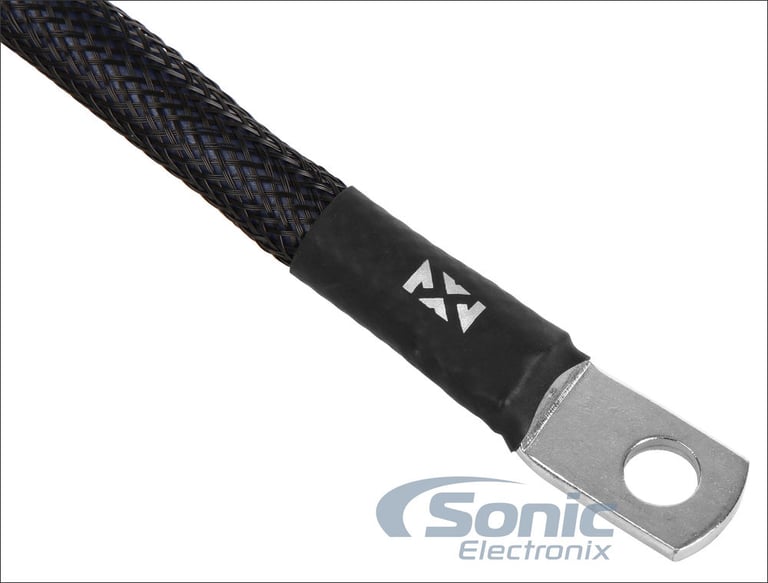

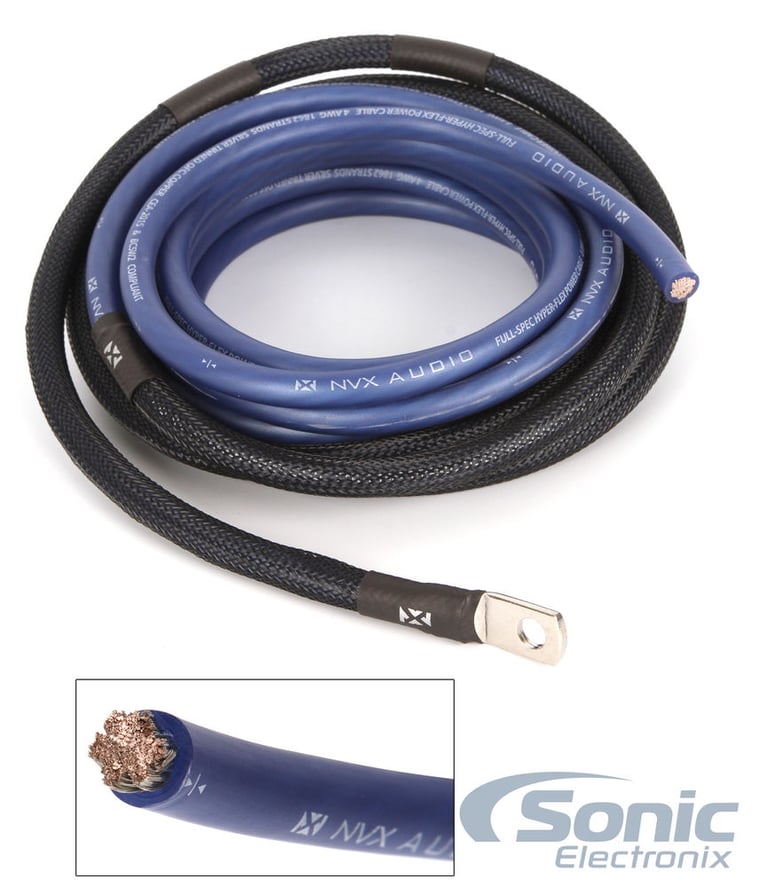

1. 20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal

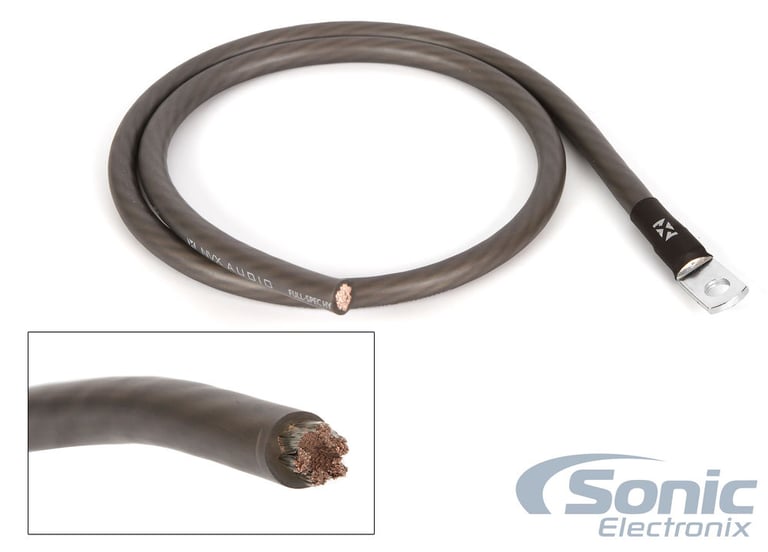

2. 3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal

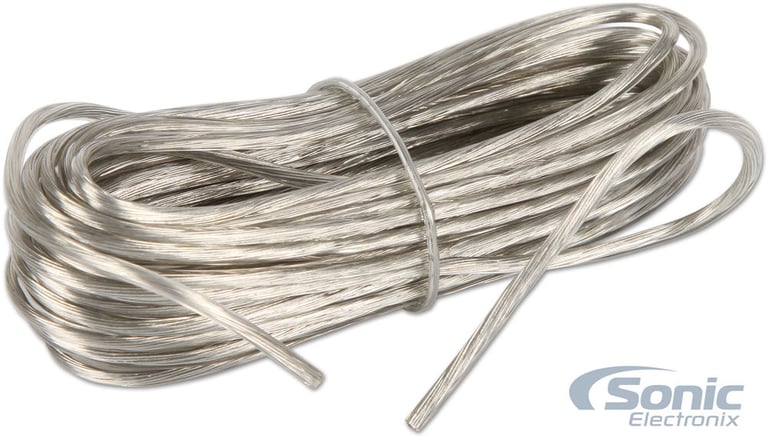

3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

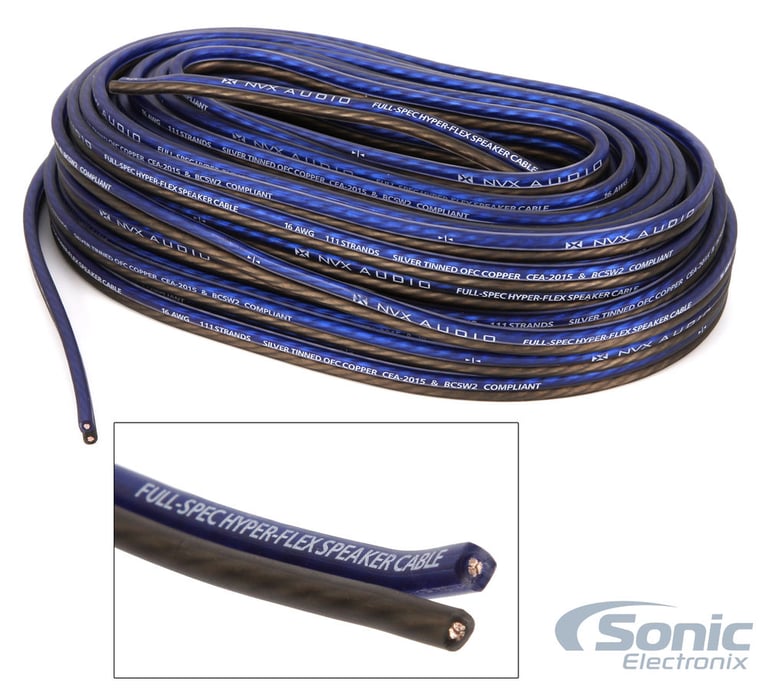

4. 40 ft. (12.2 meters) Frosted Black/Blue 16 gauge speaker wire

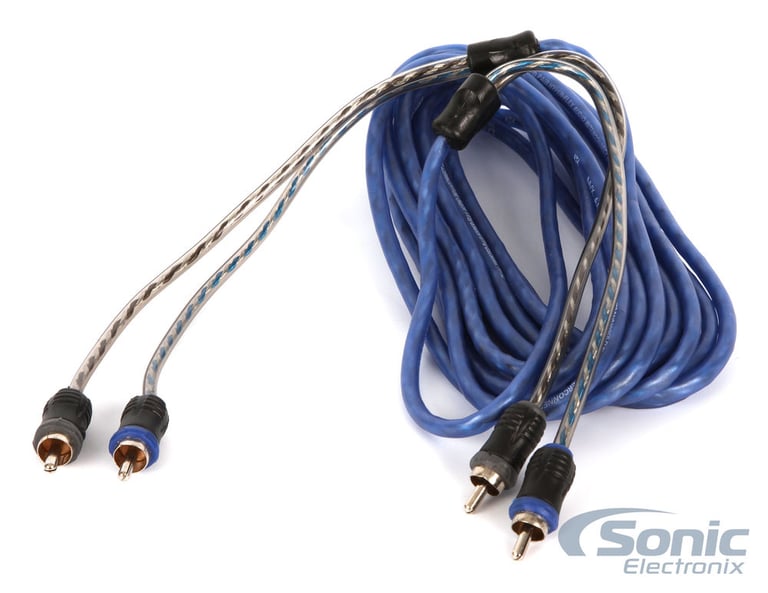

5. One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

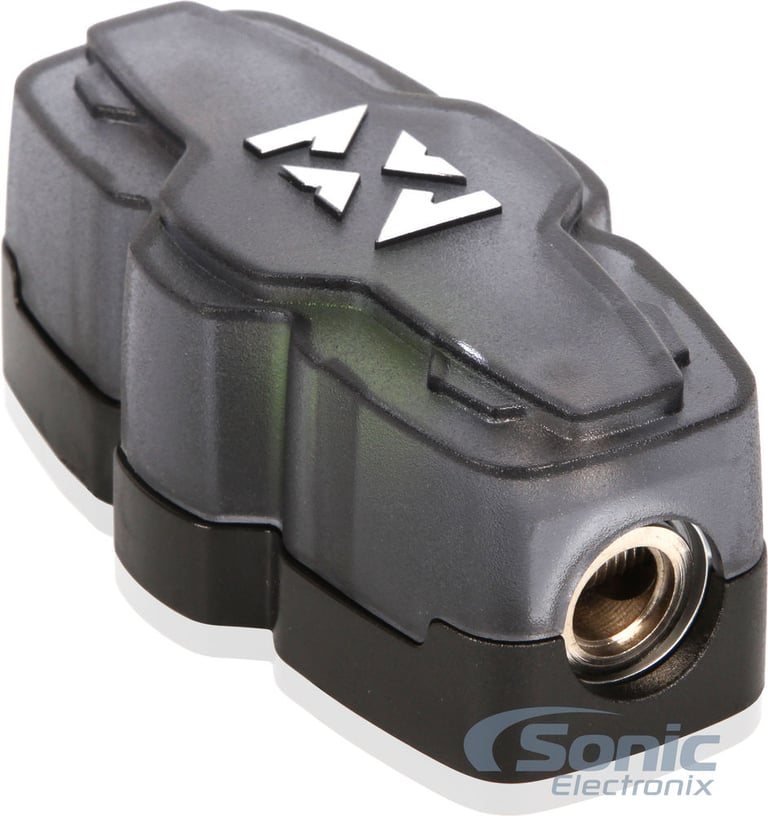

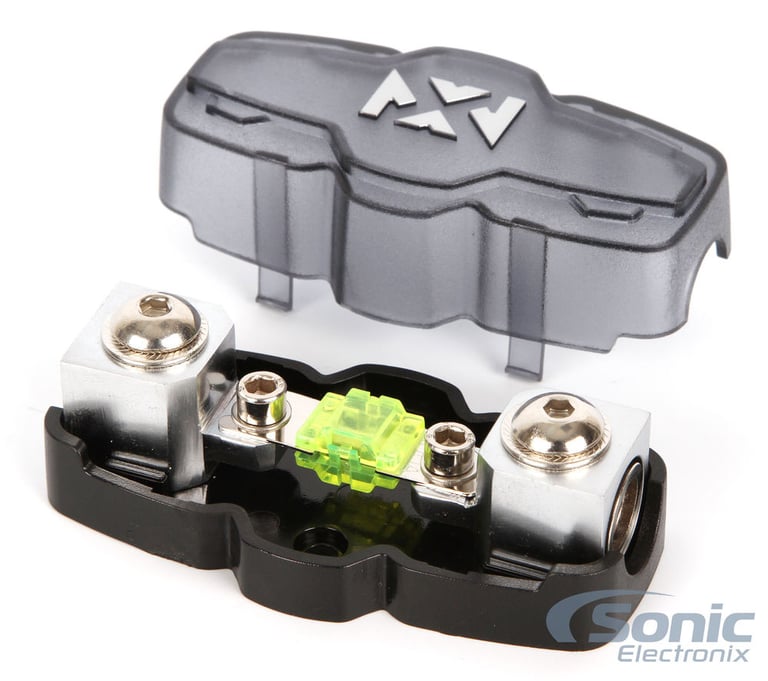

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Ten 6" Black zip ties
