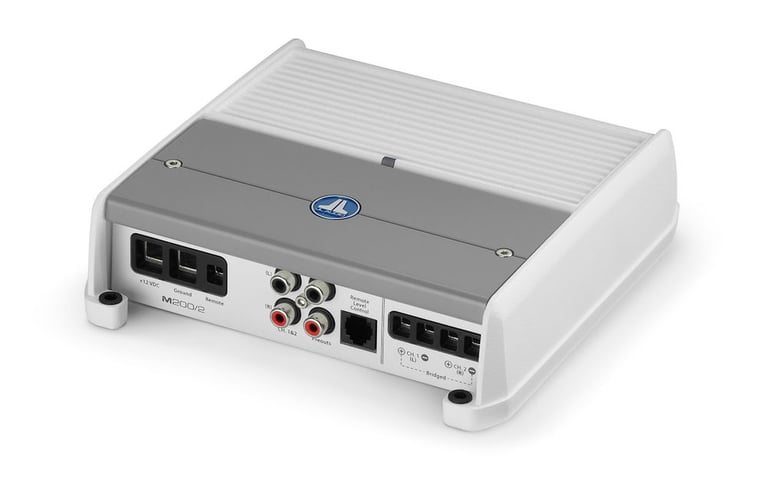

JL Audio M200/2 Image 1 — JL Audio M200/2

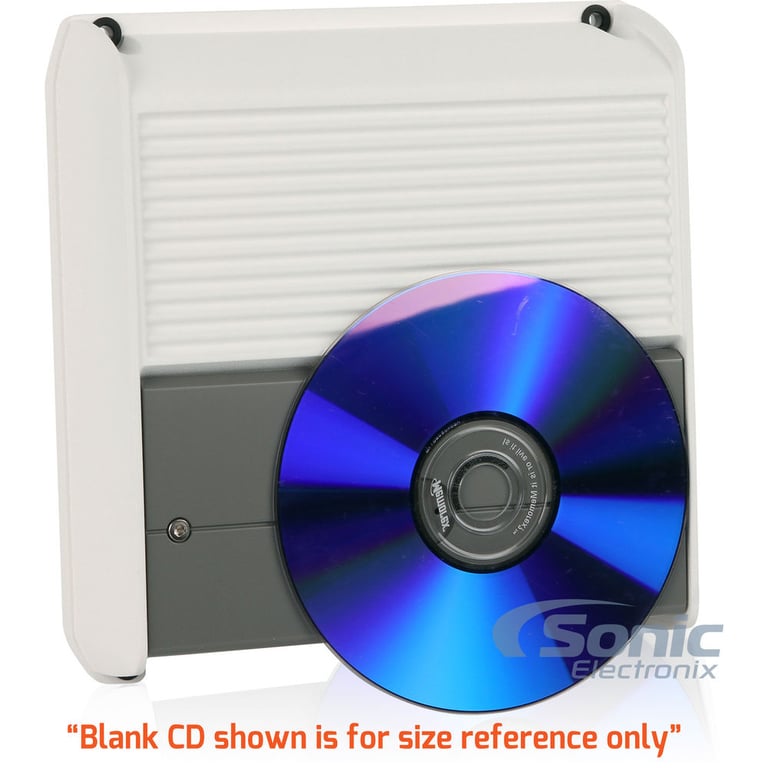

JL Audio M200/2 Image 2 — JL Audio M200/2

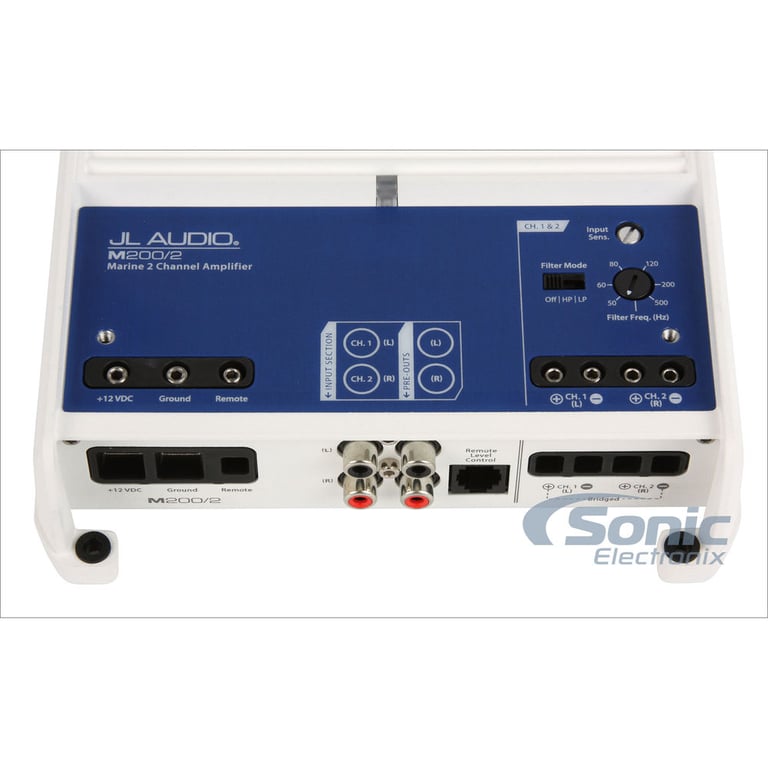

JL Audio M200/2 Image 3 — JL Audio M200/2

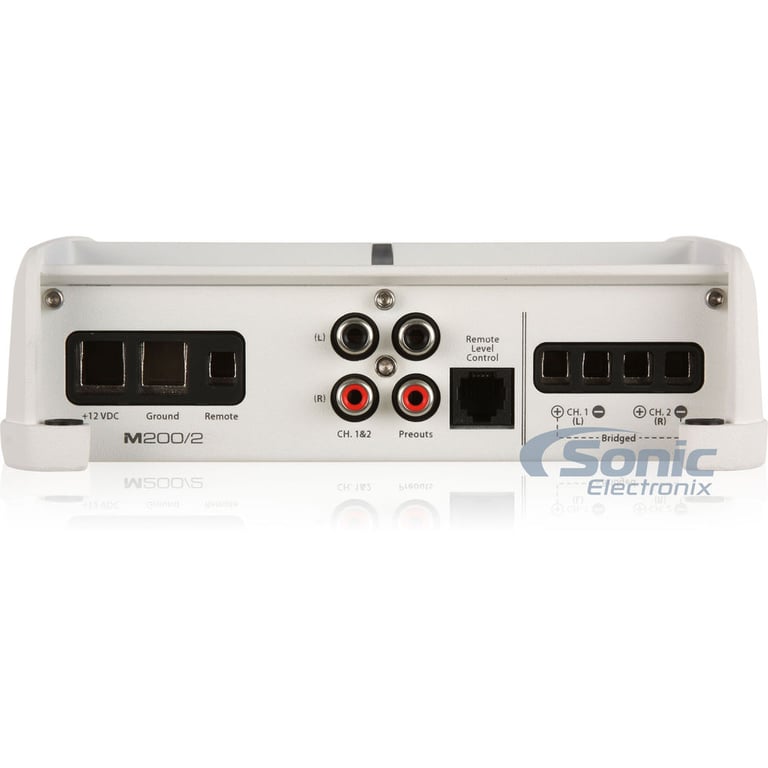

JL Audio M200/2 Image 4 — JL Audio M200/2

JL Audio M200/2 Image 5 — JL Audio M200/2

JL Audio M200/2 Image 6 — JL Audio M200/2

Product videos

Product highlights

• 75 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

Learn more about the m2002

Product Highlights

• 75 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

Description

Authorized dealer

JL Audio M200/2 - M Series 2-Channel Class D Full-Range Amplifier

This potent 2-Channel amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 200W of continuous power into a 4 ohm load (14.4V, 1% THD) Bridged. Targeted specifically for an audiophile-grade subwoofer or two satellite system, the M200/2 includes a variable mode low-pass/high-pass filter with a continuously variable cutoff frequency selection from 50-500 Hz.

With the addition of an HD-RLC remote level control (sold separately), you can control the volume of one, two or all three channel pairs of the M600/6v2 from the front of the vehicle or boat. This amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.

NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD amplifiers and channels feature a variable, ultra-high speed version of the NexD technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

Product Details:

M Series Class D 2 ohm Stable 2-Channel Marine Amplifier
RMS Power Rating:

4 ohm: 75 watts x 2 channel
2 ohm: 100 watts x 2 channel
Bridged: 200 watts x 1 channel @ 4 ohm

Total power output: 200 watts
Wired bass level remote control with optional JL Audio HD-RLC
Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
Signal sensing remote turn-on
Protection Circuitry with Status LED
Single Cycle Control technology
Differential-balanced inputs help eliminate noise
Two mounting options plus a space-saving stacking feature
Advanced Rollback Protection System prevents thermal shut-down
Water-resistance rating IPX2 chassis: white and gray powder-coat finishes, gasketed control cover, and stainless steel hardware
Input sensitivity:

Low level: 100mV - 4 volts

Frequency Response: 12 - 22000 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: >104 dB
Variable high-pass filter: 50 - 500 Hz
Variable low-pass filter: 50 - 500 Hz
Fuse Rating: 20A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 7-1/8" L x 6-7/8" W x 2" H
Authorized Internet Dealer
2 Year Manufacturer's Warranty
MFR #: M200/2

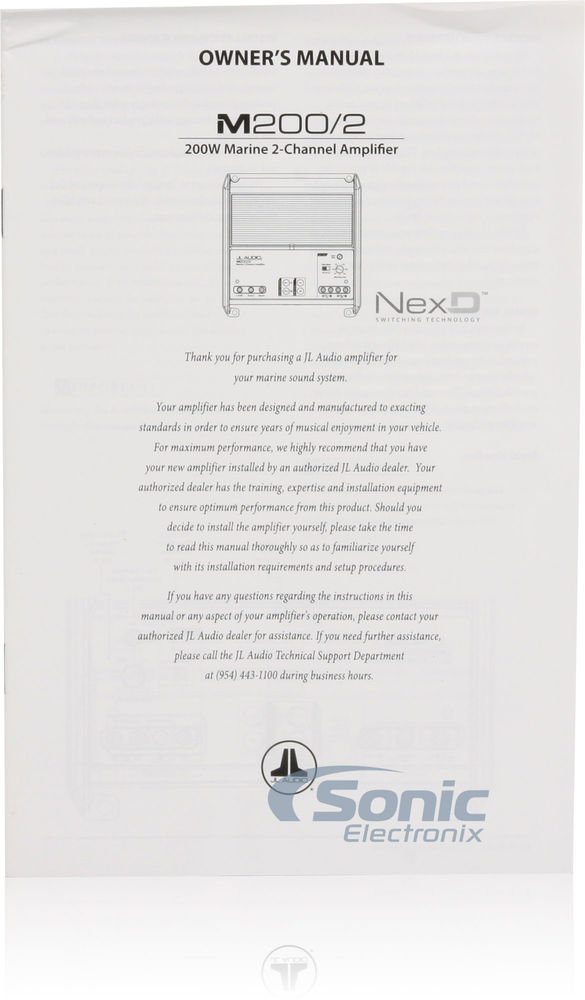

JL Audio M200/2 owner’s manual

Product history:

	JL Audio M200/2 (newest, current model)
	JL Audio Marine M2250 (previous model, replaced by JL Audio M200/2)

Specifications & Details

Key Features

Amplifier Key Features

Compact Design
Speaker Level Inputs
Weather-Resistant

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 2 channel

RMS Power @ 2 ohms

100 watts x 2 channel

Bridged RMS Power

200 watts x 1 channel

Amplifier Specifications

Series

M Series

Amplifier Class

Number of Channels

2-Channel

Total RMS Power Output

200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Frequency Response

12 - 22000 Hz

THD at Rated RMS Power

<1%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Signal-to-Noise Ratio

>104 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Fuse Rating

20A x 1

Total Fuse Rating

Strappable

Sonic Certified Amplifier

Yes

Amp Bluetooth Connectivity

Hi-Res Certified

Low-Level Input Sensitivity

100mV - 4 volts

What is in the box?

Paperwork

User manual
Warranty/Registration card

WITB: Amplifiers

Amplifier

Warranty and Return Policy

Parts Warranty Duration

2 years

Labor Warranty Duration

2 years

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		4.5
Features		4.5
Design		5
Usability		4.5

Customer Reviews

Sort by:

Great product

Nice small size, good quality sound output... huge step forward in class "D" design. I have this mounted in my Polaris RZR to power a pair of 6x9's in the overhead fiberglass box. It is often splashed by water, and the sealed design of the controls will be very beneficial.
I dropped one star in Features and Value, because the amp doesn't have a signal sensing auto turn-on. With ipod's becoming the norm for marine source applications, remote turn-on leads and ignition switches should not be counted on for this type of amplifier installation.

By Mike on November 16, 2014

26 found this helpful

Report abuse

Great Small Marine Amp

I mounted this between the front shock towers in an ATV. The only modification to the amp was sealing the inputs in silicone to keep connections clean and avoid shorting. It's not an ideal location for equipment but I'm very limited in install locations and really wanted to hide it. It's worked amazing. It pushes my custom 5.25" 4 ohm pods to their limit. The amp has held up to tremendous abuse going through water, mud and exposed to extreme temperatures and have seen no issues at all. I'd give it 10 stars for durability if I could. It's expensive but I had tried similar cheaper amps which didn't last and I knew JL makes a great product so I'm happy I finally spent the money.

By Scott on October 26, 2012

28 found this helpful

Report abuse
