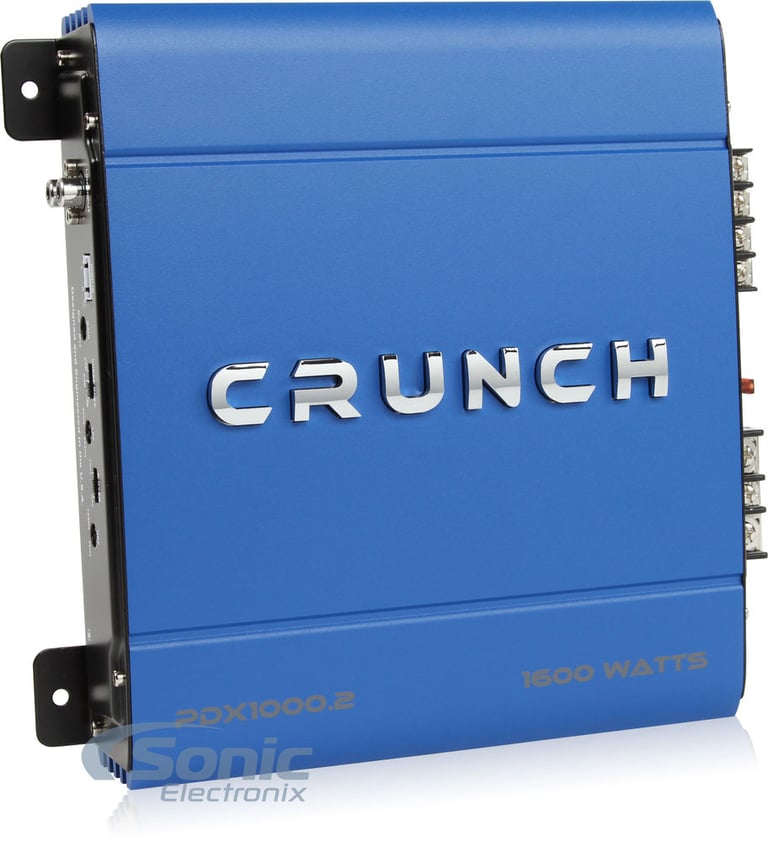

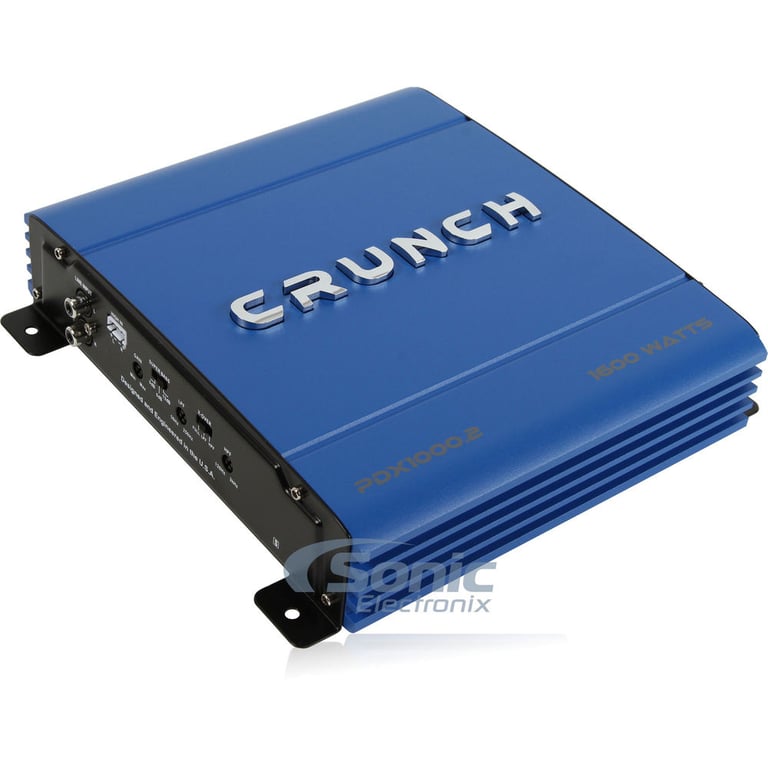

Crunch PDX-1000.2

1000W Max Bridgeable 2-Channel Class A/B PDX Series Car Amplifier

Crunch
Shop all Crunch
Product videos
highlight-star-icon

Power One Series 2-Channel Class A/B Car Amplifier • 1000W Max • 250W x 2-Chan @ 2 Ohm • SEPP Analog Amplifier • Selectable Bass Boost • Speaker-Level Inputs • Preamp RCA Outputs • 3-Way System Protection Circuitry

Learn more about the pdx10002

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Crunch CS653

600W Peak (120W RMS) 6.5" CS Series 3-Way Coaxial 4-ohm Car Speakers

21
-9.09%

$29.99

List price $32.99

Product Highlights


Power One Series 2-Channel Class A/B Car Amplifier • 1000W Max • 250W x 2-Chan @ 2 Ohm • SEPP Analog Amplifier • Selectable Bass Boost • Speaker-Level Inputs • Preamp RCA Outputs • 3-Way System Protection Circuitry

Description


Crunch brand icon

Authorized dealer

The Crunchdude

The PDX Series Amplifiers

Crunch's PDX Series Amplifiers come feature packed. With a low pass filter, high pass filter and bass boost you have plenty of options to control audio. The RCA and high level inputs give you some flexibility when connecting your audio system. The PDX Series also has 3-way protection circuitry to keep your amp safe from overheating, speaker overload and bad connections. The amps also reproduce a full frequency spectrum so you will hear your music in its entirety. The Crunch PDX Series are great replacement or starting amplfiers for your car audio system.

Crunch PDX Series Amplifer
Crunch PDX Series Amplifer





General Features:

  • PDX Series 2-Channel Class A/B Car Amplifier
  • MAX Power Rating (14.4V):
    • 4 ohm: 250 watts x 2 chan.
    • 2 ohm: 500 watts x 2 chan.
    • Bridged, 4 ohm: 1000 watts x 1 chan.
  • RMS Power Rating:
    • 4 ohm: 125 watts x 2 chan.
    • 2 ohm: 250 watts x 2 chan.
    • Bridged, 4 ohm: 500 watts x 1 chan.
  • SEPP (Single Ended Push-Pull) output technology
  • Pulse Width Modulated power supply
  • LED power (green) and protect (red) indicators
  • Slow un-mute soft start turn-on
  • 2/1 channel operation
  • Speaker-level inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity: 200mV-6V
  • Variable high-pass filter 120 - 3,000 Hz, 12 dB/octave
  • Variable low-pass filter 50 - 250 Hz, 12 dB/octave
  • Selectable Bass Boost: 0 / +6dB / +12 dB bass boost at 45 Hz
  • Damping factor: >180
  • Signal-to-nose ratio: >98dB
  • Frequency response: 20 - 20,000 Hz
  • Fuse rating: 40A x 1
  • Dimensions: 9-7/8"L x 9-7/8"W x 2-1/16"H
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
250 watts x 2 channel
Bridged RMS Power
500 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
250 watts x 2 channel
Peak Power @ 2 ohms
500 watts x 2 channel
Bridged Peak/Max Power
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
120 - 3,000 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
>98 dB
Bass Boost
Selectable: 0dB / 6dB / 12dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PDX-1000.2

Weight:

6.20lbs

Internal SKU:

pdx10002

Internal Product ID:

100193

Product and How-to Videos


  • Crunch PDX Series Car Audio Amplifiers | Product Overview
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Crunch PDX-1000.2 thumbnail image

5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.7
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Value!

I am very happy with this amp. I bridged it on one 10" Pioneer woofer and it is pounding!!! I would definitely recommend this product.

By D. Sachs on July 14, 2016

12 found this helpful


Perfect!

Gave this to my son for Christmas. He loves it,perfect amount of power! Neighbors seem excited about it as well.

By Jason on December 30, 2016

11 found this helpful


Good amp but not true watts

Good amp but not even close to the wattage it says it pushes. Fast shipping excellent communication. Free 2 day shipping!

By Darkinfossil on March 13, 2016

11 found this helpful


Great value

Perfect sound..i love it no noise in high pick..

By Henry on April 12, 2017

10 found this helpful


VERY SATISFIED

EASY TO HOOK UP AND AMAZING POWER PUSHES MY TENS AND GREAT BASS , KOOL COLOR.

By Bobby on March 23, 2017

10 found this helpful


Great Item

I would recommend this item for anyone that is just wanting a little boost in their system, priced right with quick delivery.

By Nilson on January 25, 2017

10 found this helpful


Great product. Great value

This is review of the sevond of two amps purchased for a project. Along with the other. The project worked so well that it is now mounted and working in a classic hot rod.
Plan to buy more!!

By ernest on January 4, 2017

10 found this helpful


Very good amp

If you want a good priced amp then this is the one. The only downside is there is no bass knob, but that isn't stopping me from thumping

By Graham on December 11, 2016

10 found this helpful


Great product

This is an awesome amp it's really powerful and it has all my speaker at top notch sounding quality I would recommend this amp to anyone looking to power anything in your car radio wise it's worth it and it's not expensive but one today and you won't regret it

By Dj on December 8, 2016

10 found this helpful


Great little amp!

Great addition to a factory radio, really brings out the bass.

By Papa on September 8, 2016 Checkmark Icon Verified purchase

10 found this helpful
