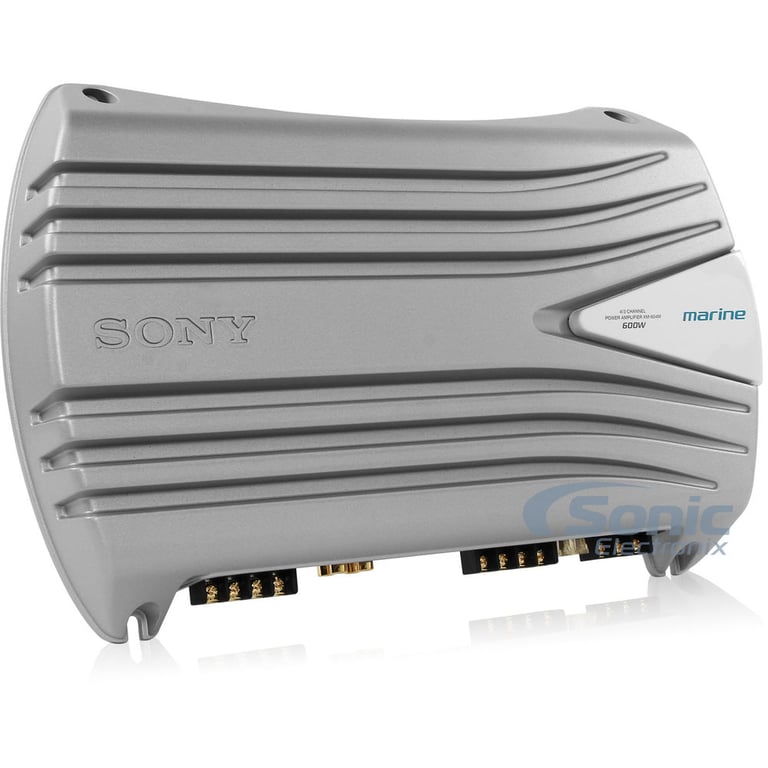

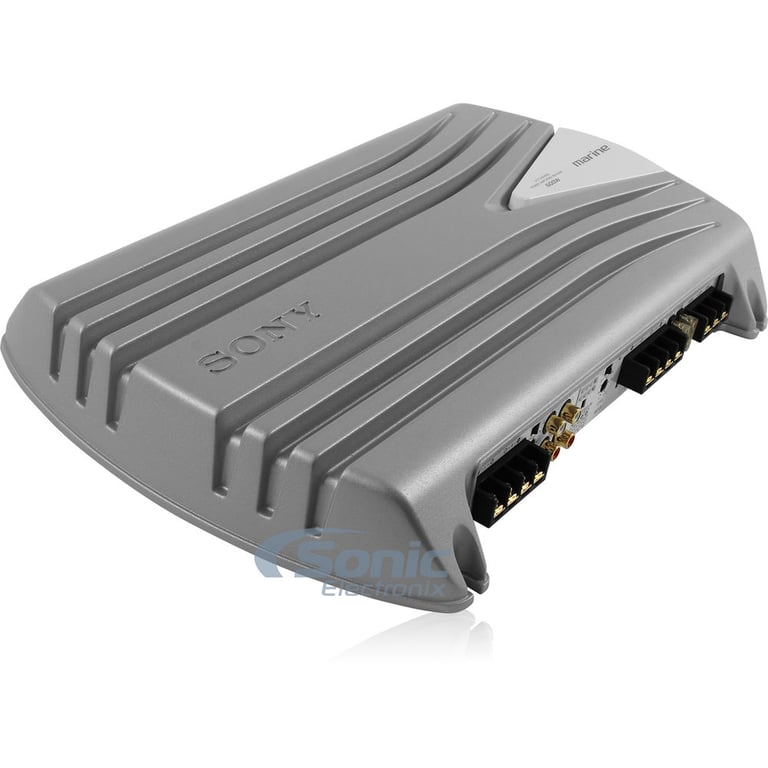

Sony XM-604M Limited Edition Amplifier

600W 4 Channel Class AB Car / Marine / PowerSports Ready Amplifier

Sony
Shop all Sony
EXCLUSIVE
highlight-star-icon

• 4 ohm: 60 watts x 4 chan.
• 2 ohm: 70 watts x 4 chan.
• Rear Channel Bridged, 4 ohm: 160 watts x 1 chan.
• CEA-2006 Compliant Amplifier
• OTL Output Transformerless Circuit Pulse Power Supply
• 4/3 or 2 channel operation
• Speaker-level (high-level) inputs
• Gold plated speaker and power terminals

Learn more about the xm604m

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Description


Sony brand icon

Authorized dealer

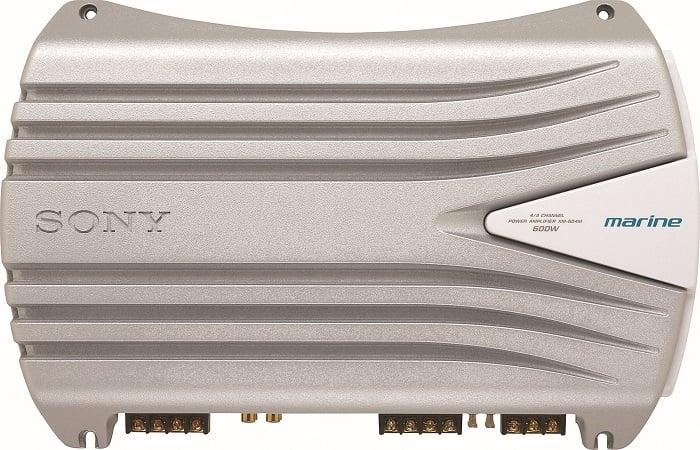

Sony XM-604M

Sony XM-604M

The XM-604M amplifiers afford incredible installation flexibility and packs quite a punch. ZR amplifiers offer tremendous value including convenience features such as: modern cosmetics, selectable cross-overs, multiple channel configurations and singe-side electrical connections to suit almost any application; such applications also include cars and other non-marine installs. Whether the XM-604M makes its home on a boat, in a trunk or side by side the amplifier will perform beyond expectations.


An Input for Any Application

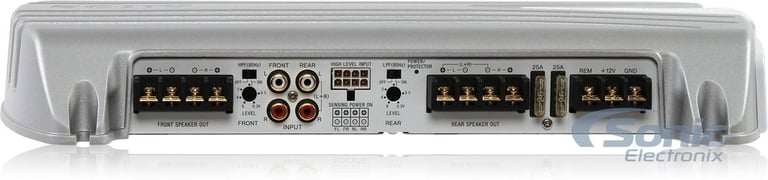

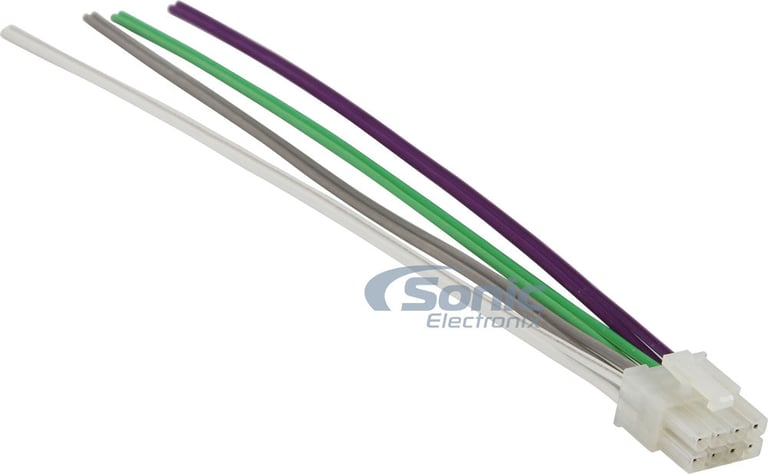

A direct connection (High-level Input) can be made with the speaker output of your receiver if the unit is not equipped with RCA line outputs. High Level Sensing power on feature allows the unit to be activated without the need for remote turn on connections. For headunits that do have RCA preouts, the Sony XM-604M provides traditional RCA inputs for the easiest, most convenient connection.

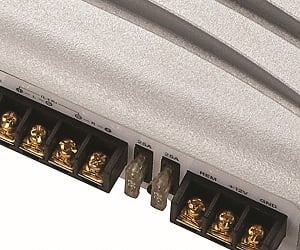

Extraordinary Linearity and Control

Perfect Signal Transfer


The Sony XM-604M features gold-plated Screws, Terminals and Connections. Gold is preferred because it does not oxidize and is very conductive. Moreover, because gold does not oxidize, it keeps its conductive properties for longer than other materials and does Not corrode over time. Its this conductive property that makes such a connection perfect for seamless audio transfer.




General Features

  • Marine 4-Channel AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 110 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 70 watts x 4 chan.
    • Rear Channel Bridged, 4 ohm: 160 watts x 1 chan.
      Front Channel Not Bridgeable
  • CEA-2006 Compliant Amplifier
  • OTL Output Transformerless Circuit Pulse Power Supply
  • Soft start turn-on
  • 4 or 3 channel operation
  • Speaker-level (high-level) inputs
  • Gold plated speaker and power terminals
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • High-density split-dome convection heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 300mV - 6V
    • High level: 2.8V - 12V
  • Frequency Response: 5 - 50,000 Hz
  • Total Harmonic Distortion (THD): >0.005%
  • Signal to Noise Ration: 97 dBa
  • Selectable Crossover
  • Low Pass Filter: 80 Hz, -12 dB/oct
  • High Pass Filter: 80 Hz, -12 dB/oct
  • Fuse Rating: 25 A x 2
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 10-1/2"W x 15-7/8"L x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

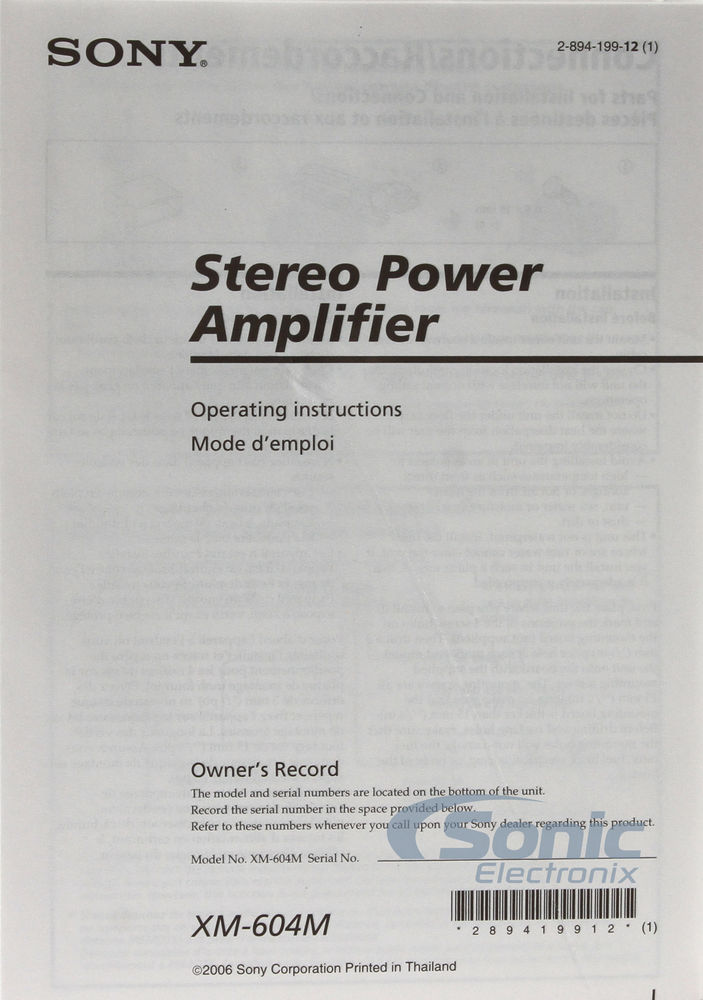

Check out the Sony XM-604M Owner's Manual

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
70 watts x 4 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
280 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Rear ONLY @4ohms
THD at Rated RMS Power
>0.005%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
80 Hz
Low-Pass Crossover Frequency
80 Hz
Signal-to-Noise Ratio
97 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XM-604M

Weight:

10.00lbs

Internal SKU:

xm604m

Internal Product ID:

10087
