Name: Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used)
Brand: Sony
SKU: ls-xm604m-obc6
Price: 115.99 USD
Availability: Discontinued

by Sony

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used) Image 1 — Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used)

Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used) Image 2 — Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used)

Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used) Image 3 — Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used)

Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used) Image 4 — Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used)

Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used) Image 5 — Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used)

Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used) Image 6 — Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used)

Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used) Image 7 — Sony XM-604M Limited Edition Amplifier Open Box, Very Good Condition (Used)

Product highlights

• 4 ohm: 60 watts x 4 chan.
• 2 ohm: 70 watts x 4 chan.
• Rear Channel Bridged, 4 ohm: 160 watts x 1 chan.
• CEA-2006 Compliant Amplifier
• OTL Output Transformerless Circuit Pulse Power Supply
• 4/3 or 2 channel operation
• Speaker-level (high-level) inputs
• Gold plated speaker and power terminals

Learn more about the ls-xm604m-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

General Features

Marine 4-Channel AB Car Amplifier
Max Power Rating:

4 ohm: 110 watts x 4 chan.
2 ohm: 150 watts x 4 chan.

RMS Power Rating:

4 ohm: 60 watts x 4 chan.
2 ohm: 70 watts x 4 chan.
Rear Channel Bridged, 4 ohm: 160 watts x 1 chan.
Front Channel Not Bridgeable

CEA-2006 Compliant Amplifier
OTL Output Transformerless Circuit Pulse Power Supply
Soft start turn-on
4 or 3 channel operation
Speaker-level (high-level) inputs
Gold plated speaker and power terminals
3-way protection circuitry (thermal, overload, and speaker short protection)
High-density split-dome convection heat-sink for extreme heat dissipation
Input sensitivity:

Low level: 300mV - 6V
High level: 2.8V - 12V

Frequency Response: 5 - 50,000 Hz
Total Harmonic Distortion (THD): >0.005%
Signal to Noise Ration: 97 dBa
Selectable Crossover
Low Pass Filter: 80 Hz, -12 dB/oct
High Pass Filter: 80 Hz, -12 dB/oct
Fuse Rating: 25 A x 2
4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 10-1/2"W x 15-7/8"L x 2-1/4"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

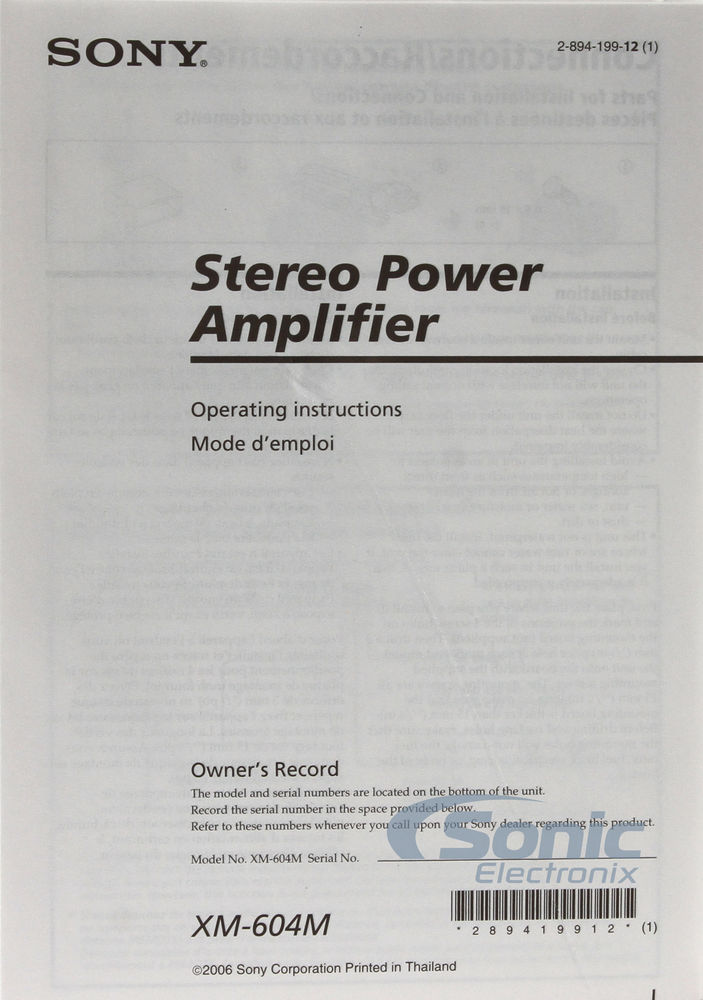

Check out the Sony XM-604M Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channel

RMS Power @ 2 ohms

70 watts x 4 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

600 watts

Total RMS Power Output

280 watts

Maximum Input Gauge Size

Any Gauge with use of Spade Terminal AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Rear ONLY @4ohms

THD at Rated RMS Power

>0.005%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

80 Hz

Low-Pass Crossover Frequency

80 Hz

Signal-to-Noise Ratio

97 dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
