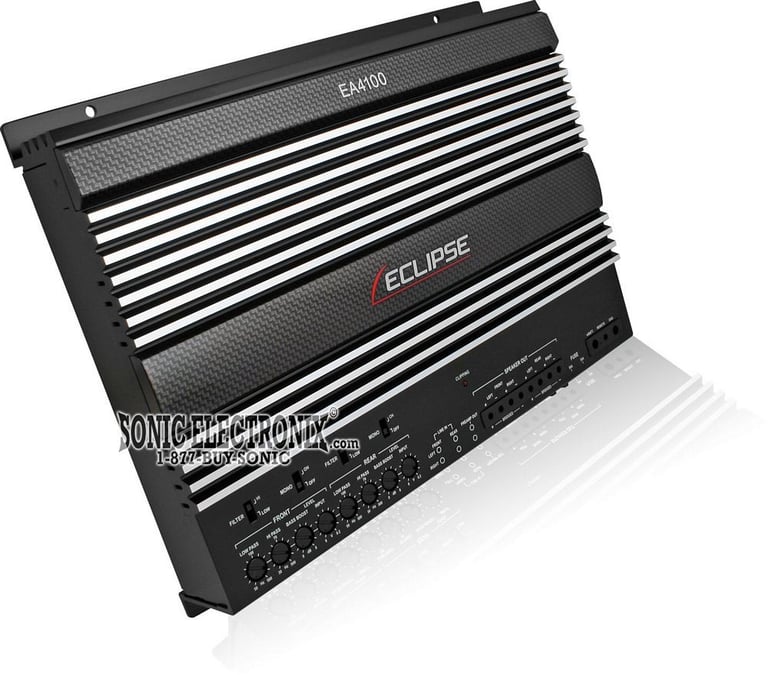

Eclipse EA4100

400W Max, 4-Channel Amplifier

Eclipse
Shop all Eclipse
Product videos
highlight-star-icon

EA Series 4-Channel Class AB Car Amplifier • 75W x 4 chan. @ 4 ohm • 150W x 2 chan. @ 4 ohm • 200W x 2 chan. Max • MOSFET power supply • 4/3/2 channel operation • Preamp RCA outputs

Learn more about the ea4100

We apologize

This item has been discontinued


Loading...
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Product Highlights


EA Series 4-Channel Class AB Car Amplifier • 75W x 4 chan. @ 4 ohm • 150W x 2 chan. @ 4 ohm • 200W x 2 chan. Max • MOSFET power supply • 4/3/2 channel operation • Preamp RCA outputs

Description


  • EA Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Max power output: 200 watts x 2 chan.
  • MOSFET power supply
  • LED power indicators
  • Tuned Bass EQ (0-8 dB bass boost)
  • The Integrated Amplifier Series offers outstanding sound quality with a distinctive appearance. Audiophile-grade power amplification is featured along with high current MOSFET switching power supplies that combine for dynamic performance with any speaker system
  • 4/3/2 channel operation
  • High current, high-efficiency MOSFET switching power supply delivers significant power when demanded

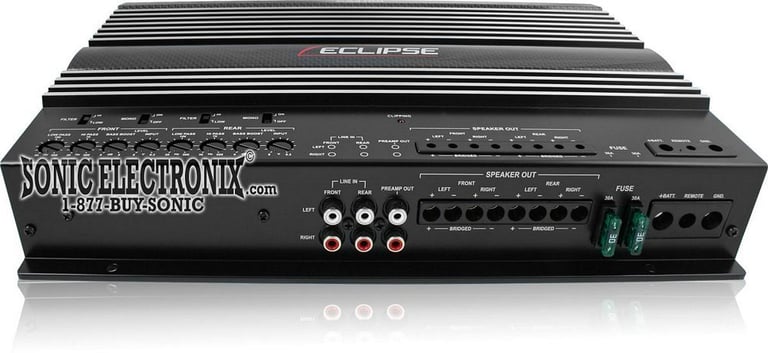

  • Preamp RCA outputs

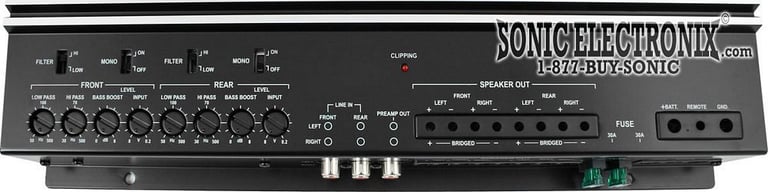

  • “Easy Tune” top-mounted controls for easily adjusting amplifier parameters even after installation
  • Sleek, low-profile appearance with laser-cut top plate allows installation virtually anywhere
  • Type of Heatsink (example: Heavy duty aluminum alloy heatsink or High-density split-dome convection heat sink for extreme heat dissipation)
  • Variable high-pass filter (30-500 Hz, 18 dB/octave)
  • Variable low-pass filter (50-500 Hz, 18 dB/octave)
  • Subsonic Filter ( 18 dB at 18 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Dimensions: 13-3/8" L x 10-3/16" W x 2-5/16" H
  • 1-year SonicElectronix.com warranty

Product history:

Eclipse EA4100 thumbnail
(newest, current model)
Eclipse EA4000 thumbnail
(previous model, replaced by Eclipse EA4100)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
300 watts
Minimum Impedance Unbridged
4 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
30 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
18 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 8 dB

Item Details


Manufacturer:

Model Number:

EA4100

Weight:

12.00lbs

Internal SKU:

ea4100

Internal Product ID:

9486
