Name: Infinity Reference 5350a Open Box
Brand: Infinity
SKU: LS-5350a-OB
Price: 179.99 USD
Availability: Discontinued

by Infinity

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

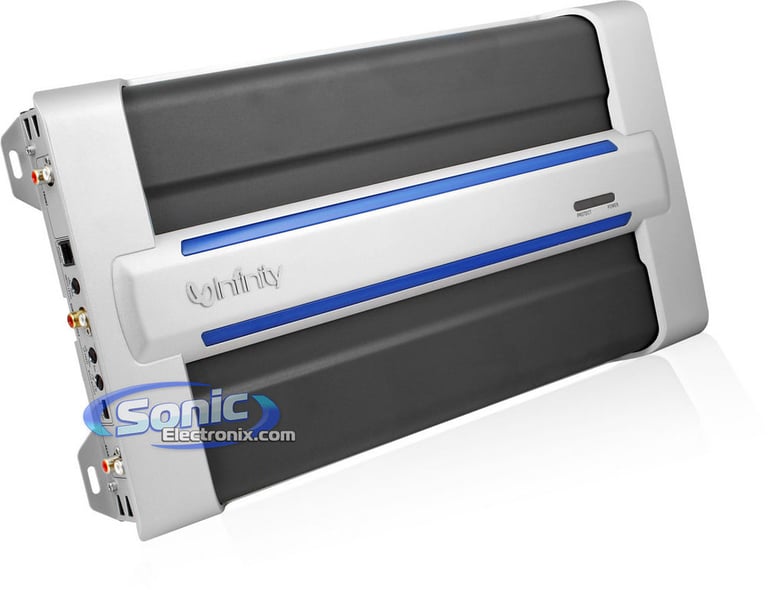

Infinity Reference 5350a Open Box Image 1 — Infinity Reference 5350a Open Box

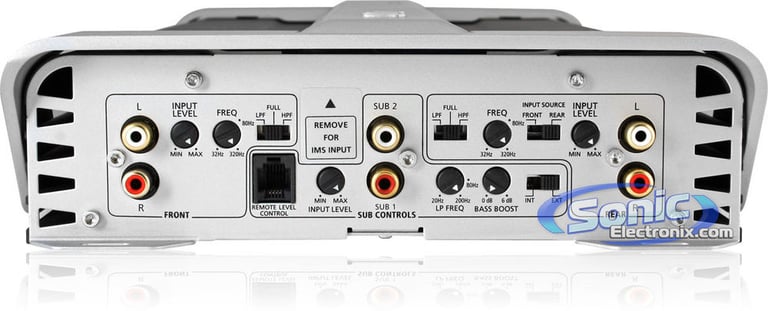

Infinity Reference 5350a Open Box Image 2 — Infinity Reference 5350a Open Box

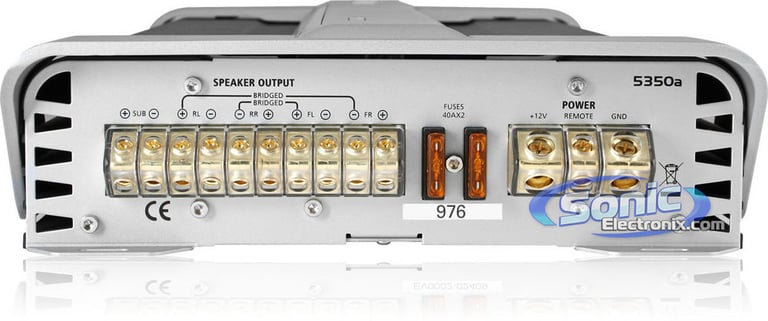

Infinity Reference 5350a Open Box Image 3 — Infinity Reference 5350a Open Box

Infinity Reference 5350a Open Box Image 4 — Infinity Reference 5350a Open Box

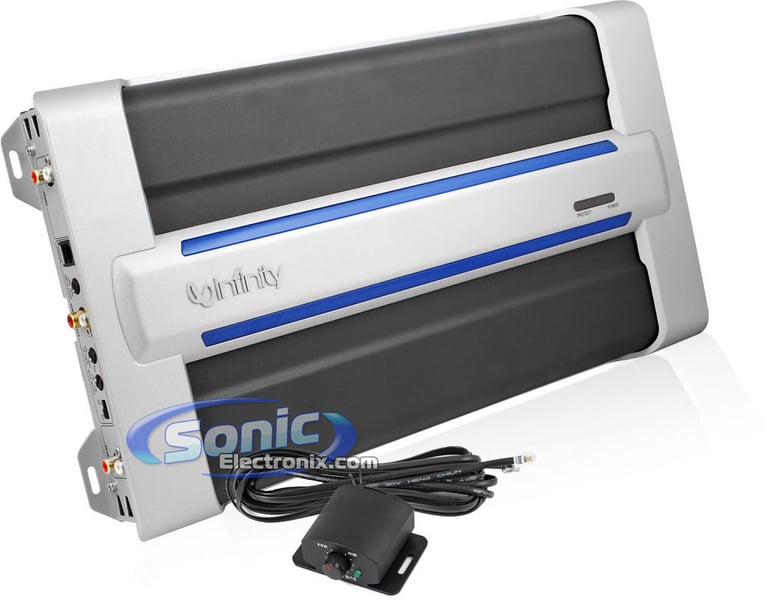

Infinity Reference 5350a Open Box Image 5 — Infinity Reference 5350a Open Box

Infinity Reference 5350a Open Box Image 6 — Infinity Reference 5350a Open Box

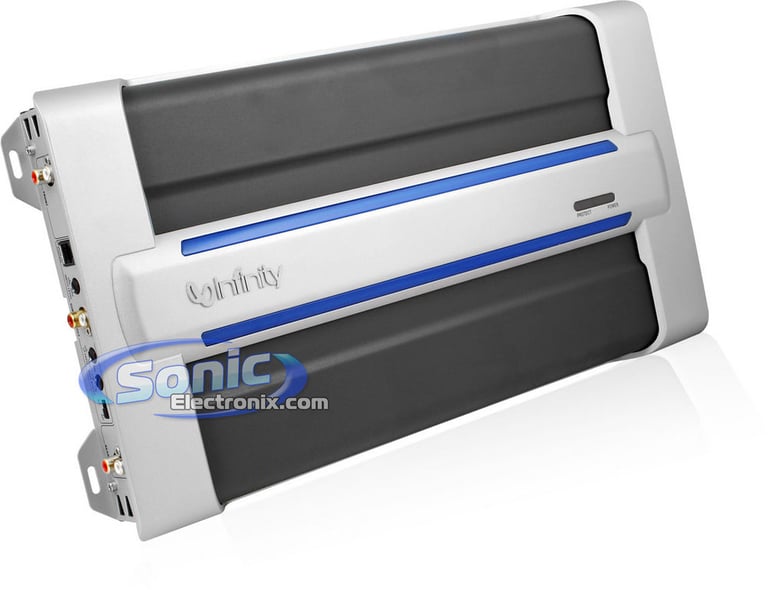

Infinity Reference 5350a Open Box Image 7 — Infinity Reference 5350a Open Box

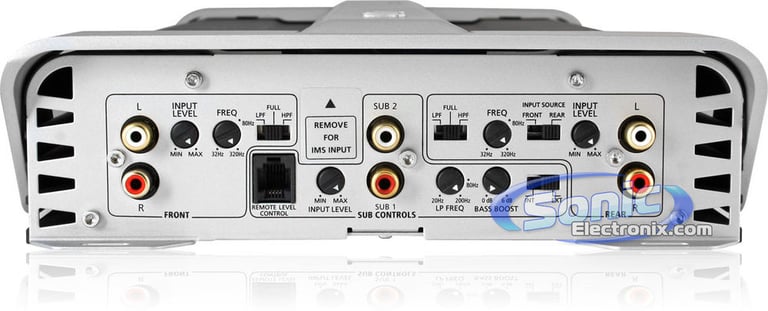

Infinity Reference 5350a Open Box Image 8 — Infinity Reference 5350a Open Box

Infinity Reference 5350a Open Box Image 9 — Infinity Reference 5350a Open Box

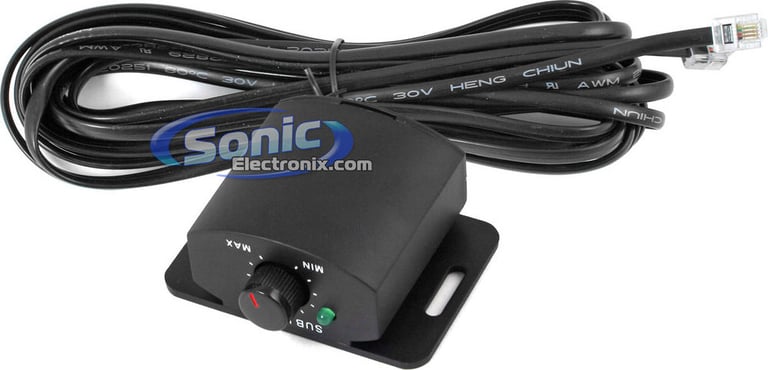

Infinity Reference 5350a Open Box Image 10 — Infinity Reference 5350a Open Box

Product videos

Product highlights

Reference Series Class AB 5-Channel Amplifier • 50W x 4 chan. + 150 watts x 1 chan. @ 4 ohm • 60W x 4 chan. + 300 watts x 1 chan. @ 2 ohm • 89W x 4 chan. Max + 444W x 1 sub chan. • MOSFET power supply • Gold-plated preamp RCA outputs

Learn more about the LS-5350a-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Reference Series Class AB 5-Channel Amplifier
RMS Power Rating:

4 ohm: 50 watts x 4 chan. + 150 watts x 1 chan.
2 ohm: 60 watts x 4 chan. + 300 watts x 1 chan.
Bridged, 4 ohm: 120 watts x 2 chan. (for the 4 channels) + 300 watts x 1 chan.

Max power output: 89 watts x 4 chan. + 444 watts x 1 chan. (approx. for sub channel)
MOSFET power supply
LED power and protection indicators
Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
DC, overheat, over or under voltage, and short circuit amplifier protection
Gold-plated RCA level inputs
Variable high-pass filter (32-320 Hz, 12 dB/octave)
Variable low-pass filter (32-320 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-20000 Hz
Efficiency: 85 dB
Dimensions: 9"L x 16-9/16"W x 2-11/16"H
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

60 watts x 4 channel

Bridged RMS Power

120 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

150 watts x 1 channel

RMS Power @ 2 ohms

300 watts x 1 channel

Amplifier Specifications

Amplifier Class

AB / D

Number of Channels

5-Channel

Total Peak Power Output

800 watts

Total RMS Power Output

540 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

32 - 320 Hz

Low-Pass Crossover Frequency

32 - 320 Hz

Signal-to-Noise Ratio

85 dB

Bass Boost

0 - 6 dB

Remote bass/level controller

Fuse Rating

40A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
