Name: Pioneer GM-7100M R/B
Brand: Pioneer
SKU: LS-gm7100m-RB
Price: 64.99 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all Pioneer

by Pioneer

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

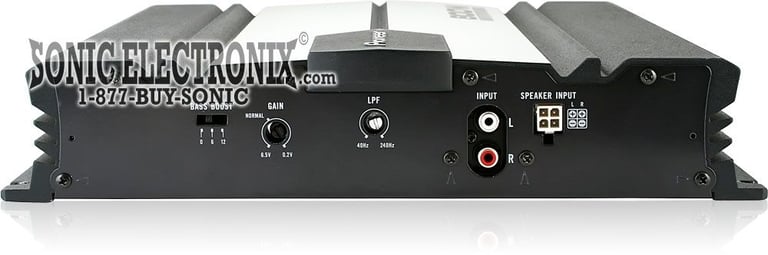

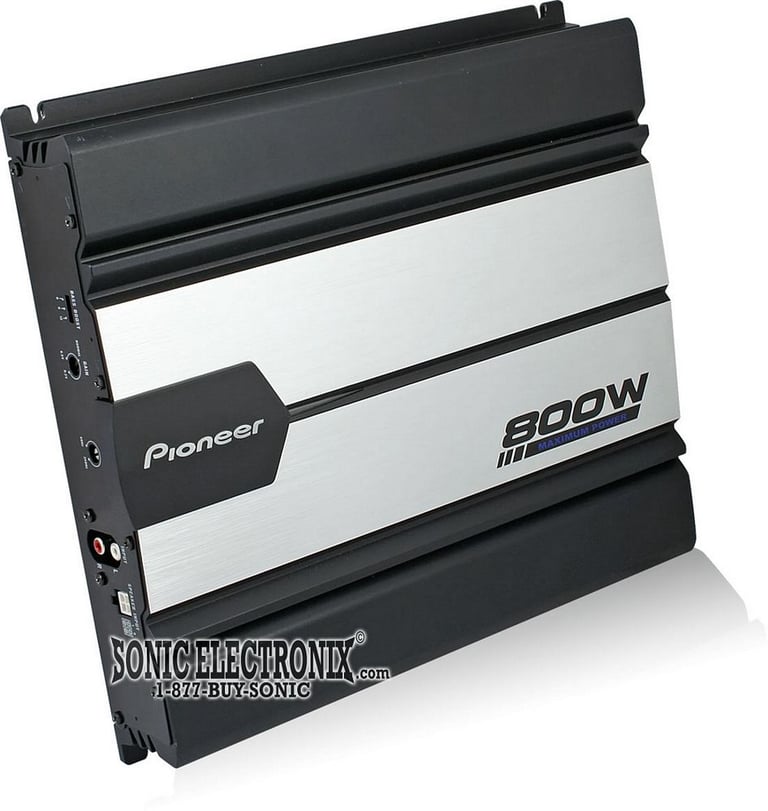

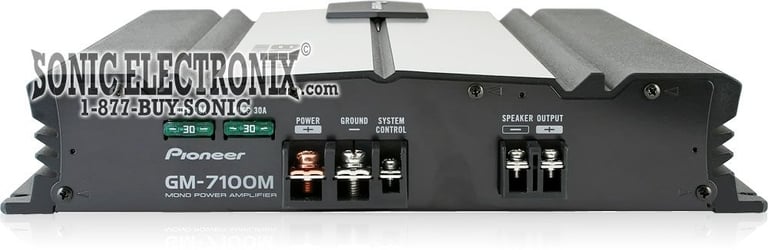

Pioneer GM-7100M R/B Image 1 — Pioneer GM-7100M R/B

Pioneer GM-7100M R/B Image 2 — Pioneer GM-7100M R/B

Pioneer GM-7100M R/B Image 3 — Pioneer GM-7100M R/B

Pioneer GM-7100M R/B Image 4 — Pioneer GM-7100M R/B

Product videos

Product highlights

GM Series Class AB Monoblock Car Amplifier • 250W x 1 chan. @ 4 ohm • 360W x 1 chan. @ 2 ohm • 800W x 1 chan. Max • PWM Regulated MOSFET Power Supply • Selectable Bass EQ (0, 6, or 12 dB bass boost at 50 Hz)

Learn more about the LS-gm7100m-RB

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

GM Series Class AB Monoblock Car Amplifier
RMS Power Rating:

4 ohm: 250 watts x 1 chan.
2 ohm: 360 watts x 1 chan.

Max power output: 800 watts x 1 chan.
PWM Regulated MOSFET Power Supply
LED power indicators
Selectable Bass EQ (0, 6, or 12 dB bass boost at 50 Hz)
Balanced Isolator Input Circuit
Speaker-level inputs
Heavy duty aluminum alloy heatsink
RCA level inputs
Variable low-pass filter (40-240 Hz, 24 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 10-240 Hz
Dimensions: 12"L x 12-3/4"W x 2-3/8"H
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
90 days Manufacturer's Repair warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

250 watts x 1 channel

RMS Power @ 2 ohms

360 watts x 1 channel

RMS Power @ 1 ohm

Not Stable

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

1 - Mono

Total Peak Power Output

800 watts

Total RMS Power Output

360 watts

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.008%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 240 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

Selectable 0, 6, 12 dB

Remote bass/level controller

Fuse Rating

30A x 2

Customer Ratings & Reviews

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		5
Design		5
Usability		5

Customer Reviews

Sort by:

pioneer gm-7100

This amp can do more than its rated power i'm running 1 old school rockford fosgate 10" DVC 4ohm with dual voice coil logo on dust cap and a 10" walmart kicker single voice coil in a dual sledge hammer ported box firing up in my 2000 s10 extreme extended cab so i'm runn @ 1.5 ohm and it pounds you and shakes you at 145db so i'm looking to buy 10 of these series amps.

By oldschoolaudiolovr.00XtremeX00 on October 21, 2012

7 found this helpful

Report abuse
