Name: JL Audio Slash v2 300/4v2 R/B
Brand: JL Audio
SKU: LS-3004v2-RB
Price: 299.95 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

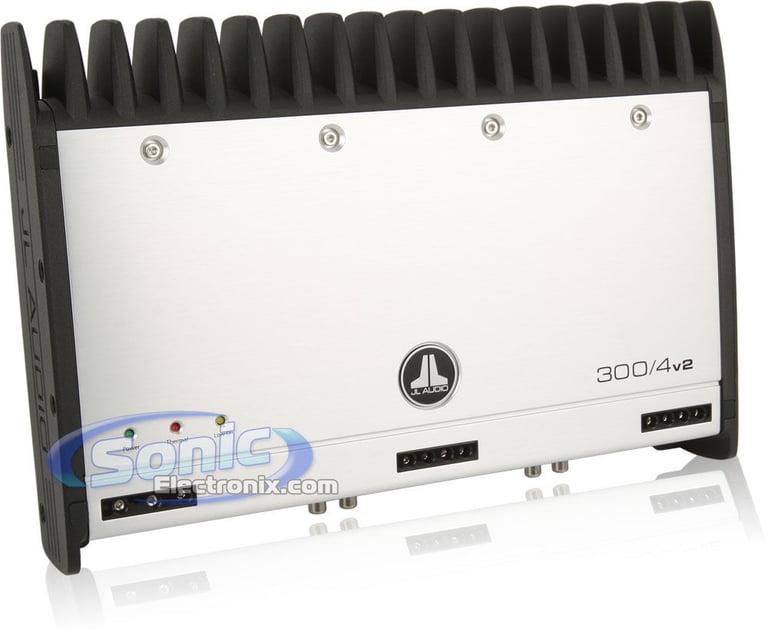

JL Audio Slash v2 300/4v2 R/B Image 1 — JL Audio Slash v2 300/4v2 R/B

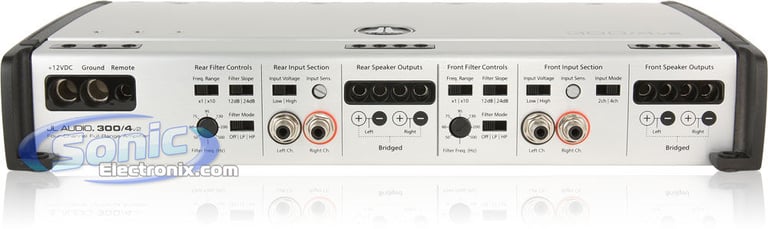

JL Audio Slash v2 300/4v2 R/B Image 2 — JL Audio Slash v2 300/4v2 R/B

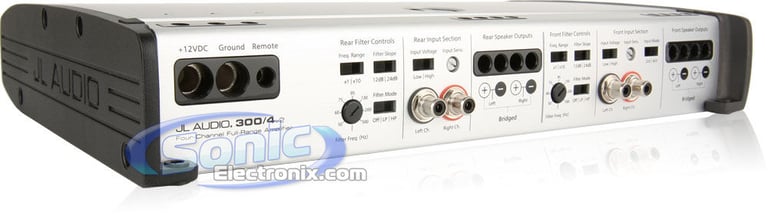

JL Audio Slash v2 300/4v2 R/B Image 3 — JL Audio Slash v2 300/4v2 R/B

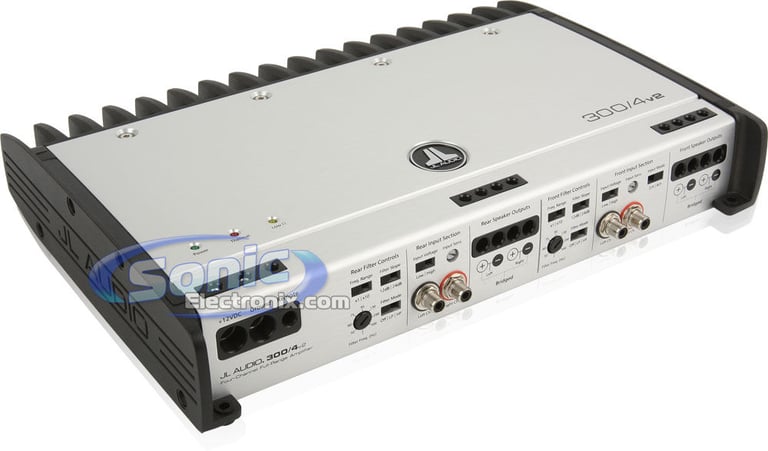

JL Audio Slash v2 300/4v2 R/B Image 4 — JL Audio Slash v2 300/4v2 R/B

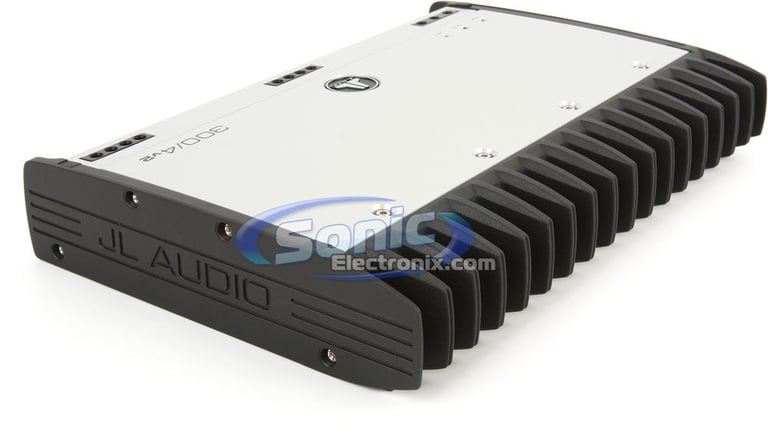

JL Audio Slash v2 300/4v2 R/B Image 5 — JL Audio Slash v2 300/4v2 R/B

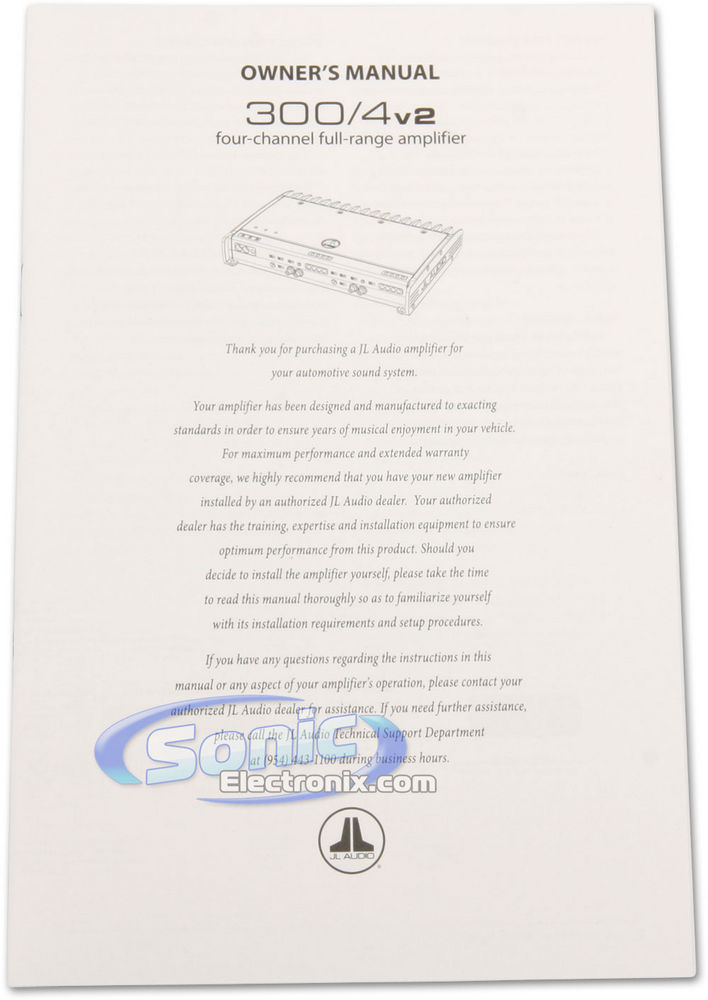

JL Audio Slash v2 300/4v2 R/B Image 6 — JL Audio Slash v2 300/4v2 R/B

JL Audio Slash v2 300/4v2 R/B Image 7 — JL Audio Slash v2 300/4v2 R/B

Product videos

Product highlights

Slash v2 Series 4-Channel Class AB Car Amplifier • 75W x 4 chan. @ 4 ohm • MOSFET power supply • Differential-balanced with RCA jack inputs • Preamp RCA outputs

Learn more about the LS-3004v2-RB

Product Highlights

Slash v2 Series 4-Channel Class AB Car Amplifier • 75W x 4 chan. @ 4 ohm • MOSFET power supply • Differential-balanced with RCA jack inputs • Preamp RCA outputs

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

JL Audio Slash v2 Amplifiers
The original Slash amplifiers set new performance standards for automotive amplification and became the best-selling premium mobile amplifiers in history. The new Slash v2 amplifiers build on this legendary technology platform, enhancing it in a variety of key areas, like radically improved thermal performance, a beautiful new stackable chassis design and dozens of tweaks aimed at improving performance, flexibility and reliability. There is no magic and no guesswork here... just pure technology, refined to the last detail.

The R.I.P.S. System
R.I.P.S. stands for "Regulated, Intelligent Power Supply" and is a central feature of JL Audio's Slash v2 amplifiers. The remarkable R.I.P.S. System™ ensures consistent power delivery over a wide range of battery voltages and load impedance's.
"Regulated" means that the power supply adjusts its operation so as to maintain the amplifier's rated power output and low distortion operation over a wide range of vehicle voltages.
The "Intelligent" portion of the R.I.P.S. System is a circuit that actually monitors output current to optimize the amplifier's output power over a wide range of load impedances (1.5 ohm to 4 ohm per channel).

Product Specifications:

Slash v2 Series 4-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 75 watts x 4 chan.
Bridged, 3 ohm: 150 watts x 2 chan.

Dual N-Channel MOSFET power supply
LED power indicators
Absolute Symmetry™ Class A/B Circuit
Differential-balanced with RCA jack inputs
H-Bridge amplifier topology
Pulse width modulation-regulated switching power supply
2/1 operation
Output Polarity Reversal Switch permits instant output polarity reversal
Selectable as pass through, tracking LP or tracking HP Preamp RCA outputs
Variable high-pass filter (50-200 Hz, selectable 12 or 24 dB/octave)
Variable low-pass filter (50-200 Hz, selectable 12 or 24 dB/octave)
Subsonic Filter (24 dB at 15 Hz)
Frequency response: 5-30000 Hz
Dimensions: 13.4"L x 9.25"W x 2.36"H
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
90 Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

RMS Power @ 1 ohm

75 watts x 4 channels at 1.5 ohms

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

300 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Signal-to-Noise Ratio

109 dB

Channel Separation

75 dB

Remote bass/level controller

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
