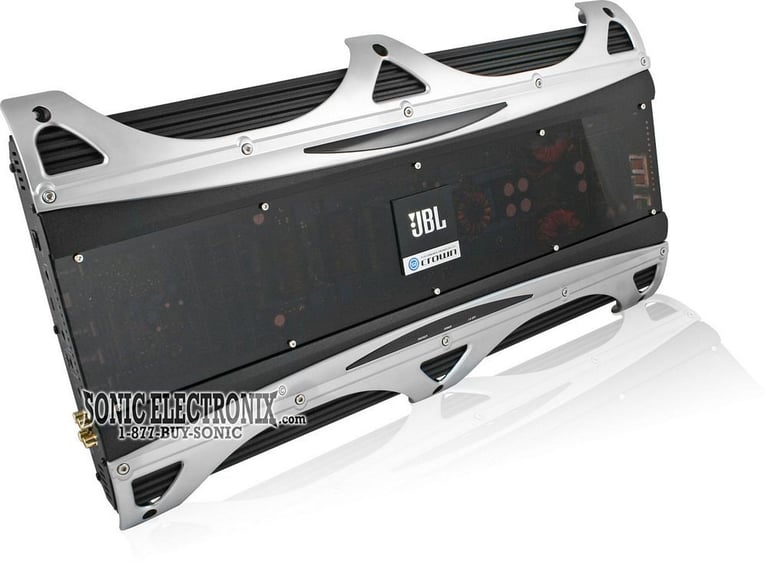

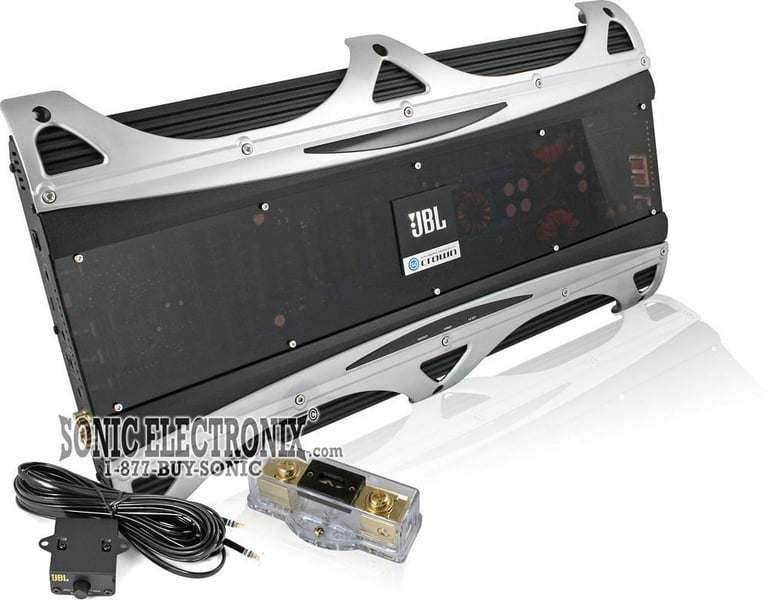

JBL BPX2200.1

Power Series 2-Channel Class D Amplifier

JBL
Shop all JBL
Product videos
highlight-star-icon

Power Series 2-Channel Class D Car Amplifier • 2450W x 1 chan. @ 4 ohm • 450W x 2 chan. @ 4 ohm • 1810W x 1 chan. @ 1 ohm • Max power output: 2940 watts x 1 chan. • Dynamic Bass Optimization • Two channels can also be connected in parallel

Learn more about the bpx22001

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

H410 main

Cerwin-Vega H410

420W Peak (140W RMS) 4x10" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$99.99

List price $119.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

Product Highlights


Power Series 2-Channel Class D Car Amplifier • 2450W x 1 chan. @ 4 ohm • 450W x 2 chan. @ 4 ohm • 1810W x 1 chan. @ 1 ohm • Max power output: 2940 watts x 1 chan. • Dynamic Bass Optimization • Two channels can also be connected in parallel

Description


JBL brand icon

Authorized dealer

  • Power Series 2-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 2450 watts x 1 chan.
    • 4 ohm: 650 watts x 2 chan.
    • 1 ohm: 1810 watts x 1 chan.
  • Max power output: 2940 watts x 1 chan.

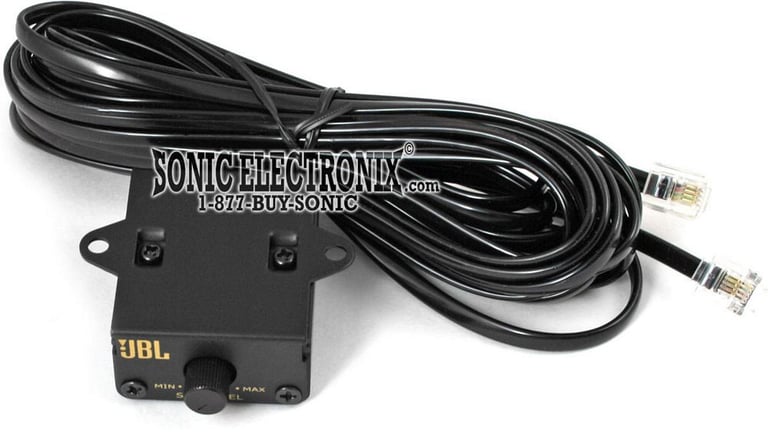

  • Remote bass level input (remote level control sold separately)
  • LED operation mode, power, and protection indicators
  • Dynamic Bass Optimization (DBO) - This provides variable filtering with adjustable "Q" below 100Hz, far beyond conventional "Bass Q" circuits, by allowing the low-frequency output to be optimized for specific subwoofer applications.
  • Two channels can also be connected in parallel - that's right, parallel - to provide double the current of single channel into impedance below 2 ohm
  • Preamp RCA outputs
  • DC, short circuit, overheat, and overload protection circuitry
  • Heavy duty aluminum alloy heatsink
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter (32-320 Hz, with selectable 12/24 dB/octave)
  • Variable low-pass filter (32-320 Hz, with selectable 12/24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 22-302 Hz
  • Dimensions: 21"L x 12-1/4"W x 2-9/16"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
2450 watts x 1 channel
RMS Power @ 2 ohms
Not Specified
RMS Power @ 1 ohm
1810 watts x 1 channel
Bridged RMS Power
650 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
2940 watts
Total RMS Power Output
2450 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
67 dB
Bass Boost
Not Specified but labeled as Min - Max
Remote bass/level controller
Yes
Fuse Rating
190A x 1

Item Details


Manufacturer:

JBL

Model Number:

BPX2200.1

Weight:

22.00lbs

Internal SKU:

bpx22001

Internal Product ID:

10483

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


JBL BPX2200.1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

loving the crown feel.

this amp is with out a doubt the greatest amp i have owned, the bass is very clear, and it drives my sub perfectly, with good electrical you can get more out of it than it says on paper, the mix of crown and jbl goes perfectly i highly recommend this sub for any kind of car-audiophiles.

By askur on June 22, 2015

8 found this helpful


Amazingly loud

This amp has so much power. I only have one type r but soon will have four.

By ivan on November 8, 2014

5 found this helpful
